ZEISS Axiocam Family
In contrast to digital cameras for photography or industrial inspection, many aspects of the microscope cameras are optimized to meet specific requirements of applications in science, research and documentation. As each application has very specific requirements, there is a wide range of different digital camera models to choose from. Different pixel sizes, for example, regulate camera sensitivity and spatial resolution. Lower pixel count enables higher frame rates and larger sensors offer better coverage of the field of view.
ZEISS Axiocam 305 color (426560-9031-000)
Your Fast 5 Megapixel Microscope Camera for Routine and Research Labs
Axiocam 305 color is your 5 megapixel camera for high resolution imaging at fast speeds. With state-of-the-art CMOS global shutter technology, you can follow and capture samples distortion-free and with great accuracy. Thanks to this highly sensitive sensor technology and precise camera engineering, your Axiocam 305 color allows the capture of quality color images for a wide range of applications. Acquire great color images with crisp contrast or use the optional black & white mode to document basic fluorescence. With this fast camera offering up to 36 frames per second at full resolution, achieve efficient searching, fast focusing and ergonomic handling at your digital microscope workplace. Cover more of your area of interest with its 2/3″ sensor format and produce great color images on your compound, stereo, or zoom microscope. Though a simple and fast USB 3.0 connection, control the camera and experience robust performance with easy to use ZEN imaging software and its intuitive user interface.
- Microscopy camera incl. driver software 64-bit
- USB 3.0 PCIe x1 interface
- USB 3.0 cable 3 m and IR blocking filters Hoya C5000 (coated)
- Number of pixels: 2464 (H) x 2056 (V) = 5.07 megapixels colour
- Sensor type: SONY IMX264 Exmor Pregius Global Shutter CMOS
- Pixel size: 3.45 μm x 3.45 μm Chip size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm)

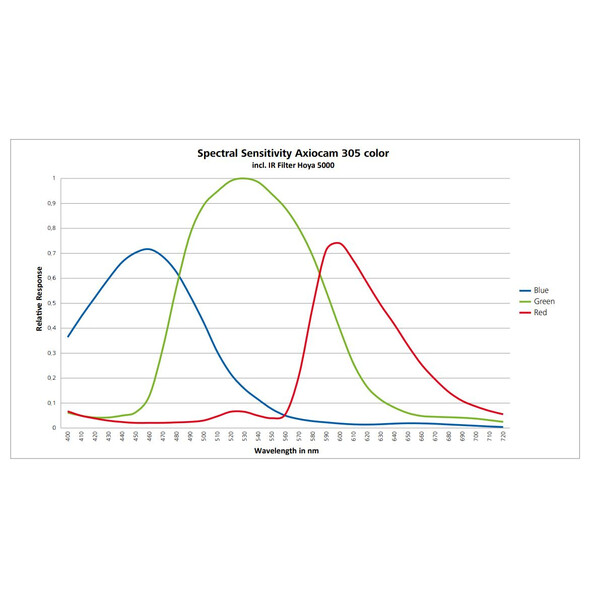

- Spectral sensitivity: With IR blocking filters approx. 400 nm to 720 nm
- Max. charge quantity per pixel: approx. 10,500 e Full Well Capacity
- Selectable resolution: H x V binning factor 2464 x 2056
- Live frame rates (depending on hardware and software configuration) H x V Frame rate@1ms 2464 x 2056 36 fps 1232 x 1028 88 fps (2x2 subsampling)
- Frame rates for time series recordings (depending on hardware and software configuration): H x V(ROI) Frame rate 2464 x 2056 36 fps 2048 x 2048 36 fps 1920 x 1080 67 fps 1024 x 1024 70 fps 512 x 512 136 fps 256 x 256 255 fps 128 x 128 456 fps
- Readout of sensor areas ("ROI"): Freely definable Digitisation: 8 and 12 bits / Pixel
- Dynamic range: Typically > 4800 : 1 (>73 dB) at typical 2.2 e readout noise Dark current: <(><<)> 1.0 e/p/s @ 25°C
- Integration time: 0.1 ms to 4 s
- Cooling: Temperature stable at 25°C for ambient temperatures from 18°C to 30°C
- Status LED camera: colour-coded display for operating status, dimmable Interface: USB 3.0 (optional operation on USB 2.0 possible with reduced frame rate)
- Optical interface: C-mount
- Penetration depth for lenses: Max. 5 mm
- Size/weight: approx. 10.8 cm x 7.8 cm x 4.3 cm / 580 g

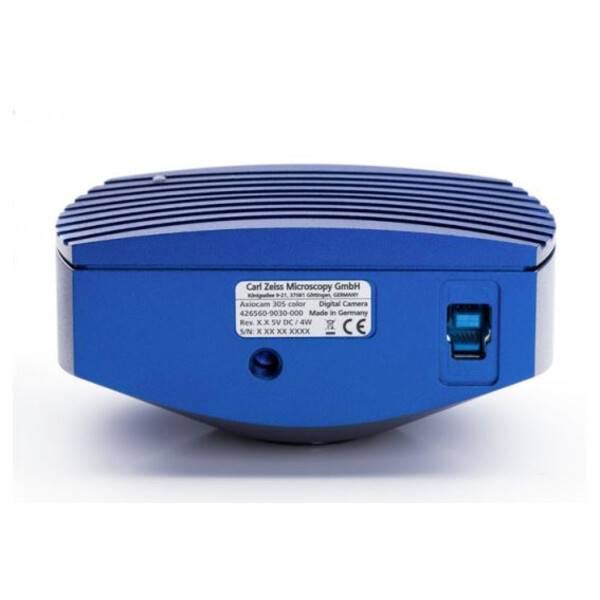

- Housing: Blue anodised aluminium with cooling fins on the top of the housing, 1/4" photo thread connection
- Approvals: CE Power supply via PC: Max. 4W, USB 3.0 cable for camera electronics
- Ambient conditions: +5° … +35° Celsius, max. 80% relative humidity, non-condensing, free air circulation required
- Supported operating systems: for ZEN: Windows 10 x64 Supported application software: ZEN 3.6 (blue edition, Hotfix 3.6.6) or higher, ZEN core 3.5 (Hotfix 3.5.4) or higher The necessary application software is available free of charge from the ZEISS Download Centre.
Scope of delivery:
Camera, USB 3.0 cable, power adapter
