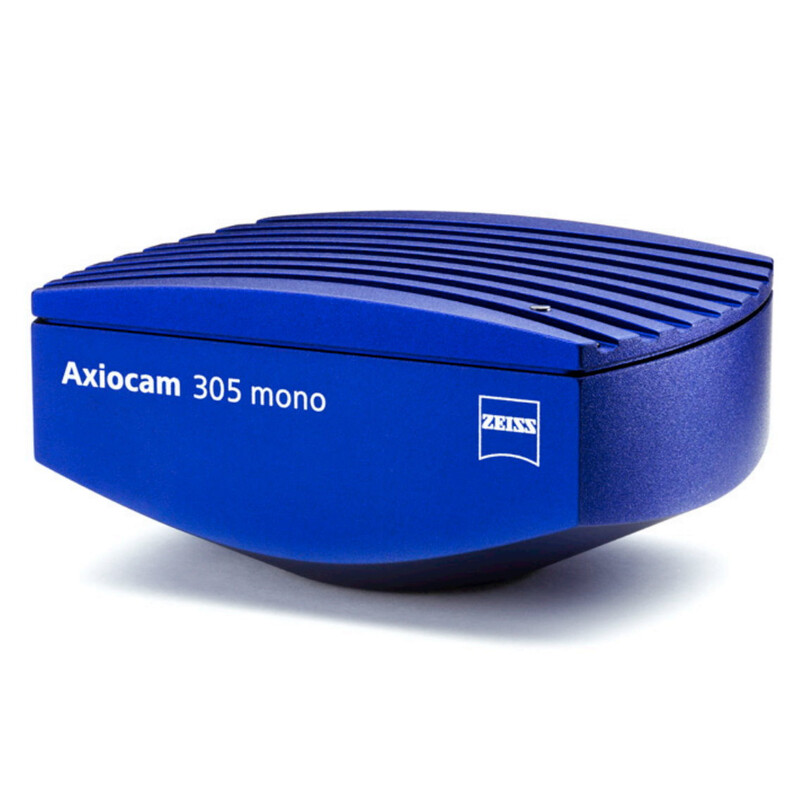

ZEISS Axiocam 305 mono (426560-9040-000)
Your Fast 5 Megapixel Microscope Camera for Routine Fluorescence Applications
Axiocam 305 mono your 5 megapixel camera from ZEISS for fluorescence imaging for your routine lab and enables a range of applications for live cell observation. The state-of-the-art CMOS Global Shutter technology lets you follow and capture samples accurately. Thanks to its high dynamic range, you can acquire single images with high contrasts and intensities. A dark homogenous background helps you see even the finest structural details. And it’s a really fast camera, acquiring up to 36 frames per second at full 5 megapixel resolution.
Highly sensitive sensor technology and sophisticated camera engineering means your Axiocam 305 mono will deliver reproducible results every time. The sensor is temperature-stabilized, resulting in reproducible quality and reduced background noise. Easy to use ZEN imaging software fully supports the robust camera performance by an intuitive user interface through a simple and fast USB 3.0 connection.
- Microscopy camera incl. driver software 64-bit, USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and BK7 protective glass (coated)
- Number of pixels: 2464 (H) x 2056 (V) = 5.07 megapixels
- Sensor type: SONY IMX264 Exmor Pregius Global Shutter CMOS
- Pixel size: 3.45 µm x 3.45 µm Sensor size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm)

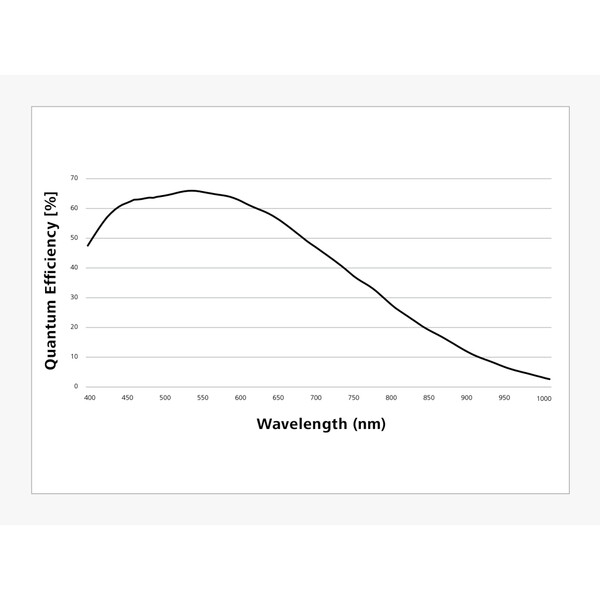

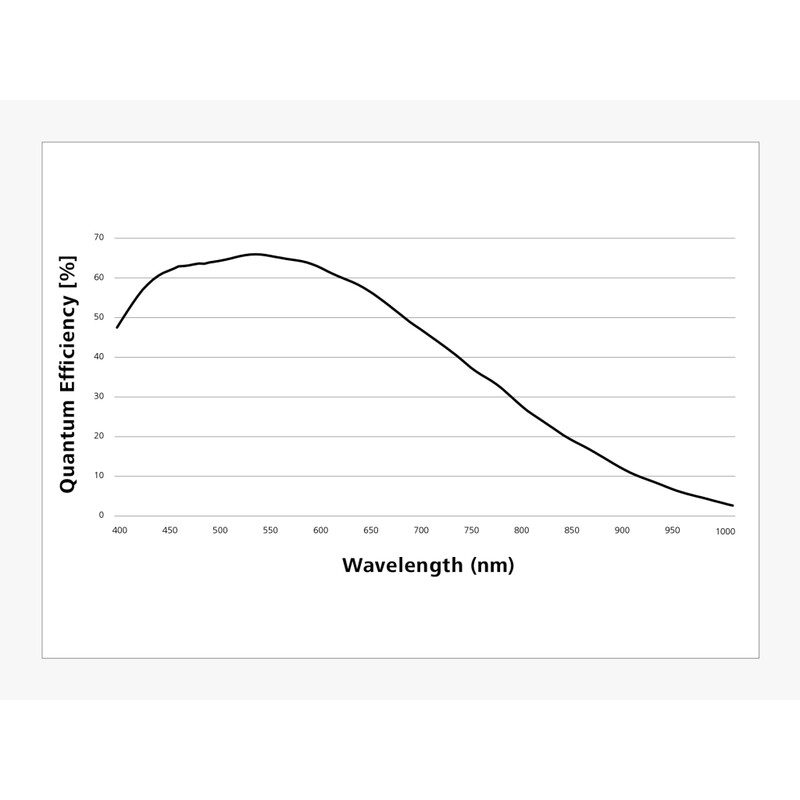

- Spectral range: approx. 350 nm to approx. 1000 nm
- Max. charge quantity per pixel: approx. 10,500 e (full well capacity)
- Live frame rates (depending on hardware and software configuration) H x V Frame rate at 1 ms exposure time 2464 x 2056 36 fps 1232 x 1028 88 fps (2x2 subsampling)
- Frame rates for time series recordings (depending on hardware and software configuration) H x V (ROI) Frame rate 2464 x 2056 36 fps 2048 x 2048 36 fps 1920 x 1080 67 fps 1024 x 1024 70 fps 512 x 512 136 fps 256 x 256 255 fps 128 x 128 456 fps
- Readout of sensor sub-areas ("ROI" = region of interest): freely adjustable
- Digitisation: 8 or 12 bits / Pixel
- Dynamic range: Typically > 4800 : 1 (>73 dB) at typ. 2.2 e Readout noise Dark current: <(><<)> 1.0 e/p/s @ 25°C
- Exposure time: 0.1 ms to 4 s
- Cooling: Temperature stabilisation at 25°C at ambient temperatures from 18°C to 30°C
- Status LED for camera: colour-coded display, dimmable, interface (camera port): USB 3.0 interface
- Operation via USB 2.0 connection at reduced frame rates
- Optical interface: C-mount
- Penetration depth for lens thread: max. 5 mm
- Size/weight: approx. 10.8 cm x 7.8 cm x 4.3 cm (2.3"x3.2"x1.7") / 580 g
- Housing: blue anodised aluminium, cooling fins on the cover, 1/4" standard photo thread connection
- Approvals: CE Power supply: Max. 4W, provided by USB 3.0 bus for camera electronics
- Ambient conditions: 5° C to +35° Celsius, max. 80% relative humidity, non-condensing, free air circulation required
- Supported operating systems: for ZEN: Windows 10 x64 for Labscope: Windows 10 x64
- Supported application software: ZEN 2.6 (blue edition) or later, ZEN core v2.7 or later Labscope v3.3 (Windows) or later
- The necessary application software is available free of charge from the ZEISS Download Centre.
Scope of delivery:
Camera, USB 3.0 cable, power adapter
