ZEISS Axiocam Family
In contrast to digital cameras for photography or industrial inspection, many aspects of the microscope cameras are optimized to meet specific requirements of applications in science, research and documentation. As each application has very specific requirements, there is a wide range of different digital camera models to choose from. Different pixel sizes, for example, regulate camera sensitivity and spatial resolution. Lower pixel count enables higher frame rates and larger sensors offer better coverage of the field of view.

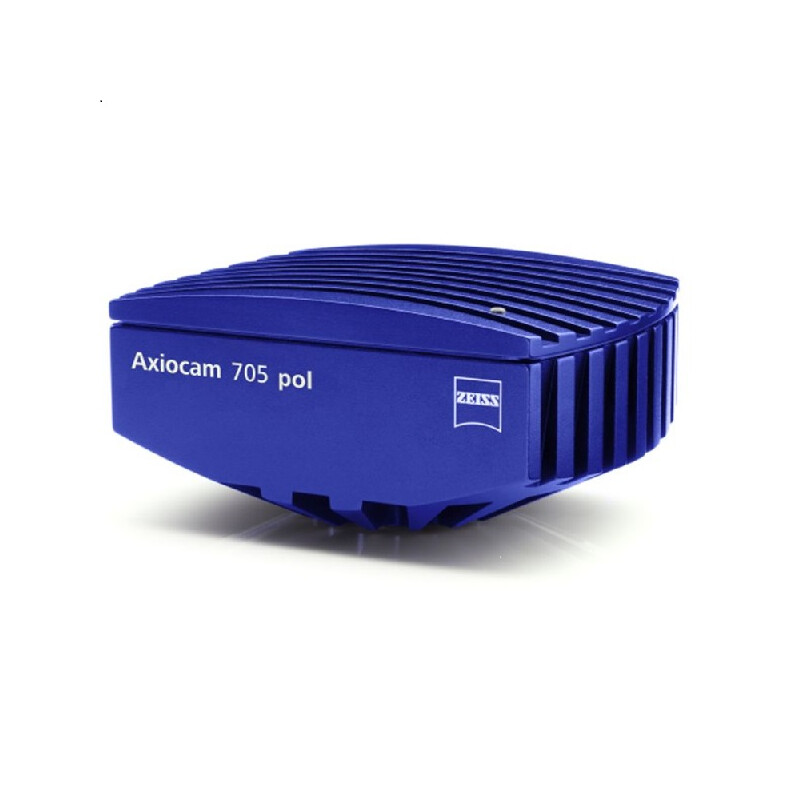

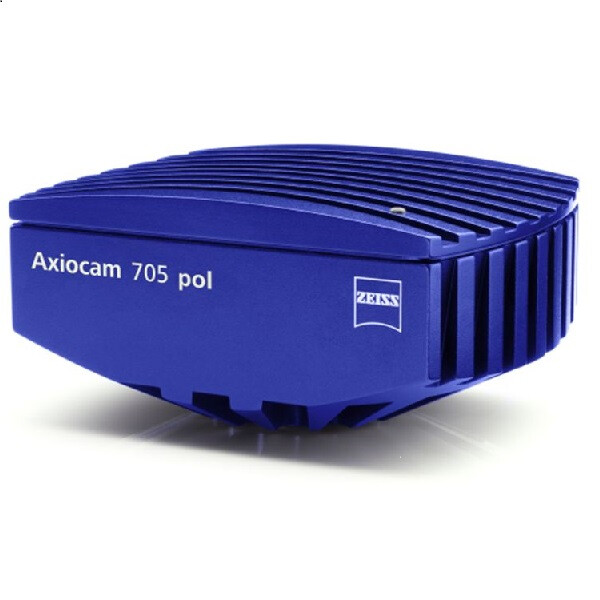

ZEISS ZEISS Axiocam 705 pol (426560-9070-000)
The 5-megapixel camera for scientific single images in polarisation mode
With the Axiocam 705 pol, we present a scientific 5-megapixel camera that features a sensor with a polarisation filter mask. A single image is sufficient to capture polarisation parameters such as the angle, degree of polarisation or image content. No special additional equipment, such as an analyser in the microscope, is required. You can capture polarisation effects simultaneously across the entire field of view with just a single image. This means that you benefit from extremely fast imaging even without an analyser.
Microscopy camera Axiocam 705 pol (D)
- High performance microscopy camera incl. driver software 64 bit
- USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and protective glass (broadband coated)
- Sensor type: SONY IMX250 MZ Exmor CMOS, SONY Pregius Global Shutter
- Monochrome with 2x2 pixel-specific polarisation filter mask (90°, 45°, 135°, 0°)
- Number of pixels: 2464 (H) x 2056 (V) = 5.07 megapixels
- Pixel size: 3.45 µm x 3.45 µm
- Sensor size: 8.5 mm x 7.1 mm, equivalent to 2/3" (diagonal 11.1 mm)
- Spectral sensitivity: With protective glass approx. 350 nm to approx. 1000 nm
- Full well capacity: approx. 11,000 e at 1x amplification (typical)
- Adjustable signal amplification: 1x, 2x, 4x, 8x, 16x
- Selectable resolution: H x V binning factor (1x1l) 2464 x 2056 1x1 base resolution 816 x 684 3x3 480 x 410 5x5 (with 2x2 combined analogue and digital binning for improved sensitivity)
- Live frame rates: (1 ms exposure, fast colour coding) H x V frame rate (frames/s) 2464 x 2056 25 (1 ms exposure, ROI 1920 x 1080, standard colour coding) H x V frame rate (frames/s) 1920 x 1080 5.5 Readout noise Full well capacity Dynamic range (gain) 2.20 e (1x) 11,000 e 1:5000 1.74 e (2x) 5,000 e1:3100 1.48 e (4x) 2,700 e 1:1800 1.29 e (8x) 1,300 e 1:1300 1.15 e (16x) 690 e 1: 600
- Software support for camera operation: Continuous exposure time setting, automatic or manual mode, adjustable over- and underexposure mode, optional range measurement or area measurement (spot meter)
- Readout of sensor sub-areas ("ROI"): Freely adjustable
- Digitisation: 8, 12, 14 bits/pixel (8 of 14 bits or compression mode)
- Dark current:<(><<)>0.5 e/p/s @ 18 °C
- Cooling: Temperature stabilisation at 18 °C (at ambient temperatures of 18 °C to 30 °C)
- Exposure time range: 0.1 ms to 60 s
- Hardware trigger: Trigger input for exposure time control, trigger output for exposure time, readout time and trigger ready status (additional accessories required)
- Camera status LED: Colour-coded display, dimmable
- Camera interface: USB 3.0 (optional operation on USB 2.0 with reduced frame rate)
- Optical interface: C-mount
- Insertion depth for lenses: Max. 5 mm
- Size/weight: Approx. 10.8 cm x 7.8 cm x 4.3 cm (2.3" x 3.2" x 1.7") / 580 g
- Housing: Blue anodised aluminium, cooling fins on the cover, 1/4" standard photo thread connection
- Approvals: CE Power supply: Provided via USB 3.0 and USB 2.0, max. 7 W consumption
- Ambient conditions: 5 °C to 35 °C, max. 80% relative humidity, non-condensing, free air circulation required
- Supported operating systems: for ZEN: Windows 10 x64
- Supported application software: ZEN 3.3 (blue edition) or later, ZEN core v3.1 or later
- The necessary application software is available free of charge from the ZEISS Download Centre.
Scope of delivery:
Camera, USB 3.0 cable, power adapter
