ZEISS Axiocam Family
In contrast to digital cameras for photography or industrial inspection, many aspects of the microscope cameras are optimized to meet specific requirements of applications in science, research and documentation. As each application has very specific requirements, there is a wide range of different digital camera models to choose from. Different pixel sizes, for example, regulate camera sensitivity and spatial resolution. Lower pixel count enables higher frame rates and larger sensors offer better coverage of the field of view.

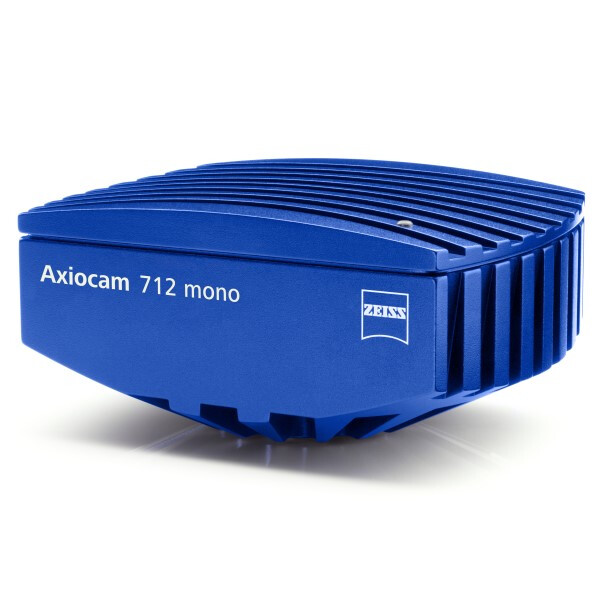

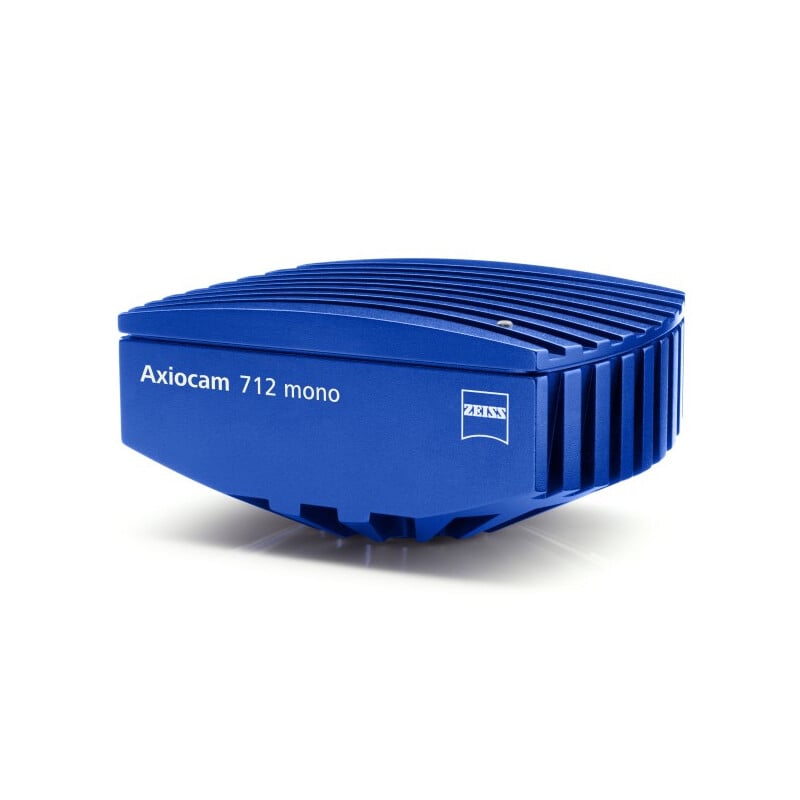

ZEISS Axiocam 712 mono (426560-9090-000)
The 12-megapixel microscope camera for fast, high-resolution imaging of large areas
This camera with greatly reduced noise and high quantum efficiency is ideal for applications with highly sensitive samples. The combination of a large sensor and many small, light-sensitive pixels makes the Axiocam 712 mono an extremely flexible microscope camera that can be used in a wide variety of applications. The actively cooled CMOS sensor ensures very low image noise during readout and stable operation even over long periods of time. Exposure times range from 100 µs for highly dynamic samples to 60 s for the detection of very weak light signals.
At full pixel resolution, the Axiocam 712 mono delivers more than 20 frames per second, and at reduced pixel resolution, over 100 frames per second. A maximum quantum efficiency of over 72%, a broad detection spectrum and high NIR sensitivity round off the outstanding functional features. This makes Axiocam 712 mono an all-in-one solution that covers all monochrome imaging applications – from imaging large sample areas and dynamic samples to highly sensitive imaging of sensitive fluorescence samples.
Microscopy camera Axiocam 712 mono (D)
- High-performance microscopy camera incl. driver software 64 bit, USB 3.0 PCIe x1 interface, USB 3.0 cable 3 m and protective glass (broadband coated)
- Sensor type: SONY IMX304 Exmor CMOS, SONY Pregius Global Shutter Monochrome
- Number of pixels: 4096 (H) x 3008 (V) = 12 megapixels
- Pixel size: 3.45 µm x 3.45 µm Sensor size: 14.1 mm x 10.4 mm, equivalent to 1" (diagonal 17.5 mm)
- Spectral sensitivity: approx. 350 nm to approx. 1000 nm
- Full well capacity: approx. 11,000 e at 1x amplification (typical)
- Adjustable signal amplification: 1x, 2x, 4x, 8x, 16x
- Selectable resolution: H x V binning factor (1x1 to 5x5 digital) 4096 x 3008 1x1
- Basic resolution 2048 x 1504 2x2 1365 x 1002 3x3 1024 x 752 4x4 819 x 601 5x5 H x V
- Subsampling factor 4096 x 3008 1x1 2048 x 1504 2x2
- Software support for camera operation: Exposure time setting continuous, automatic or manual mode
- Adjustable over- and underexposure mode
- Optional area measurement or surface measurement (spot meter)
- Readout of sensor sub-areas ("ROI"): Freely adjustable
- Digitisation: 8, 12, 14 bits/pixel (8 of 14 bits or compression mode)
- Dark current: <(><<)> 0.5 e/p/s @ 18 °C sensor temperature
- Cooling: Temperature stabilisation at 18 °C (at ambient temperatures of 18 °C to 30 °C)
- Exposure time range: 0.1 ms to 60 s
- Hardware trigger: Trigger input for exposure time control Trigger output for exposure time, readout time and trigger ready status (additional accessories required)
- Status LED camera: Colour-coded display, dimmable Camera interface: USB 3.0 (optional operation on USB 2.0 with reduced frame rate)
- Optical interface: C-mount
- Penetration depth for lenses: Max. 5 mm
- Size/weight: Approx. 10.8 cm x 7.8 cm x 4.3 cm (2.3" x 3.2" x 1.7") / 580 g
- Housing: Blue anodised aluminium, cooling fins on the cover 1/4" standard photo thread connection
- Approvals: CE Power supply: Provided via USB 3.0 and USB 2.0, max. 7 W consumption
- Ambient conditions: 5 °C to 35 °C, max. 80% relative humidity, non-condensing, free air circulation required
- Supported operating systems: for ZEN: Windows 10 x64 Supported application software: ZEN 3.1 (blue edition) or later, ZEN core v2.7 or later
- The necessary application software is available free of charge from the ZEISS Download Centre.
Scope of delivery:
Camera, USB 3.0 cable, power supply unit, IR filter
