LE.5212 Euromex Beleuchtungsstation

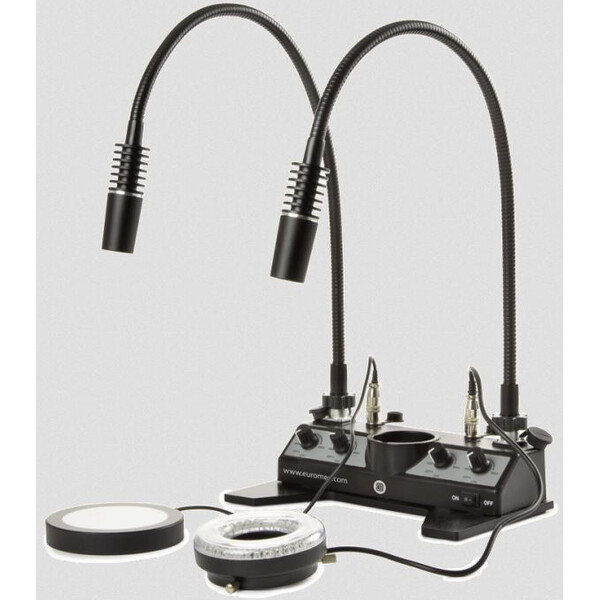

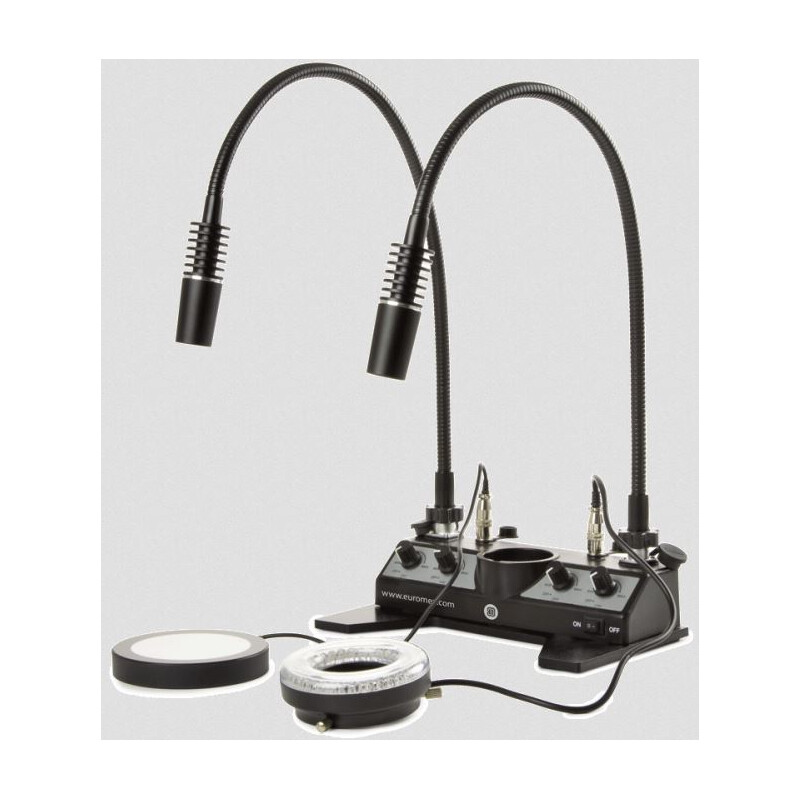

The Euromex illumination station comes with independently controlled goosenecks ring light and transmitted stage illuminator making it a complete illumination solution. The base can be used as a standalone tabletop unit or can be slided over a pole stand. The interchangeable 3W powerLED goosenecks allow flexible angle illumination while the 24,000 Lux ring light allows homogenous illumination from above. The transmitted light stage illuminator (8,000 Lux) is designed for translucent objects. The Euromex illumination station is suitable for all kinds of applications in industry, Life Sciences and Materials Sciences
Highlights:
- Professional base station with various LED cold light sources
- For materials science and stereo microscopy
- Four independent and autonomous lighting systems
- A complete lighting solution in one station
- Available with white light spectrum and three monochromatic wavelengths
Technical
• Light source station with multiple power supply connections for two independent gooseneck arms, one ring light and one transmitted light.
• Each power supply connection controls the LED intensity independently of the other power supply connections

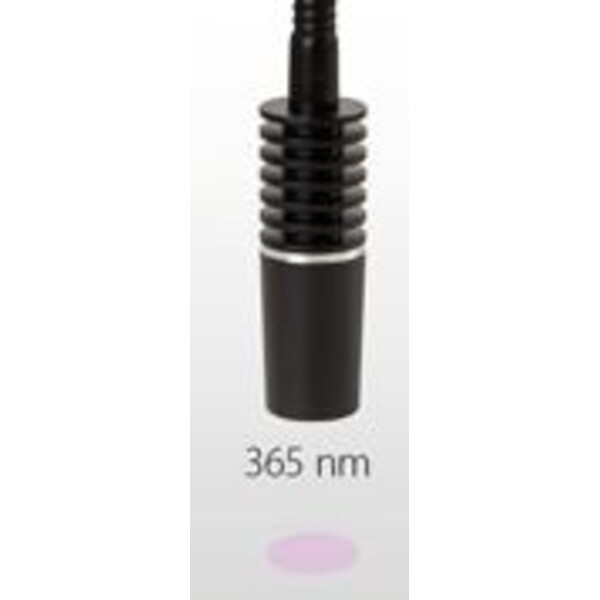

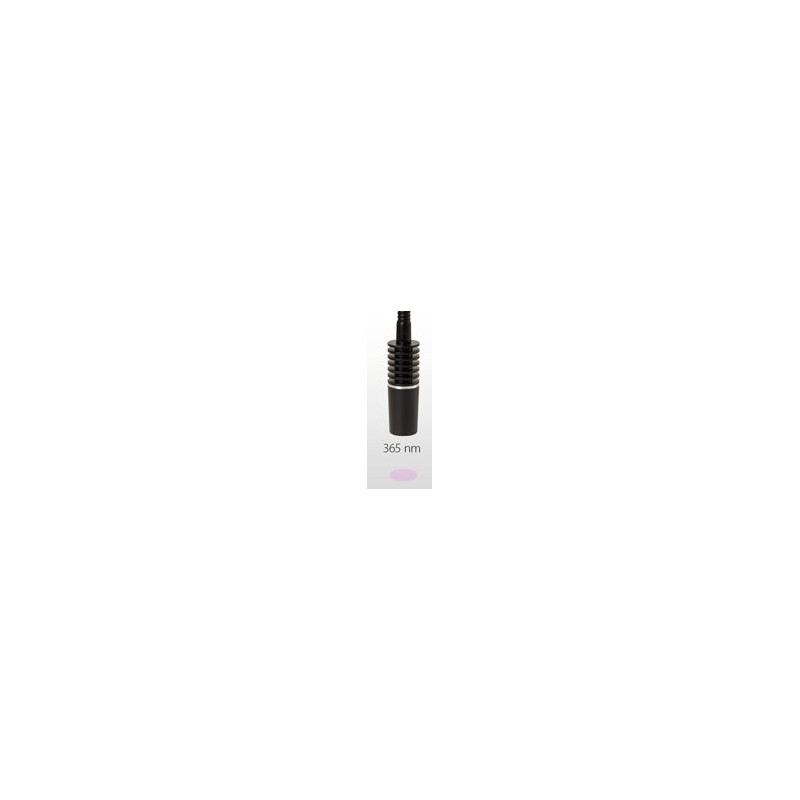

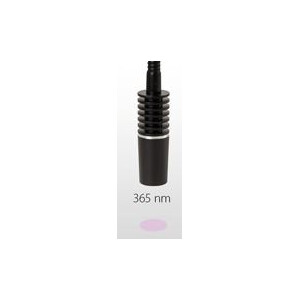

• Oblique lighting with two swan neck LED light conductors, which are equipped with either a white 3 Watt 6500 K LED or a 365 nm UV LED or a 395 nm or 420 nm violet LED
• Each LED guide with gooseneck is equipped with a 3-lens focusing head and has a length of 56 cm
• Homogeneous conical light beam with a white 6,500 K LED ring light, which generates up to 24,000 lux with 60 LEDs. Installation diameter from 21 to 61 mm
• Transmitted light illumination with a white 6,500 K LED, which generates up to 8,000 lux with 42 LEDs. Light plate diameter 94.5 and thickness 15 mm

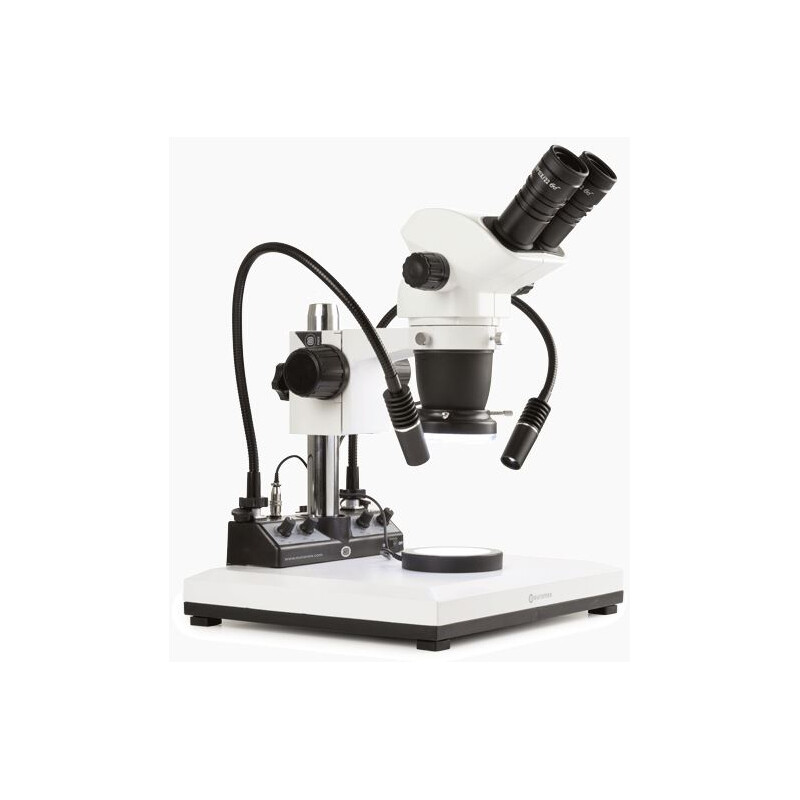

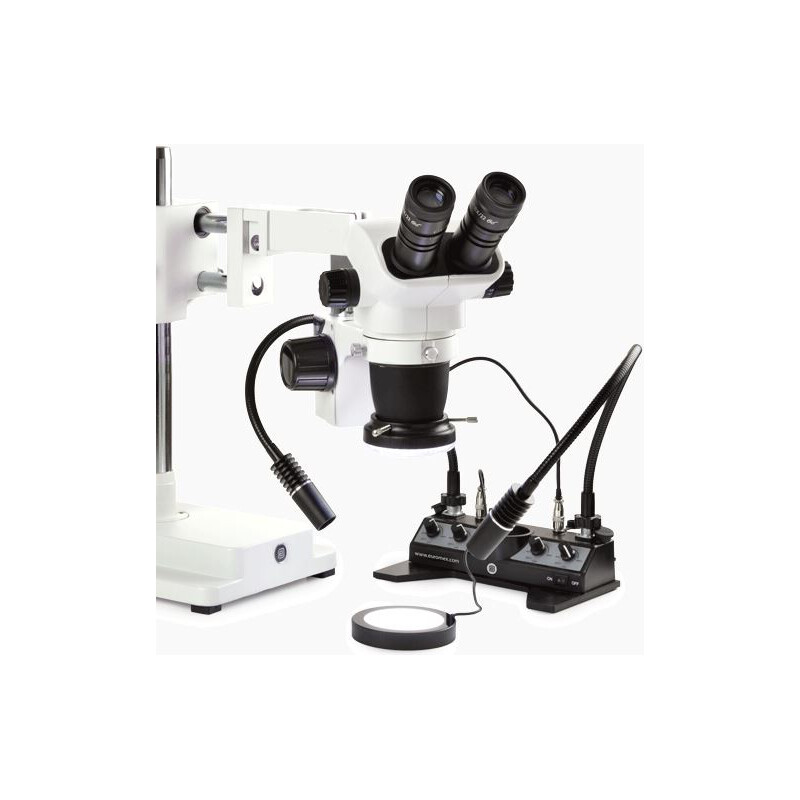

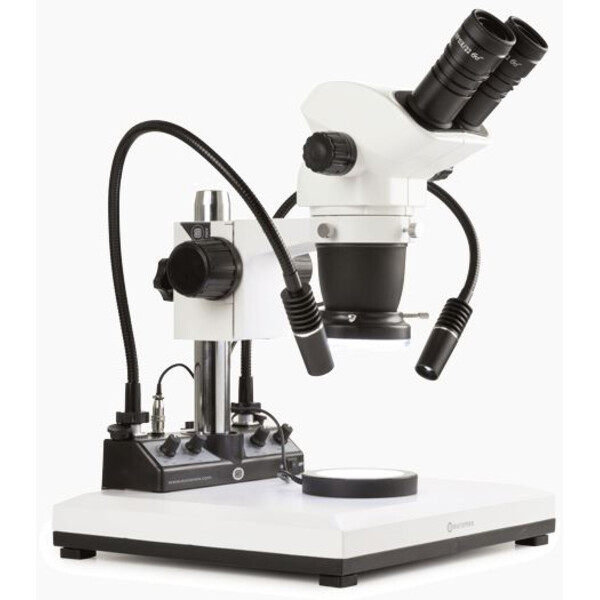

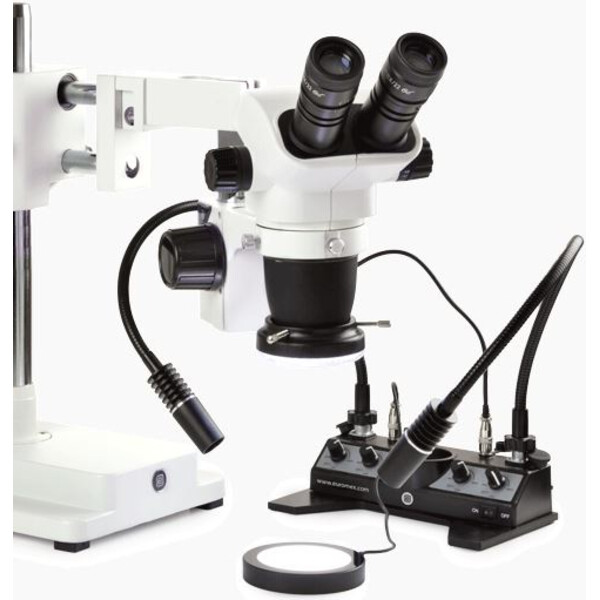

• Station for placement on a tabletop as a stand-alone lighting unit or for mounting on the mast of a stereo microscope with a diameter of up to 44 mm or with 35 and 25 mm mast adapter rings.
• Operating voltage: 100-240 VAC/50-60 Hz— 5 VDC/4 A

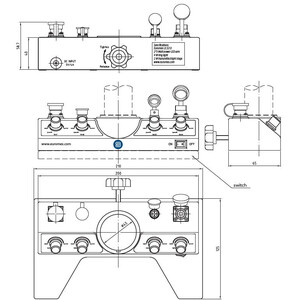

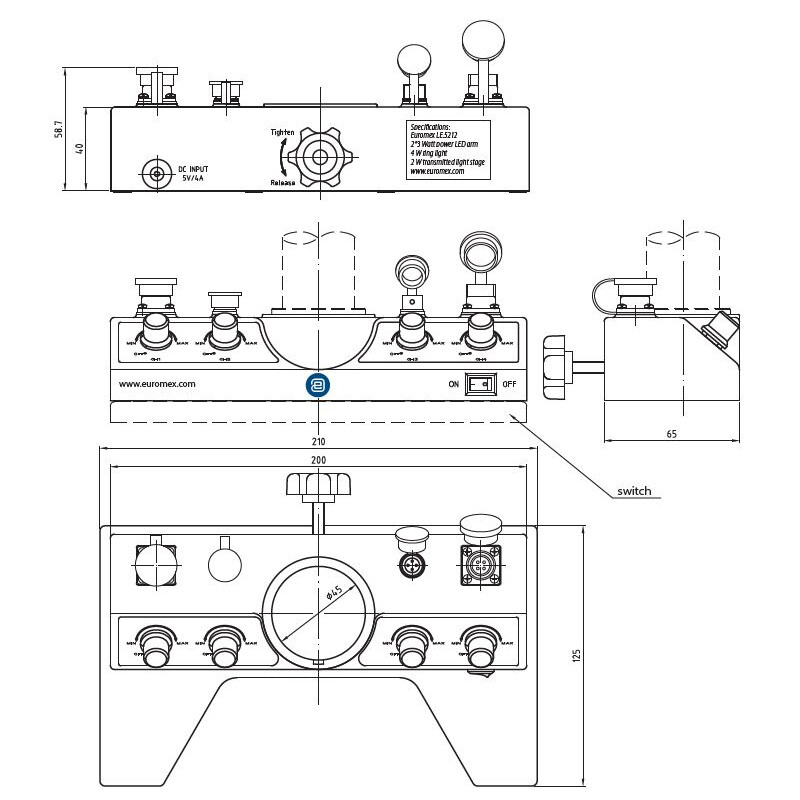

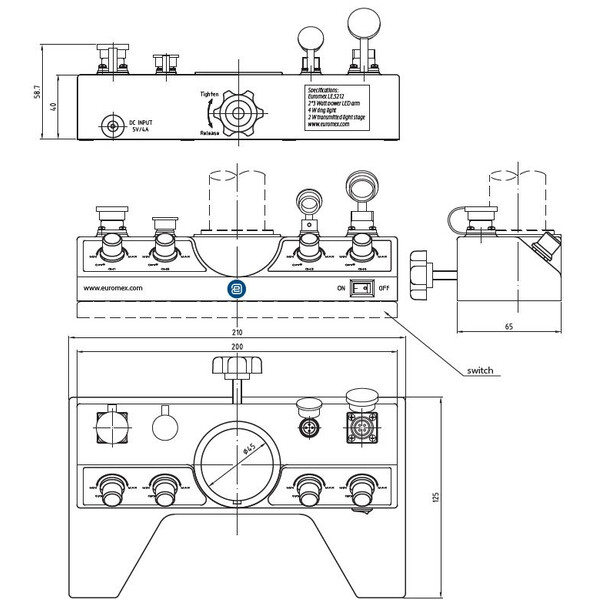

• Dimensions (main unit): 40 (h) x 65 (d) x 200 mm (w)
• Weight: 1.9 kg
The light conductors are equipped with 395 nm LEDs (LE.5262)
