Product no.: 59683

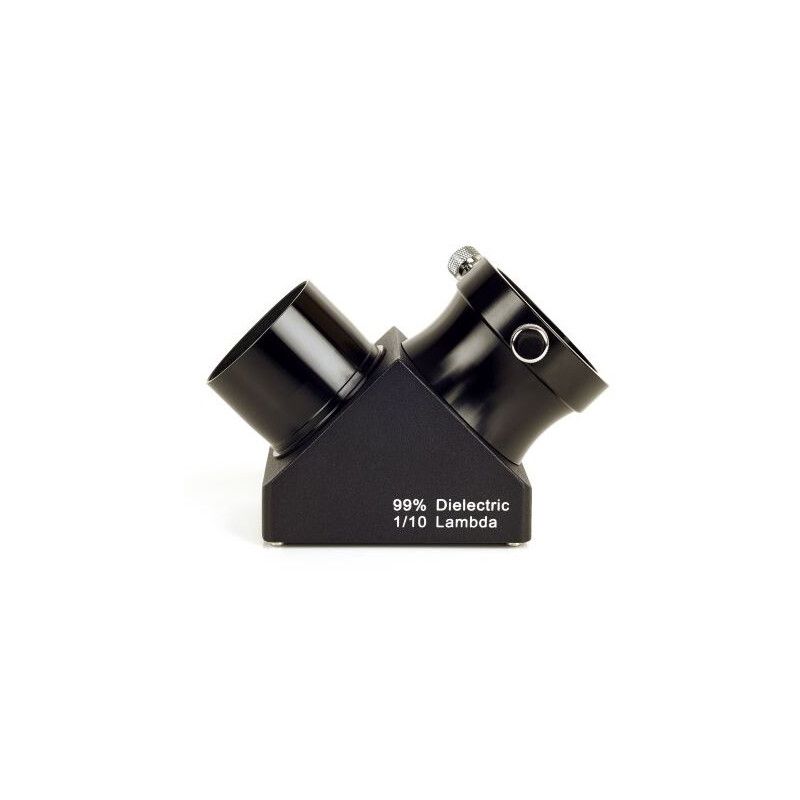

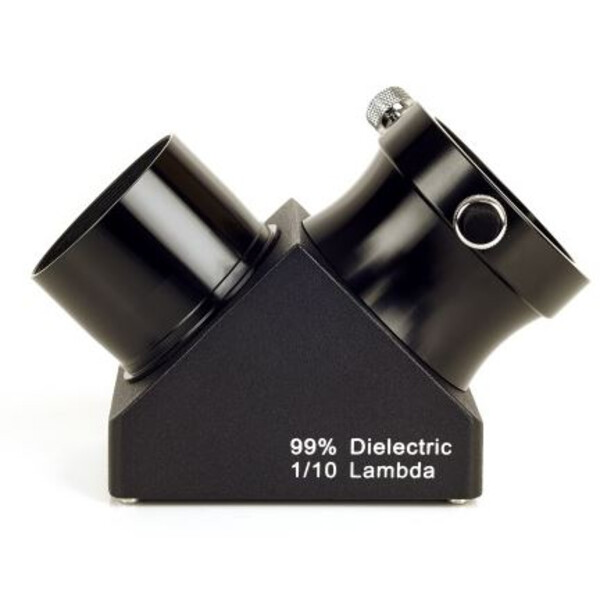

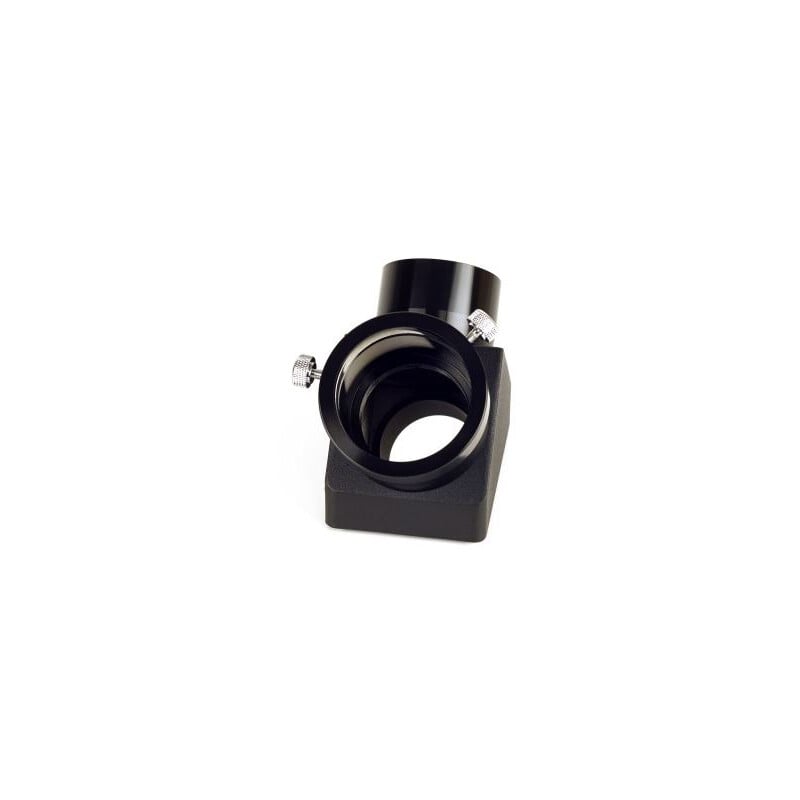

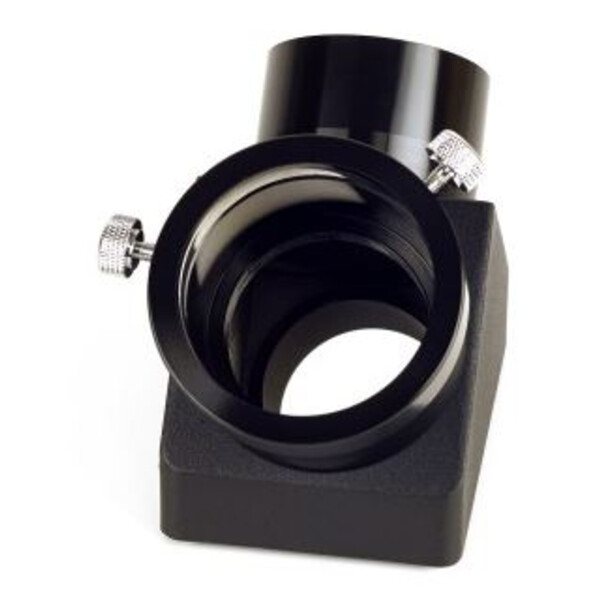

Diagonal mirror 90° 99% 2"

$ 143.00 incl. VAT plus shipping costs
too expensive?
long-term
Product can be shipped as of 01.08.2025 + lead time

Product description

The mirror star diagonal provides comfortable viewing when observing astronomically with refractors, Schmidt-Cassegrains or Maksutovs. Only Newtonian telescopes have no need of this accessory.

The particularly high-quality zenith mirror with dielectric coating offers 99% reflection. Equipped with a gentle ring clamp and T2 thread.

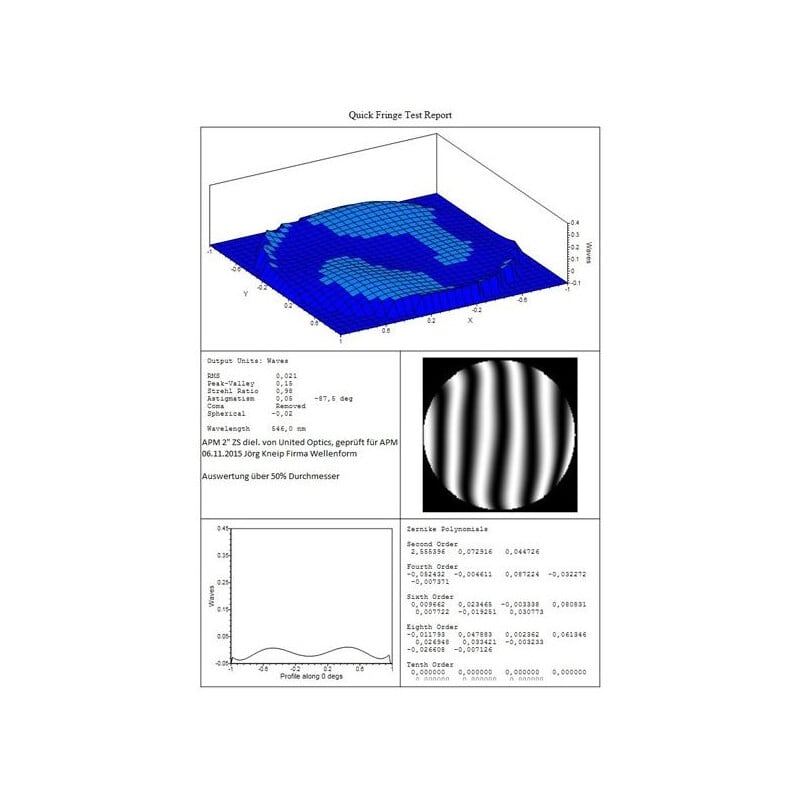

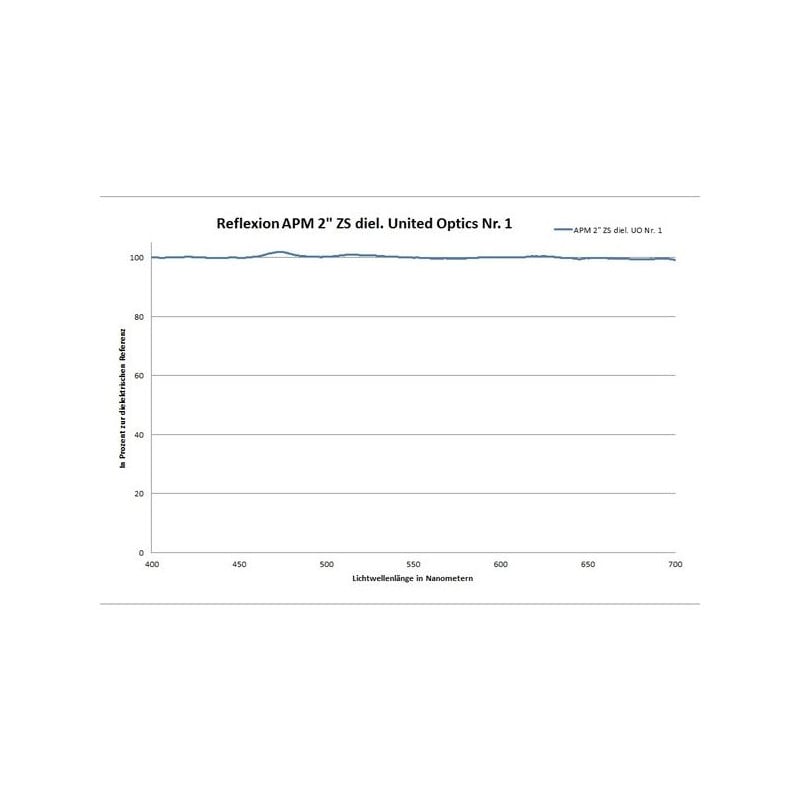

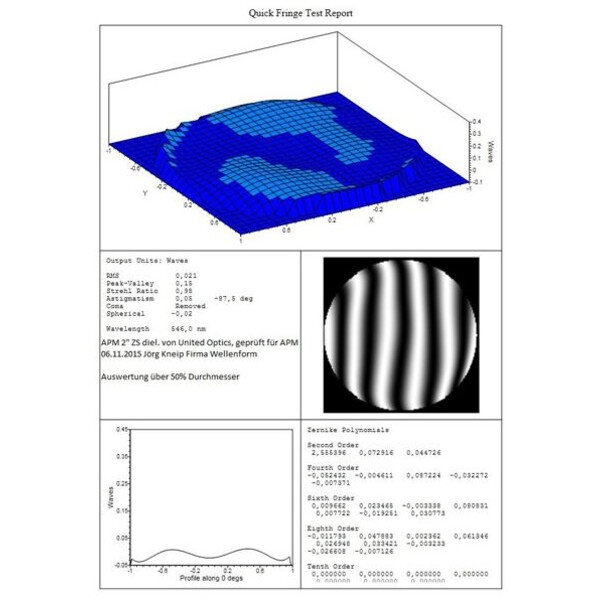

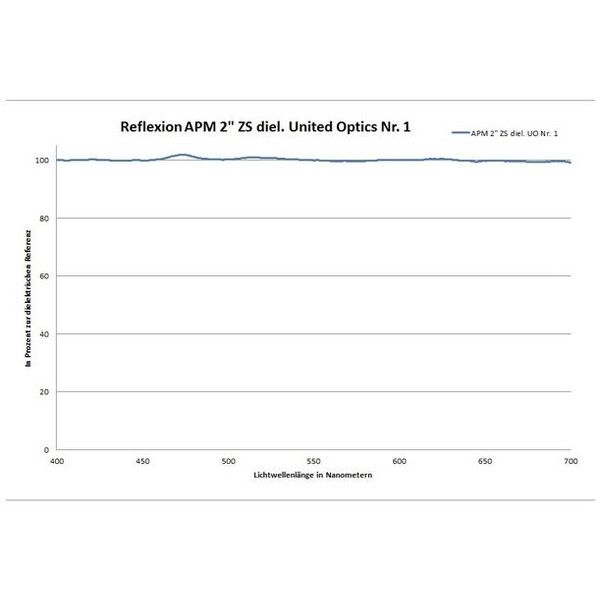

Test reports confirm that the new zenith mirror offers a quality of at least 92% Strehl (at least 1/10 Lambda p-v surface) over the entire surface, making it very interesting for demanding observers. The mirror coating even exceeds 99% reflection (400 - 700 nm) in many areas, so you don't have to worry about any loss of light.

All housing parts are made of solid metal to ensure optimum stability of the deflection optics and connected accessories.

Specifications

Capacity


Connection ( to eyepiece)
2"
Connection (to the telescope)
2"
Surface accuracy
1/10
Surface reflection
99
Connector (at camera end)
T2

Special features


Filter thread
yes
Ring clamp
yes

General


Outer material
Metal
Weight (g)
600
Type
Deviating optics
Type of build
Diagonal mirror

Product safety

Manufacturer: APM Telescopes - Markus Ludes, Quierschieder Weg 38, 66280 Sulzbach, DE, www.apm-telescopes.de
APM Diagonal mirror 90° 99% 2"
APM Diagonal mirror 90° 99% 2"
APM Diagonal mirror 90° 99% 2"
APM Diagonal mirror 90° 99% 2"
APM Diagonal mirror 90° 99% 2"
