Astronomy > Mounts & accessories > Mounts > Equatorial with GoTo > Avalon > M-Due > Avalon Mount M-DUE StarGo2 Pro
Product no.: 70064

Mount M-DUE StarGo2 Pro

RRP: $ 16,200.00 Our price:
$ 14,000.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

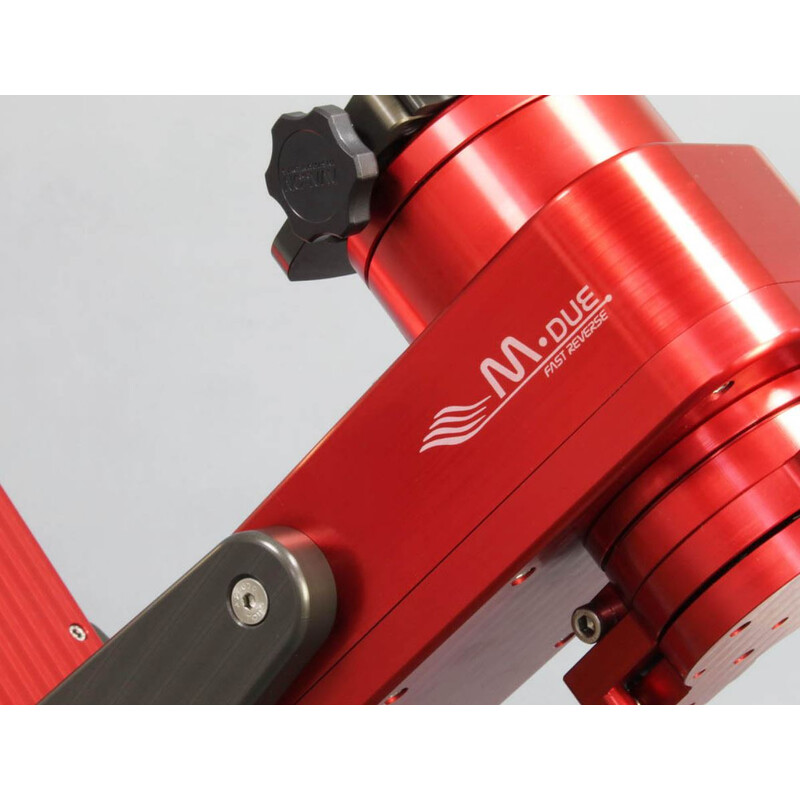

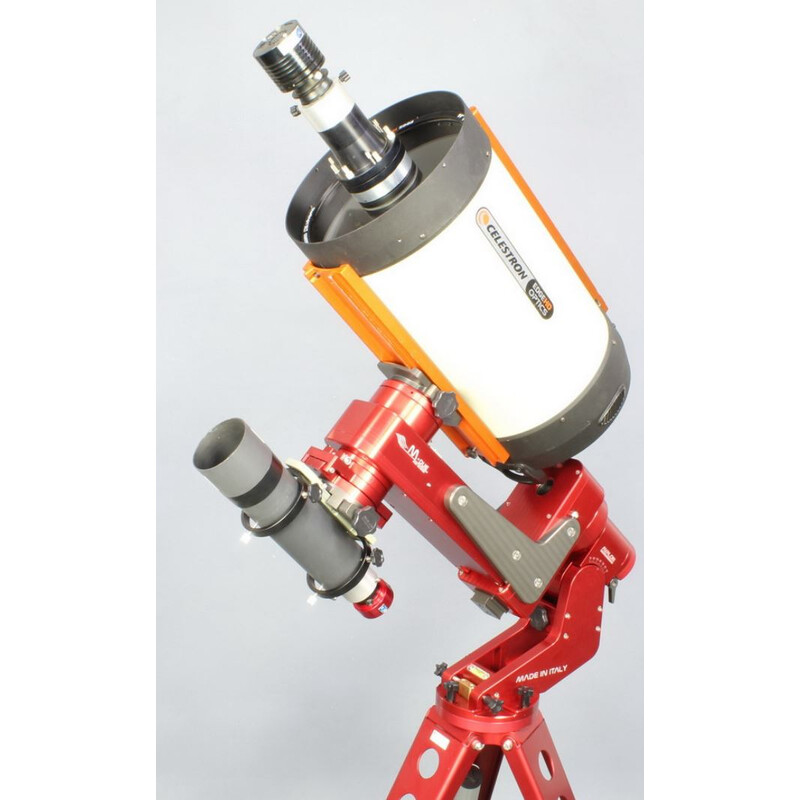

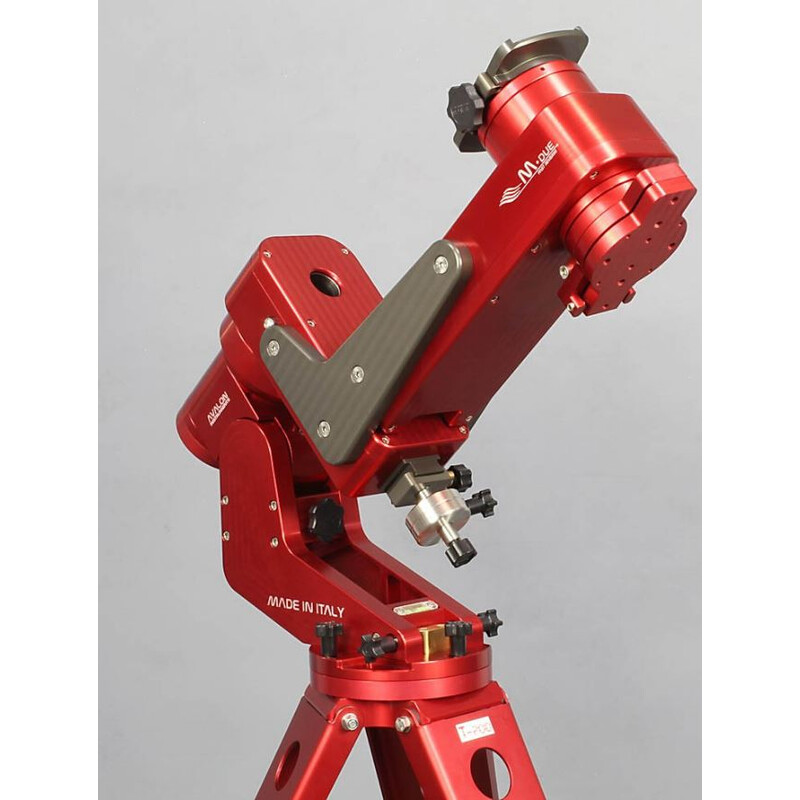

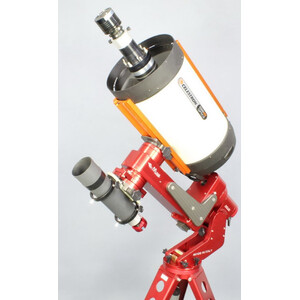

The M-Due Fast Reverse is a single arm fork mount devoted to deepsky imaging in the capacity range up to 25 kg in single telescope configuration and up to 32 kg in double telescope configuration.

The M-due design put together the M-uno and the M-zero mounts concepts, adding two very important features as the High Resolution ABSOLUTE ENCODER and the new StarGo2 Pro controller.

A robust mount base, an high payload capability and more then 6 positions available for the DEC arm on the RA axis. In this way it is possible to achieve the best balancing by using as less as counterweight possible.

HIGH RESOLUTION ABSOLUTE ENCODER ON BOTH RA & DEC AXIS

With the M-due mount, the Avalon Instruments exclusive Belt Drive System has been now improved by adding High Resolution ABSOLUTE ENCODER.

Slew Speed: up to 10° / sec

StarGo2 Pro

The mount is controlled by the new StarGo2 Pro, the controller comes with the following features:

  • Raspberry pi 4 based
  • Compatible with all the Linux astronomical software (K-Stars, Stellarium, Carte du Ciel etc.)
  • 4” Touch Screen Display on StarGo2 Pro case embedded

CONTENT PACKAGE

  • Mount Head with StarGo2 Pro

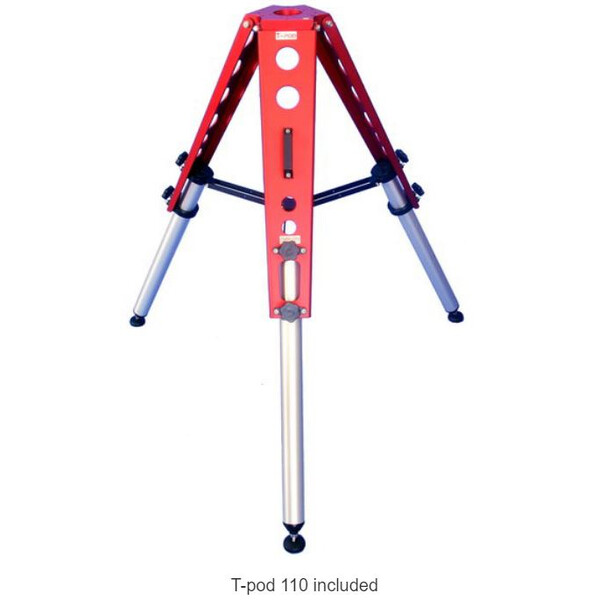

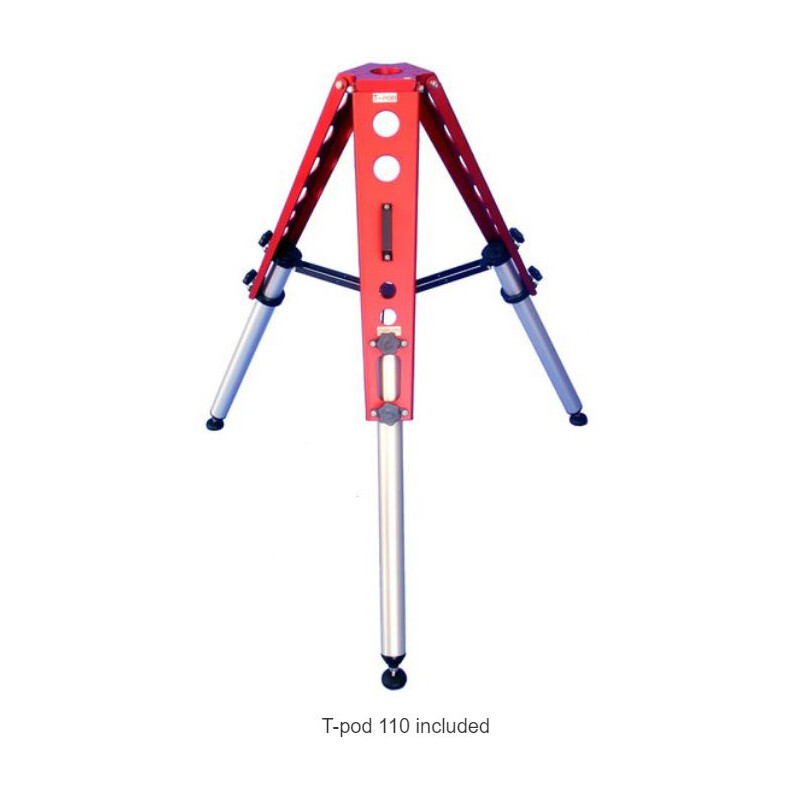

  • T-pod 110 Red with bag
  • T-Pod Plate
  • Second Telescope Adjustable System
  • StarGo2 Pro control Keypad
  • Keypad connection cable
  • Metric Allen Wrench key set

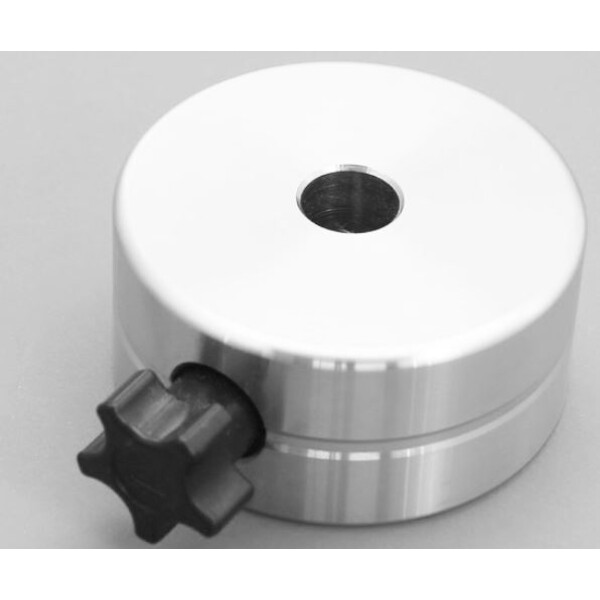

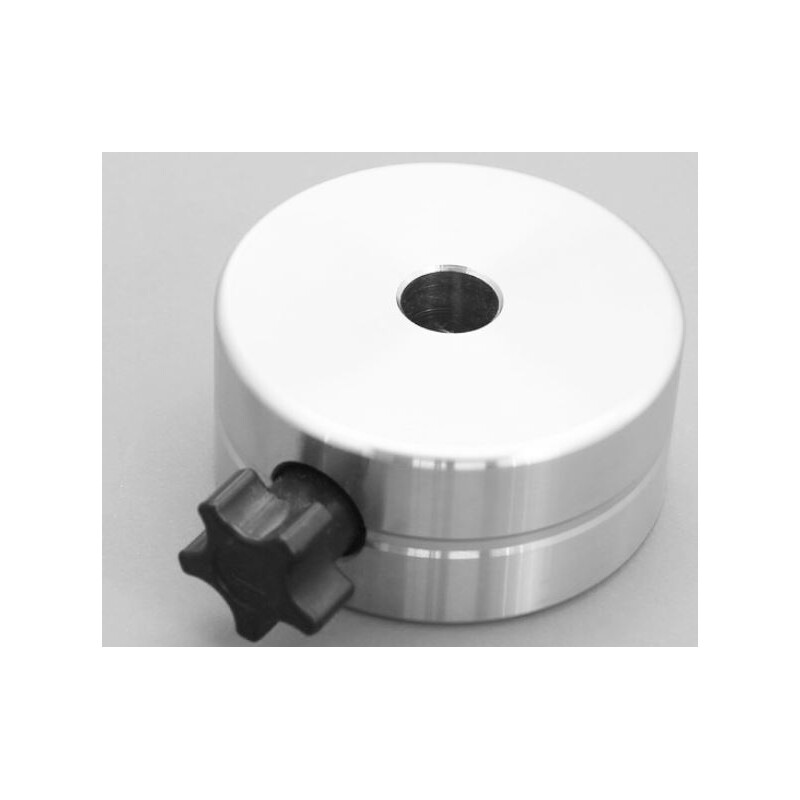

  • 0,5 kg Counterweight with support shaft
  • 1,4 kg counterweight

Specifications

Capacity


Max. additional load capacity (kg)
32
Motor type
Servomotors
Mounting saddle
Losmandy & Vixen
Cable-guide
intern
Counterweight(s) (piece)
1,4 & 0,5 kg (2)
Weight mount head only (kg)
10
Drive type
Other

Special features


GoTo system
yes
GPS
-
Autoguider interface
yes
Handcontroller
yes
PEC correction
yes
PC interface
yes (ASCOM)
Controllable via PC
yes
Rotating
yes

Equipment


Tripod <p>
Tripod
Accessory plate
yes
cigarette lighter socket
no
Pole finder
yes
Counterweights (piece)
2
Carry case
no
Power pack
yes
Cable
USB

Tripod


Tripod material
aluminum and steel
Tripod weight (kg)
7
Max. tripod height (cm)
110
Tripod bag
yes

General


Series
M-Due
Total weight (kg)
22,5
Type
Mount
Type of build
Equatorial

Area of application


Useful for photographs
yes
Visually useful
yes
