Astronomy > Mountings & accessories > Mountings > Equatorial with GoTo > iOptron > GEM > iOptron Mount GEM28 AccuAlign 1.5" Tripod
Product no.: 70618

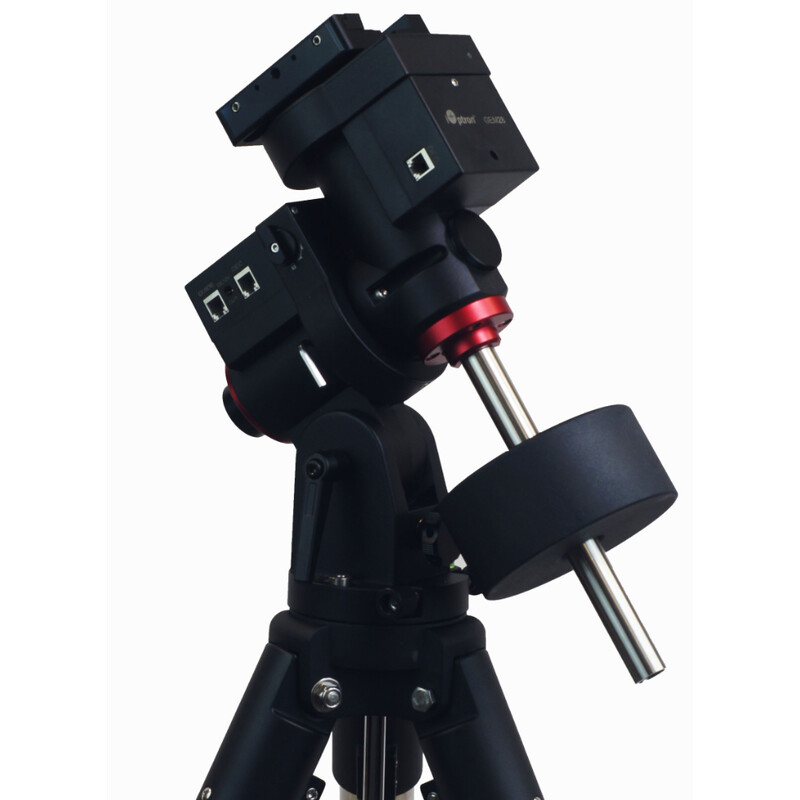

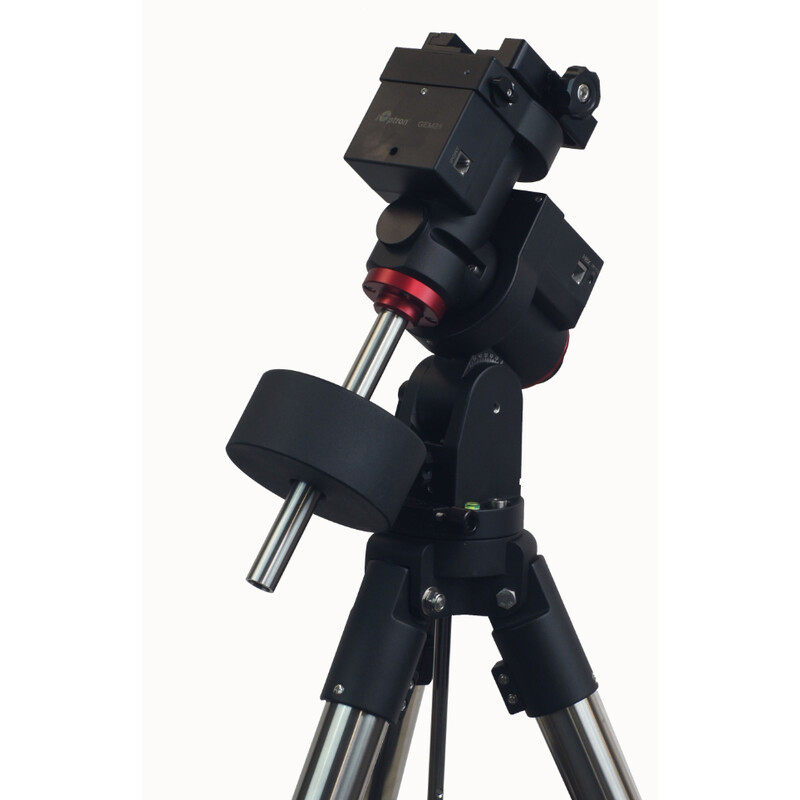

Mount GEM28 AccuAlign 1.5" Tripod

$ 1,600.00 Sale price:
$ 1,440.60 incl. VAT, plus shipping costs
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 20.04.2024!

Product description

Like their predecessors, the GEM28 is designed with portability in mind, weighing in at only 10 lbs it can support up to a 28lb payload an incredible 2.8 mount weight to payload ratio. We achieved this using design methods developed to reduce mount mass in our CEM family of mounts. The German EQ versions were created to satisfy consumer that prefer a more traditional mount and to function at higher latitudes.

Building on the legacy of earlier GEM models we have added features for convenience and functionality. A positive lock gear engagement system (easy to use even when wearing gloves), Built-in Wi-Fi enabling unparallel connectivity and recordable permanent periodic error correction (PPEC) to repeat optimal PEC training sessions. Regarding functionality the GEM28 delivers precise pointing and accurate tracking. The GEM28 sets the new standard for compact German equatorial goto mounts.

The GEM28 is equipped with the latest advanced GOTONOVA® GOTO technology, making it one of the most powerful and accurate GOTO mounts available. The 212,000 object library ensures you’ll never run out of targets to see or image. The Go2Nova® Hand Controller is intuitive to use and its large 4-line LCD screen simplifies the process of setting telescopes and locating objects.

All advantages at a glance:

  • German equatorial design, latitude range of 10° ~ 70°
  • Ideal for both visual observation and astrophotography
  • Low periodic error (< ± 10 arc seconds)
  • Payload of 12.7 kg (28 lbs) with the mount-only weight of 4.5 kg (10 lbs)
  • CNC machined and cast metal body
  • Spring loaded gear system
  • Large easy to use quick-lock gear clutches
  • Stepper motor with low power consumption
  • Belt transmission
  • AccuAlignTM calibrated polar scope
  • Polar alignment routine for those who can’t see the Pole Star
  • Go2Nova® hand controller with advanced GoTo Technology
  • Integrated ST-4 autoguiding port
  • Built-in WiFi
  • USB port for firmware upgrade and computer control
  • Die-cast metal tripod spreader with accessory tray
  • Optional hard carrying case
  • Optional 32-channel Global Positioning System (GPS)
  • Optional iGuiderTM autoguiding system

Our expert comment:

If you have a GEM28 mount with an AccuAlign optical polar scope, do not insert the Allen wrench.

The hole is already blocked by the polar scope.

(Jan Ströher)

The thumb turns on the side of the GEM28’s top plate/prism clamp are designed not to stick out much so that, on some models of this mount, the turn may become stuck in or scrape against the casing for the declination axis. Here, 1-2 hard plastic or metal washers can be used to fix this issue. The washers increase the distance between the thumb turn and the casing.

(Jan Ströher)

Specifications

Capacity


Designation
GEM
Max. additional load capacity (kg)
12.7
Polar elevation setting (°)
10° - 70°
Motor speeds
1, 2, 8, 16, 64, 128, 256, 512
Position precision
+/- 6
Precision of tracking
0.17
Material of worm gear
Aluminium
Material of worm wheel
Brass
Worm gear teeth (RA) (piece)
144 (Aluminium)
Counterweight(s) (piece)
1 (4,5kg)
Material of counterweights
Steel
Diameter of counterweight bar (mm)
20
Software
Go2Nova
Display screen
2,17 x 0,8 (LCD display with backlight)
Database
212.000
Connection manual controller
USB & ST-4 Kabel
Interfaces
ST-4, HBX, USB, DEC
Cable-guide
internal
Operating temperature
-10° bis +40°
Power supply
12V DC, 5A
Power consumption in open circuit (mA)
0.9
Max. tripod height (cm)
117

Special features


Polar axis scale
yes
Fitting for prism rail
yes (Vixen)
PEC correction
yes (permanent)
GoTo system
yes
GPS
- (optional)
Controllable via PC
yes
Updateable via web
yes
Accessory tray
yes

Equipment


Transport cases
no
Pole finder
yes
Power pack
yes
Cable
USB

Tripod


Tripod material
Stainless steel
Tripod weight (kg)
5

General


Colour
black-red
Total weight (kg)
20
Series
GEM

GoTo control


WIFI
yes
Alignment method
3-Star Alignment, 2-Star Alignment, 1-Star Alignment
Autoguiding
yes
PEC correction
yes
Tracking speeds
sideral, solar and lunar
Polar Alignment
Easy Polar Alignment
