Astronomy > Mounts & accessories > Mounts > Equatorial with GoTo > iOptron > HAE > iOptron Mount HAE18C Dual AZ/EQ
Product no.: 85228

Mount HAE18C Dual AZ/EQ

$ 1,850.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time
  • Dual AZ and EQ mounts
  • GoTo function with 212,000 objects
  • Low weight with high load capacity
  • Counterweight and handcontroller optional
  • Remote control via WLAN

Product description

With the HAE18C, iOptron once again offers a compact, highly portable dual mount with azimuth or parallactic function and a payload of up to 8.5 kg without counterweight or up to 12 kg with counterweight (counterweight and tripod are optional and not included in the scope of delivery).

The well-known Go2Nova® technology from iOptron also offers a database with 212,000 objects, ASCOM compatibility and , thanks to the integrated WLAN, control via tablet or Smartphone with the iOptron Commander Lite app.

The Vixen saddle and the stable construction allow the use of various telescopes up to medium size.

The built-in "Electronic Friction Brake" control mechanism stops the mount immediately if the power supply is accidentally interrupted. After switching on, the mount calibrates itself and also recognises its position. A power supply is included in the scope of delivery, as is a robust (but lightweight!) transport case.

Tripod and pier extension are available as optional extras. We recommend using the iOptron tripod "CF Tripod 40mm" (item 77370). The Go2Nova 8411 handcontroller (item 84597) is also available as an optional extra.

Specifications

Capacity


Max. additional load capacity (kg)
8.5
Interfaces
WiFi, USB, HC
Language
English
Mounting saddle
Vixen-Style
Weight mount head only (kg)
3
Input voltage
12
Amperage (A)
5
Encoder
no
declination axis material
Aluminium
right ascension axis material
Aluminium
Motor type
Stepper motors
Drive type
Harmonic / Strainwave

Special features


GoTo system
yes
Handcontroller
no
Level
yes

Equipment


Tripod
without tripod
Pole finder
no
Other contents
Power pack
Counterweights (piece)
0
Transport cases
yes
Power pack
yes
Cable
USB

General


Series
HAE
Type
Mount

GoTo control


GPS
yes
WIFI
yes
PEC correction
no
Polar Alignment
computer assistance
GoTo Language
English
Autoguiding
yes
Interfaces
AutoGuider, Aux, RS232
Database
212.000
with hand paddle
no

Product safety

Manufacturer: iOptron Corporation - Air Freight Orders, 1 Merrill Street, MA 01801 Woburn, US, [email protected]
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Astronomy > Telescope accessories (3)

Omegon Powerbank 38k 144Wh 12V

$ 189.00*
Astronomy > Mounts & accessories (3)

iOptron Go2Nova 8411

$ 296.00*

*All prices include VAT plus shipping costs.

iOptron Mount HAE18C Dual AZ/EQ

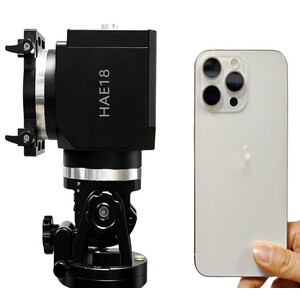

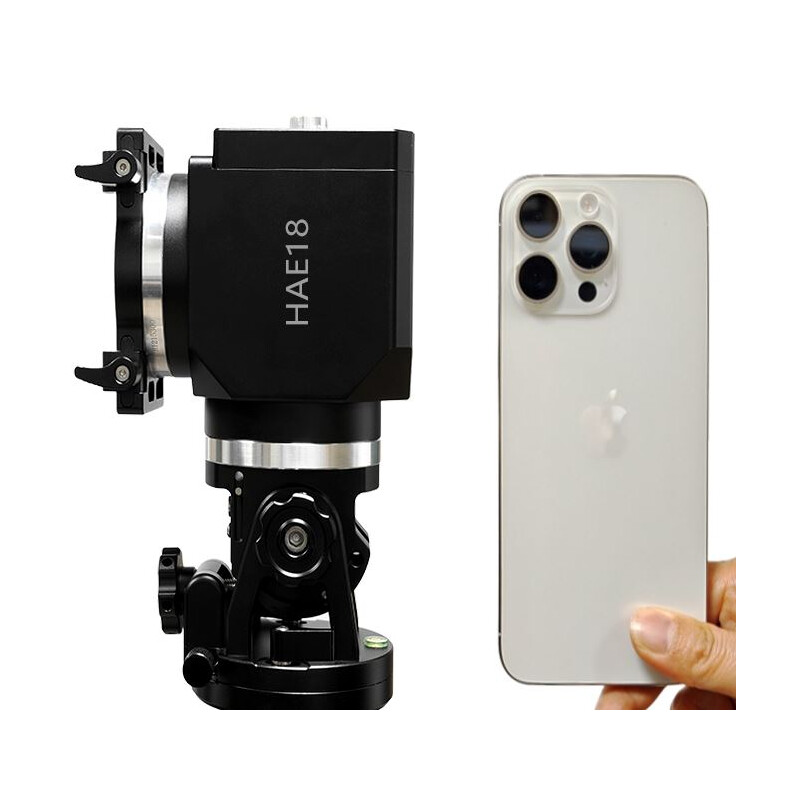

Size comparison
iOptron Mount HAE18C Dual AZ/EQ

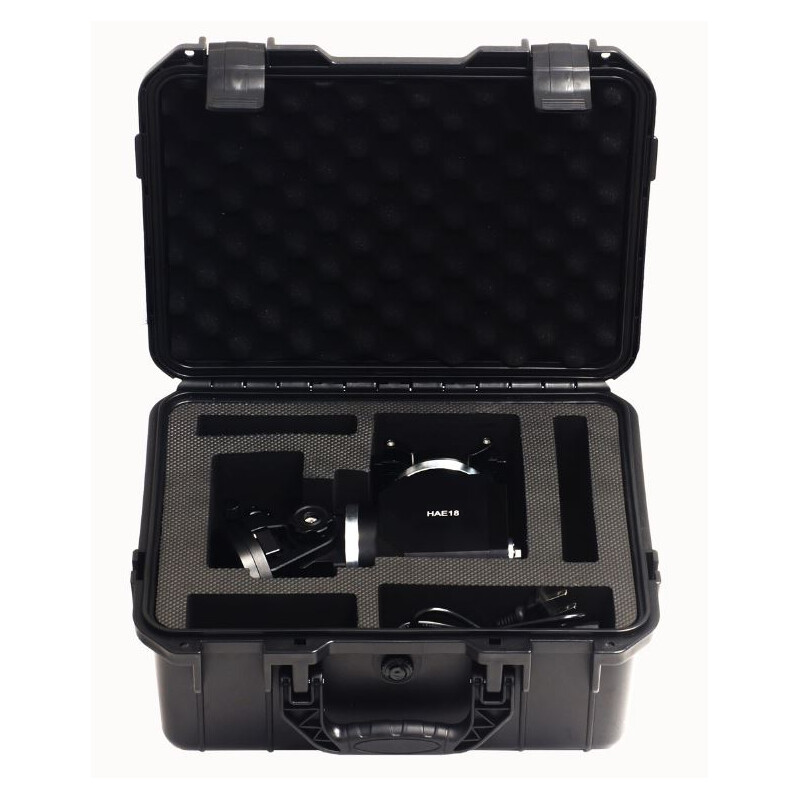

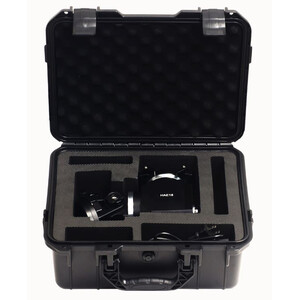

Transport cases
iOptron Mount HAE18C Dual AZ/EQ

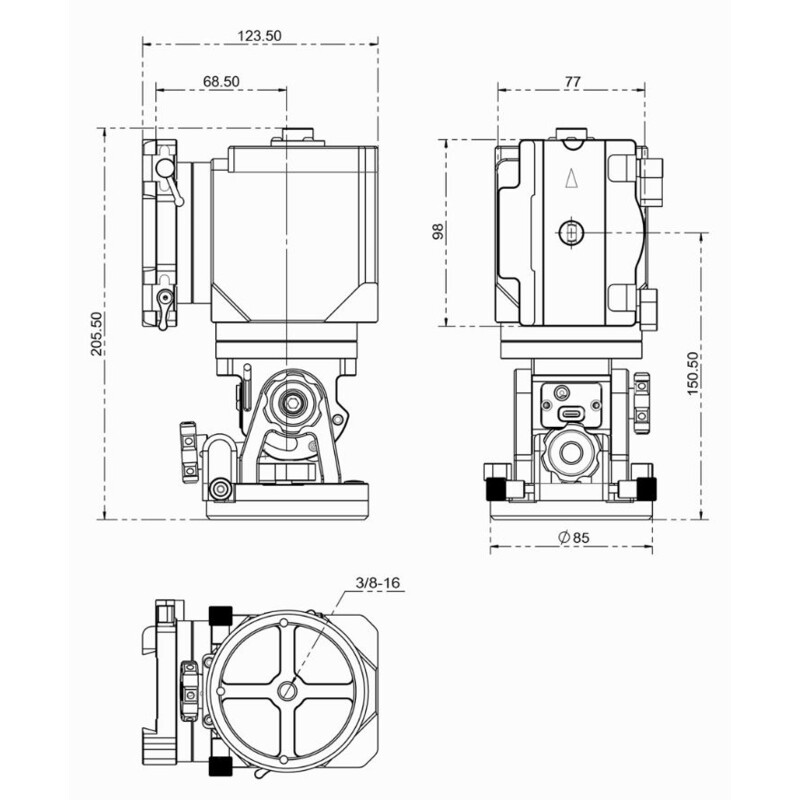

Dimensions
