Astronomy > Mounts & accessories > Mounts > Equatorial with GoTo > iOptron > HAE > iOptron Mount HAE69C Dual AZ/EQ
Product no.: 80600

Mount HAE69C Dual AZ/EQ

$ 5,000.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time
  • Dual AZ and EQ mounts
  • Low weight with high load capacity
  • GoTo function with 212,000 objects
  • Individual, external cable management possible

Product description

These lightweight, compact mounts with medium payloads offer an astronomy experience like never before. Imagine a mount that weighs less than 10 kilograms but has a payload of 36 kilograms without the need for a bulky counterweight. The HAE69C utilises iOptron's decades of experience in precision mount design to make this possible.

Using state-of-the-art gear technology for the RA and DEC axes, the HAE69C offers an unparalleled weight-to-payload ratio. The black anodised, all-metal, CNC-machined housing is visually appealing and provides a robust base that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and a "power down" memory allow the mount to safely stop a GoTo swing and then resume it, or to continue tracking after a sudden power failure (no re-alignment or restart required).

The HAE69C Dual SWG Alt-AZ/EQ mounts have an internal main board and no longer require a handcontroller. The mount has USB ports - both on the base and on the saddle - that can be connected directly to the main board to control the mount and update the firmware. It also has integrated WiFi.

The optional Go2Nova® handheld device with OLED display provides a better user experience, especially in extreme temperatures.

The mount comes with two options:

HE692CH: HAE69C with handcontroller

HE692C: HAE69C without handcontroller

Key features at a glance:

  • Advanced "Strain Wave" gear technology
  • Payload capacity of 36 kg with a mount weight of 9 kg
  • Periodic error < ± 15 arc seconds
  • Unique friction brake for safe stopping of movement in the event of a planned or unplanned power interruption
  • Optional Go2Nova® hand controller with OLED for a better user experience, especially in extreme temperatures
  • Double saddle (Vixen and Losmandy mounts)
  • Built-in zero position search and location
  • Integrated ST-4 autoguiding connection

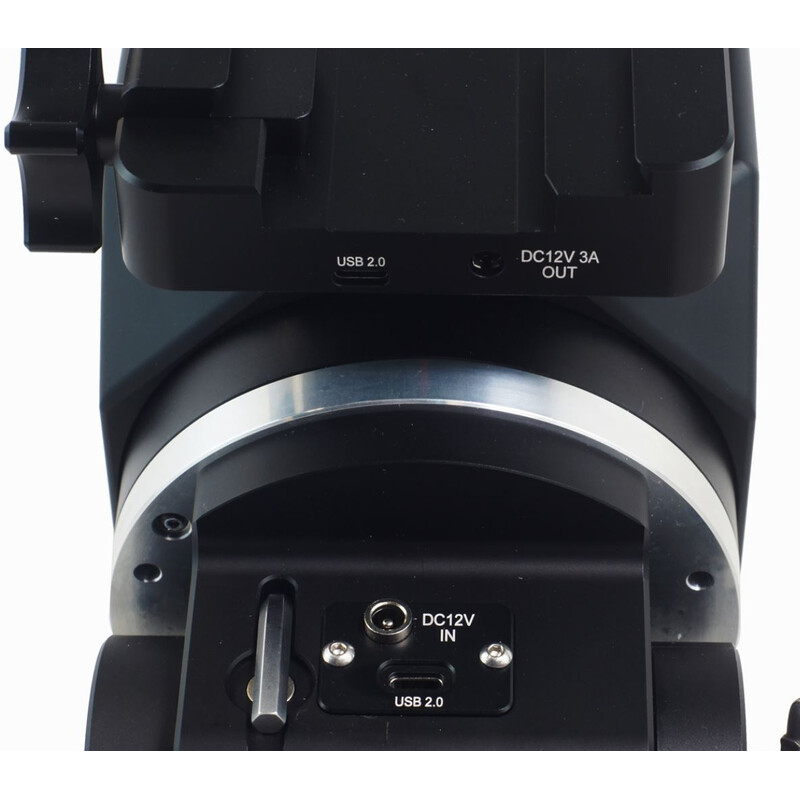

  • USB port (both on the base and on the prism clamp base) for firmware upgrades and computer control
  • Built-in Wi-Fi for controlling the mount
  • Carrying case made of aluminium

Specifications

Capacity


Max. additional load capacity (kg)
36
Interfaces
WiFi, USB (Go2Nova 8411)
Language
English
Mounting saddle
Losmandy & Vixen
Weight mount head only (kg)
9
Input voltage
12
Amperage (A)
6
Cable-guide
internal
Encoder
no
declination axis material
Aluminium
right ascension axis material
Aluminium
Motor type
Stepper motors
Drive type
Harmonic / Strainwave

Special features


GoTo system
yes
Handcontroller
no
Level
yes

Equipment


Tripod
without tripod
Pole finder
no
Other contents
Power pack
Counterweights (piece)
0
Transport cases
yes

General


Series
HAE
Type
Mount

GoTo control


GPS
yes
WIFI
yes
PEC correction
yes
Polar Alignment
Easy Polar Alignment
GoTo Language
English
Autoguiding
yes
Interfaces
AutoGuider, Aux, RS232
Database
212.000

Product safety

Manufacturer: iOptron Corporation - Air Freight Orders, 1 Merrill Street, MA 01801 Woburn, US, [email protected]
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Astronomy > Telescope accessories (3)

Omegon Powerbank 38k 144Wh 12V

$ 189.00*
Astronomy > Other (2)
Pier extension

iOptron MiniPier HAE69/HAE43/HAZ71

$ 216.00*

*All prices include VAT plus shipping costs.

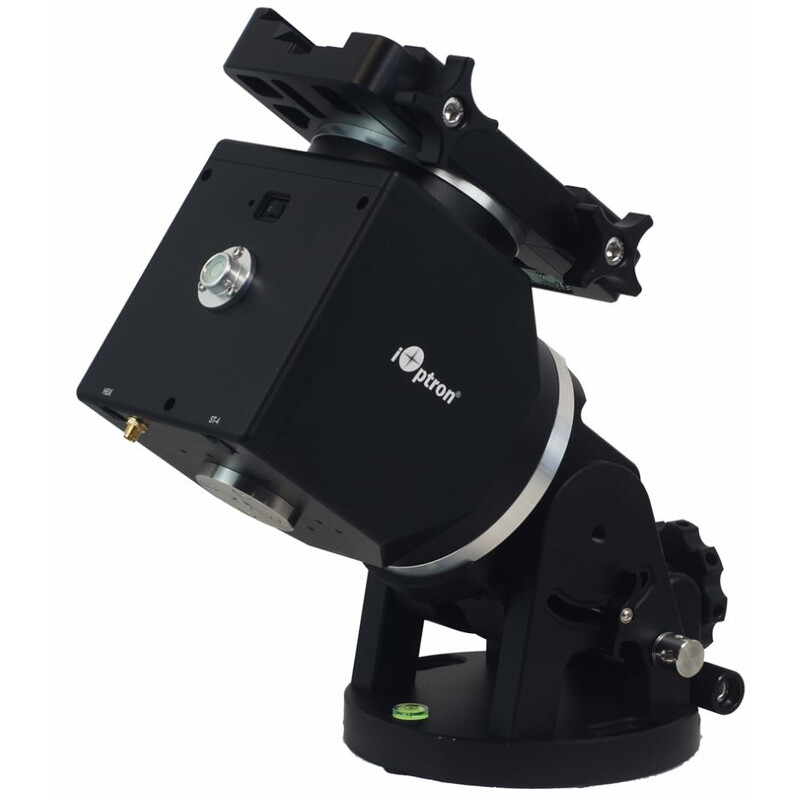

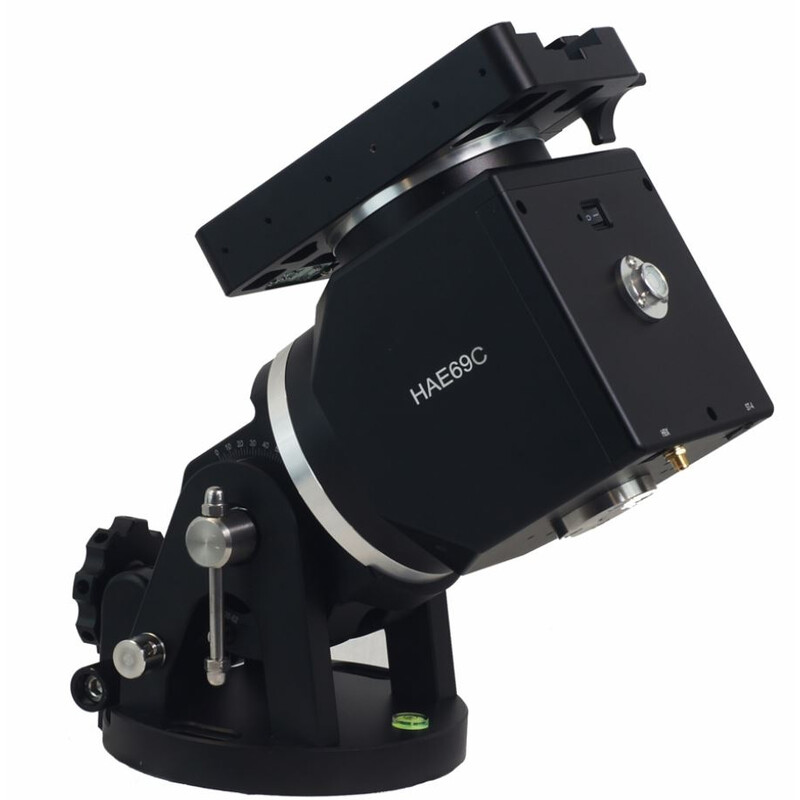

iOptron Mount HAE69C Dual AZ/EQ
