Astronomy > Mounts & accessories > Mounts > Equatorial with GoTo > PegasusAstro > NYX > PegasusAstro NYX-88 Harmonic Geared Mount
Product no.: 85084

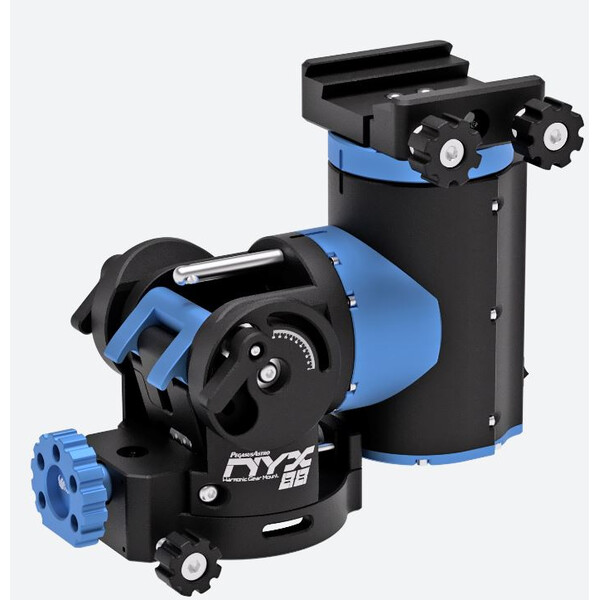

NYX-88 Harmonic Geared Mount

$ 2,460.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time
  • Load capacity up to 14 kg
  • Parallactic AND azimuth operation possible
  • WLAN or USB mode / compatible with ASCOM, INDI & SkySafari

Product description

NYX is the ancient Greek goddess of the night, and Pegasus Astro now offers another powerful mount with Harmonic Drive technology and up to 14 kg payload under this name – without the need for a counterweight! This is ensured by the Harmonic Drive/Strainwave gear technology. The drive ensures smooth running with high torque. A fully CNC-machined aluminium alloy housing, black and blue anodised, and a selection of high-quality components (stepper motors, wave gear) within the mount ensure trouble-free operation for many years.

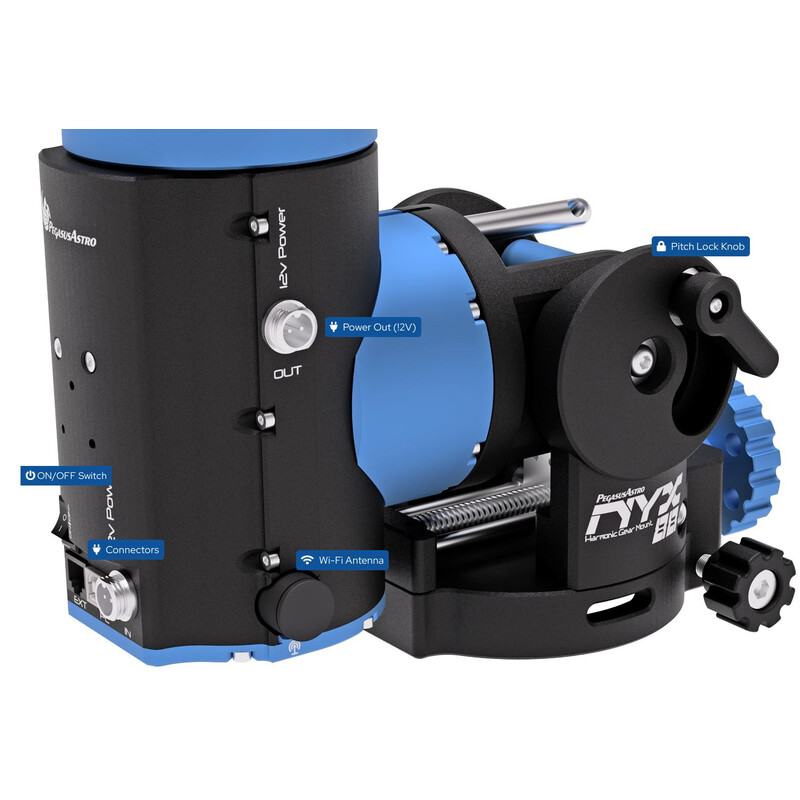

The NYX-88 also features an emergency power shut-off in case of an accidental power interruption and requires only 12 volts for smooth operation. Ports on the fixed part of the mount and internal cable management ensure tangle-free operation.

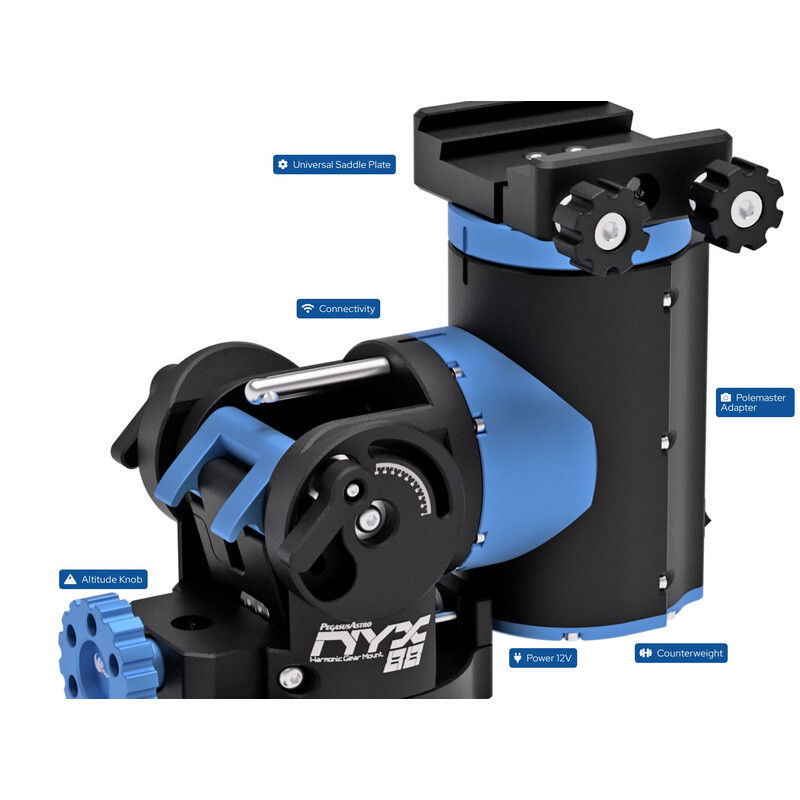

A built-in temperature and humidity sensor is included, as well as a dual Vixen/Losmandy saddle plate and an ST-4 autoguiding connection.

Specifications

Capacity


Max. additional load capacity (kg)
14
Interfaces
USB & ST4 Ports
Language
English
Mounting saddle
Losmandy & Vixen
Weight mount head only (kg)
5
Input voltage
12
Amperage (A)
5
Cable-guide
intern
declination axis material
Aluminium
right ascension axis material
Aluminium
Drive type
Harmonic / Strainwave

Special features


GoTo system
yes
Handcontroller
no
Level
-

Equipment


Tripod
without tripod
Transport cases
no
Pole finder
no

General


Type
Mount
Type of build
Equatorial
Total weight (kg)
5
Series
NYX

GoTo control


GPS
no
WIFI
yes
PEC correction
no
Polar Alignment
Easy Polar Alignment
GoTo Language
English
Software
SkyPortal
Autoguiding
yes
Interfaces
Autoguider ST-4

Product safety

Manufacturer: Pegasus Astro Co. LTD GR Branch, Kolokotroni 10, 19001 Keratea, GR, http://pegasusastro.com
