Product no.: 63659

UFC M54 Adaptors

$ 36.90 incl. VAT plus shipping costs
short-term
ready for shipping in 1-2 weeks + lead time

Product description

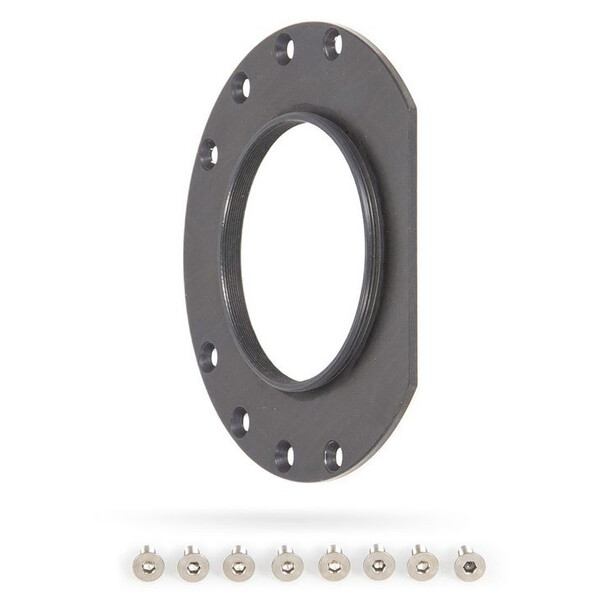

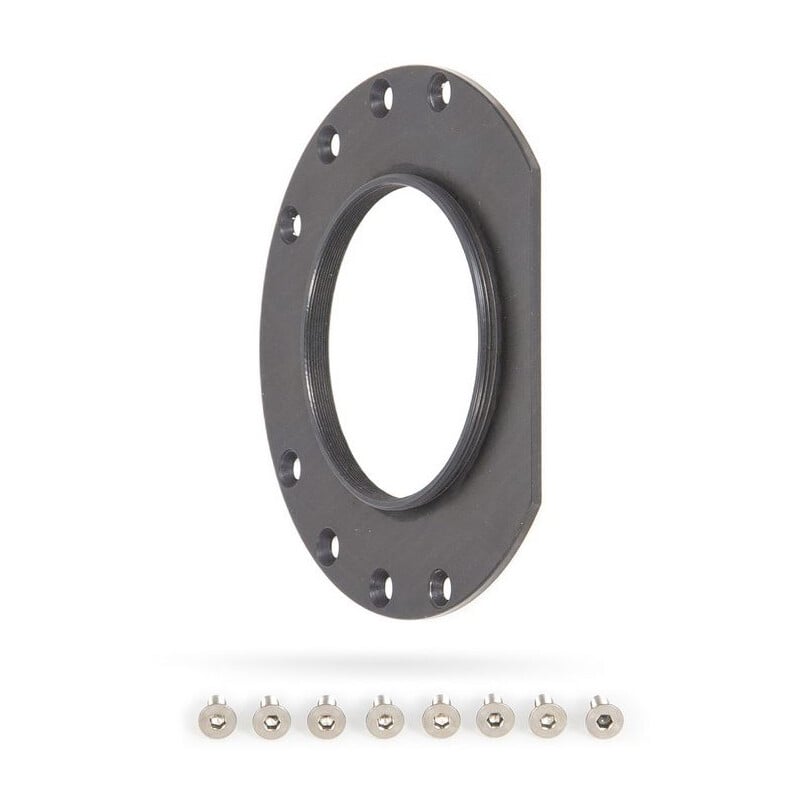

Baader UFC thread adaptors

  • Telescope side with mounting plate on UFC base (screws included)
  • Camera side external thread according to technical data

The Universal Filter Changer, UFC: The Baader UFC system is a filter drawer that can be used with a wide variety of telescope and camera systems. It has a sufficiently large connection diameter, is extremely short in design and can accommodate filter sizes up to 50x50mm without vignetting. These features are essential for operating the new, fast optics such as EdgeHD telescopes with Hyperstar and the new RASA instruments from Celestron, as well as all other prime focus astrographs with suitable filters, where a regular filter wheel would block too much of the front aperture. In addition, prime focus optics are inevitably equipped with a very short back focus and require a particularly space-saving filter drawer.

The UFC system can connect almost anything to anything by purchasing the same filter base housing and then simply selecting the necessary front and rear plates of the UFC together with the spacer rings as required by the respective chip spacing. For this purpose, Baader offers a set with matching UFC extension tubes and an S70 VariLock extension that is continuously adjustable from 15 mm to 20 mm to keep the distance between the filter and the image plane as short as possible. All components are optimised to achieve the greatest possible passage in front of the actual filter drawer while still allowing the distance between the telescope and the chip to be precisely adjusted. The filter drawer itself is therefore positioned as close as possible to the camera, minimising shadowing by the filters.

Specifications

Capacity


Optical length (mm)
2
Connector (at camera end)
M54

General


Diametre on the outside (mm)
89
Internal diameter max. (mm)
50
Series
Universal Filter Changer
Type
Adaptors
Type of build
Camera adaptor

Miscellaneous


supplier product number
2459129

Product safety

Manufacturer: Baader Planetarium GmbH, Zur Sternwarte, 82291 Mammendorf, DE, www.baader-planetarium.de
Baader UFC M54 Adaptors
