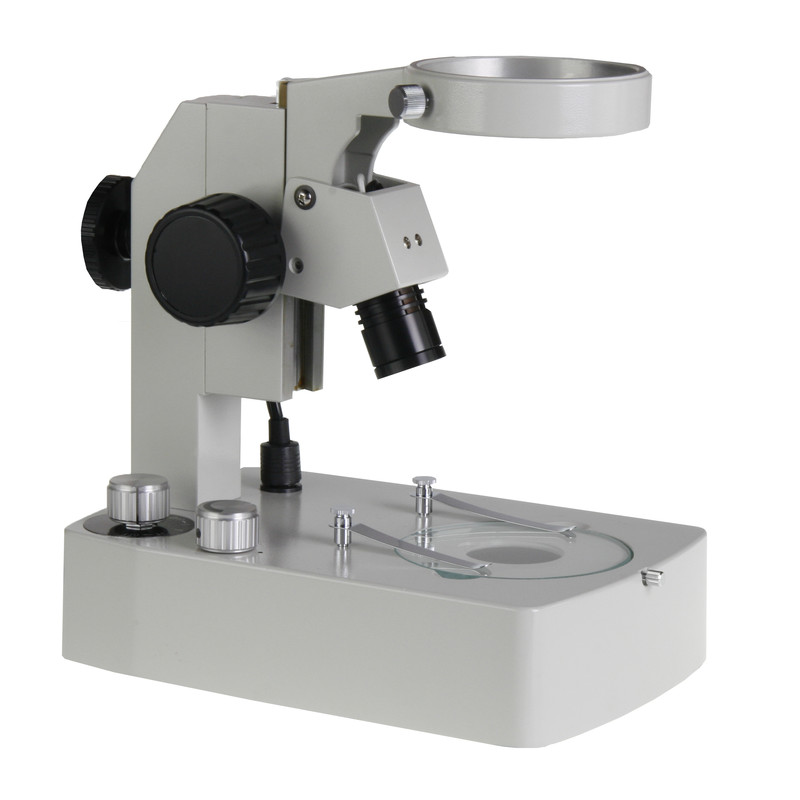

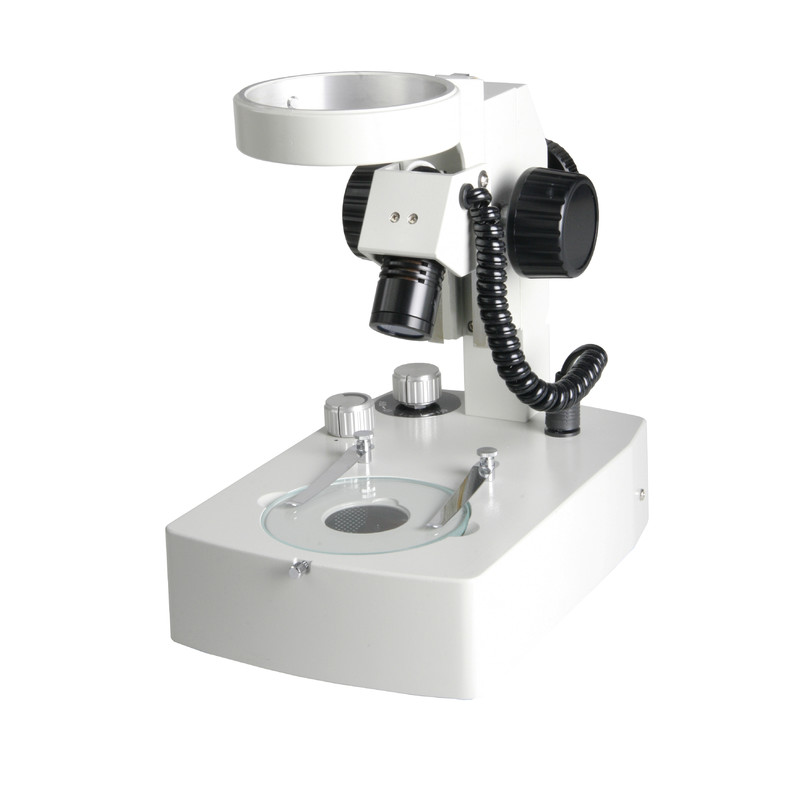

H-stand

H-stand:

The tripod consists of:

• The base is 60 mm high with an extendable column
• glass object plate
• black and white object plate
• 2 object clamps

Height adjustment:

• Microscope holder is permanently mounted on the extendable column

lighting:

• Halogen lighting for reflected and transmitted light 6 volts, 10 watts
• Incident light illumination with frosted blue filter
• Transmitted light illumination with diffuse milky white filter
• Both lighting systems can be switched on separately and simultaneously
• The light intensity is continuously adjustable
• Built-in transformer 230 volts

Tripod dimensions:

• 240 mm long
• 160 mm wide
• 240 - 290 mm high

Maximum object height for:

• Stereo zoom head E-series 65 mm
• Stereo zoom head Z series 95 mm

Suitable for Z-Serie and E-Serie; not suitable for EE.1521
