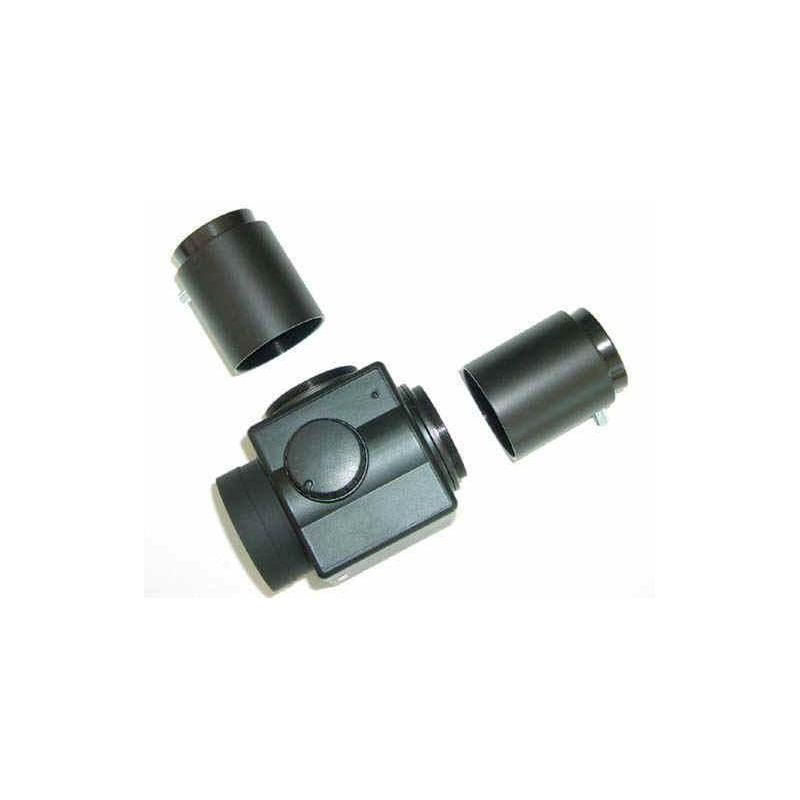

Folding mirror system

A flip mirror system is an interesting device, especially for astrophotography. Connect your camera to the straight end and the eyepiece to the 90° end. Place the object in the centre of the eyepiece and look at the target object. Then flip the mirror and you can take pictures. The object is guaranteed to be on the film or CCD chip.

The flip mirror is lightweight yet very well made. The passage is large enough to fully illuminate SLR cameras. The large deflection mirror can be flipped very smoothly using the large adjustment screw. Thanks to its smooth operation, there is no risk of the setting being adjusted accidentally. A useful accessory for webcams, CCDs, etc.

Connection dimensions:
Both eyepiece-side connections feature a short T2 thread and a 1.25" connection that can be screwed onto the T2 thread.

TS Optics is a brand of Teleskop-Service.

Please note - Flip-mirrors are not suitable for use with Newtonian telescopes, as the focal point can no longer be reached. Their use on refractors or catadioptric systems - SCs, ACFs, Maksutovs - is no problem however.
