More about the series iScope...
IScopes for fluorescence applications
Fluorescence microscopes are used in biological and medical applications to observe specific parts of living cells and tissues with the aid of fluorophores. One or more fluorophores are added to the parts so that the specimen can be viewed. When the fluorophores are exposed to so-called excitation light, the excitation energy is absorbed by the fluorophores, causing them to emit so-called emission light, which can be observed through the microscope. It is possible to distinguish tumour cells from other cells, prove the presence or absence of antibodies, etc.
The excellent optics and mechanical components make the iScope a state-of-the-art microscope suitable for fluorescence applications in life science and biotechnology.
The following iScope fluorescence microscopes are available:
• 6-position rotatable system with 100 W mercury vapour light source
• 3-position slide control system with 100 W mercury vapour light source
• 1-position slide control system with 3 W NeoLED 465-475 nm blue light source
• 1-position slide control system with 3 W NeoLED 520-530 nm green light source
Highlights
- HWF 10x/22 mm eyepieces
- Binocular and trinocular models
- Optional ergonomic head
- Objective turret for 5 lenses
- E-plan, plan and plan fluarex corrected IOS lenses
- 216 mm x 150 mm microscope stage without protruding rack with cross table
- Optional ceramic table
- Height-adjustable Abbe condenser n.a. 1.25
- Coarse and fine adjustment
- Transmitted light adjustable 3 W NeoLED Köhler lighting
- Epi-fluorescence 100 W HBO mercury vapour
- Epi-fluorescence 460-495 nm or 510-550 nm 3 W LED
- iCare sensor for energy saving
- KSS cable storage system

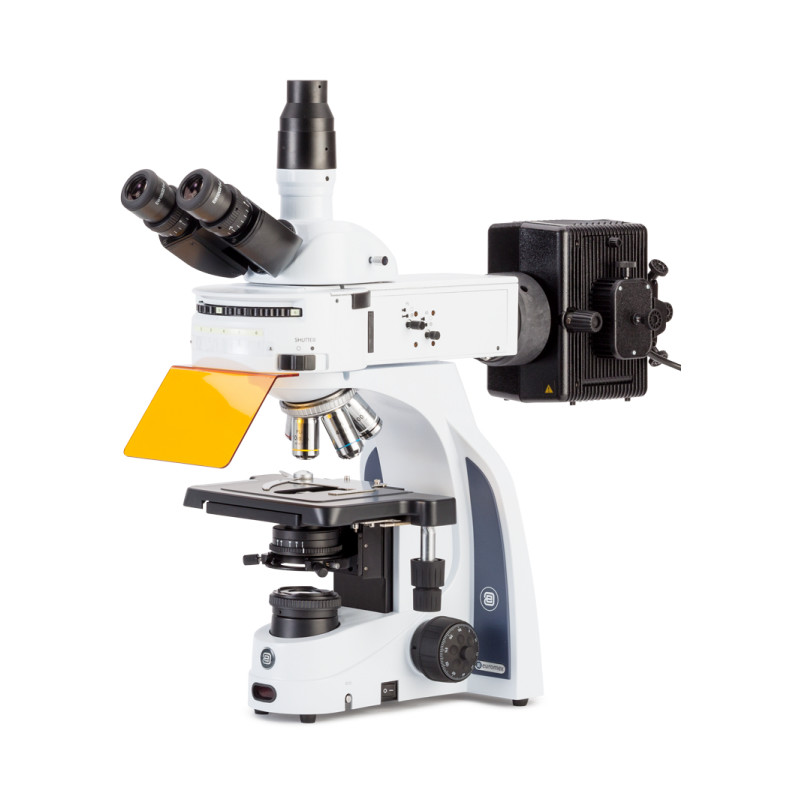

Specification IS.3153_EPLi/6
- HWF 10x/22 mm eyepieces
- Trinocular
- Optional ergonomic tilting head
- Quintuple revolving nosepiece
- E-Plan corrected IOS objectives

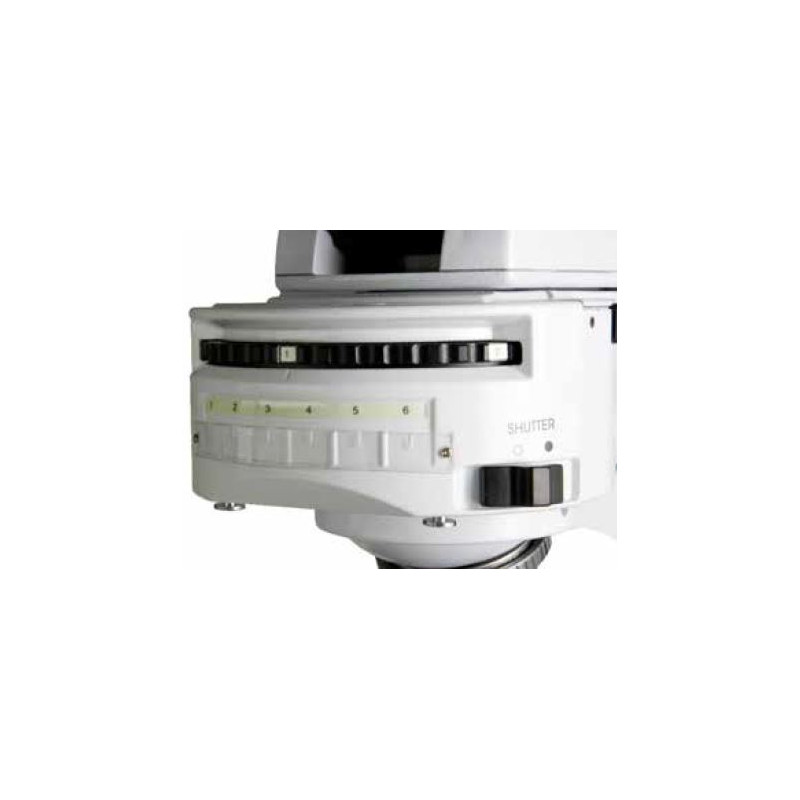

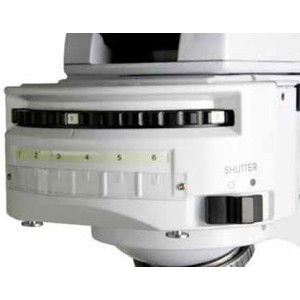

- 6-position rotating fluorescence attachment
- Standard fluorescence filter sets for blue and green excitation
- UV protection shield
- 216 mm x 150 mm rackless stage with integrated X-Y stage
- Height-adjustable Abbe condenser N.A. 1.25
- Coarse and fine adjustment
- Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination
- Epi-fluorescence 100 W HBO mercury vapour
- iCare sensor for energy saving
- CSS - Cable Storage System
