More about the series H-600...

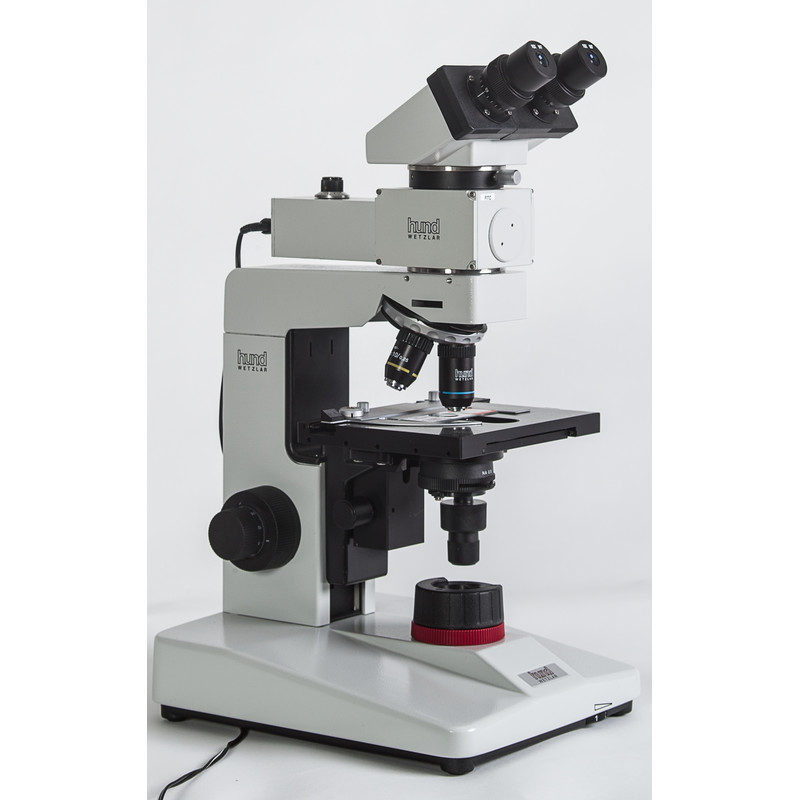

H 600 Wilo-Brau
The H 600 microscope is extremely versatile thanks to its modular design. All common microscopic examination methods such as bright field, phase contrast, dark field and polarization can be carried out by simply exchanging components. Modules for reflected light and fluorescence microscopy as well as two different trinocular photo/video tubes are also available.
Specification:
- Binocular microscope with extremely stable cast iron stand
- Equipped with coarse and fine adjustment
- Built-in halogen lamp 12 V/30 W with stepless brightness control
- Cross table 160 x 130 mm.
- Condenser with height adjustment for precise Köhler
- with aperture diaphragm and filter holder for excellent illumination of the image field at all magnification levels
- Illumination connector with adjustable light field diaphragm
- 4 or 5-position objective turret.
Scope of delivery:
- 2 eyepiece cups
- Filter slide II
- Conversion filter and VG 9 filter
- 2 centring keys
- Replacement lamp
- 2 replacement fuses
- Power cable
- Operating instructions
- dust cover

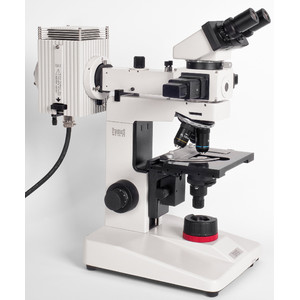

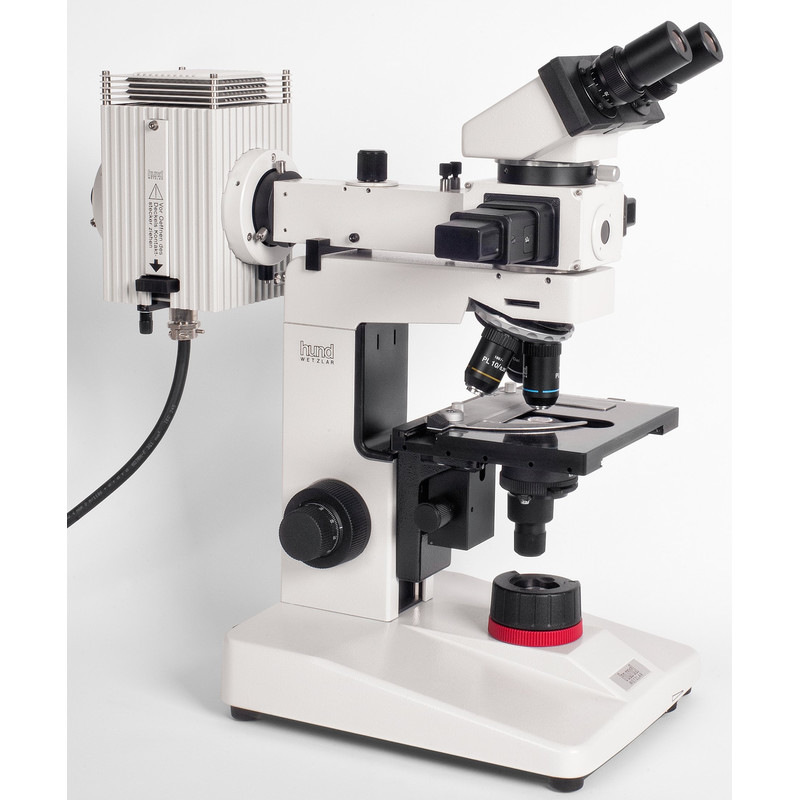

H 600 AFL PLAN 50
For reflected light fluorescence and transmitted light bright field with planachromatic lenses
Specifications:
- Tripods & mounts: with 5-position revolver, forward inclined
- Contrast method: transmitted light bright field, reflected light fluorescence
- Tube: binocular, 30°
- Eyepieces: wide field 10x/18
- Objectives: Plan 10/0.25; Plan 40/0.65, Plan 100/1.25 (oil)
- Magnification: 100 - 1000x
- Microscope stage: Cross table 160x130mm
- Fluorescence device: reflected light fluorescence illuminator with filter slide for 2 filter sets with filter set D (FITC)
- Condenser: NA 1.25
- Lighting: 12V / 30W halogen, continuously adjustable (transmitted light), HBO 50 (reflected light fluorescence) Hg high-pressure lamp 50W
Scope of delivery:
- 2 eyepiece cups
- Replacement lamp 12 V / 30 W
- 2 replacement fuses
- Immersion oil
- Safety goggles
- Protective gloves
- Operating instructions
- dust cover
- Power cable
