Microscopy > Microscopes > Upright microscopes > Fluorescence microscopes > Kern > OBN > Kern Microscope Trino Inf Plan 4/10/20/40/100, WF10x20, 100W Hal FL (B/G/UV/V), OBN 148
Product no.: 66368

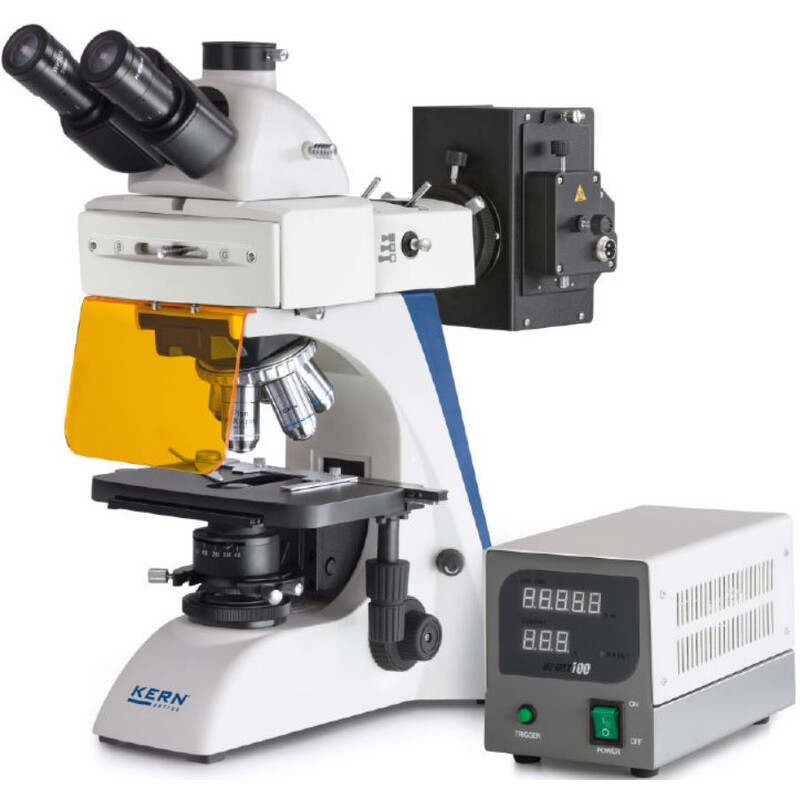

Microscope Trino Inf Plan 4/10/20/40/100, WF10x20, 100W Hal FL (B/G/UV/V), OBN 148

$ 8,600.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

  • The fluorescence microscope in the series is based on the usual high quality and versatility of the OBN series. The outstanding, stable design in combination with high-quality optics set the standard in fluorescence microscopy in this class.
  • The powerful, dimmable 20W halogen illumination unit (Philips) and a 100W Epi fluorescence illumination unit (OBN 147/ OBN 148) ensure perfect illumination and excitation of your fluorescence samples
  • As an alternative, with the OBN 141 model we can offer you a fluorescence microscope with a 3W LED transmitted illumination unit and 3W LED Epi fluorescence incident illumination unit
  • This series has a professional Koehler illumination unit with an adjustable field diaphragm as well as a height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diaphragm
  • The extremely large mechanical stage table with ergonomic, coaxial coarse and fine focusing knob on both sides enables you to adjust and focus your sample rapidly and accurately
  • With the OBN 147/OBN 148 halogen variant you have a filter wheel which has up to 6 fittings. As standard this is fitted with a B/G or B/G/UV/V fluorescence filter. The OBN 141 LED variant is fitted with a B/G fluorescence filter with a changeover slider as standard. The changeover slider and the filter wheel mean that you can change the stimulation filter quickly
  • A large selection of eyepieces, objectives, colour filters, darkfield condensers as well as a Butterfly Tube, polarising and phase contrast units can easily be integrated thanks to the modular construction system.
  • The centring objective for adjusting the fluorescence, a protective dust cover, eye cups as well as multi-lingual user instructions are included in the scope of delivery.
  • A C-mount adapter is required to connect a camera. You can select this adapter from the following model outfit list

Scope of application

Haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, sewage treatment plants, oncology, entomology, vets, water analysis, breweries

Applications

Specially for translucent, thin, low-contrast, challenging samples (e.g. immuno fluorescence, FISH, DAPI staining, etc.)

Technical data

  • Infinity optical system
  • 5-fold lens revolving unit
  • Siedentopf 30° inclined, 360° rotatable
  • Dioptre compensation (both sides)
  • Overall dimensions W×D×H 530×220×490 mm

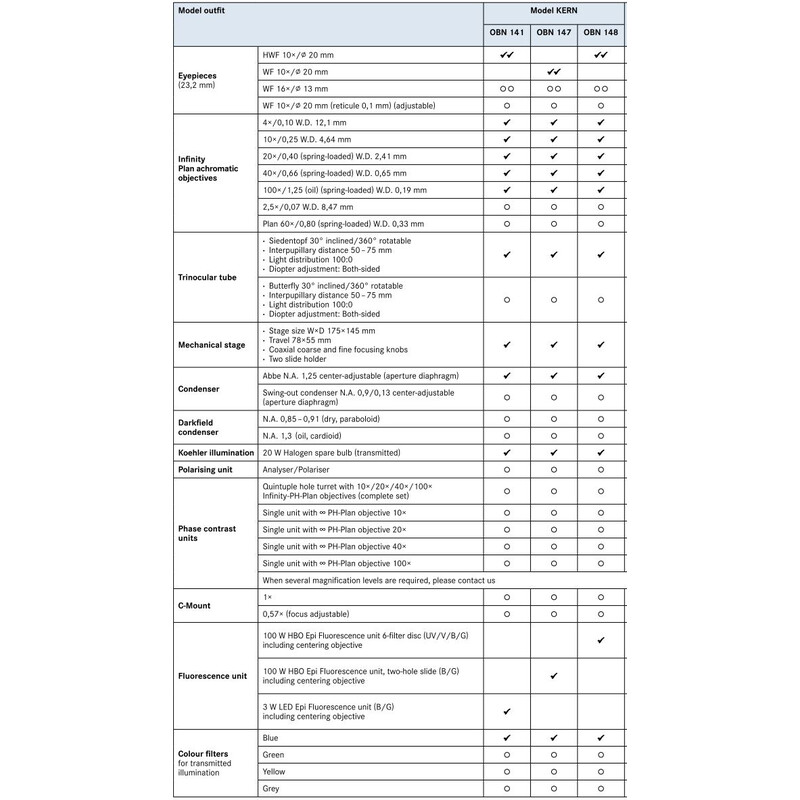

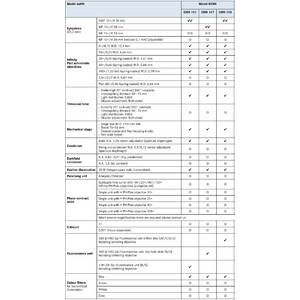

Please see the overview tables below for details. For information on the accessories which are supplied as standard, please see the individual brochures for the models, see document downloads in the table.

Specifications

Optics


Eyepiece
10x/20 (Widefield)
Optical system
infinity
Lens type
Plan, achromatic
Objective 2
10×/0.25 W.D. 4.64 mm
Objective 3
20×/0.40 (spring-loaded) W.D. 2.41 mm
Objective 4
40×/0.65 (spring-loaded) W.D. 0.65 mm
Magnification
40-1000
Condensor
Abbe 1.25 N.A., focus adjustable, with iris diaphragm
Lamp type
Halogen
Power supply
EU-

Capacity


Fluorescence
yes (<b>Epi-Fluorescence attachment with filter cassette</b>)
Brightness control
yes
brightfield
yes
Contrast methods
Fluorescence

Mechanics


Type of build
Trinocular
Viewing posture (°)
30 (30° angled eyepiece, 360° rotatable)
Focusing
Coarse and fine movement
Specimen stage
-

Special features


Filter holder
yes
Rechargeable battery operation
-
Dust cover bag
yes

General


Weight (g)
8983
Width (mm)
390
Length (mm)
200
Height (mm)
400
Series
OBN

Suitable for


Advanced
yes

Contrast methods


Fluorescence
yes

Field of application


Education
-
Hobby
-
Medicine
yes
Biology
yes

Area of application


Central laboratories
yes
Botany
yes
Microbiology
yes
Cytology & Pathology
yes
Marine Biology
yes

Miscellaneous


supplier product number
OBN 148
