Microscopy > Microscopes > Upright microscopes > Fluorescence microscopes > Optika > B-380 > Optika Microscope B-383LD, trino, FL-LED, blue filter, N-PLAN, IOS, 40x-1000x
Product no.: 67441

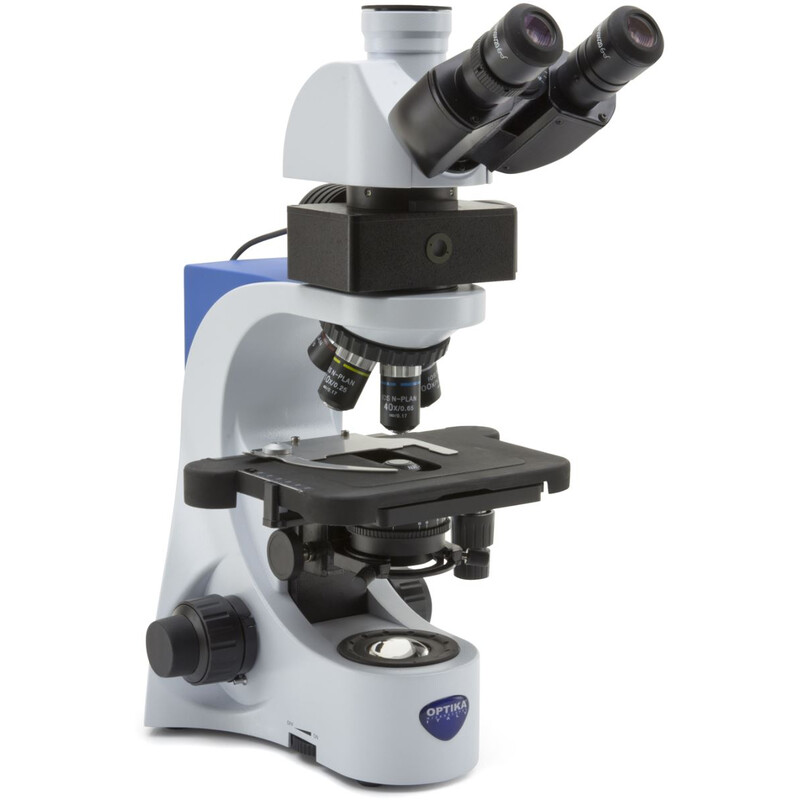

Microscope B-383LD, trino, FL-LED, blue filter, N-PLAN, IOS, 40x-1000x

RRP: $ 2,810.00 Our price:
$ 2,530.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

More about the series B-380...

B-383LD

Observation mode: Brightfield, LED fluorescence.

Epi-illumination and filter: High-power blue LED with brightness control. 3-position filter holder; blue included.

Head: Trinocular (fixed 50/50), 30° inclined, 360° rotating.

Interpupillary distance: Adjustable between 48 and 75 mm.

Dioptric adjustment: On the left eyepiece tube.

Eyepieces: WF10x/20 mm, high eye-point and secured by screw.

Nosepiece: Quintuple revolving nosepiece, rotation on ball bearings.

Objectives:

  • IOS N-PLAN 4x/0.10
  • IOS N-PLAN 10x/0.25
  • IOS N-PLAN 40x/0.65
  • IOS N-PLAN 100x/1.25 (Oil/Water)

All with anti-fungus treatment.

Specimen stage: Double layer rackless mechanical stage, 233×147 mm, 78×54 mm X-Y range.

Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.

Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable.

Transmitted illumination (Fixed Koehler type): X-LED3 with white 3.6 W LED (6,300K) with brightness control. Multi-plug 100-240Vac/6Vdc external power supply.

VALUABLE SUPPORT TO MALARIA & TBC DIAGNOSIS

The B-383LD1 LED fluorescent microscope is a cutting-edge solution designed to enable rapid diagnosis of malaria and TBC, by using acridine-orange staining technique. The optional no cover glass W-PLAN 50x/0.75 objective is required to ensure excellent results for stunning images. The aim is to reduce the costs to a minimum and provide a cost-effective, intuitive but performing solution, purposely designed for these applications.

Optika Microscope B-383LD

The B-380 series incorporates all the experience OPTIKA has gained in the field of light microscopy, specially adapted to common laboratory applications. Suitable for routine microscopy with bright field, dark field (oil and dry), phase contrast, fluorescence and polarised light, extremely stable on the laboratory table and durable.

Entry-level upright laboratory microscope for bright field and fluorescence observations with IOS N-PLAN lenses. The extremely powerful LED fluorescence lighting is combined with a blue excitation filter set for visualising the following fluorochromes: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, etc. LED fluorescence ensures unparalleled comfort, eliminating warm-up and cool-down times and all the inconveniences associated with lamp replacement and adjustment.

The exclusive X-LED3 is used to ensure a superb, rich and high-quality sample view.

Observation mode: Bright field, LED fluorescence

Epi-illumination and filters: High-performance blue LED with brightness control; 3-position filter holder; blue included

Head: Trinocular (fixed 50/50), 30° inclined, 360° rotatable

Interpupillary distance: Adjustable between 48 and 75 mm

Diopter adjustment: On the left eyepiece

Eyepieces: WF10x/20 mm, high eye point and secured with screws

Objective turret: Five-position rotating turret, ball bearing mounted

lenses:

  • IOS N-PLAN 4x/0.10
  • IOS N-PLAN 10x/0.25
  • IOS N-PLAN 40x/0.65
  • IOS N-PLAN 100x/1.25 (oil/water)

All with anti-fungus treatment

Sample stage: Two-layer , rack-free cross-stage, 233×147 mm, 78×54 mm X-Y range

Focusing: Coaxial coarse (adjustable tension) and fine focusing mechanism with end stop to prevent contact between objective and sample

Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centring

Transmitted light illumination (fixed Köhler type): X-LED3 with white 3.6 W LED (6,300 K) with brightness control. External power supply with multiple plugs 100-240 Vac/6 Vdc.

VALUABLE SUPPORT IN THE DIAGNOSIS OF MALARIA AND TUBERCULOSIS

The B-383LD1 LED fluorescence microscope is a state-of-the-art solution that enables rapid diagnosis of malaria and TB using the acridine orange staining technique. The optional W-PLAN 50x/0.75 objective without cover glass is required to ensure excellent results for impressive images. The aim is to minimise costs and offer a cost-effective, intuitive yet powerful solution that has been specially developed for these applications.

Specifications

Optics


Magnification
1000
Eyepiece
10
Lens type
IOS N-PLAN
Objective 1
4x/0.10, W.D. 16.8 mm
Objective 2
10x/0.25, W.D. 5.8 mm
Objective 3
40x/0.65, W.D. 0.43 mm
Objective 4
100x/1.25, W.D. 0.13 mm
Condensor
Abbe 1.25 N.A., focus adjustable, with iris diaphragm
Lamp type
LED
Lighting
Incident light and transmitted light

Capacity


Temperature of color (K)
6300 K
Lamp type
High-Power blue LED for epifluorescence
Fluorescence
yes
brightfield
yes
Contrast methods
Fluorescence

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement
Viewing posture (°)
0.002mm graduation, with locking function as object protection
Revolver
5

Special features


Centering stage
yes
Wide-angle eyepiece
yes

General


Colour
grey/black
Length (mm)
405
Height (mm)
480
Width (mm)
235
Weight (g)
8300
Series
B-380

Contrast methods


Fluorescence
yes

Field of application


Medicine
yes

Area of application


Interference contrast
-
Metallurgy
-
University
yes

Product safety

Manufacturer: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
