Microscopy > Microscopy accessories > Lenses > For microscopes > Evident Olympus > UPLXAPO (x-line) > Evident Olympus Objective UPLXAPO10X, 10x, plan
Product no.: 64688

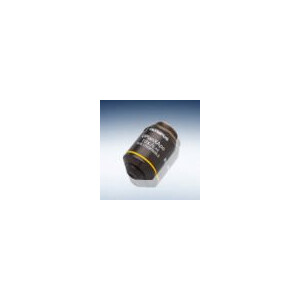

Objective UPLXAPO10X, 10x, plan

$ 3,500.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

UPLXAPO10X Objective

Advanced compensated apochromats

(N5701900)

The UPLXAPO apochromatic lenses with extended compensation feature a high numerical aperture (NA), a wide, homogeneous and distortion-free image, and extended compensation of chromatic aberrations from 400 nm to 1000 nm. Thanks to these features, high-resolution, bright images can be captured for a wide range of applications, from brightfield/fluorescence microscopy to confocal/super-resolution microscopy.

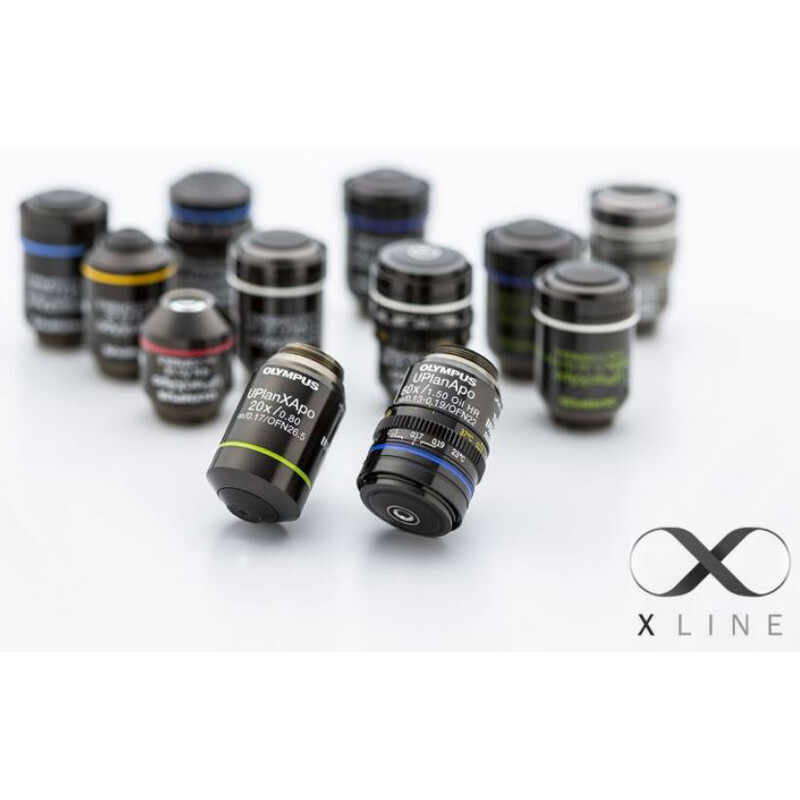

  • XLine
  • Numerical aperture (NA) 0.4
  • Working distance (W.D.) 3.1 mm
  • Objective field number 26.5 mm
  • Cover glass thickness 0.17 mm
  • Immersion medium: air/dry
  • Correction of chromatic aberration: Extended apochromat (XAPO)
  • Parfocal distance 45 mm
  • Position of rear focal plane (BFP) -19.1 mm
  • Type of screw thread W20.32×0.706 (RMS)
  • Bright field (transmitted light): Excellent
  • DIC (transmitted light): Excellent
  • Polarization: Good
  • Fluorescence (B, G excitation): Excellent
  • UV fluorescence (at 365 nm): Excellent
  • Autofocus: Yes

Specifications

Optics


Image scale
10
Field curvature
Plan
Cover glass correction
yes
Colour correction
apochromatic
Suspension
no
Immersion lens
no
infinity corrected
yes
Optical system
infinity

Capacity


Field of view value
26.5
Numerical aperture
0.4
Image scale
10
Magnification
10x

Mechanics


Working distance (mm)
3.1

General


Series
UPLXAPO (x-line)

Miscellaneous


supplier product number
N5701900

Product safety

Manufacturer: Evident Europe GmbH, Caffamacherreihe 8–10, 20355 Hamburg, DE, https://www.evidentscientific.com/
