Microscopy > Microscopes > Digital microscopes > Hand-held microscopes > Dino-Lite > Connect Wireless > Dino-Lite Microscope AF4115ZTL + WF-20, 1.3MP 10-140x, 8 LED, 30 fps, USB 2.0/WiFi
Product no.: 76868

Microscope AF4115ZTL + WF-20, 1.3MP 10-140x, 8 LED, 30 fps, USB 2.0/WiFi

$ 1,180.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
  • Magnification from 10x to 140x possible
  • Resolution of 1.3MP
  • Connection via USB 2.0 and WiFi
  • Internal, linear polariser available

Product description

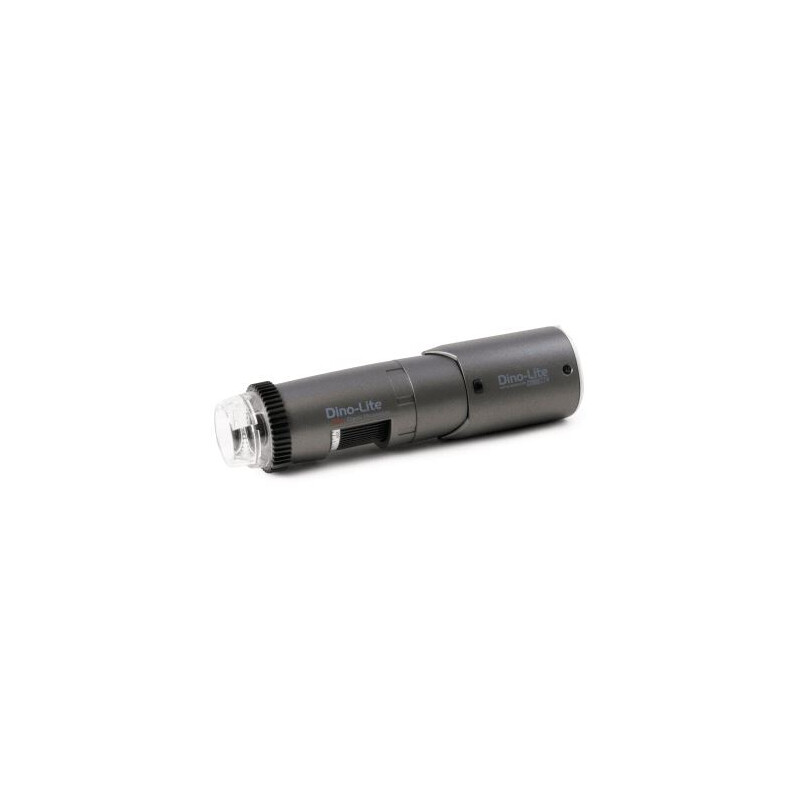

Dino-Lite WF4115ZTL

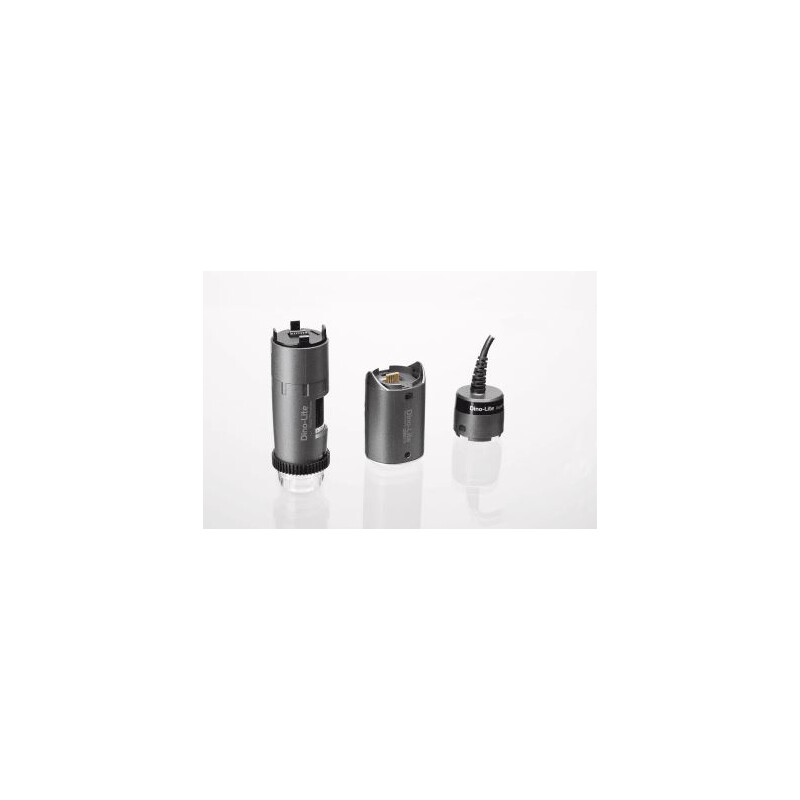

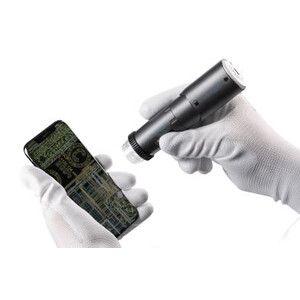

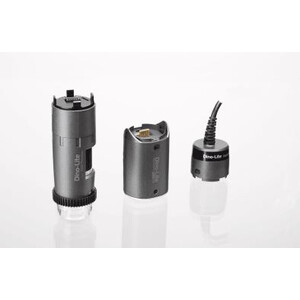

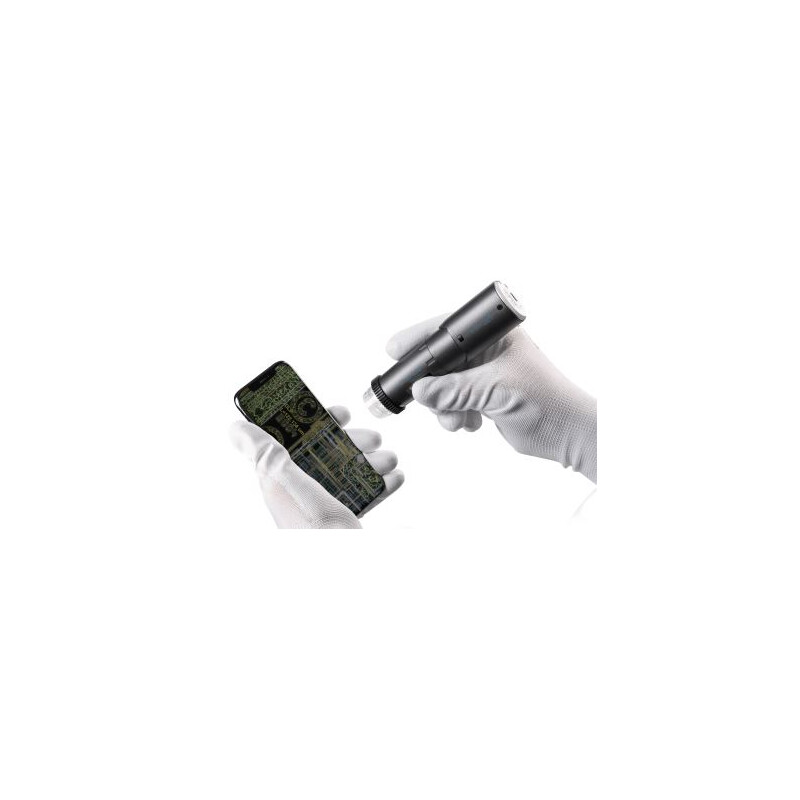

The Dino-Lite WF4115ZTL is a wireless model that is part of the Long Working Distance (LWD) series. Switch from wireless to wired operation and back again in a flash. You can work with a wired connection via USB or wirelessly with the clip-on WF-20 wireless adaptor.

The WF4115ZTL is equipped with premium features such as flexible LED control (FLC), integrated polariser and extended measurement functions.

The main features of the WF4115ZTL are:

  • Complete wireless solution (includes WF-20)
  • 1.3 megapixel edge sensor
  • 10-140x magnification
  • Longer working distance (LWD)
  • Adjustable polariser
  • Flexible LED Control (FLC)
  • And more

(* EDOF/EDR only works with Windows OS)

Specifications

Lighting

  • Light/ LED type: White
  • Number of LEDs: 8
  • LED on/off switchable: Yes
  • Infrared filter IR: cut-filter >650 nm
  • Diffuser available: Yes (N3C-D included)
  • Emission filter: No
  • Polariser: Yes, linear

Optics

  • Magnification: 10-140x
  • Macro zoom: No
  • Working distance: Long
  • Lens type: Glass with anti-reflection coating

Sensor

  • Sensor type: CMOS
  • Resolution: 1.3 megapixels (1280x1024)
  • Maximum frame rate: 30 fps

Compatibility

  • Interface: USB 2.0
  • Operating system: Windows 7, 8, 10 & 11, MacOS 10.11.6 and up
  • Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
  • Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
  • Supported video formats (Windows): WMV, FLV, SWF
  • Supported image formats (MacOS): JPEG, PNG
  • Supported video formats (MacOS): MOV
  • Imaging standards: DirectShow, UVC
  • Wi-Fi: Yes

Housing

  • Housing material: Composite/plastic housing
  • Magnification lock: Yes
  • Dimensions: 11.4 cm (L) x 3.3 cm (D)
  • Weight: 111g
  • Cable length: 1.8m

Features

  • Special feature: Flexible LED Control (FLC)
  • Measurement: Yes
  • Calibration: Yes
  • Microtouch sensor: Yes
  • ESD safe: No

Information

  • Package contents: Microscope, WF-20, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3Cextension cap, N3C-L- Long cap, N3C-S- Side light cap

Specifications

Optics


Magnification
10-140
Lighting
Incident light

Capacity


Lamp type
8 LED
Interface
USB 2.0
Megapixel
1,3
Resolution Photograph (Pixel)
1280x1024
frame rate (fps)
30
Polarization
yes

Camera


sensor
CMOS
Supported operating systems
Win 7, 8, 10, 11; MacOS 10.11.6 und spätere
Software
DinoCapture 2.0 (Win); DinoXcope (MacOS)

General


Weight (g)
111
Length (mm)
114
Diameter (mm)
33
Series
Connect Wireless

Field of application


Industry
yes
Education
yes
Hobby
-
Medicine
-

Area of application


Odontotechnics
-
Semiconductor technology
-
Metallurgy
yes
Veterinary medicine
-
University
-
Materials technology
yes
Naturopathy
yes

Miscellaneous


supplier product number
WF4115ZTL

Product safety

Manufacturer: Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, DE, www.metav-shop.de
