Microscopy > Microscopes > Digital microscopes > Hand-held microscopes > Dino-Lite > Connect Wired > Dino-Lite Microscope AF4515ZTL, 1.3MP, 10-140x, 8 LED, 30 fps, USB 2.0
Product no.: 76883

Microscope AF4515ZTL, 1.3MP, 10-140x, 8 LED, 30 fps, USB 2.0

$ 950.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
  • Magnification from 10x to 140x possible
  • Resolution of 1.3MP
  • Connection via USB 2.0
  • Internal, linear polariser available

Product description

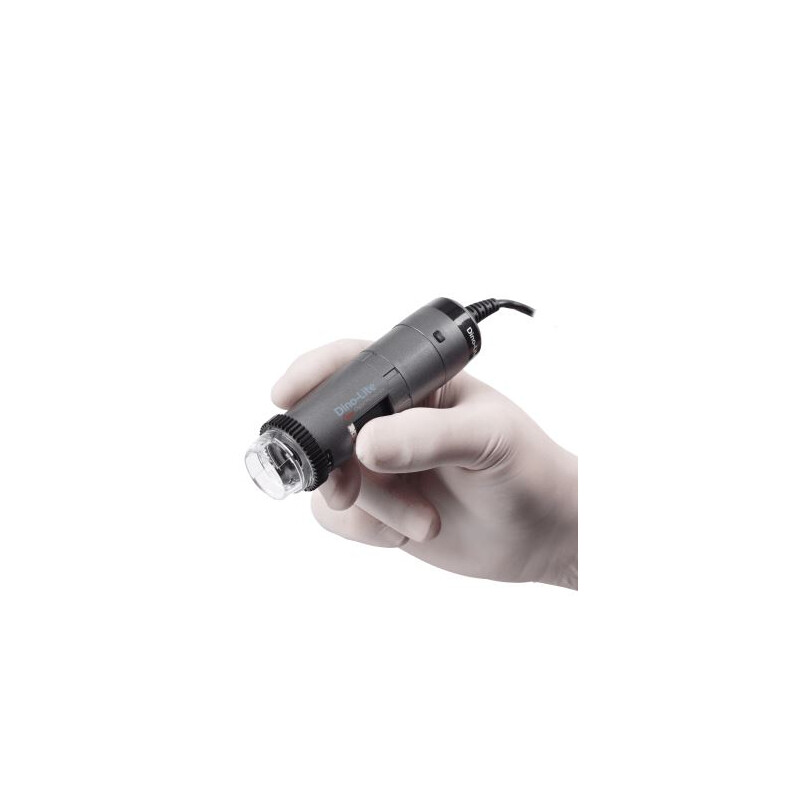

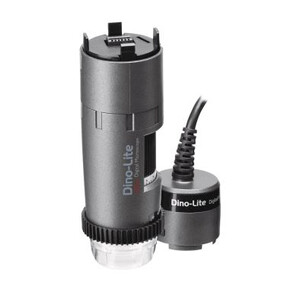

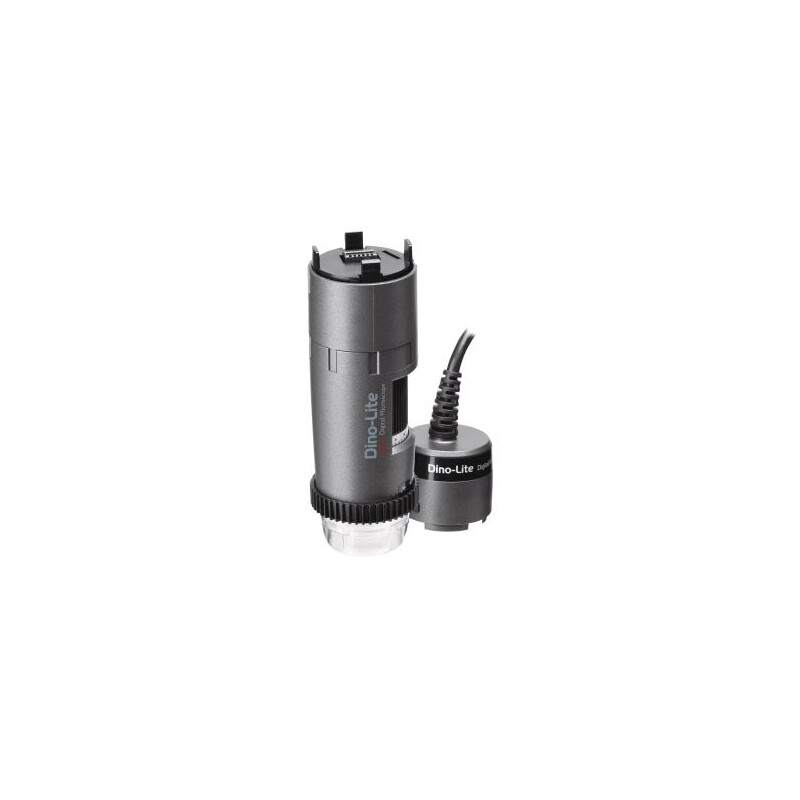

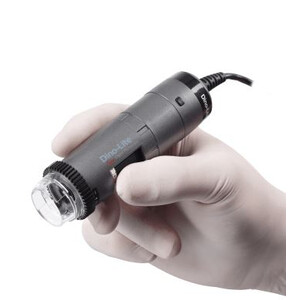

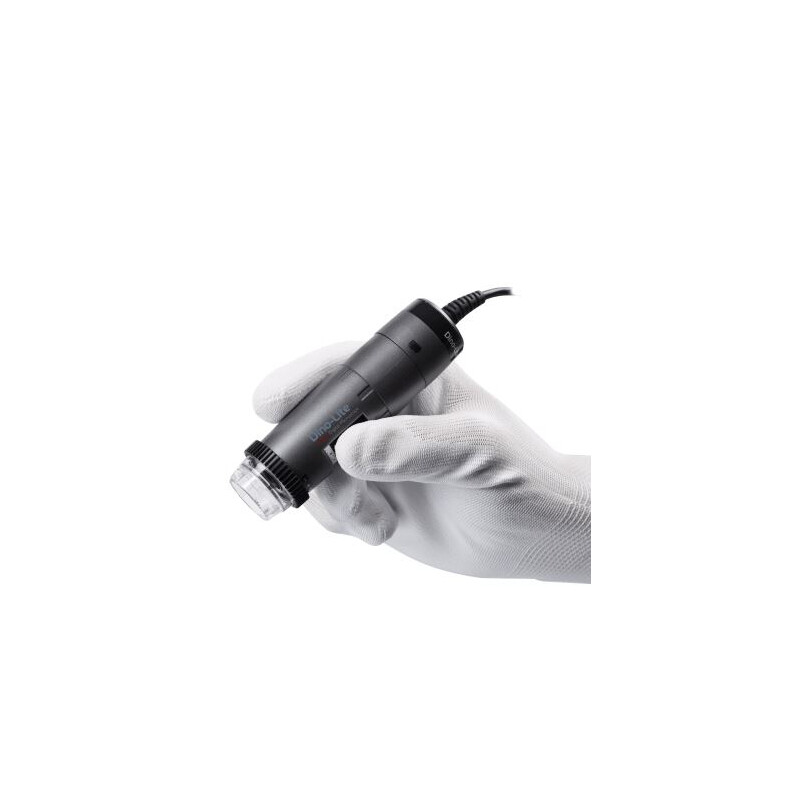

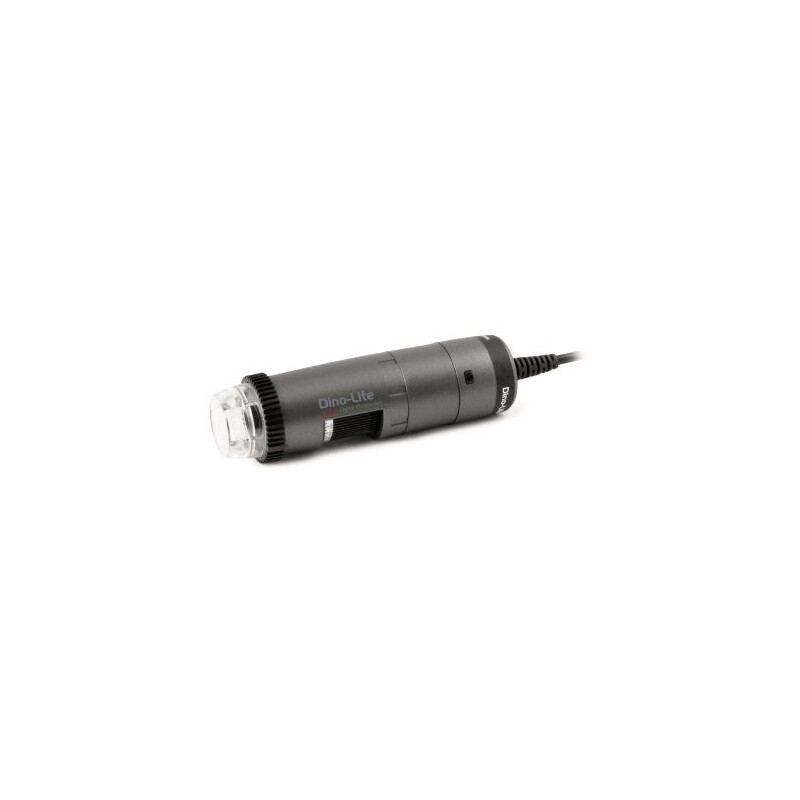

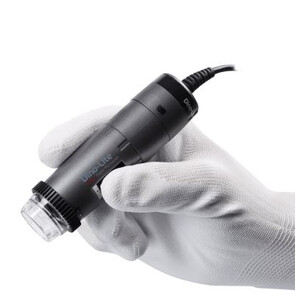

Dino-Lite AF4515ZTL

The Dino-Lite AF4515ZTL is part of the Long Working Distance (LWD) series and connects to your instrument via USB. The AF4515ZTL is ready for wireless operation, but requires the WF-20 (optional) to achieve a completely wireless solution.

The AF4515ZTL is equipped with premium features such as Flexible LED Control (FLC), integrated polariser, extended measurement functions and Automatic Magnification (AMR) for measurement-intensive applications.

The main features of the AF4515ZTL are:

  • 1.3 megapixel EDGE SENSOR
  • 10-140x magnification
  • Automatic Magnification Reading (AMR)
  • Integrated polariser (anti-reflection coating)
  • Flexible LED Control (FLC)
  • Ready for wireless operation, requires WF-20 adaptor (optional)
  • And more...

Specifications

Light

  • Light/ LED type: White
  • Number of LEDs: 8
  • LED on/off switchable: Yes
  • Infrared filter: IR cut filter >650 nm
  • Diffuser available: Yes (N3C-D included)
  • Emission filter: No
  • Polariser: Yes, linear

Optics

  • Magnification: 10-140x
  • Macro zoom: No
  • Working distance: Long
  • Lens type: Glass with anti-reflection coating

Sensor

  • Sensor type: CMOS
  • Resolution: 1.3 megapixels (1280x1024)
  • Maximum frame rate: 30 fps

Compatibility

  • Interface: USB 2.0
  • Operating system: Windows 7, 8, 10 & 11, MacOS 10.12 and up
  • Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
  • Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
  • Supported video formats (Windows): WMV, FLV, SWF
  • Supported image formats (MacOS): JPEG, PNG
  • Supported video formats (MacOS): MOV
  • Imaging standards: DirectShow, UVC
  • Wifi: Wireless-ready, requires the WF-20 adaptor (optional)

Housing

  • Housing material: Composite/plastic housing
  • Magnification lock: Yes
  • Dimensions: 11.4 cm (L) x 3.3 cm (D)
  • Weight: 111g
  • Cable length: 1.8m

Features

  • Special feature: Automatic Magnification Reading (AMR), Flexible LED Control (FLC)
  • Measurement: Yes
  • Calibration: Yes
  • Microtouch sensor: Yes
  • ESD safe: No

Information

  • Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- Diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side light cap

Specifications

Optics


Magnification
10-140
Lighting
Incident light

Capacity


Lamp type
8 LED
Interface
USB 2.0
Megapixel
1,3
Resolution Photograph (Pixel)
1280x1024
frame rate (fps)
30
Polarization
yes

Camera


sensor
CMOS
Supported operating systems
Win 7, 8, 10, 11; MacOS 10.12 und spätere
Software
DinoCapture 2.0 (Win); DinoXcope (MacOS)

General


Weight (g)
111
Length (mm)
114
Diameter (mm)
33
Series
Connect Wired

Field of application


Industry
yes
Education
yes
Hobby
-
Medicine
-

Area of application


Odontotechnics
-
Semiconductor technology
-
Metallurgy
yes
Veterinary medicine
-
University
-
Materials technology
yes
Naturopathy
yes

Miscellaneous


supplier product number
AF4515ZTL
