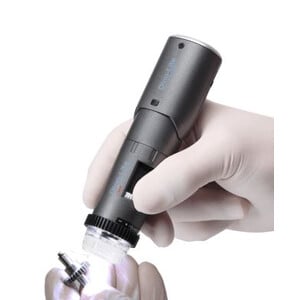

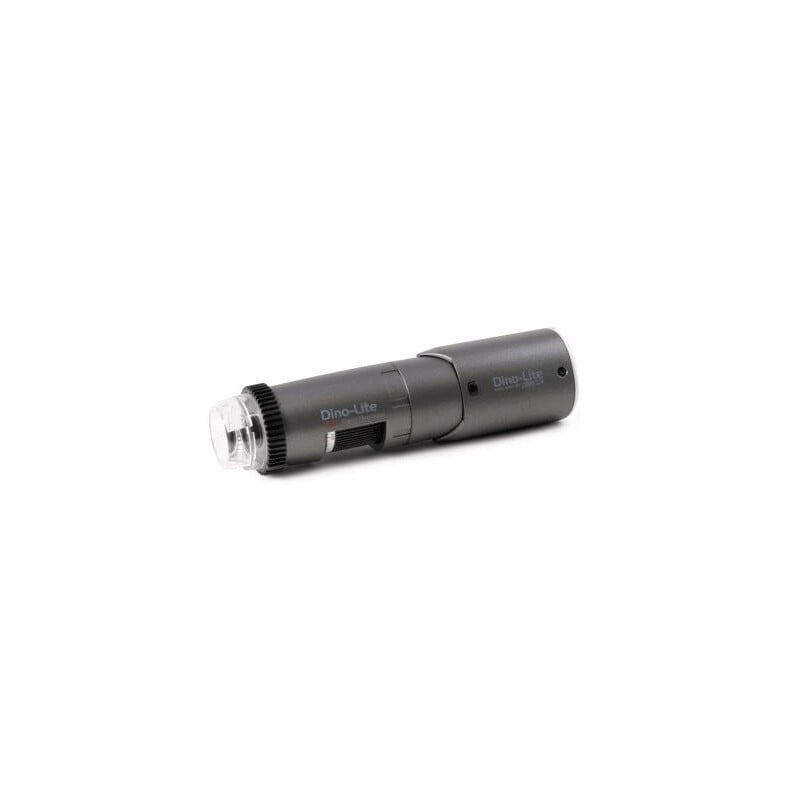

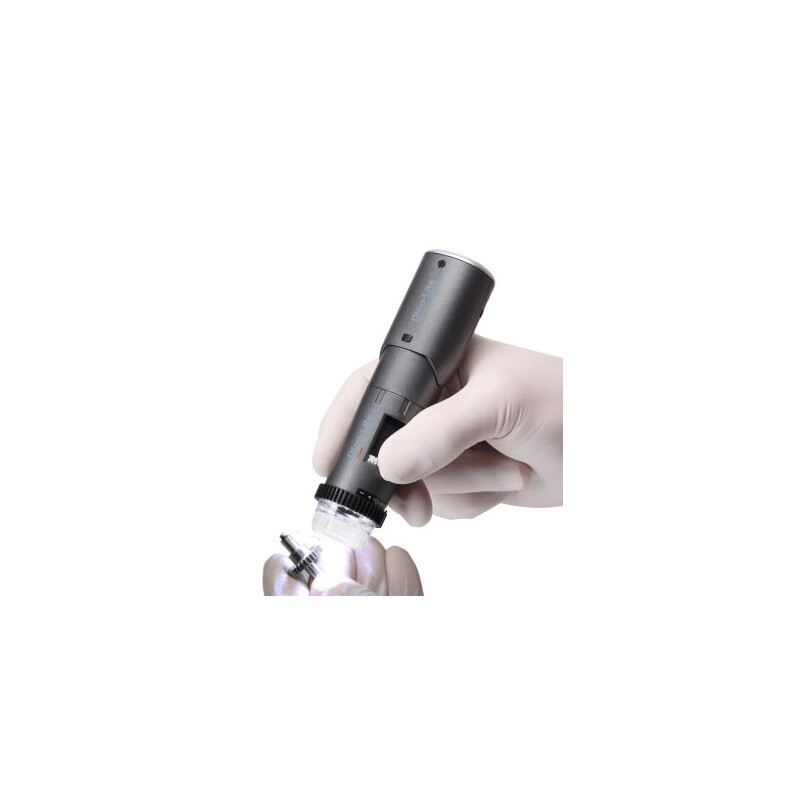

Dino-Lite WF4515ZTL

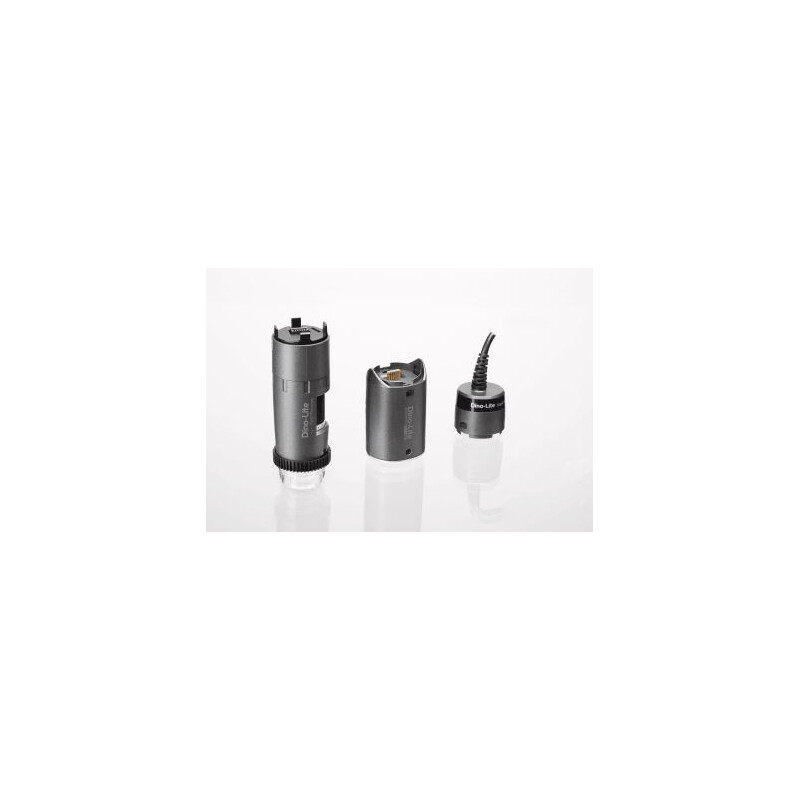

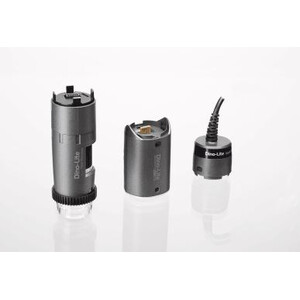

The Dino-Lite WF4515ZTL is a wireless model that is part of the Long Working Distance (LWD) series. Switch from wireless to wired operation and back again in a flash. You can work with a wired connection via USB or wirelessly with the clip-on WF-20 wireless adaptor.
The WF4515ZTL is equipped with premium features such as Flexible LED Control (FLC), integrated polariser, advanced measurement functions and Automatic Magnification (AMR) for measurement-intensive applications.
The main features of the WF4515ZTL are:
- Complete wireless solution (includes WF-20)
- 1.3 megapixel edge sensor
- 10-140x magnification
- Long Working Distance (LWD)
- Automatic Magnification Reading (AMR)
- Adjustable polariser
- Flexible LED Control (FLC)
- And more
Specifications
Lighting
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 10-140x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 megapixels (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.11.16 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
- Wi-Fi: Yes
Housing
- Housing material: Composite/plastic housing
- Magnification lock: Yes
- Dimensions: 11.4 cm (L) x 3.3 cm (D)
- Weight: 111g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR), Flexible LED Control (FLC)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: No
Information
- Package contents: Microscope, WF-20, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, n3c-Eextension cap, N3C-L- Long cap, N3C-S- Side light cap
DinoCapture software for Dino-Lite microscopes
With the DinoCapture software, you can use your Dino-Lite microscope particularly efficiently on a PC. The software has been developed for both new users and experienced professionals and supports the entire microscopy workflow – from live image display and image capture to structured documentation.
The integrated measurement and documentation functions are particularly practical. Depending on the Dino-Lite model, you can measure distances, areas, angles or radii, annotate images and archive measurement results clearly. This makes DinoCapture ideal for quality control, laboratories, industry, electronics testing, research and education. DinoCapture 3.0 offers improved data organisation: practical features such as favourites, an advanced search function, custom file naming and nested folder structures. This allows images, videos and project data to be managed clearly and retrieved more quickly.
In combination with a Dino-Lite digital microscope, DinoCapture supports a structured workflow: view the sample, capture an image, measure, document and share – all within a user-friendly software environment.
