Microscopy > Microscopes > Digital microscopes > Hand-held microscopes > Dino-Lite > Connect Wireless > Dino-Lite Microscope AF4915ZT + WF-20, 1.3MP, 20-220x, 8 LED, 30 fps, USB 2.0/WiFi
Product no.: 76837

Microscope AF4915ZT + WF-20, 1.3MP, 20-220x, 8 LED, 30 fps, USB 2.0/WiFi

$ 1,580.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
  • Magnification from 20x to 220x possible
  • Resolution of 1.3MP
  • Connection via USB 2.0 and WiFi
  • Internal, linear polariser available

Product description

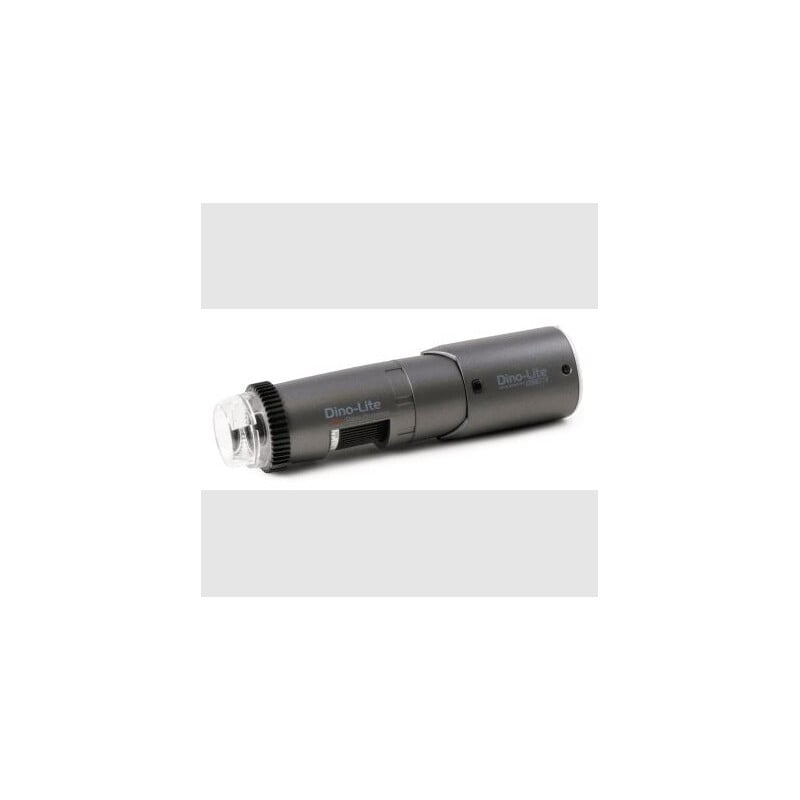

Dino-Lite WF4915ZT

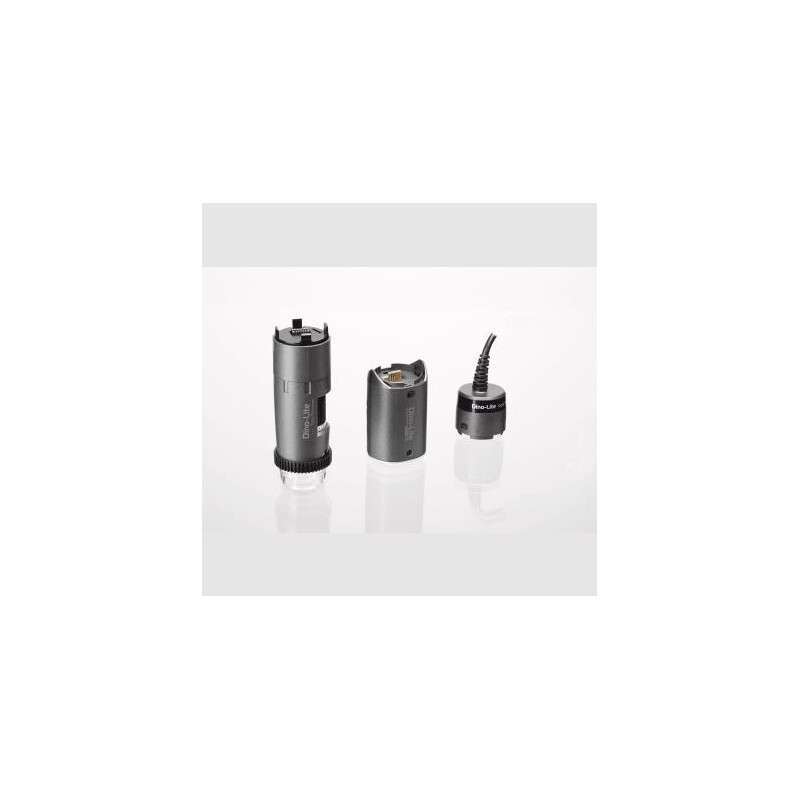

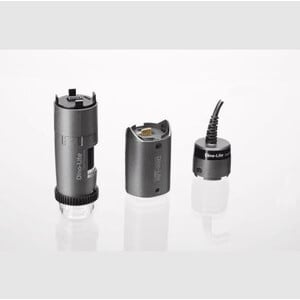

The Dino-Lite WF4915ZT is a wireless model that is part of the Universal series. Switch from wireless to wired operation and back again in no time. You can work with a wired connection via USB or wirelessly with the clip-on WF-20 wireless adaptor.

The WF4915ZT is equipped with premium features such as extended depth of field (EDOF), extended dynamic range (EDR), flexible LED control (FLC), integrated polariser, advanced measurement functions and automatic magnification (AMR) for measurement-intensive applications.

The main features of the WF4915ZT are:

  • Complete wireless solution (includes WF-20)
  • 20-220x magnification
  • 1.3 megapixel edge sensor
  • Extended depth of field (EDOF)
  • Extended Dynamic Range (EDR)
  • Automatic Magnification Reading (AMR)
  • Adjustable polariser
  • Flexible LED Control (FLC)
  • And more

(*EDOF/EDR only works with Windows)

Specification

Light

  • Light/ LED type: White
  • Number of LEDs: 8
  • LED on/off switchable: Yes
  • Infrared filter: IR cut filter >650 nm
  • Diffuser available: Yes (N3C-D included)
  • Emission filter: No
  • Polariser: Yes, linear

Optics

  • Magnification: 20-220x
  • Macro zoom: No
  • Working distance: Standard
  • Lens type: Glass with anti-reflection coating

Sensor

  • Sensor type: CMOS
  • Resolution: 1.3 megapixels (1280x1024)
  • Maximum frame rate: 30 fps

Compatibility

  • Interface: USB 2.0
  • Operating system: Windows 7, 8, 10 & 11, MacOS 10.11.6 and up
  • Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
  • Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
  • Supported video formats (Windows): WMV, FLV, SWF
  • Supported image formats (MacOS): JPEG, PNG
  • Supported video formats (MacOS): MOV
  • Imaging standards: DirectShow, UVC
  • Wi-Fi: Yes

Housing

  • Housing material: Composite/plastic housing
  • Dimensions: 11.4 cm (L) x 3.3 cm (D)
  • Weight: 111 g
  • Cable length: 1.8m

Features

  • Special feature: Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC)
  • Measurement: Yes
  • Calibration: Yes
  • Microtouch sensor: Yes
  • ESD safe: No

Information

  • Package contents: Microscope, WF-20, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-E extension cap, N3C-L- Long cap, N3C-S- Side light cap

Specifications

Optics


Magnification
20-220
Lighting
Incident light

Capacity


Lamp type
8 LED
Interface
USB 2.0
Megapixel
1,3
Resolution Photograph (Pixel)
1280x1024
frame rate (fps)
30
Polarization
yes

Camera


sensor
CMOS
Supported operating systems
Win 7, 8, 10, 11; MacOS 10.11.6 und spätere
Software
DinoCapture 2.0 (Win); DinoXcope (MacOS)

General


Weight (g)
111
Length (mm)
114
Diameter (mm)
33
Series
Connect Wireless

Field of application


Industry
yes
Education
yes
Hobby
-
Medicine
-

Area of application


Odontotechnics
-
Semiconductor technology
yes
Metallurgy
yes
Veterinary medicine
-
University
-
Materials technology
yes
Materials Science
yes
Gemology
yes
Automotive
yes
Naturopathy
yes

Miscellaneous


supplier product number
WF4915ZT

Product safety

Manufacturer: Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, DE, www.metav-shop.de
