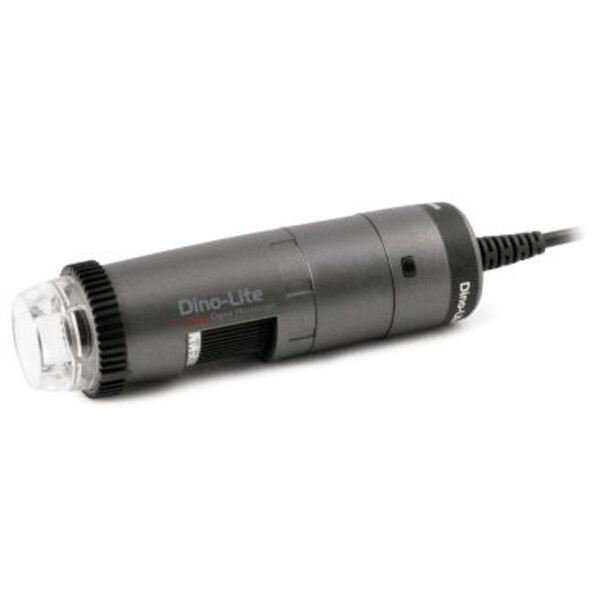

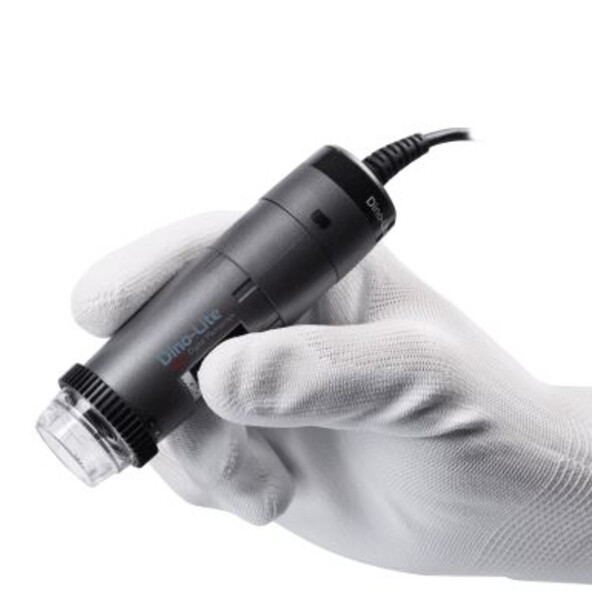

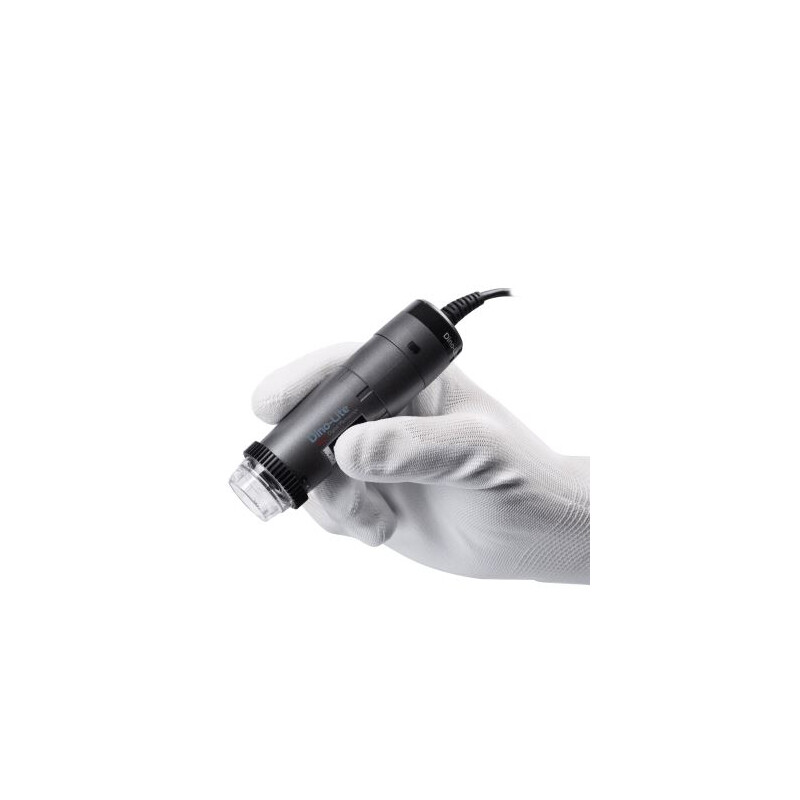

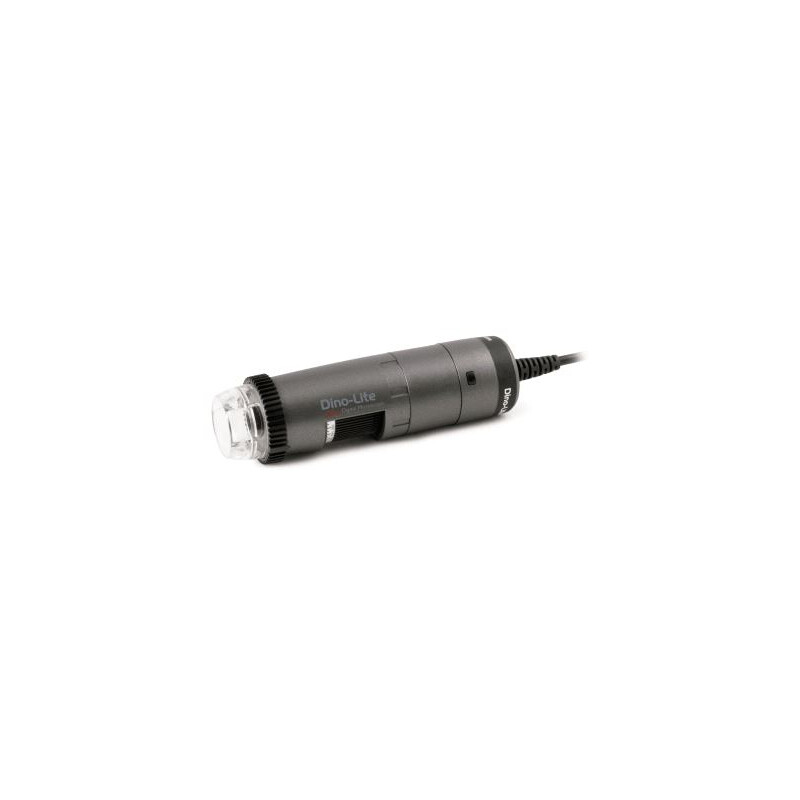

Dino-Lite AF4915ZTL
The Dino-Lite AF4915ZTL is part of the Long Working Distance (LWD) series and connects to your instrument via USB. The AF4915ZTL is ready for wireless operation, but requires the WF-20 (optional) to achieve a completely wireless solution.
The AF4915ZTL is equipped with premium features such as extended depth of field (EDOF), extended dynamic range (EDR), flexible LED control (FLC), integrated polariser, extended measurement functions and automatic magnification (AMR) for measurement-intensive applications.
The main features of the AF4915ZTL are:
- 1.3 megapixel EDGE SENSOR
- 10-140x magnification
- Integrated polariser (anti-reflection coating)
- Extended depth of field (EDOF)
- Extended Dynamic Range (EDR)
- Automatic Magnification Reading (AMR)
- Flexible LED Control (FLC)

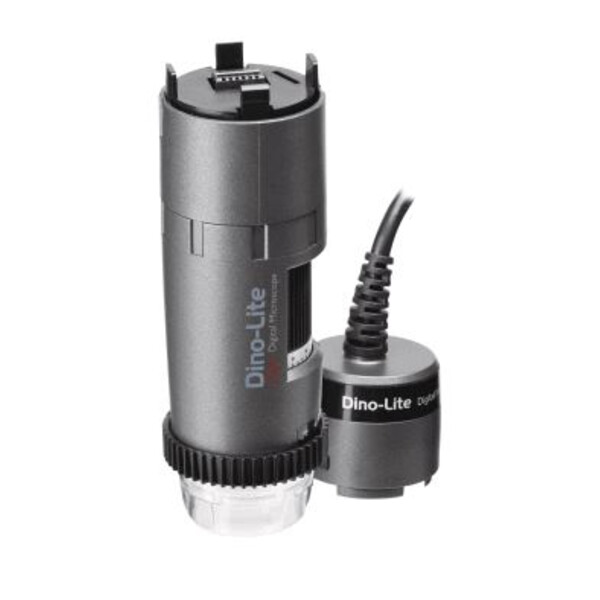

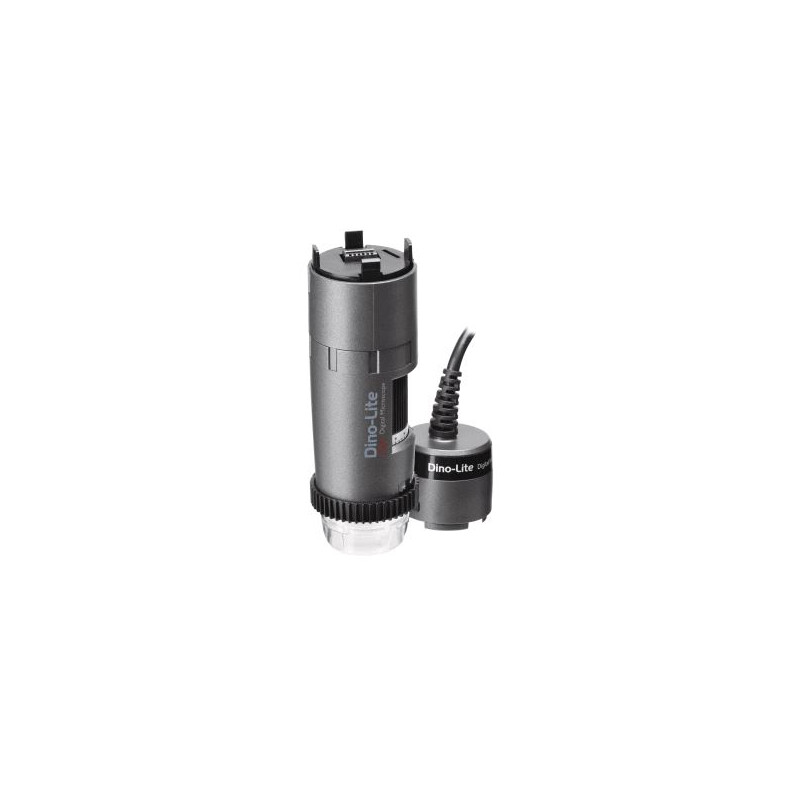

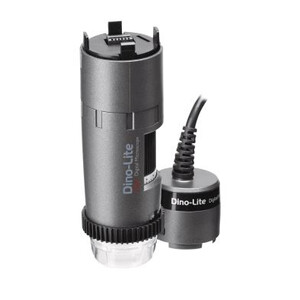

- Ready for wireless operation, requires WF-20 adaptor (optional)
- And more
(*EDOF/EDR only works with Windows)
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 10-140x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 megapixels (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.12 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
- WiFi: Wireless-ready, requires the WF-20 adaptor (optional)
Housing
- Housing material: Composite/plastic housing
- Magnification lock: Yes
- Dimensions: 11.4 cm (L) x 3.3 cm (D)
- Weight: 111 g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: No
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- Diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side light cap
DinoCapture software for Dino-Lite microscopes
With the DinoCapture software, you can use your Dino-Lite microscope particularly efficiently on a PC. The software has been developed for both new users and experienced professionals and supports the entire microscopy workflow – from live image display and image capture to structured documentation.
The integrated measurement and documentation functions are particularly practical. Depending on the Dino-Lite model, you can measure distances, areas, angles or radii, annotate images and archive measurement results clearly. This makes DinoCapture ideal for quality control, laboratories, industry, electronics testing, research and education. DinoCapture 3.0 offers improved data organisation: practical features such as favourites, an advanced search function, custom file naming and nested folder structures. This allows images, videos and project data to be managed clearly and retrieved more quickly.
In combination with a Dino-Lite digital microscope, DinoCapture supports a structured workflow: view the sample, capture an image, measure, document and share – all within a user-friendly software environment.
