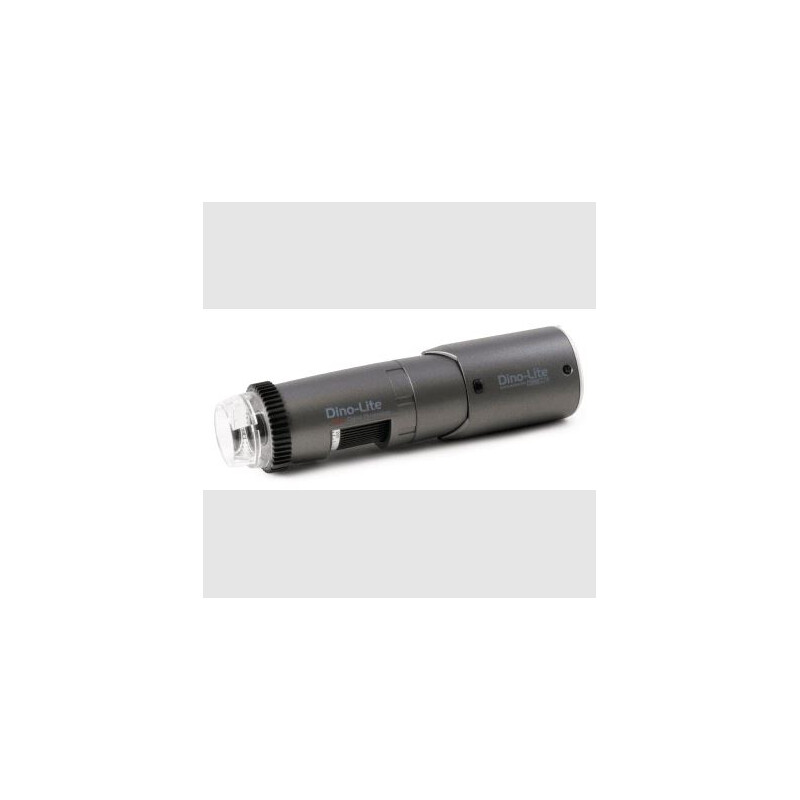

Dino-Lite WF4915ZTL

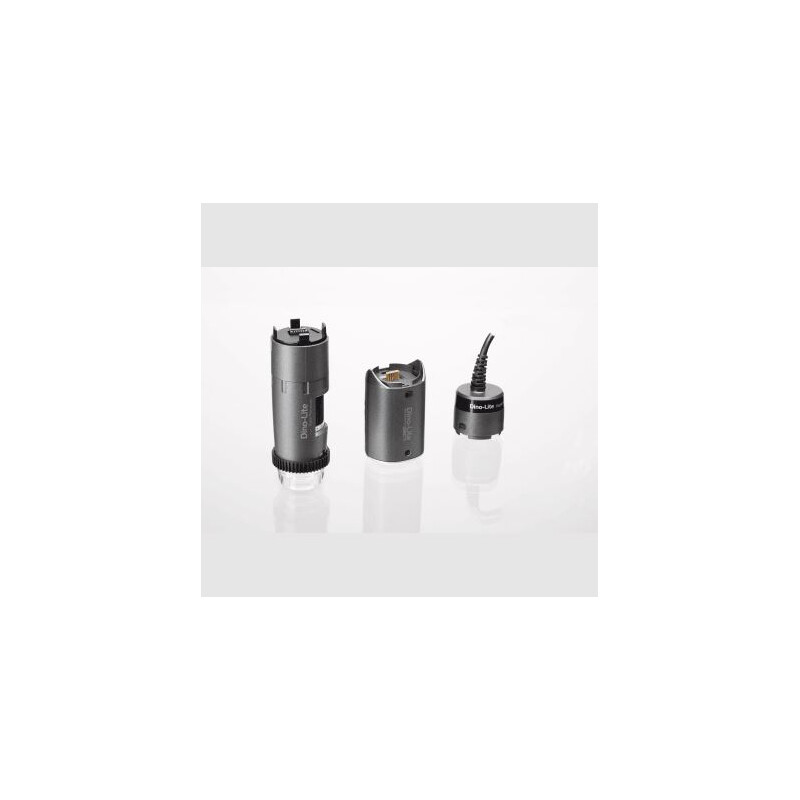

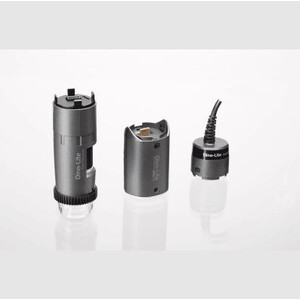

The Dino-Lite WF4915ZTL is a wireless model that is part of the Long Working Distance (LWD) series. Switch from wireless to wired operation and back again in a flash. You can work with a wired connection via USB or wirelessly with the clip-on WF-20 wireless adaptor.
The WF4915ZTL is equipped with premium features such as extended depth of field (EDOF), extended dynamic range (EDR), flexible LED control (FLC), integrated polariser, extended measurement functions and automatic magnification (AMR) for measurement-intensive applications.
The main features of the WF4915ZTL are:
- Complete wireless solution (includes WF-20)
- 10-140x magnification
- 1.3 megapixel edge sensor
- Extended depth of field (EDOF)
- Extended Dynamic Range (EDR)
- Automatic Magnification Reading (AMR)
- Adjustable polariser
- Flexible LED Control (FLC)
- And more
(*EDOF/EDR only works with Windows)
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 10-140x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 megapixels (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.11.6 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
- Wi-Fi: Yes
Housing
- Housing material: Composite/plastic housing
- Magnification lock: Yes
- Dimensions: 11.4 cm (L) x 3.3 cm (D)
- Weight: 111g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: No
Information
- Package contents Microscope, WF-20, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- diffuser cap, N3C-Eextension cap, N3C-L- Long cap, N3C-S- Side light cap
