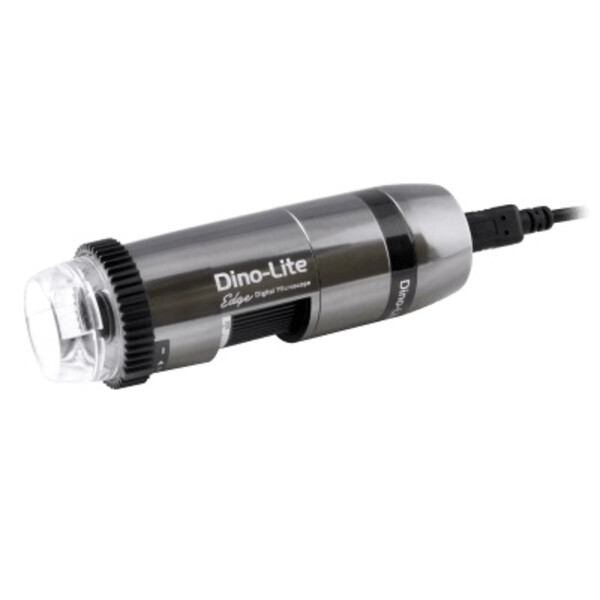

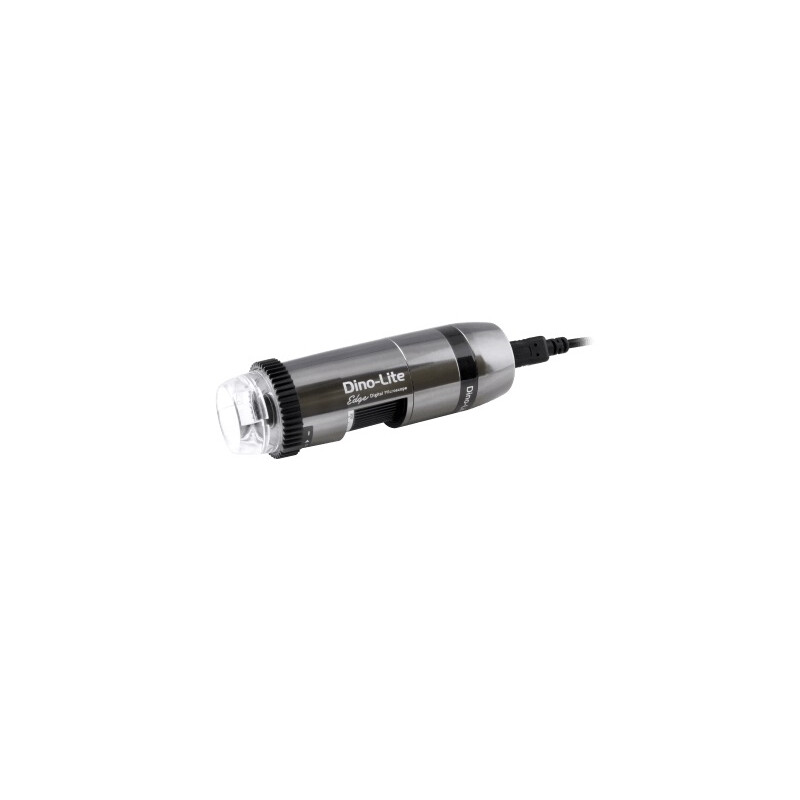

Dino-Lite AM4117MZT
The Dino-Lite AM4117MZT is part of the EDGE PLUS series, a special category within the Universal series. It offers a magnification range of 20-220x with 1.3MP and a USB 2.0 connection at 30fps. It offers excellent image quality and clarity as well as colour reproduction in a robust, compact and attractive metal housing.
The most important features of the AM4117MZT are:
- 1.3 megapixel EDGE PLUS sensor
- Flexible LED Control (FLC)
- 20-220x magnification
- Integrated polariser
- 30 fps
- Robust metal housing
- And more
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 20-220x
- Macro zoom: No
- Working distance: Standard
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 megapixels (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.11.6 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF (max 1.3MP)
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
- Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Metal housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 130g
- Cable length: 1.5m
Features
- Special feature: Flexible LED Control (FLC)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, Carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- diffuser cap, N3C-Eextension cap, N3C-L- Long cap, N3C-S- Side light cap
