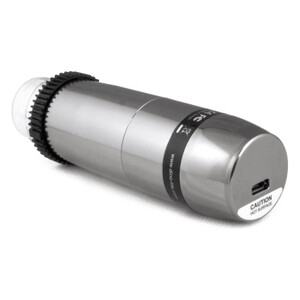

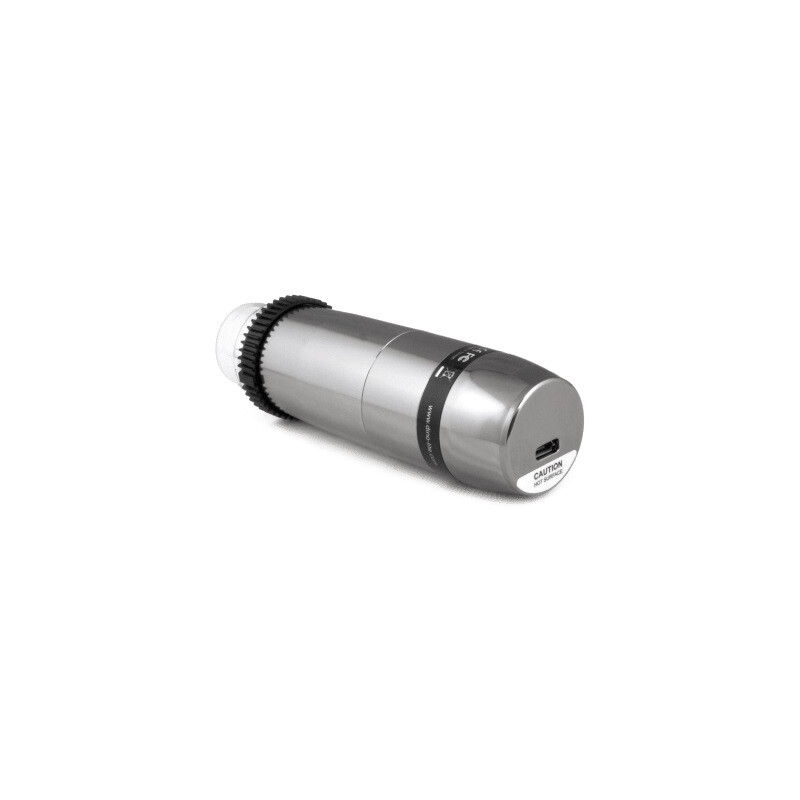

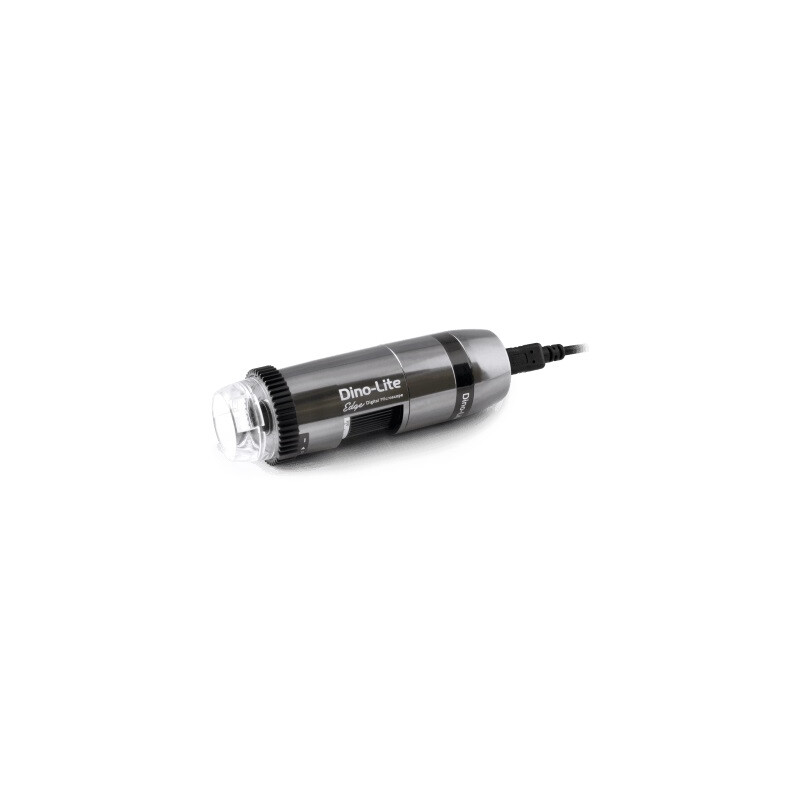

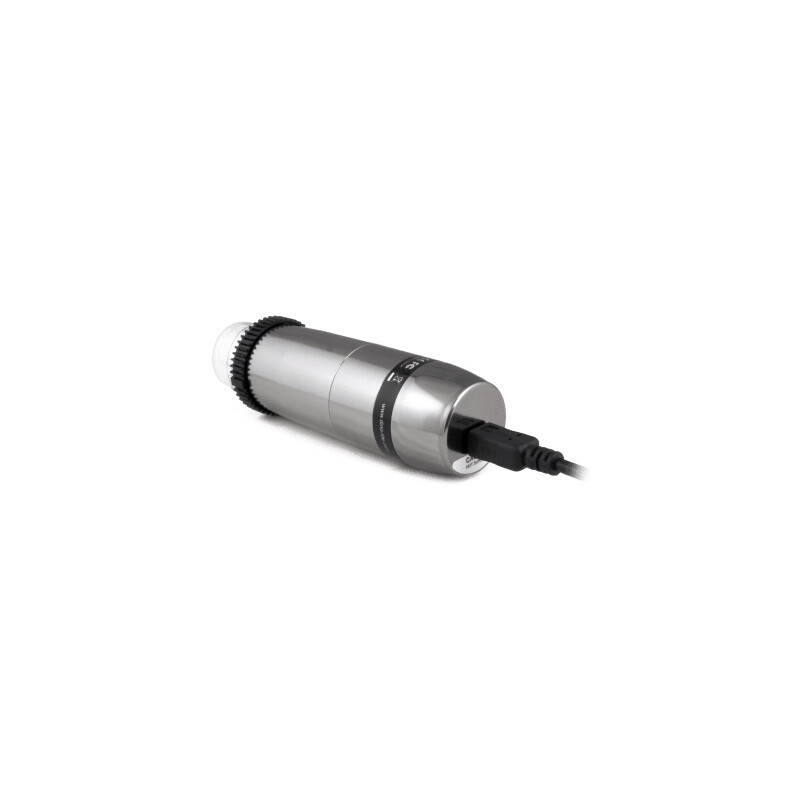

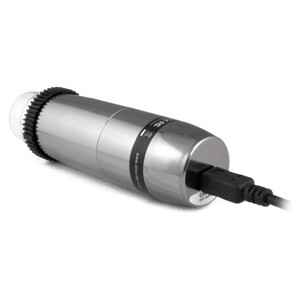

Dino-Lite AM4917MZT
The Dino-Lite AM4917MZT is part of the EdgePLUS series, a special category within the Universal series. It offers a magnification range of 20 - 220x with 1.3 MP and a USB 2.0 connection at 30 BpS. It offers excellent image quality, clarity and colour reproduction in a robust, compact and attractive metal housing. A unique feature within the EDGE PLUS series for the AM4917MZT model is the ability to capture depth information. By displaying variations in focus shift, you can obtain depth information about grooves, holes and other types of topographical variations. Please click here to read the instructions on "Capturing depth information with the AM4917 models".
EDOF allows users to automatically capture multiple images at different depths and combine them automatically into a clear image. EDR automatically captures and combines multiple images at different exposure levels to produce a final image with a greater dynamic range. The AMR function automatically detects and displays the magnification of the Dino-Lite. The magnification is displayed within the Dino-Lite software and saved with the captured image, simplifying the measurement process.
The most important features of the AM4917MZT are:
- 1.3 megapixel EDGE PLUS sensor
- Automatic Magnification Reading (AMR)
- Depth acquisition
- Extended Depth of Field (EDOF)
- Extended Dynamic Range (EDR)
- Flexible LED Control (FLC)
- 20-220x magnification
- Integrated polariser
- And more
(* EDOF/EDR/Depth acquisition currently only works on Windows OS)
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 20-220x
- Macro zoom: No
- Working distance: Standard
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 megapixels (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 11.1 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
- Supported image formats: (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats: (Windows) WMV, FLV, SWF (max 1.3MP)
- Supported image formats: (MacOS) JPEG, PNG
- Supported video formats: (MacOS) MOV
- Imaging standards: DirectShow, UVC
- Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Metal housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 130g
- Cable length: 1.5m
Features
- Special feature: Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- diffuser cap, N3c-E-extension cap, N3C-L- Long cap, N3C-S- Side light cap
