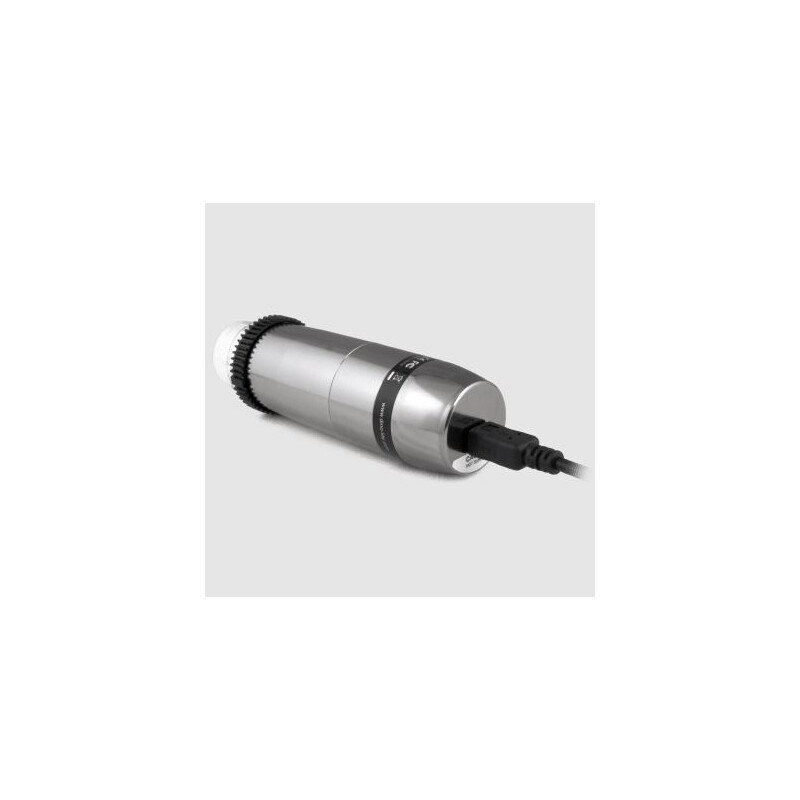

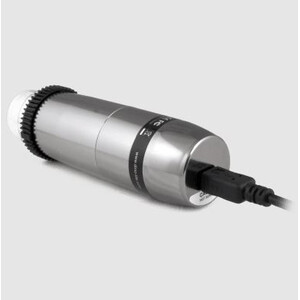

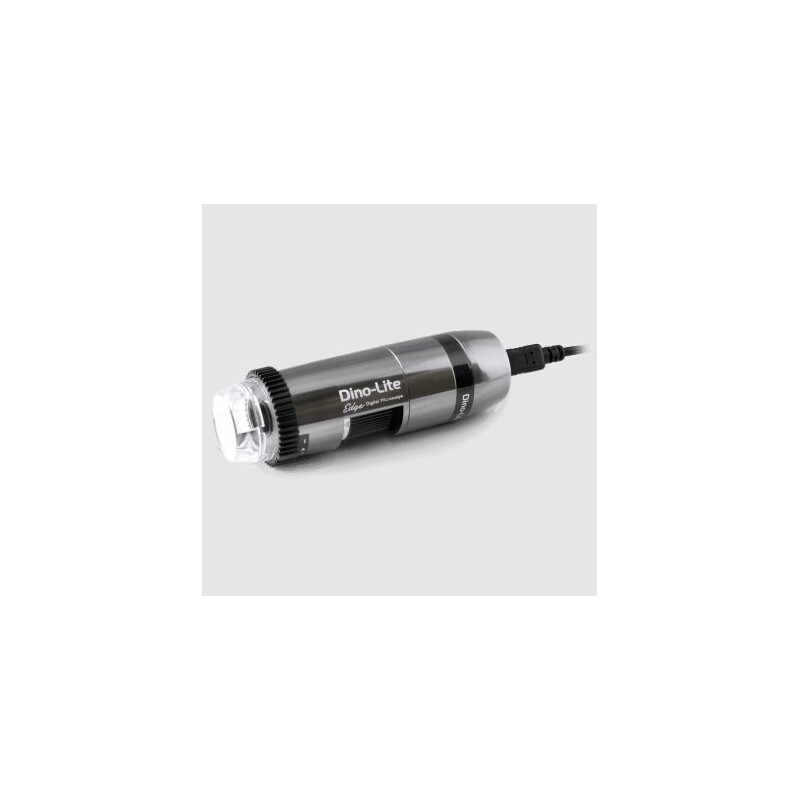

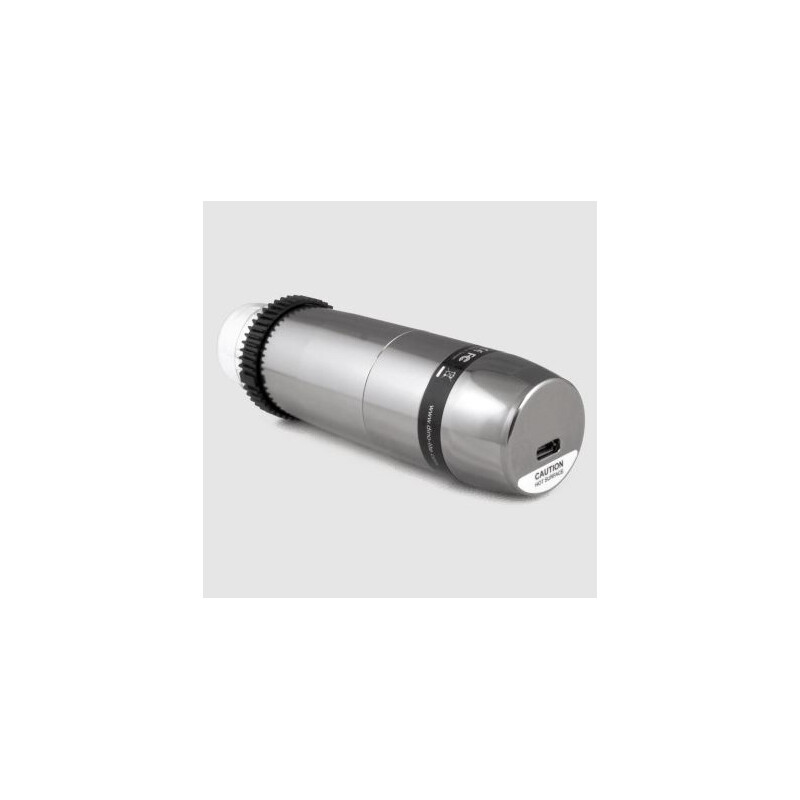

Dino-Lite AM4917MZTL
The Dino-Lite AM4917MZTL is part of the EdgePLUS series, a special category within the LWD (long working distance) range. It offers a magnification range of 10 - 140x with 1.3 MP and a USB 2.0 connection at 30 BpS. It provides excellent image quality, clarity and colour reproduction in a robust, compact and attractive metal housing.
A unique feature within the EDGEPLUS series for the AM4917MZT model is the ability to capture depth information. By displaying variations in focus shift, you can obtain depth information about grooves, holes and other types of topographical variations.
EDOF allows users to automatically capture multiple images at different depths and combine them automatically into a clear image. EDR automatically captures and combines multiple images at different exposure levels to produce a final image with a greater dynamic range. The AMR function automatically detects and displays the magnification of the Dino-Lite. The magnification is displayed within the Dino-Lite software and saved with the captured image, simplifying the measurement process.
The most important features of the AM4917MZTL are:
- 1.3 megapixel EDGEPLUS sensor
- Automatic Magnification Reading (AMR)
- Depth acquisition
- Extended Depth of Field (EDOF)
- Extended Dynamic Range (EDR)
- Flexible LED Control (FLC)
- 10-140x magnification
- Large working distance
- Integrated polariser
- And more
(* EDOF/EDR/Depth acquisition currently only works under Windows OS)
Specifications
Light
- Light/ LED type: White
- Light/ LED type: Wireless-ready, requires the WF-10 WiFi streamer (optional)
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 10-140x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 1.3 megapixels (1280x1024)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 11.1 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF (max 1.3MP)
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV
- Imaging standards: DirectShow, UVC
Housing
- Housing material: Metal housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.3 cm (D)
- Weight: 130g
- Cable length: 1.5m
Features
- Special feature: Flexible LED Control (FLC), Automatic Magnification: Reading (AMR), EDOF/EDR & Depth information
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover box with N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E- Extension cap, N3CL- Long cap, N3C-S- Side light cap
