Microscopy > Microscopes > Digital microscopes > Hand-held microscopes > Dino-Lite > High Speed Real Time > Dino-Lite Microscope AM5217MZTL, 720p 10-140x, 8 LED, 60 fps, HDMI/DVI
Product no.: 76865

Microscope AM5217MZTL, 720p 10-140x, 8 LED, 60 fps, HDMI/DVI

$ 1,250.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
  • Magnification from 10x to 140x possible
  • Resolution of 720p/HD
  • Connection via HDMI/DVI
  • Internal, linear polariser available

Product description

Dino_lite AM5418MZTL

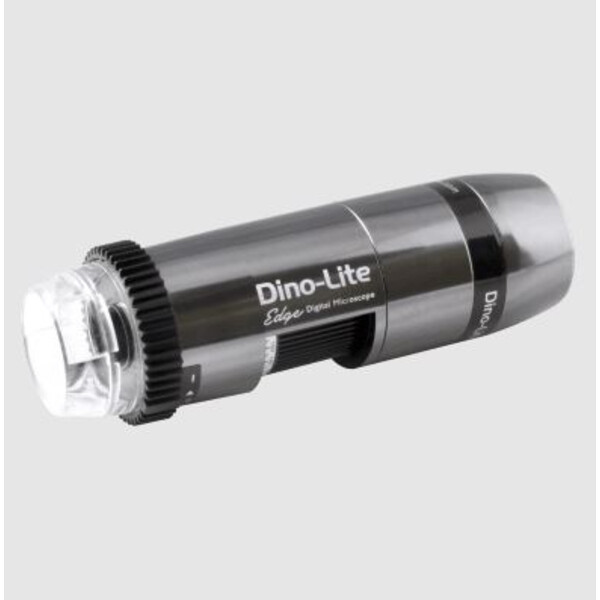

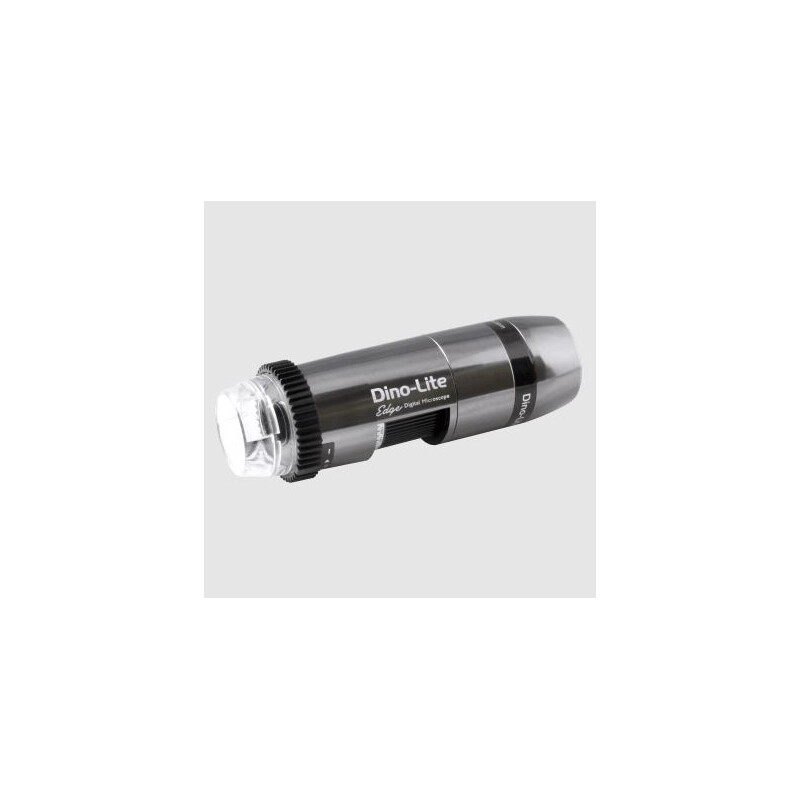

The Dino-Lite AM5218MZTL Edge can be connected directly to an HDTV or LCD monitor via a DVI/HDMI interface. The sharp 720p HD resolution allows even the smallest details to be seen.

Together with the "Long Working Distance" of up to 15 cm, the AM5218MZTL Edge is the right choice for users who need real-time images, such as when working on printed circuit boards or miniature objects. By tapping the Microtouch on the instrument, the image can be frozen and used for more detailed inspection. Pressing the Microtouch for 2 seconds switches the integrated LEDs on and off again. The aluminium housing offers a high level of protection and durability. The built-in, adjustable polarisation filter allows the user to reduce reflections on highly reflective surfaces (metal, plastics, electronic parts) to such an extent that an evaluable image is available.

Specifications

Light

  • Light/ LED type: White
  • Number of LEDs: 8
  • LED on/off switchable: Yes
  • Infrared filter: IR cut filter >650 nm
  • Emission filter: No
  • Polariser: Yes, linear

Optics

  • Magnification: 10-140x
  • Macro zoom: No
  • Working distance: Long
  • Lens type: Glass with anti-reflection coating

Sensor

  • Sensor type: CMOS
  • Resolution: HD 720p
  • Maximum frame rate: 60 fps
  • Compatibility
  • Interface: DVI & HDMI
  • Wifi: No

Housing

  • Housing material: Metal housing
  • Magnification lock: Yes
  • Dimensions: 10.5 cm (L) x 3.2 cm (D)
  • Weight: 140g
  • Cable length: 1.8m

Features

  • Special feature: No
  • Measurement: No
  • Calibration: No
  • Microtouch sensor: Yes
  • ESD safe: Yes

Information

  • Package contents: Microscope, carry pouch, DVI & HDMI cable, power adaptor, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E Extension cap, N3C-L- Long cap, N3C-S- Side light cap

Specifications

Optics


Magnification
10-140
Lighting
Incident light

Capacity


Lamp type
8 LED
Interface
HDMI
Megapixel
0,92
Resolution Photograph (Pixel)
1280x720 (720p)
frame rate (fps)
60
Polarization
yes

Camera


sensor
CMOS

General


Weight (g)
140
Length (mm)
105
Diameter (mm)
32
Series
High Speed Real Time

Field of application


Industry
yes
Education
yes
Hobby
-
Medicine
-

Area of application


Odontotechnics
-
Semiconductor technology
-
Metallurgy
yes
Veterinary medicine
-
University
-
Materials technology
yes
Naturopathy
yes

Miscellaneous


supplier product number
AM5218MZTL
