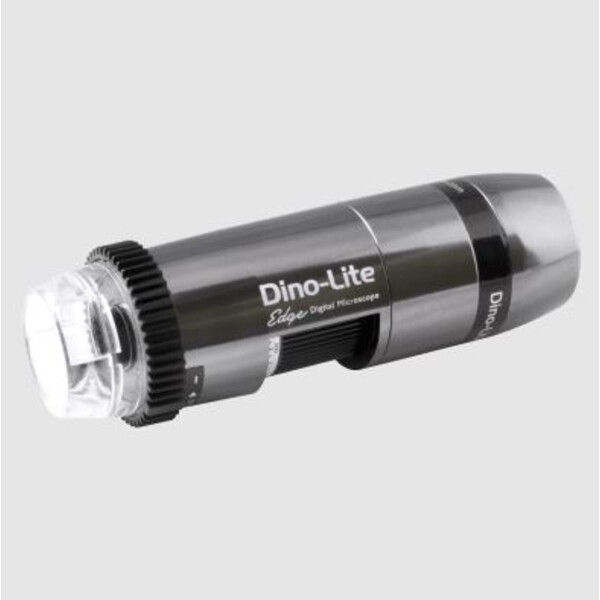

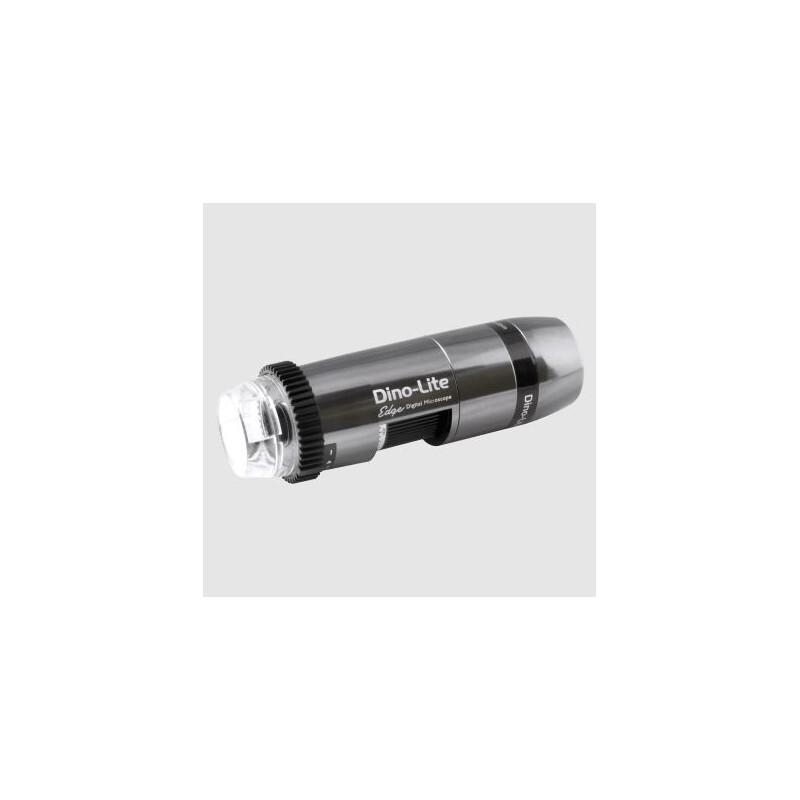

Dino-Lite AM5218MZT
The Dino-Lite AM5218MZT Edge can be connected directly to an HDTV or LCD monitor via a DVI/HDMI interface. The sharp 720p HD resolution allows even the smallest details to be seen.
The AM5218MZT Edge is the right choice for users who need real-time images, such as those working with printed circuit boards or miniature objects. By tapping the Microtouch on the instrument, the image can be frozen and used for more detailed inspection. Pressing the Microtouch for 2 seconds switches the integrated LEDs on and off again. The aluminium housing offers a high level of protection and durability for the model. The built-in, adjustable polarisation filter allows the user to reduce reflections on highly reflective surfaces (metal, plastics, electronic parts) to such an extent that an evaluable image is available.
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 20-220x
- Macro zoom: No
- Working distance: Standard
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: HD 720p
- Maximum frame rate: 60 fps
- Compatibility
- Interface: DVI & HDMI
- Wifi: No
Housing
- Housing material: Metal housing
- Magnification lock: Yes
- Dimensions: 10.5cm (L) x 3.2cm (D)
- Weight: 140g
- Cable length: 1.8m
Features
- Special feature: No
- Measurement: No
- Calibration: No
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, carry pouch, DVI & HDMI cable, power adaptor, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E Extension cap, N3C-L- Long cap, N3C-S- Side light cap
DinoCapture software for Dino-Lite microscopes
With the DinoCapture software, you can use your Dino-Lite microscope particularly efficiently on a PC. The software has been developed for both new users and experienced professionals and supports the entire microscopy workflow – from live image display and image capture to structured documentation.
The integrated measurement and documentation functions are particularly practical. Depending on the Dino-Lite model, you can measure distances, areas, angles or radii, annotate images and archive measurement results clearly. This makes DinoCapture ideal for quality control, laboratories, industry, electronics testing, research and education. DinoCapture 3.0 offers improved data organisation: practical features such as favourites, an advanced search function, custom file naming and nested folder structures. This allows images, videos and project data to be managed clearly and retrieved more quickly.
In combination with a Dino-Lite digital microscope, DinoCapture supports a structured workflow: view the sample, capture an image, measure, document and share – all within a user-friendly software environment.
