Microscopy > Microscopes > Digital microscopes > Hand-held microscopes > Dino-Lite > Long Working Distance > Dino-Lite Microscope AM7115MTF, 5MP, 10-70x, 8 LED, 30 fps, USB 2.0
Product no.: 76859

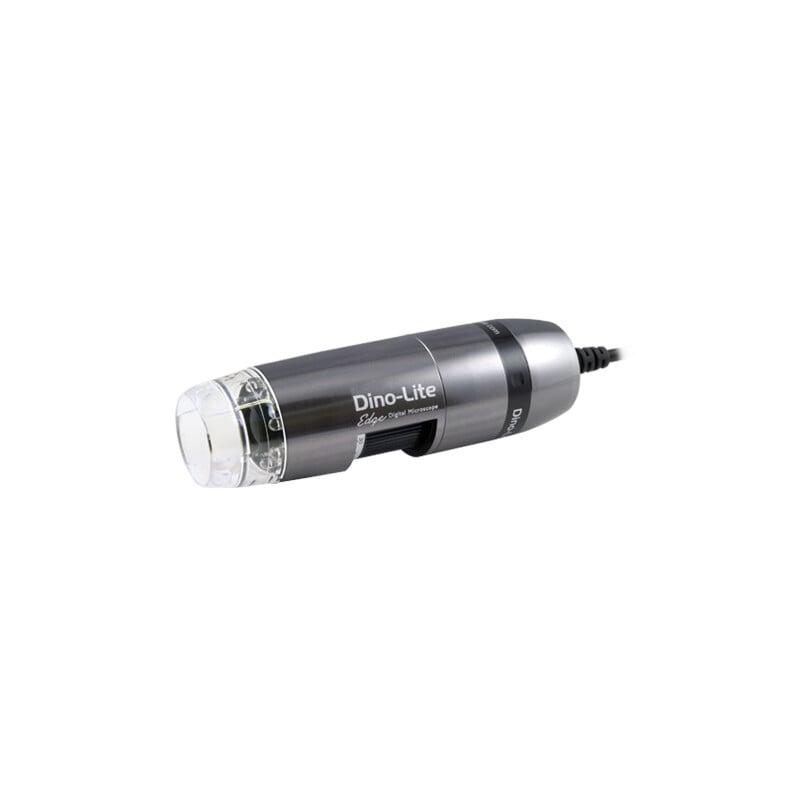

Microscope AM7115MTF, 5MP, 10-70x, 8 LED, 30 fps, USB 2.0

$ 1,270.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
  • Magnification from 10x to 70x possible
  • Resolution of 5MP
  • Connection via USB 2.0

Product description

Dino-Lite AM7115MTF

When abundant space between the target and the microscope is a must, use Dino-Lite 5MP AM7115MTF extra-long working distance digital microscope. AM7115MTF offers high resolution images and up to 70x magnification at a 108mm working distance.

Specifications

Model:

  • AM7115MTF Dino-Lite Edge

Interface:

  • USB 2.0

Product resolution:

  • 5MP (2592x1944)

Magnification:

  • 10x-70x

Frame rate:

  • 10fps in 5MP/3MP/2MP, MJPEG
  • 25fps in 1.3MP, MJPEG
  • 30fps in VGA, MJPEG

Image saving format:

  • DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
  • DinoXcope: PNG, JPEG

Videosaving format :

  • DinoCapture2.0: WMV, FLV, SWF
  • DinoXcope: MOV

Lighting:

  • 8 white LEDs

Microtouch:

  • Yes

Operating system supported:

  • Windows XP/7/8/10/11; macOS 10.14 or later

System requirements

  • Intel Core2 Duo @ 2.20 GHz/AMD Athlon X2 Dual Core BE-2400 (2.3GHz)
  • 20 GB available hard drive space
  • 2 GB available RAM or more
  • 512 MB video card or more
  • CD-ROM drive for installation
  • USB

Calibration function:

  • Yes

Measurement function:

  • Yes

Unit dimensions:

  • 10.5 cm (H) x 3.2 cm (D)

Unit Weight:

  • 125

Specifications

Optics


Magnification
10-70
Lighting
Incident light

Capacity


Lamp type
8 LED
Interface
USB 2.0
Megapixel
5
Resolution Photograph (Pixel)
2592x1944
frame rate (fps)
30
Polarization
no

Camera


sensor
CMOS
Supported operating systems
Win XP, 7, 8, 10, 11; MacOS 10.14 und spätere
Software
DinoCapture 2.0 (Win); DinoXcope (MacOS)

General


Weight (g)
125
Length (mm)
105
Diameter (mm)
32
Series
Long Working Distance

Field of application


Industry
yes
Education
yes
Hobby
-
Medicine
-

Area of application


Odontotechnics
-
Semiconductor technology
-
Metallurgy
yes
Veterinary medicine
-
University
-
Materials technology
yes
Materials Science
yes
Gemology
yes
Automotive
yes
Naturopathy
yes

Miscellaneous


supplier product number
AM7115MTF

Product safety

Manufacturer: Metav Werkzeuge GmbH, Parkring 45, 46446 Emmerich, DE, www.metav-shop.de
