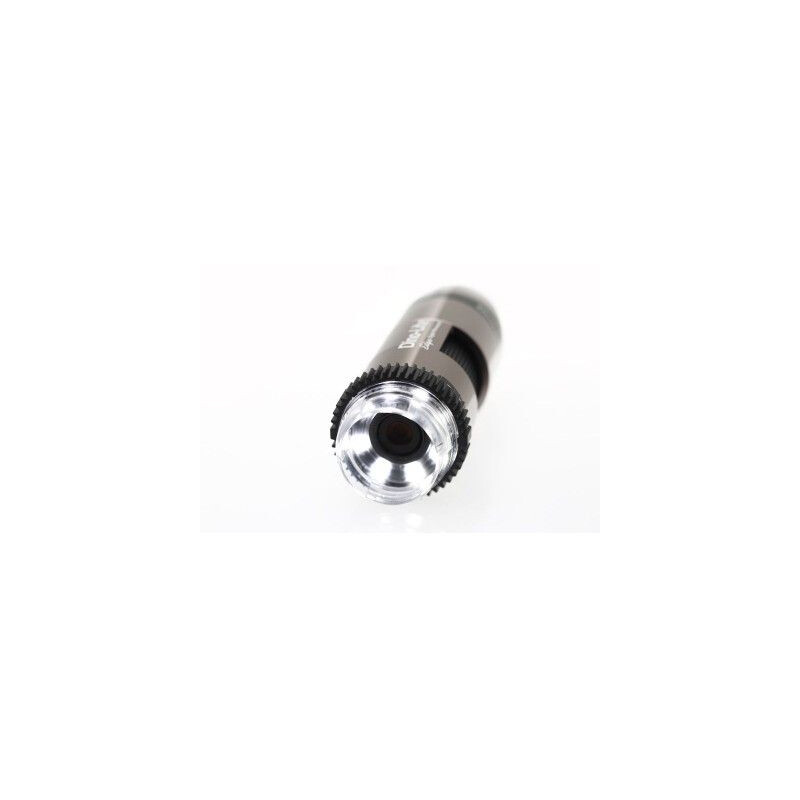

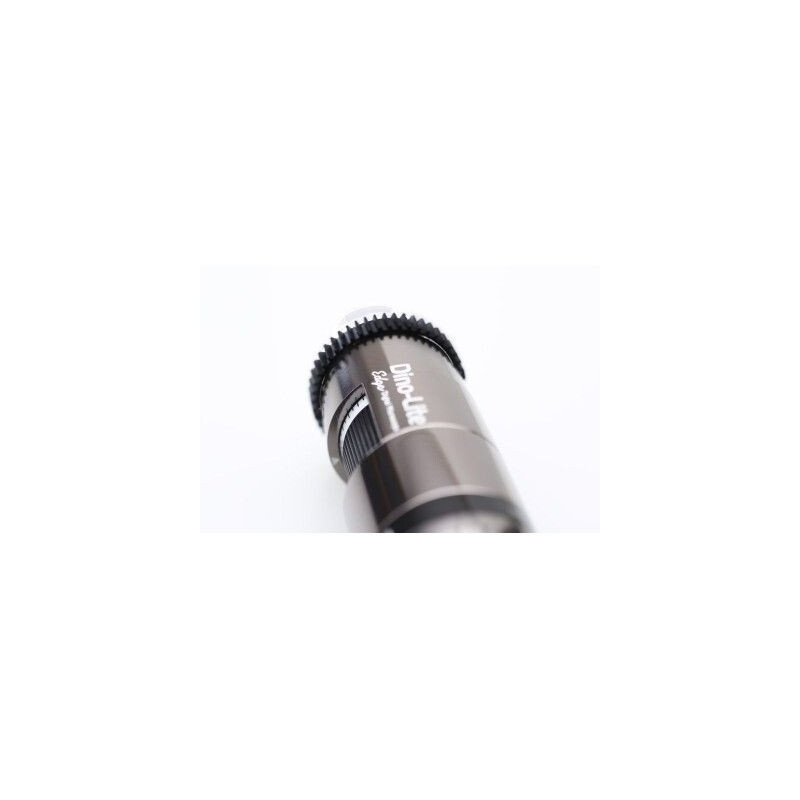

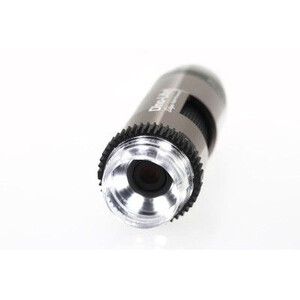

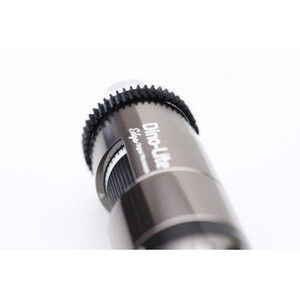

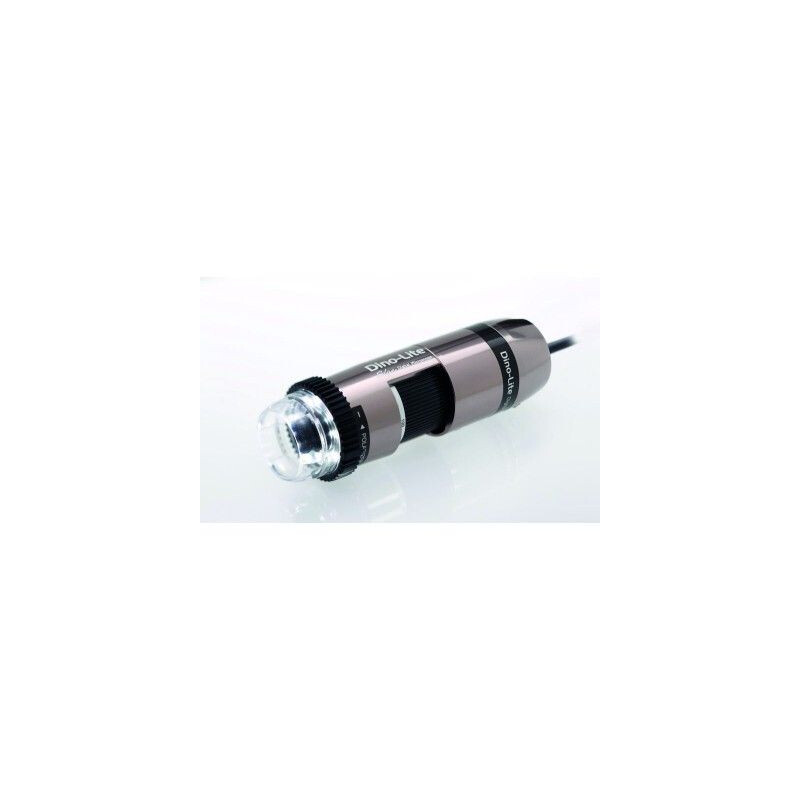

Dino-Lite AM7115MZTL
With the use of the latest innovative optics, a completely new 5-megapixel sensor and several special features such as Flexible LED Control (FLC) and an aluminium housing, the Dino-Lite AM7115MZTL is a marvel of technology and the best choice for demanding professionals. The Dino-Lite AM7115MZTL offers excellent image quality and colour reproduction in a robust, compact and attractive housing.
The AM7115MZTL is part of the Dino-Lite Long Working Distance (LWD) range and, with its long working distance and magnification range of 10 - 140x, is suitable for a variety of applications where additional distance to the object or a larger field of view is required.

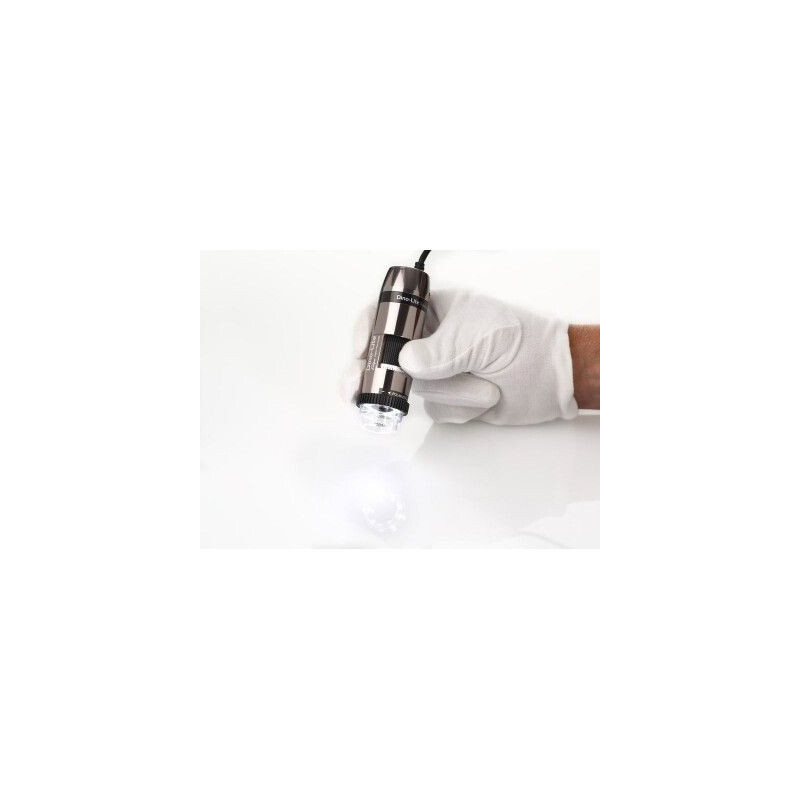

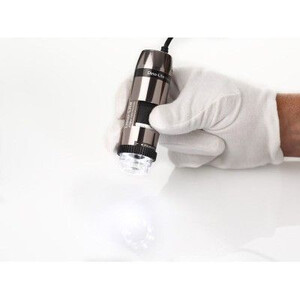

The additional working distance and larger field of view make this model an ideal solution for tasks such as repair, rework or assembly, or for working with bulky or fragile items that must not be touched. The built-in polarisation filter makes this model ideal for working with shiny or reflective objects such as metal, plastic, glass, jewellery, electronics, etc.
The most important features of the AM7115MZTL are:
- 5-megapixel edge sensor,
- Long working distance (LWD)
- 10-140x magnification
- Larger field of view,
- Integrated polariser
- Aluminium housing
- Flexible LED Control (FLC)
- Extensive measuring functions
- calibration
- Replaceable front caps
- And more
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 10-140x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 5 megapixels (2592x1944)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV (max 1.3MP)
- Imaging standards: DirectShow, UVC
- Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Metal housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 135 g
- Cable length: 1.8m
Features
- Special feature: Flexible LED Control (FLC)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- diffuser cap, N3C-Eextension cap, N3C-L- Long cap, N3C-S- Side light cap
