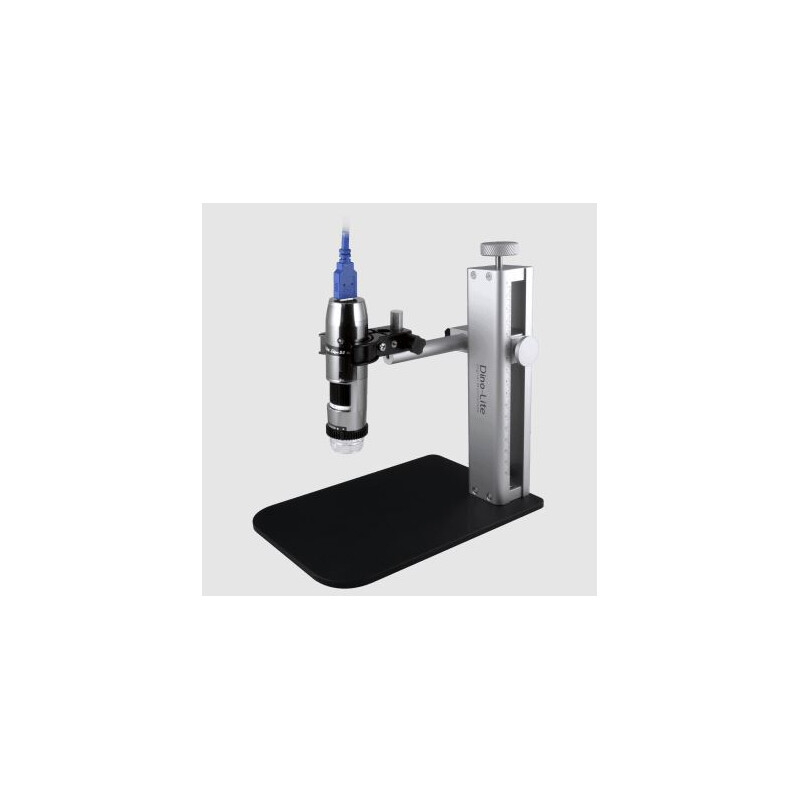

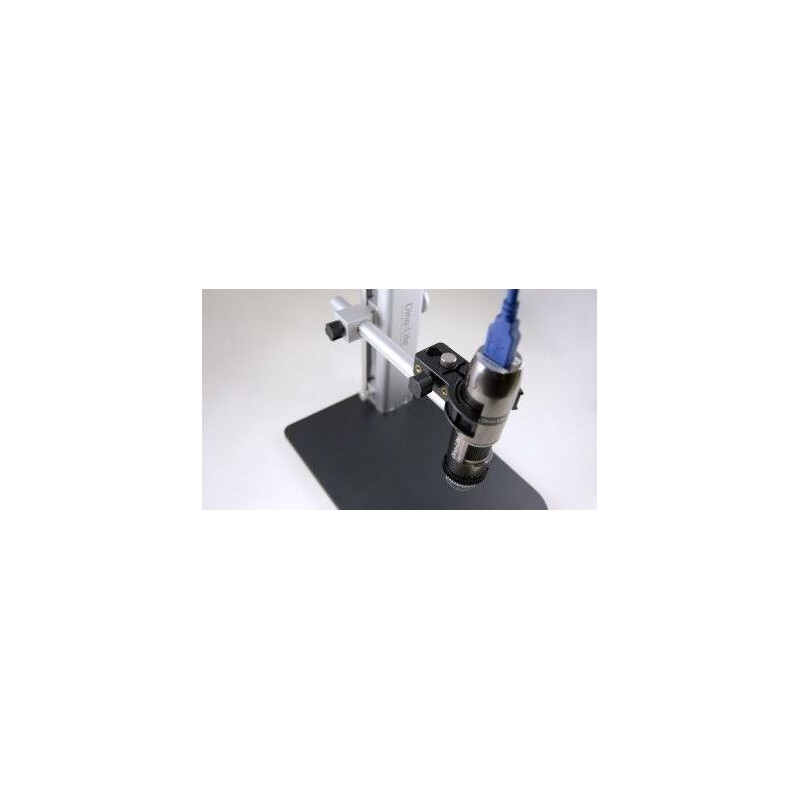

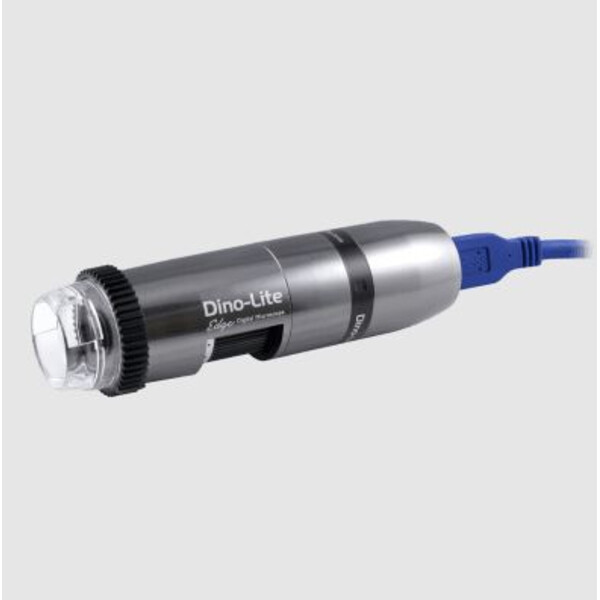

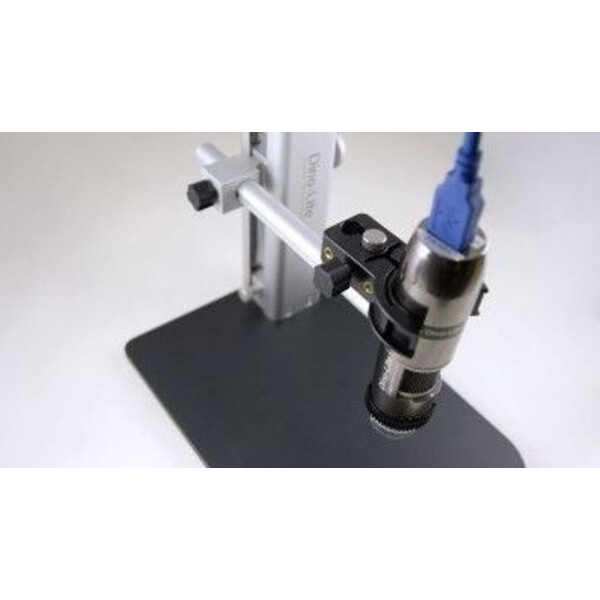

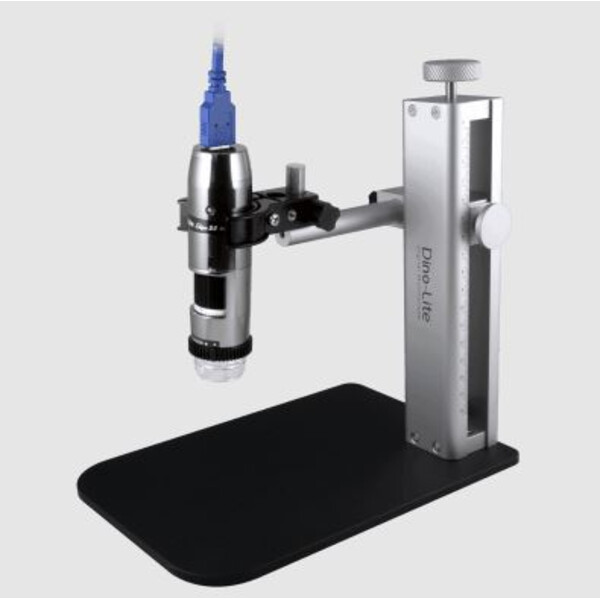

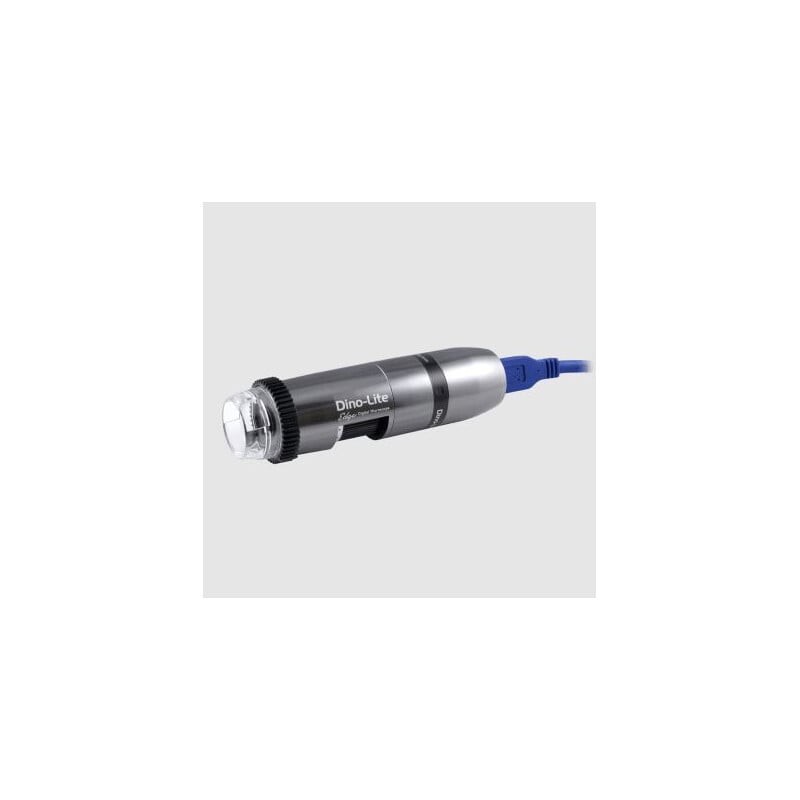

Dino-Lite AM73915MZTL
The Dino-Lite AM73915MZTL is a long working distance model and is part of the High Speed Real Time series with USB 3.0 connection. It offers excellent uncompressed image quality and colour reproduction in a robust, compact and attractive metal housing.
USB 3.0 adds a new transfer mode called "SuperSpeed", which can transfer data at up to 5Gbits/s (625MB/s). Dino-Lite models with USB 3.0 offer an image transfer speed of up to 45FPS (frames per second) at a resolution of 1280 x 960. With SuperSpeed, you can take advantage of the full optical performance of the Dino-Lite Edge series, including improved colour accuracy and image quality.
EDOF allows users to automatically capture multiple images at different depths and combine them automatically into a clear image. EDR automatically captures and combines multiple images at different exposure levels to produce a final image with a greater dynamic range. The AMR function automatically detects and displays the magnification of the Dino-Lite. The magnification is displayed within the Dino-Lite software and saved with the captured image, simplifying the measurement process.
The AM73915MZTL is one of the top-level Dino-Lite products and the most advanced product in the Dino-Lite USB 3.0 series. For professionals looking for extended working distance, high-speed data transfer, the best image quality available and many advanced features, this is the model of choice.
The Dino-Lite AM73915MZTL is a USB 3.0 model with a magnification range of 10x - 140x and a long working distance of up to 24 cm. This model is part of the Dino-Lite Edge family with the latest innovative optics, an unmatched 5 megapixel sensor and several special features such as Extended Depth of Field (EDOF), Enhanced Dynamic Range (EDR), Automatic Magnification Reading (AMR), Flexible LED Control (FLC), built-in polarisation filter, full metal body, extensive measurement functions, calibration, interchangeable front caps and much more.
*EDOF/EDR only works under Windows OS.
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 10-140x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 5 megapixels (2592x1944)
- Maximum frame rate: 45fps (max 20fps video recording)
Compatibility
- Interface: USB 3.0, cable included**
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV (max 1.3MP)
- Imaging standards: DirectShow, UVC
- Wi-Fi: No
Housing
- Housing material Metal housing
- Magnification lock: Yes
- Dimensions: 11.9 cm (L) x 3.3 cm (H)
- Weight: 110 g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC).
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover N3C-O- Open cap, N3C-C- Closed cap, N3C-DDiffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Note **Dino-Lite USB 3.0 models use a custom USB-A and USB-C cable that is specifically designed for Dino-Lite
DinoCapture software for Dino-Lite microscopes
With the DinoCapture software, you can use your Dino-Lite microscope particularly efficiently on a PC. The software has been developed for both new users and experienced professionals and supports the entire microscopy workflow – from live image display and image capture to structured documentation.
The integrated measurement and documentation functions are particularly practical. Depending on the Dino-Lite model, you can measure distances, areas, angles or radii, annotate images and archive measurement results clearly. This makes DinoCapture ideal for quality control, laboratories, industry, electronics testing, research and education. DinoCapture 3.0 offers improved data organisation: practical features such as favourites, an advanced search function, custom file naming and nested folder structures. This allows images, videos and project data to be managed clearly and retrieved more quickly.
In combination with a Dino-Lite digital microscope, DinoCapture supports a structured workflow: view the sample, capture an image, measure, document and share – all within a user-friendly software environment.
