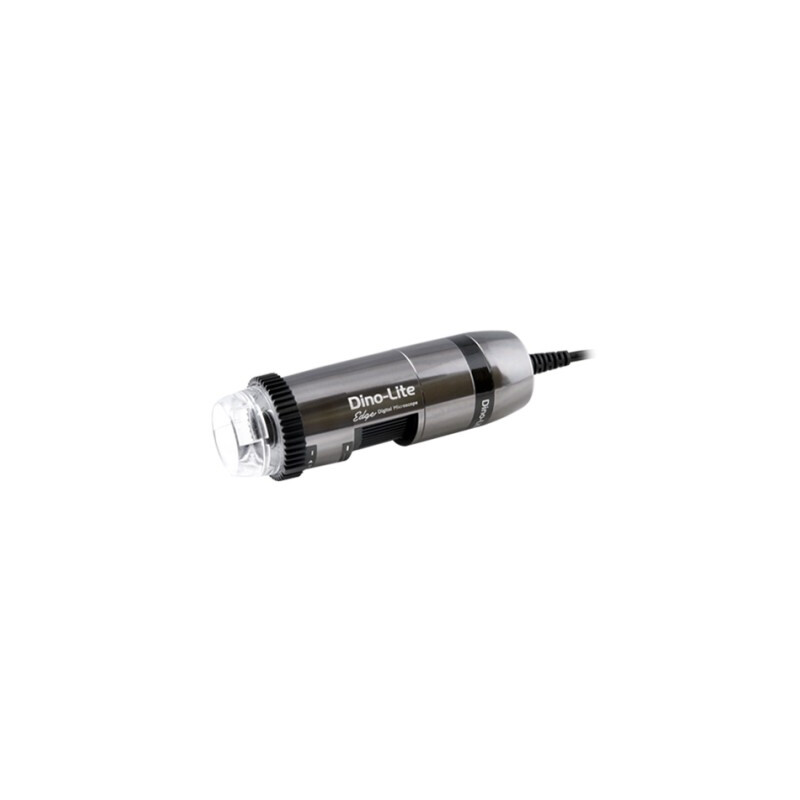

Dino-Lite AM7515MTFP
The AM7515MTFP is equipped with an Aim Point Laser (APL) that facilitates the localisation and focusing of the target under the microscope. The AM7515MTFP is a 5 MP microscope with extra long working distance (ELWD) and a magnification range of 45 - 70x, equipped with AMR, FLC, APL and a metal housing. The microscope delivers clear images with up to 70x magnification at a working distance of 108 mm.
The AM7515MTFP is part of the Dino-Lite Long Working Distance (LWD) range and, with its long working distance and magnification range of 45-70x, is suitable for a variety of applications where additional distance to the object or a larger field of view is required.
The additional working distance and larger field of view make this model an ideal solution for tasks such as repair, rework or assembly, or for working with bulky or fragile objects that must not be touched. The built-in polarisation filter makes this model ideal for working with shiny or reflective objects such as metal, plastic, glass, jewellery, electronics, etc. The AMR functionality is particularly important when the measuring functions are used frequently.
The target point laser (APL) is an integrated trog lens laser that projects a red dot, providing a visual reference point for positioning and focusing the target.
The most important features of the AM7515MTFP are:
- 5-megapixel edge sensor
- Long working distance (LWD)
- 45-70x magnification
- Integrated polariser
- Aluminium housing
- Automatic Magnification Reading (AMR)
- Flexible LED Control (FLC)
- Aim pointer laser (APL)
- Extensive measurement functions
- calibration
- Replaceable front caps
- And more
Specifications
Lighting
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: No
- Laser pointer: 656 nm laser diode
Optics
- Magnification: 45-70x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 5 megapixels (2592x1944)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.14 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV (max 1.3MP)
- Imaging standards: DirectShow, UVC
- Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Metal housing
- Dimensions: 10.7cm (L) x 3.2cm (D)
- Weight: 140 g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR), Flexible LED Control (FLC). Aim Pointer Laser (APL)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- Diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side light cap
