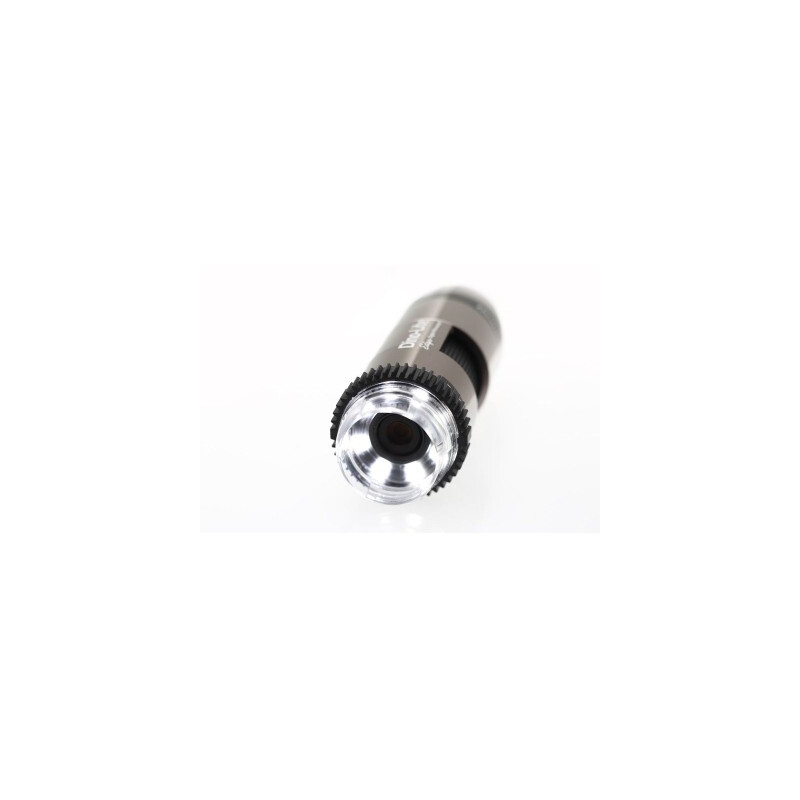

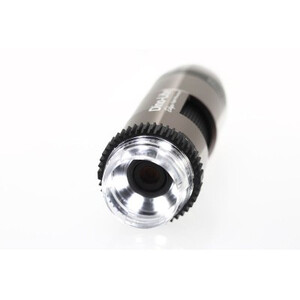

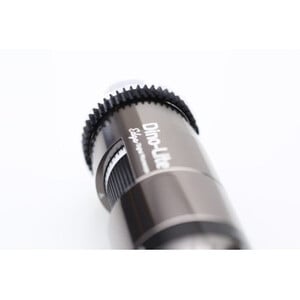

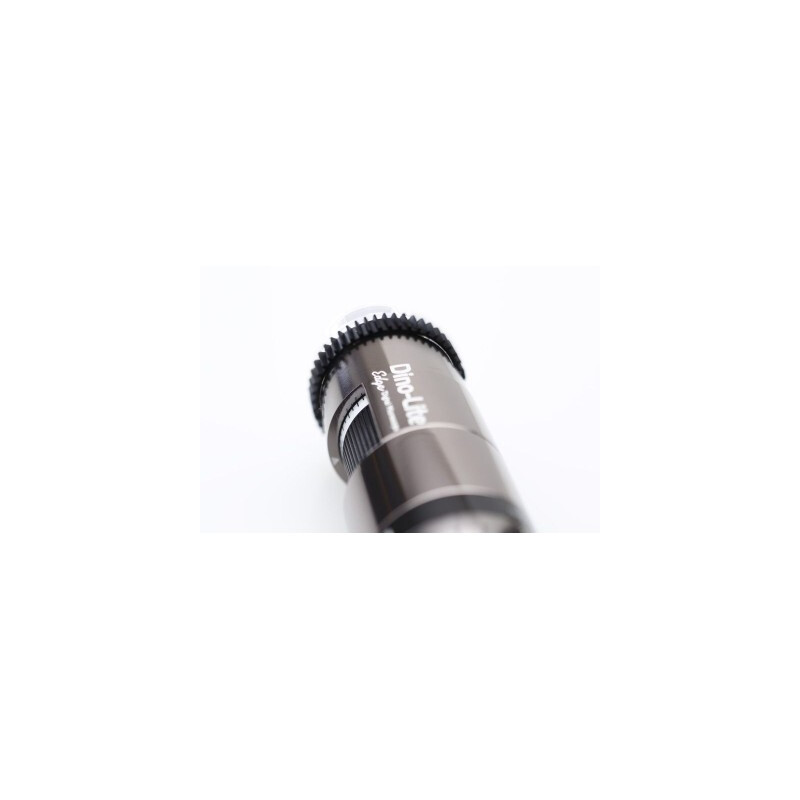

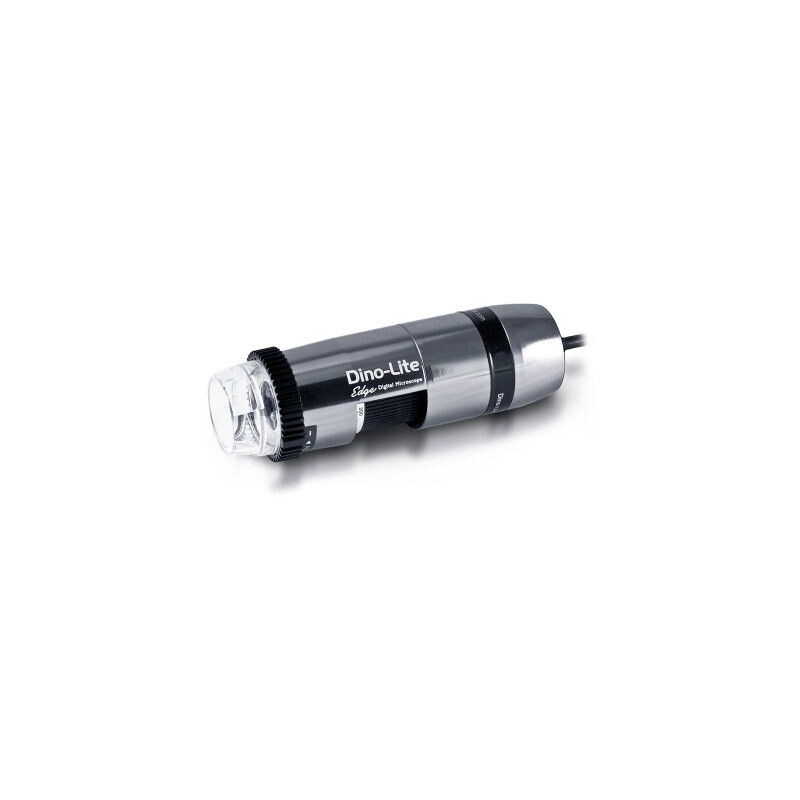

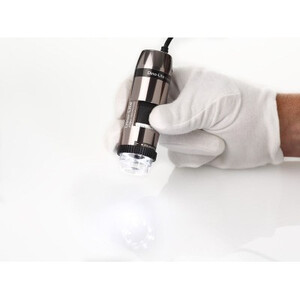

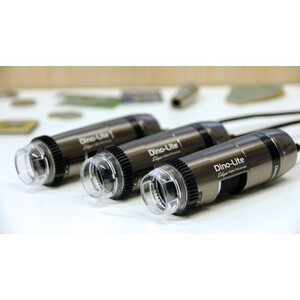

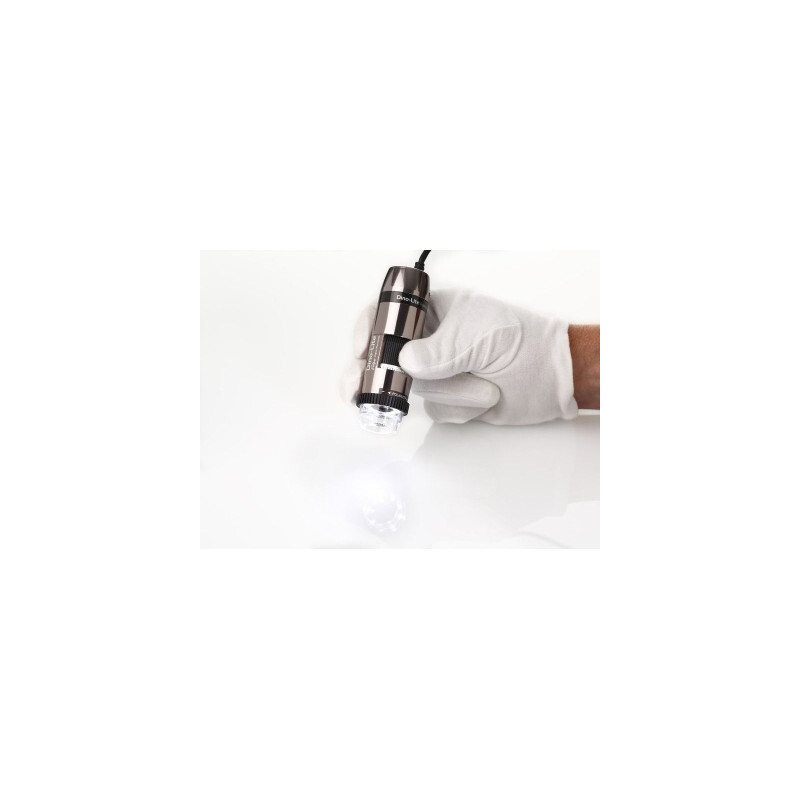

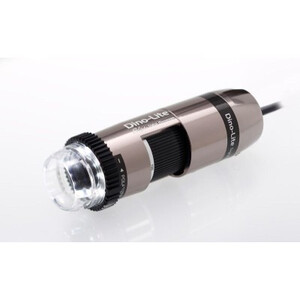

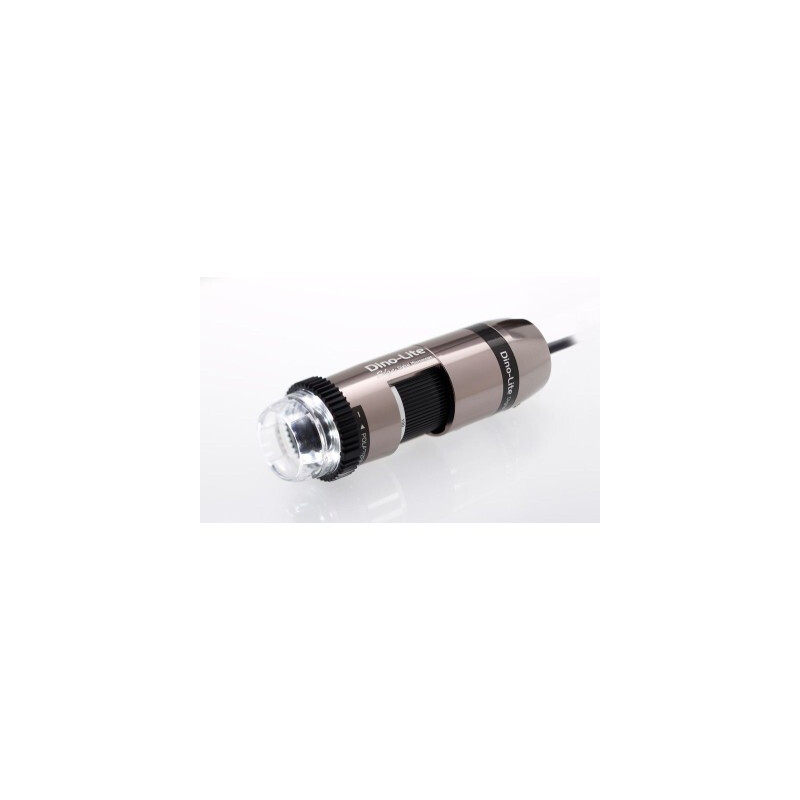

Dino-Lite AM7515MZT
With the use of the latest, innovative optics, a completely new 5-megapixel sensor and several special features such as Flexible LED Control (FLC), Automatic Magnification Reading (AMR) and aluminium housing, the Dino-Lite AM7515MZT is a marvel of technology and the best choice for demanding professionals. The Dino-Lite AM7515MZT offers excellent image quality and colour reproduction in a robust, compact and attractive housing.
The AM7515MZT is part of the Dino-Lite Universal series and, with its standard working distance and wide magnification range of 20 - 220x, is suitable for a wide range of applications. Due to the built-in polarisation filter, this model is ideal for working with shiny or reflective objects such as metal, plastic, glass, jewellery, electronics, etc. The AMR functionality is particularly important when the measuring functions are used frequently.
The most important features of the AM7515MZT are:
- 5-megapixel edge sensor
- 20-220x magnification
- Integrated polariser
- Aluminium housing
- Flexible LED Control (FLC)
- Automatic Magnification Reading (AMR)
- calibration
- Replaceable front caps
- And more
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 20-220x
- Macro zoom: No
- Working distance: Standard
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 5 megapixels (2592x1944)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV (max 1.3MP)
- Imaging standards: DirectShow, UVC
- Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Metal housing
- Dimensions: 10.5cm (L) x 3.2cm (D)
- Weight: 135 g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR), Flexible LED Control (FLC).
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- Diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side light cap
DinoCapture software for Dino-Lite microscopes
With the DinoCapture software, you can use your Dino-Lite microscope particularly efficiently on a PC. The software has been developed for both new users and experienced professionals and supports the entire microscopy workflow – from live image display and image capture to structured documentation.
The integrated measurement and documentation functions are particularly practical. Depending on the Dino-Lite model, you can measure distances, areas, angles or radii, annotate images and archive measurement results clearly. This makes DinoCapture ideal for quality control, laboratories, industry, electronics testing, research and education. DinoCapture 3.0 offers improved data organisation: practical features such as favourites, an advanced search function, custom file naming and nested folder structures. This allows images, videos and project data to be managed clearly and retrieved more quickly.
In combination with a Dino-Lite digital microscope, DinoCapture supports a structured workflow: view the sample, capture an image, measure, document and share – all within a user-friendly software environment.
