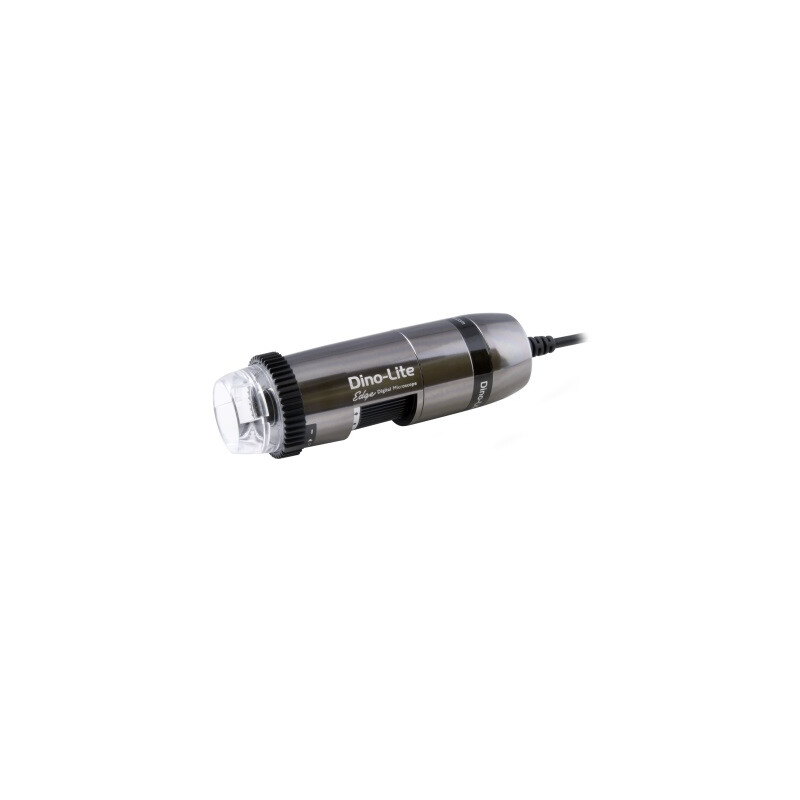

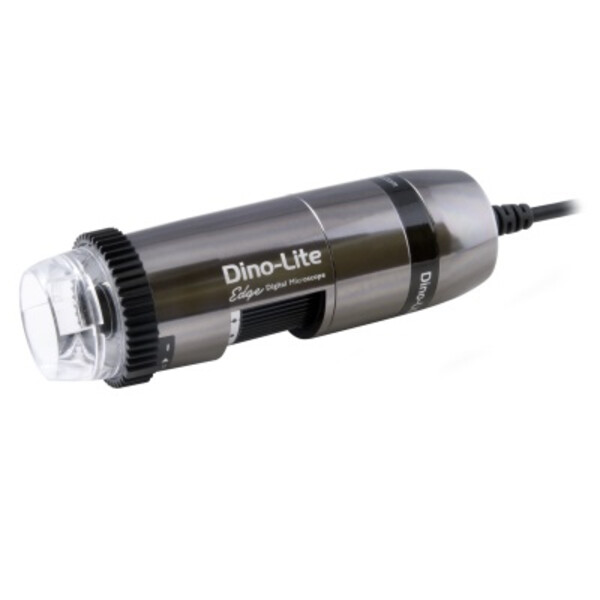

Dino-Lite AM7515MZT2P
With the integrated aiming point laser (APL), the AM7515MZT2P makes it easier to locate and focus on the target under the microscope. The AM7515MZT2P is a 5 MP microscope with a magnification range of 130-220x and features AMR, FLC, APL, a metal housing and a polarisation filter.
The AM7515MZT2P is part of the Dino-Lite Universal series and, with its standard working distance and wide magnification range of 130-220x, is suitable for a wide range of applications. Due to the built-in polarisation filter, this model is ideal for working with shiny or reflective objects such as metal, plastic, glass, jewellery, electronics, etc. The AMR functionality is particularly important when the measuring functions are used frequently.
The target point laser (APL) is an integrated trog lens laser that projects a red dot, providing a visual reference point for positioning and focusing the target.
The main features of the AM7515MZT2P are:
- 5 megapixel edge sensor
- 130-220x magnification
- Integrated polariser
- Aluminium housing
- Automatic Magnification Reading (AMR)
- Flexible LED Control (FLC)
- Aim Point Laser (APL)
- Extensive measurement functions
- Calibration
- Exchangeable front caps
- And more...
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes, N3C-D
- Emission filter: No
- Polariser: No
Optics
- Magnification: 130-220x
- Macro zoom: No
- Working distance: Standard
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 5 megapixels (2592x1944)
- Maximum frame rate: 30fps (max 20fps video recording)
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.12 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV (max 1.3MP)
- Imaging standards: DirectShow, UVC
- Wifi Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Metal housing
- Magnification lock: Yes
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 140 g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR), Flexible LED Control (FLC), Coaxial illumination
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, Carry pouch, Software CD, User manual, Quick guide, Calibration target, Front cover box
DinoCapture software for Dino-Lite microscopes
With the DinoCapture software, you can use your Dino-Lite microscope particularly efficiently on a PC. The software has been developed for both new users and experienced professionals and supports the entire microscopy workflow – from live image display and image capture to structured documentation.
The integrated measurement and documentation functions are particularly practical. Depending on the Dino-Lite model, you can measure distances, areas, angles or radii, annotate images and archive measurement results clearly. This makes DinoCapture ideal for quality control, laboratories, industry, electronics testing, research and education. DinoCapture 3.0 offers improved data organisation: practical features such as favourites, an advanced search function, custom file naming and nested folder structures. This allows images, videos and project data to be managed clearly and retrieved more quickly.
In combination with a Dino-Lite digital microscope, DinoCapture supports a structured workflow: view the sample, capture an image, measure, document and share – all within a user-friendly software environment.
