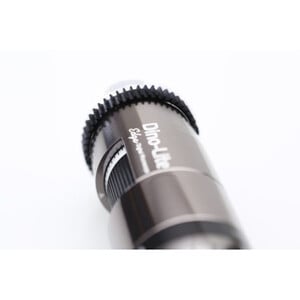

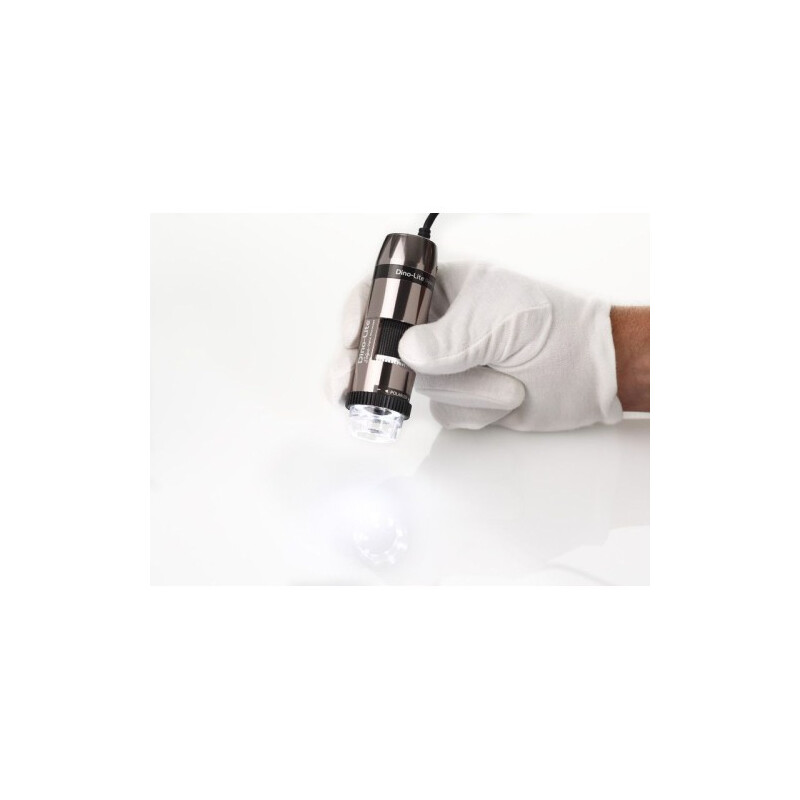

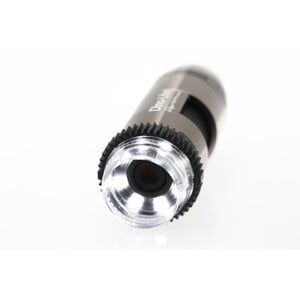

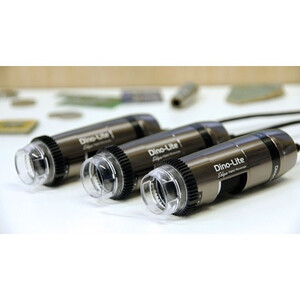

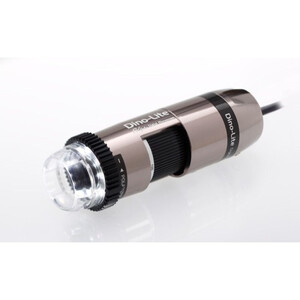

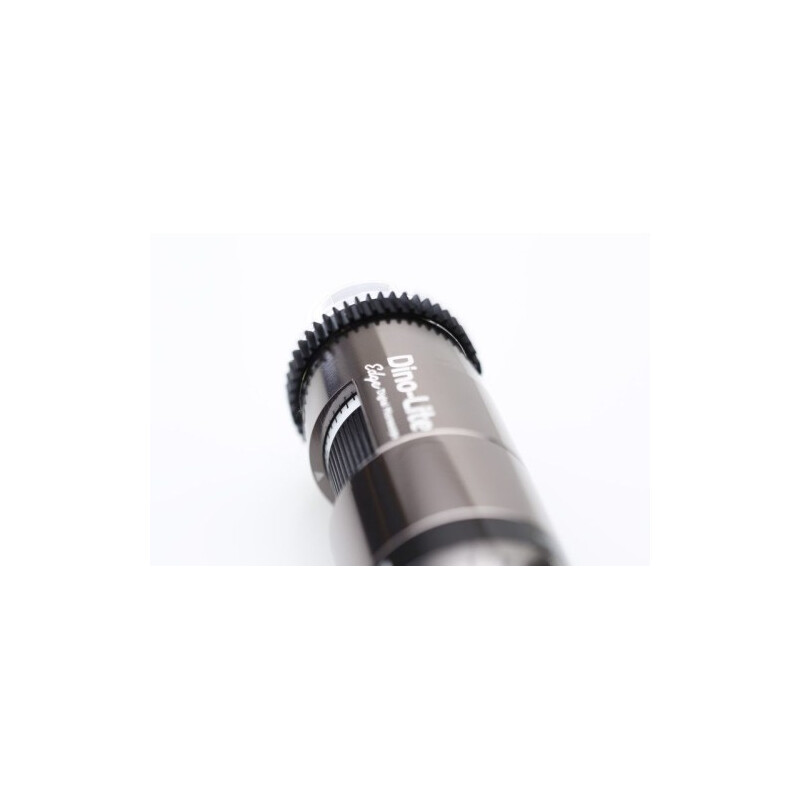

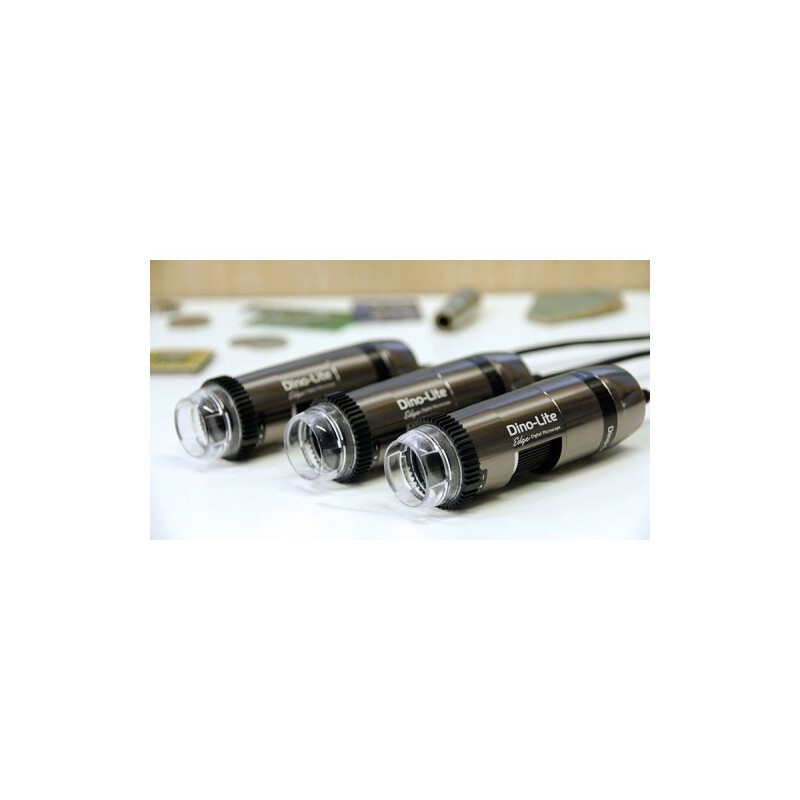

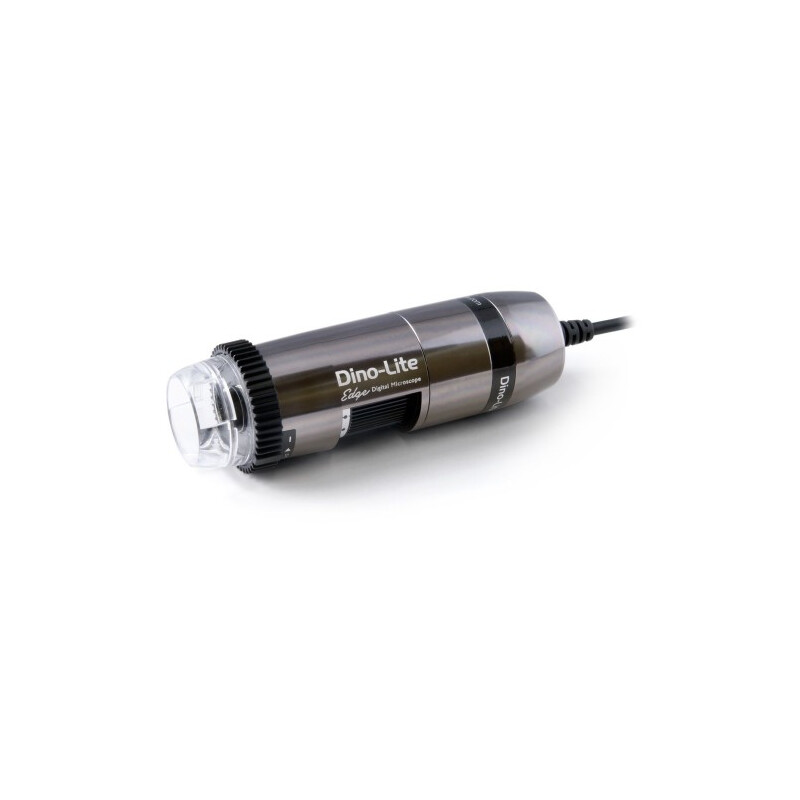

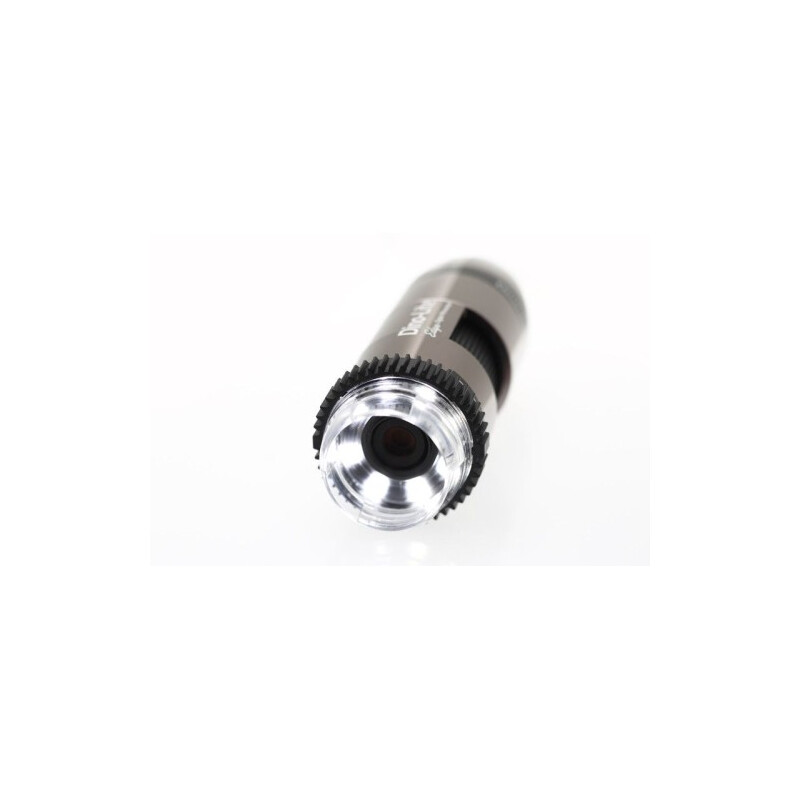

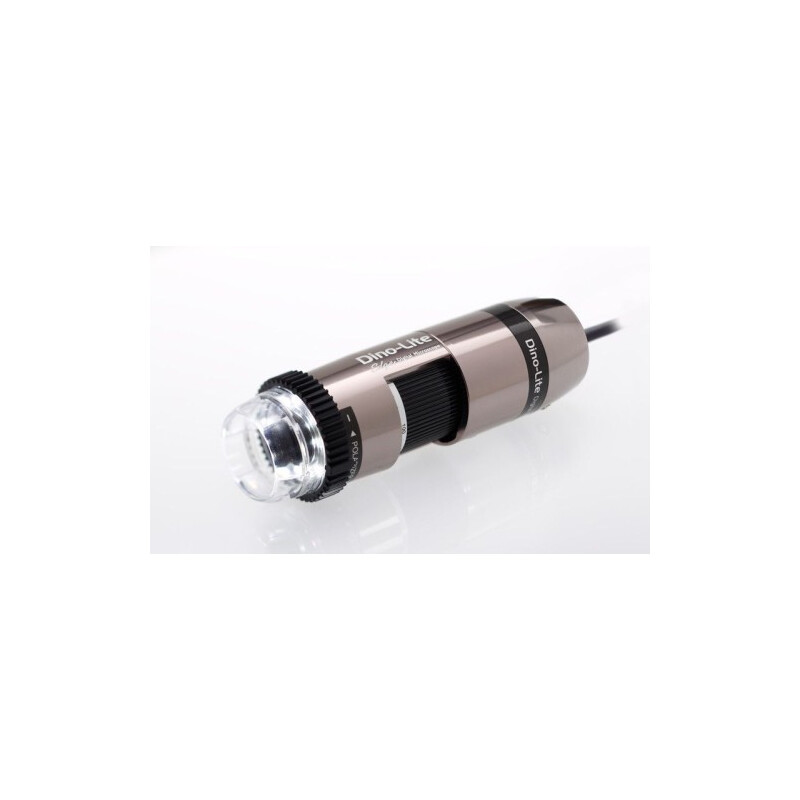

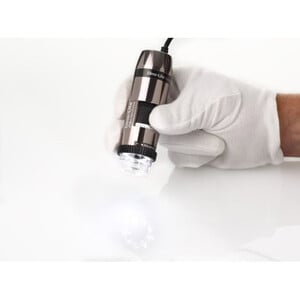

Dino-Lite AM7915MZTL
The AM7915MZTL is part of the Dino-Lite Long Working Distance (LWD) range and, with its long working distance and magnification range of 10 - 140x, is suitable for a variety of applications where additional distance to the object or a larger field of view is required.
With the extended dynamic range (EDR), details in darker or brighter areas within the object can be highlighted by layering images with different exposures. The extended depth of field (EDOF) function automatically layers images with different image sharpness to improve depth of field on rough or uneven surfaces. The AMR functionality is particularly important when the measurement functions are used frequently. The built-in polarisation filter makes this model ideal for working with shiny or reflective objects such as metal, plastic, glass, jewellery, electronics, etc.
The most important features of the AM7915MZTL are:
- 5 megapixel edge sensor
- Extended depth of field (EDOF)
- Extended Dynamic Range (EDR)
- 10-140x magnification
- Large working distance
- Automatic magnification reading (AMR)
- Integrated polariser
- Flexible LED Control (FLC)
- And more
(*EDOF/EDR only works with Windows OS)
Specifications
Light
- Light/ LED type: White
- Number of LEDs: 8
- LED on/off switchable: Yes
- Infrared filter: IR cut filter >650 nm
- Diffuser available: Yes (N3C-D included)
- Emission filter: No
- Polariser: Yes, linear
Optics
- Magnification: 10-140x
- Macro zoom: No
- Working distance: Long
- Lens type: Glass with anti-reflection coating
Sensor
- Sensor type: CMOS
- Resolution: 5 megapixels (2592x1944)
- Maximum frame rate: 30 fps
Compatibility
- Interface: USB 2.0
- Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
- Included software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
- Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
- Supported video formats (Windows): WMV, FLV, SWF
- Supported image formats (MacOS): JPEG, PNG
- Supported video formats (MacOS): MOV (max 1.3MP)
- Imaging standards: DirectShow, UVC
- Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Housing
- Housing material: Metal housing
- Dimensions: 10.5 cm (L) x 3.2 cm (D)
- Weight: 137 g
- Cable length: 1.8m
Features
- Special feature: Automatic Magnification Reading (AMR), Extended Dynamic Range (EDR), Extended Depth of Field (EDOF), Flexible LED Control (FLC)
- Measurement: Yes
- Calibration: Yes
- Microtouch sensor: Yes
- ESD safe: Yes
Information
- Package contents: Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-CClosed cap, N3C-D- Diffuser cap, N3C-EExtension cap, N3C-L- Long cap, N3C-S- Side light cap
