Microscopy > Microscopes > Inverted microscopes > Euromex > F-Serie > Euromex Microscope FE.2930, inverse
Product no.: 9336

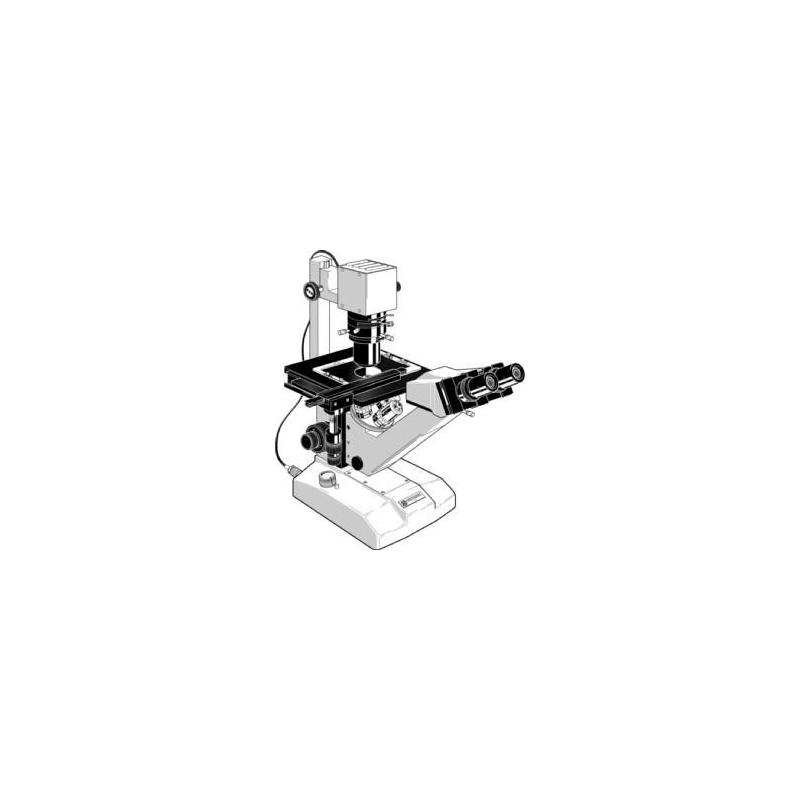

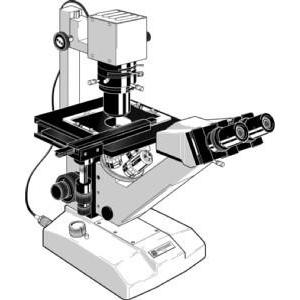

Microscope FE.2930, inverse

$ 6,300.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
Product questions?
advice for Microscopy

Product description

The Euromex microscopes of the F-series are routine and research microscopes, which are used in high schools, science and in biological, medical and industrial laboratories. The inverted microscopes in this range are suitable for studies of cell cultures and Hydrobiology. The microscopes provide a brilliant, flat image. The big eye lenses of the eyepieces suitable for eyeglass wearers and guarantee a relaxed observation.

The FE.2930

This microscope is equipped with two condensers: N.Apertur 00:30 and 12:55

This model is supplied with a KHWF DIN eyepieces with 10 times magnification and 1 Semiplan lens with 4-fold and 2 with plan phase objectives 10x and 40x magnification. The 40X lens has a resilient version the product to protect against damage. Thus, a 400-fold magnification is a maximum possible.

Specifications

Optics

Magnification
400 (40, 100, 200, 400)
Eyepiece
10 (HWF eyepiece)
Condensor
2 Kondensoren ({N.A. 0,30 and N.A. 0,55})
Lighting
Transmitted light
Lamp type
Halogen (6V/30W, continuously adjustable, centerable, Köhler illumination)
Lens type
Infinity Type Semi-Plan Achromatic
Power supply
Power plug

Mechanics

Focusing
Coarse and fine movement (coaxial, with 0.0025 mm division)
Type of build
binocular
Specimen stage
Cross table (112 x 72 mm on specimen stage: 180 x 200 mm, removable)
Viewing posture
30° angled eyepiece, rotatable head

Special features

Built-in digital camera
-
Centering stage
-
Rechargeable battery operation
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General

Series
F-Serie
Colour
black-white
Weight (g)
12700
Suitable from
16

Suitable for

Beginners
-
Advanced
-
Pros
yes

Field of application

Biology and Medicine
yes
Industry and Materieals
yes

Area of application

Phase contrast
-
Polarization
-
Fluorescence
-
Interference contrast
-
Metallurgy
yes (-)
Dark field
-
Biology, zoology & botany
yes
Cell culture
yes
Mechanical engineering
yes
Materials technology
yes
show more...

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
Product safety
Euromex Microscope FE.2930, inverse
