Microscopy > Microscopes > Inverted microscopes > Evident Olympus > CKX53 > Evident Olympus Inverted microscope Olympus CKX53 Hellfeld V2, trino, infinity, plan, achro, 2x, 4x, 10x, LED
Product no.: 49702

Inverted microscope Olympus CKX53 Hellfeld V2, trino, infinity, plan, achro, 2x, 4x, 10x, LED

$ 6,900.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series CKX53...

Olympus CKX53 Brightfield V2 (E07MIS0041)

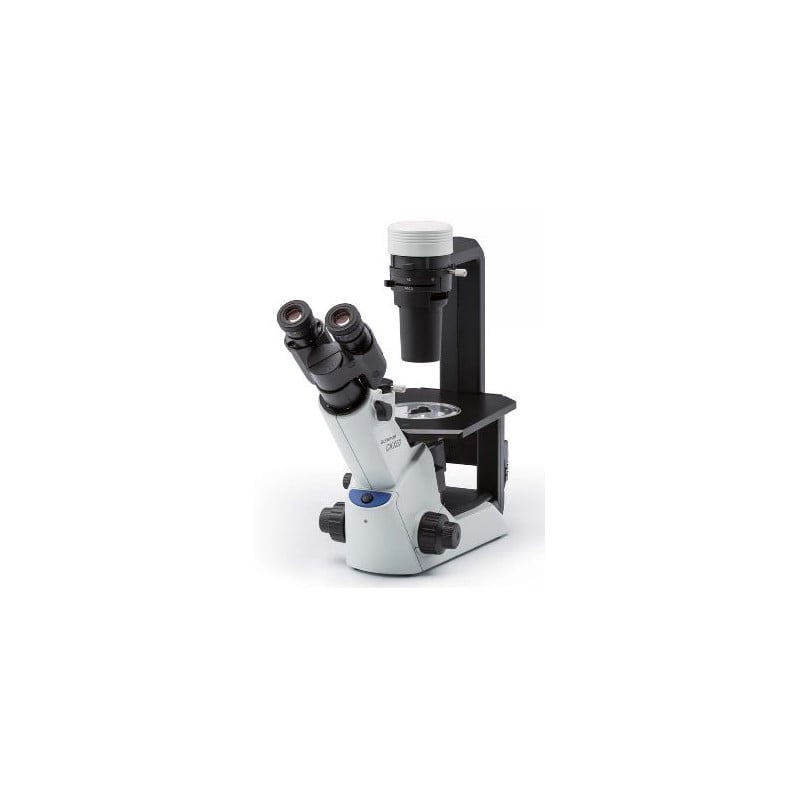

Manual inverted microscope stand with 22x field of view and integrated 45° trinocular tube

  • 4-position objective turret
  • Large stage (200 mm x 252 mm)
  • Table extension plate
  • Removable/rotatable condenser
  • Long working distance (NA 0.3, WD 72 mm, manual aperture diaphragm), max. WD 194 mm (condenser removed)
  • Coaxial coarse and fine drive
  • LED lamp housing (20,000 hours service life)
  • Transparent acrylic table insert plate
  • Phase contrast slider (CKX3-SLP)
  • Aperture ring for PLN2x/0.06 objective

Highlights:

Wide and clear view with the 2x objective.

The ring gap for the PLN2X objective, CKX-SLPAS, has a field of view of 22 mm with a diameter of 11 mm. This makes observation with the lens perfect for efficient screening of the desired cells and enables a faster cell culture process. In addition, the 2X lens offers significantly higher contrast, so that even transparent objects in the sample can be clearly identified.

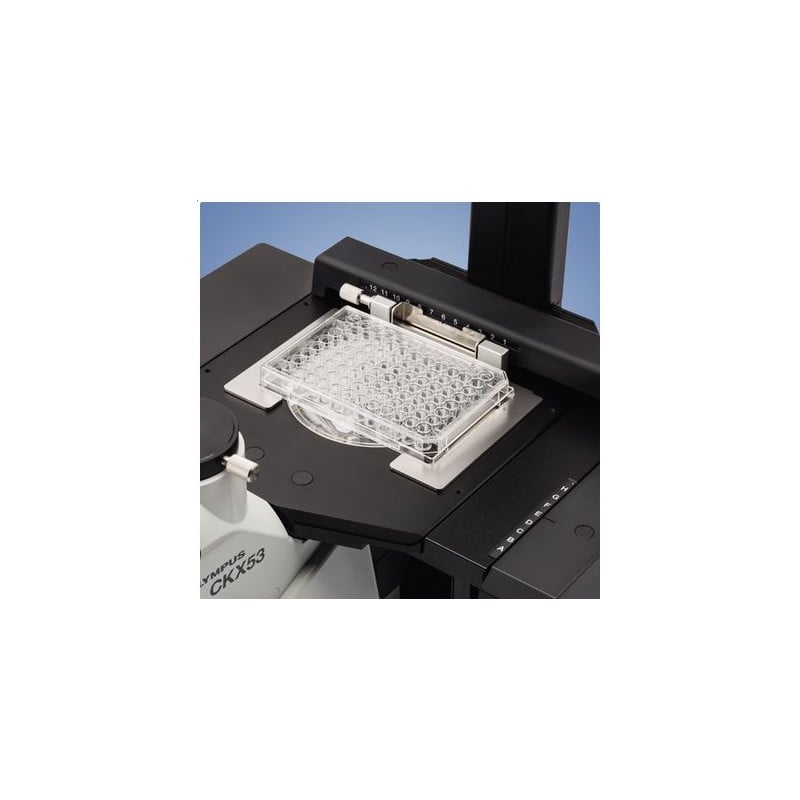

When viewing a microplate with 96 wells, for example, the wide field of view allows all cells in a well to be observed without having to move the microscope stage.

Included components:

  1. Microscope stand CKX53SF-1-3 (N5731900)
  2. Plan Achromat Lens PLN2X (N1215600)
  3. Plan Achromat C objective lens PLCN4X-1-7 (N4238900)
  4. Plan Achromat C lens PLCN10X-1-7 (N4239000)
  5. Manual condenser insert CKX3-SLP (N5228500)
  6. Aperture diaphragm ring CKX3-SLPAS (N5228700)
  7. 2x table extension plate CK2-SS (030362)
  8. Power cables UYCP (035425)
  9. Dust cover for CKX53/41/31 (N1153000)

Specifications

Optics


Image scale
2, 4, 10
Number of objectives
3
Lighting
Transmitted light
Field curvature
Plan
Colour correction
apochromatic
Condensor
rotatable
Lamp type
LED (4 W)
Objective 1
PLN2x/0.6
Objective 2
PLCN4x, NA 0.1
Objective 3
PLCN10x, NA 0.25
infinity corrected
yes
Magnification
40x, 100x

Capacity


Lamp type
LED
Temperature of color (K)
4000
brightfield
yes
Phase contrast
yes
Contrast methods
without

Mechanics


Type of build
Trinocular
Viewing posture (°)
45° angled eyepiece
Focusing
Coarse and fine movement
Specimen stage
Specimen stage
Revolver
4

Special features


Luminous field diaphragm
yes
Wide-angle eyepiece
yes (10X/22 mm wide field)

General


Width (mm)
200
Length (mm)
498
Height (mm)
454
Series
CKX53
Weight (g)
6,9

Field of application


Medicine
yes
Education
yes

Area of application


University
yes

Miscellaneous


supplier product number
E0460041 (E07MIS0041)

Product safety

Manufacturer: Evident Europe GmbH, Caffamacherreihe 8–10, 20355 Hamburg, DE, https://www.evidentscientific.com/

Recommended accessories

Microscopy > Microscopy accessories (19)
Objective

Evident Olympus PLN2X/0.06 Plan Achromatic Objective

$ 1,010.00*
Microscopy > Other (1)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 18.90*
Baseprice: $ 3,780.00/L
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

Evident Olympus Inverted microscope Olympus CKX53 Hellfeld V2, trino, infinity, plan, achro, 2x, 4x, 10x, LED

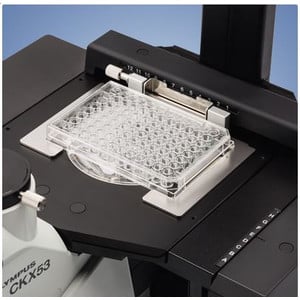

When viewing a 96-well plate, the wide visual field allows all the cells in a well to be observed without moving the stage.
