Microscopy > Microscopes > Inverted microscopes > Evident Olympus > CKX53 > Evident Olympus Inverted microscope Olympus CKX53 with stage drive, trino, INFINITY, PLAN ACHROMAT, LED, without Objectives!
Product no.: 78687

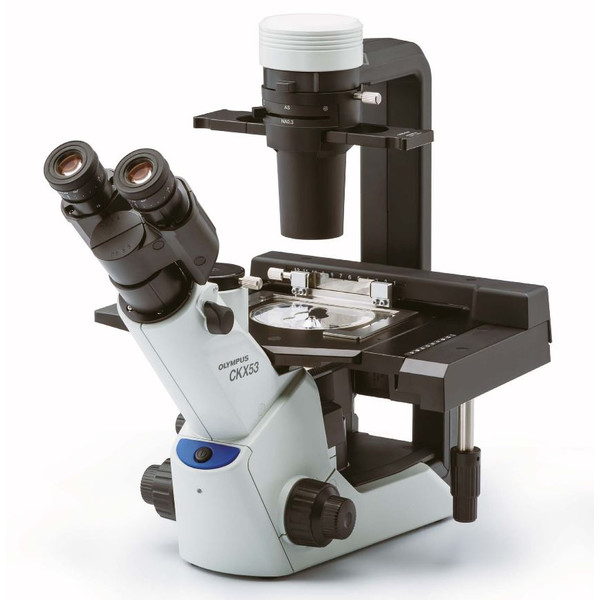

Inverted microscope Olympus CKX53 with stage drive, trino, INFINITY, PLAN ACHROMAT, LED, without Objectives!

$ 6,500.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series CKX53...

CKX53 Bright field with table drive

Manual inverted microscope stand with 22x field of view and integrated 45° trinocular tube

  • 4-position objective turret
  • Manual x/y object guide with unique foldable holder, right-hand table drive and x/y travel range (110 x 75 mm; wire rope drive system). One rotation of the x/y control corresponds to the size of a well in a 96-well microtiter plate. The holder opening is 128 x 86 mm and the maximum load capacity is 800 g (including sample holder). Compatible with IX3-HOW, IX3-HOS, IX3-HO35D, IX-SCL, IX-CP50, IX2-GCP sample holders and microtiter plates.
  • Table extension plate
  • Removable/rotatable condenser
  • Long working distance (NA 0.3, WD 72 mm, manual aperture diaphragm), max. WD 194 mm (condenser removed)
  • Coaxial coarse and fine drive
  • LED lamp housing (20,000 h service life).
  • Transparent acrylic table insert plate

Included components:

  1. Microscope stand CKX53SF-1-3 (N5731900)
  2. 1x table extension plate CK2-SS (030362)
  3. x/y object guide with table drive CKX3-MVR (N5228300)
  4. Condenser insert (manual) CKX3-SLP (N5228500)
  5. Slide holder IX-HOS (37399)
  6. Power cables UYCP (035425)
  7. Dust cover for CKX53/41/31 (N1153000)

Specifications

Optics


Lighting
Transmitted light
Lamp type
LED (4 W)

Capacity


Lamp type
LED
Temperature of color (K)
4000

Mechanics


Type of build
Trinocular
Viewing posture (°)
45° angled eyepiece
Focusing
Coarse and fine movement
Specimen stage
Specimen stage (with counterweights)
Revolver
4

Special features


Luminous field diaphragm
yes
Wide-angle eyepiece
yes (10X/22 mm wide field)

General


Width (mm)
200
Length (mm)
498
Height (mm)
454
Series
CKX53
Weight (g)
6,9

Field of application


Medicine
yes
Biology
yes
Education
yes

Area of application


Biochemistry
yes
University
yes

Product safety

Manufacturer: Evident Europe GmbH, Caffamacherreihe 8–10, 20355 Hamburg, DE, https://www.evidentscientific.com/
