Microscopy > Microscopes > Inverted microscopes > Kern > OCM > Kern Inverted microscope OCM 167, FL, PH, trino, Abbe-N.A.-0,3-Condensor fix, 10x-40x, Al, Dl, 5W LED
Product no.: 83011

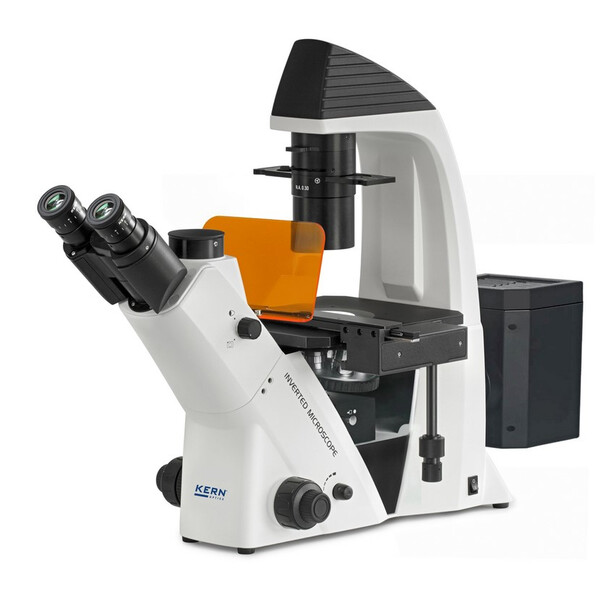

Inverted microscope OCM 167, FL, PH, trino, Abbe-N.A.-0,3-Condensor fix, 10x-40x, Al, Dl, 5W LED

$ 12,500.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

The OCM series impresses with its ergonomic and robust design, which ensures stability and comfort. With a large working distance, it is ideal for the observation and analysis of cell cultures.

A powerful, continuously adjustable 30W halogen illumination provides optimal illumination in the bright field. An Osram 100W HBO epifluorescence unit is available for fluorescence applications.

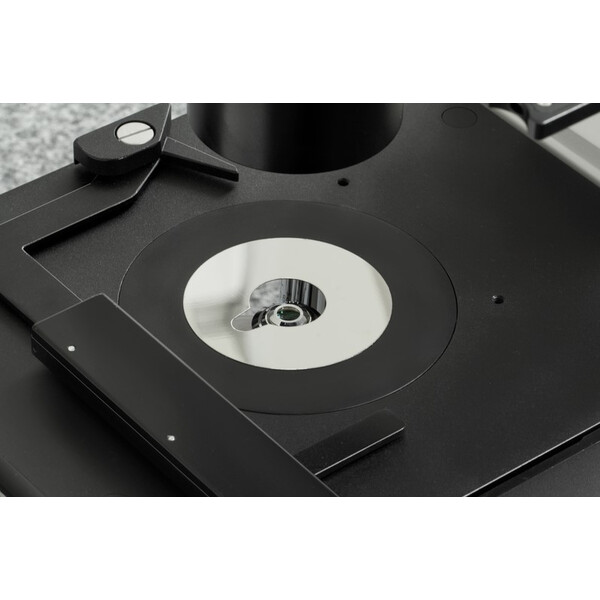

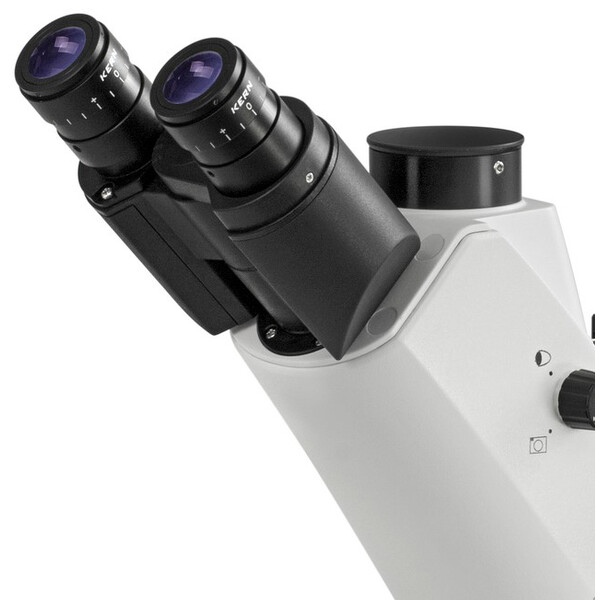

The trinocular tube and mechanical microscope stage with object holder (Ø 110 mm) enable efficient work.

Additional holders for culture dishes and other accessories are available.

Areas of application: Cell and tissue cultures

Applications: Particularly suitable for preparations in culture vessels such as dishes and bottles, as well as for low-contrast, demanding samples.

Specifications

Optics


Optical system
infinity
Objective 1
10x
Objective 2
20x
Objective 3
40x
Objective 4
PH 20x
Field curvature
Plan

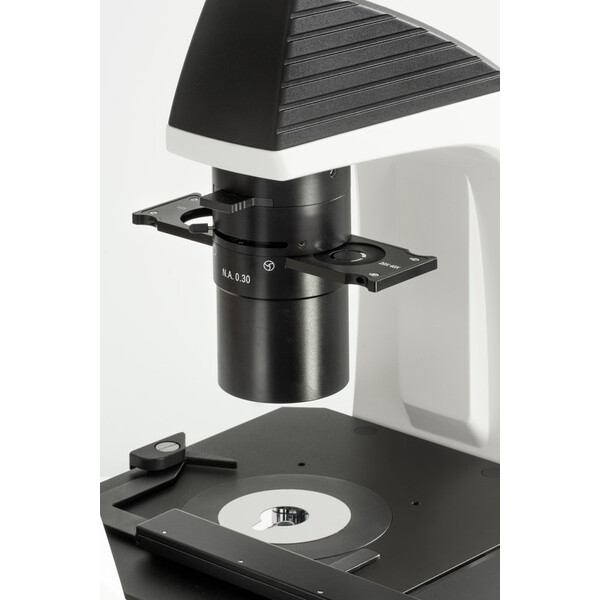

Condensor
N.A. 0,3

Capacity


Type of build
Trinocular
Field of view value
22
Incident light
5W LED
Transmitted light
5W LED

Mechanics

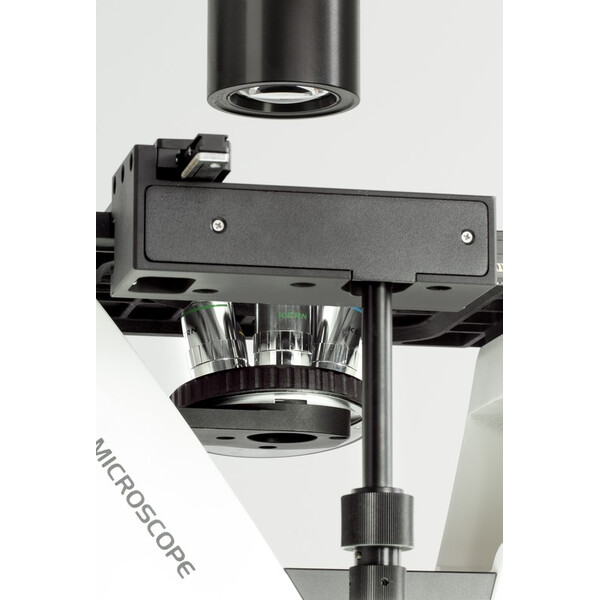

Revolver
5

General


Length (mm)
304
Height (mm)
530
Width (mm)
782
Series
OCM

Contrast methods


Fluorescence
yes

Miscellaneous


supplier product number
OCM 167

Product safety

Manufacturer: KERN & Sohn GmbH, Ziegelei 1, 72336 Balingen, DE, http://www.kern-sohn.com/
