Microscopy > Microscopes > Inverted microscopes > Motic > AE31E > Motic Inverted microscope AE31E trino, infinity, CCIS Plan 4x LWD, Ph10x/20x40x, 100W Hal
Product no.: 67673

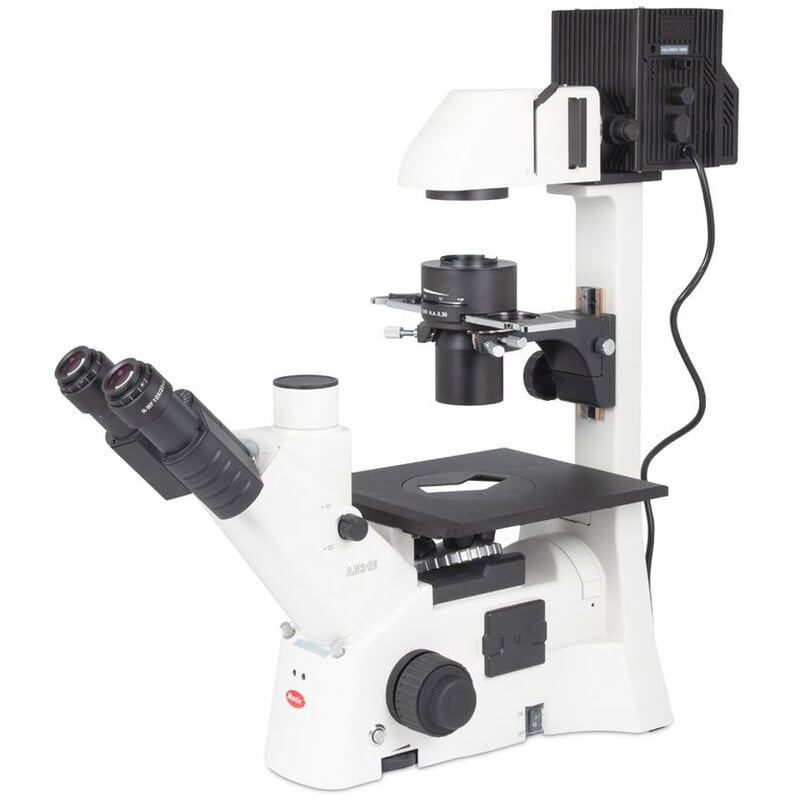

Inverted microscope AE31E trino, infinity, CCIS Plan 4x LWD, Ph10x/20x40x, 100W Hal

$ 6,100.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Delivery not guaranteed until Christmas.
Show alternatives
Right of return up to January 31 2025!


Product description

More about the series AE31E...

AE31E trino, infinity, 40x-400x, phase, Hal, 100W

  • Observation tube: Trinocular head, Siedentopf type, 360º swiveling
  • Trinocular light split: 100:0/20:80 (optional 100:0/0:100)
  • Transmittedt illumination: Quartz Halogen 12V/100W with intensity control
  • Optical system: Colour Corrected Infinity Optical System (CCIS®)
  • Inclination: 45º inclined
  • Interpupillary distance: 48-75mm
  • Diopter adjustment: On both eyepieces, +/- 5 diopter
  • Eyepieces: Widefield WF10X/22mm with diopter adjustment
  • Nosepiece: Left side facing quintuple
  • Objective: classification CCIS® Plan Achromatic, DIN

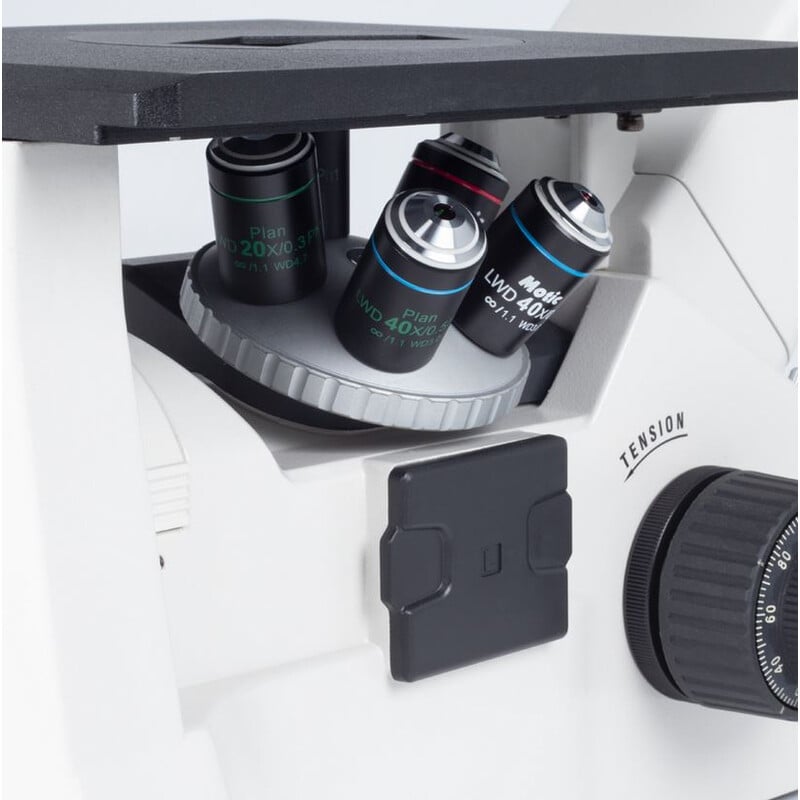

  • Objectives:

  1. 4X/0.10 (WD 12.6mm)
  2. PH10X/0.25 (WD 4.1mm)
  3. LWD PH20X/0.30 (WD 4.7mm)
  4. LWD PH40X/0.50 (WD 3.0mm)

  • Objective mounting thread: W 4/5"x1/36" (RMS standard)
  • Stand type: Inverted
  • Stage: Plain stage with metal and glass stage inserts
  • Stage size: 200x239mm

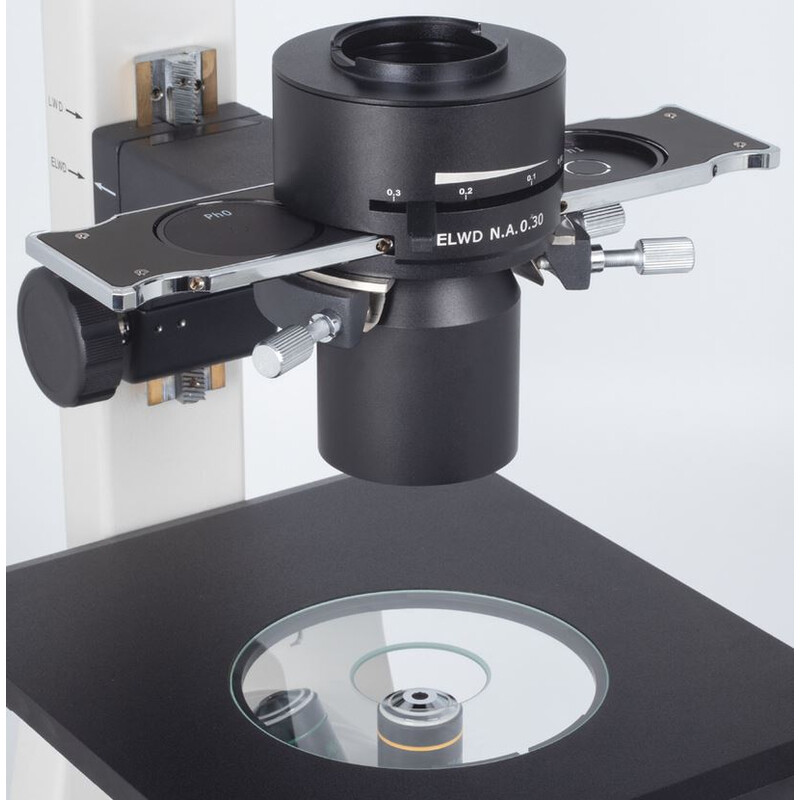

  • Condenser: Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm)
  • Diaphragm: Iris diaphragm
  • Focus mechanism: Coaxial coarse and fine focusing system with tension adjustment
  • Fine focus: precision 2µm
  • Focusing stroke: 10mm
  • Free working distance: Working distance without condenser 231mm

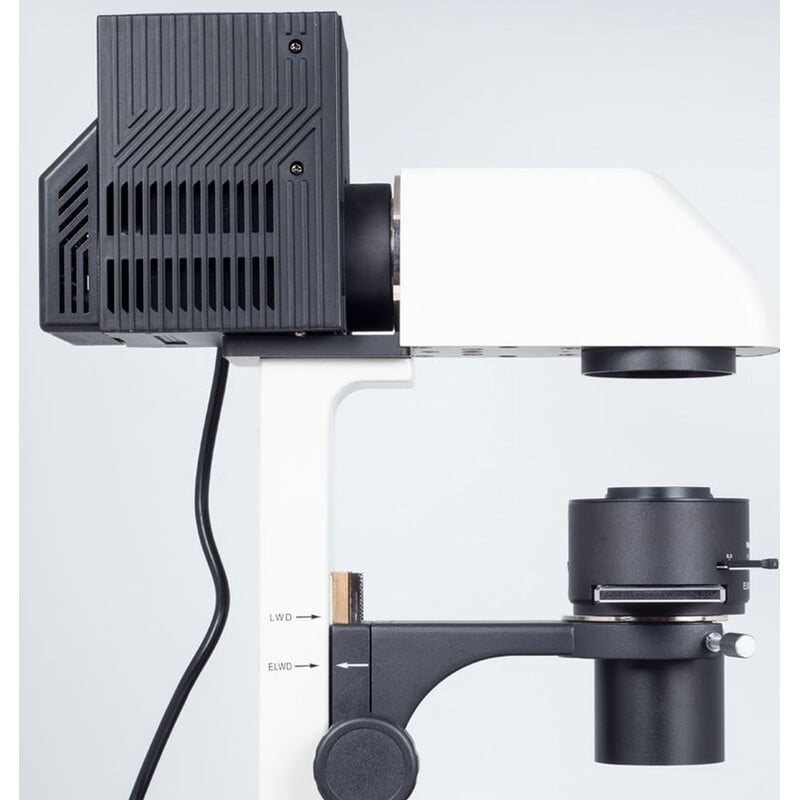

  • Transmitted illumination: Koehler Quartz halogen 12V/100W with intensity control

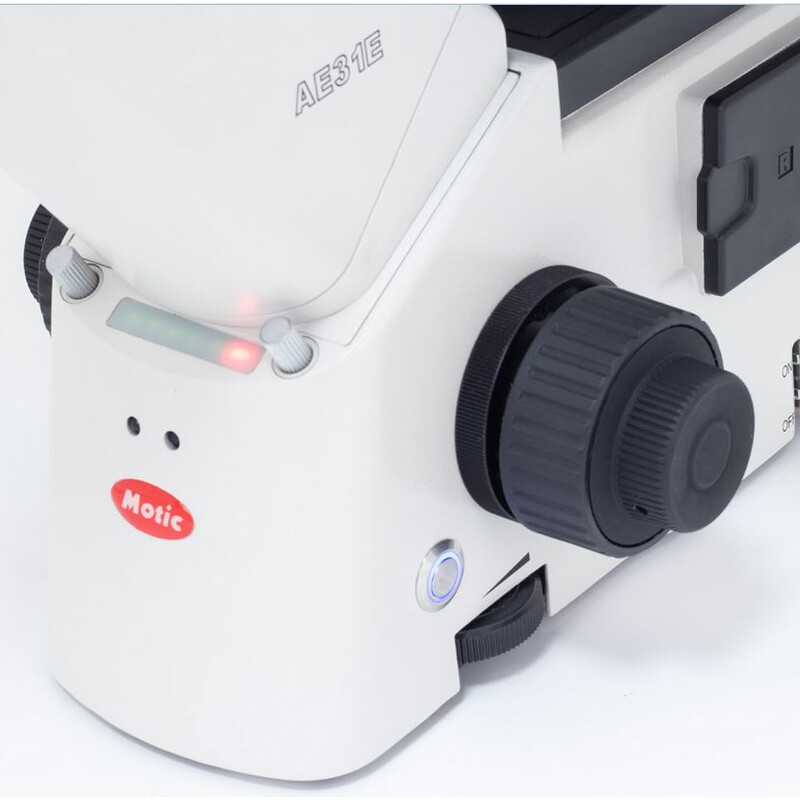

  • Illumination features: Auto-OFF and Light Memory function
  • Transformer: External
  • Power supply: 100-240V (CE)
  • Accessories included:

  1. Dust cover
  2. power cord
  3. Hex key
  4. blue
  5. green interference
  6. round glass filters
  7. phase ring Ph1
  8. centering telescope
  9. centering keys
  10. spare fuse

  • Dimensions: LxWxH 629x200x595mm
  • Net weight: 13.2kg

Specifications

Optics


Magnification
400
Eyepiece
10
Lens type
Plan, achromatic
Condensor
ELWD condenser (N.A. 0.30 WD 72mm) with aperture stop and filter holder
Lighting
Transmitted light
Lamp type
Halogen (12V/100W)
Objective 1
4x/0.10 w.d.12.6mm
Objective 2
10x/0.25 w.d.4.1mm phase
Objective 3
20x/0.30 w.d. 4.7mm LWD, phase
Objective 4
40x/0.50 w.d.3.0mm LWD, phase

Capacity


Brightness control
yes
Power supply
100-240V, VDE plug (CE) mains adaptor
brightfield
yes
Phase contrast
yes
Contrast methods
Phase contrast

Mechanics


Type of build
Trinocular
Viewing posture (°)
45
Focusing
Coarse and fine movement
Specimen stage
Specimen stage
Revolver
5

Special features


Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes

General


Colour
grey/black
Weight (g)
11700
Height (mm)
595
Length (mm)
629
Width (mm)
200
Series
AE31E

Field of application


Medicine
yes
Education
yes

Area of application


University
yes

Miscellaneous


supplier product number
1100100200576
