Microscopy > Microscopes > Inverted microscopes > Optika > IM-5 > Optika Inverted microscope IM-5, trino, inverse, 10x24mm, LED 8W without objectives
Product no.: 75705

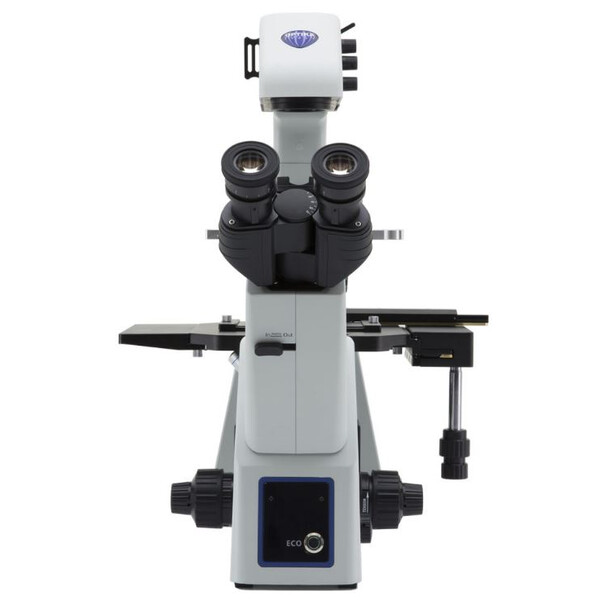

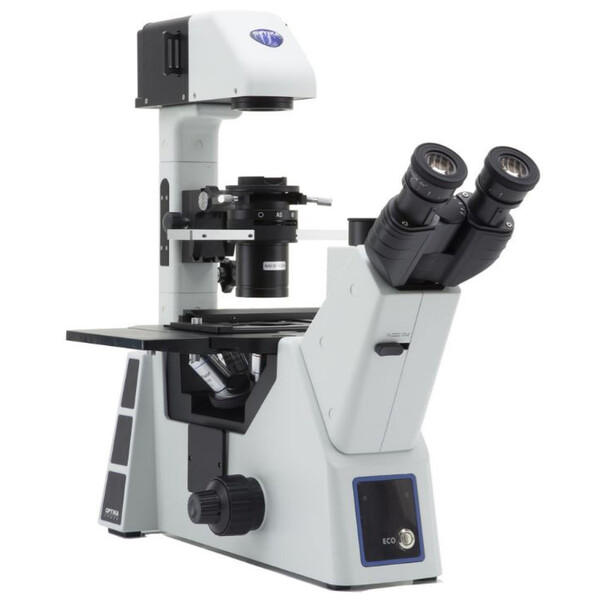

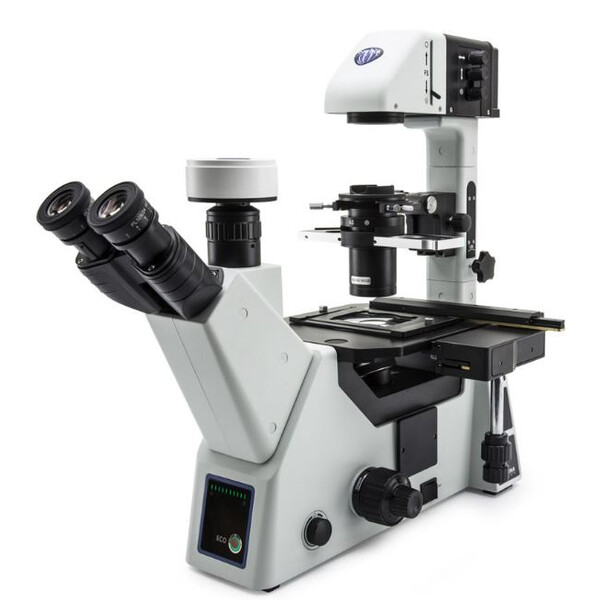

Inverted microscope IM-5, trino, inverse, 10x24mm, LED 8W without objectives

RRP: $ 5,800.00 Our price:
$ 5,200.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

More about the series IM-5...

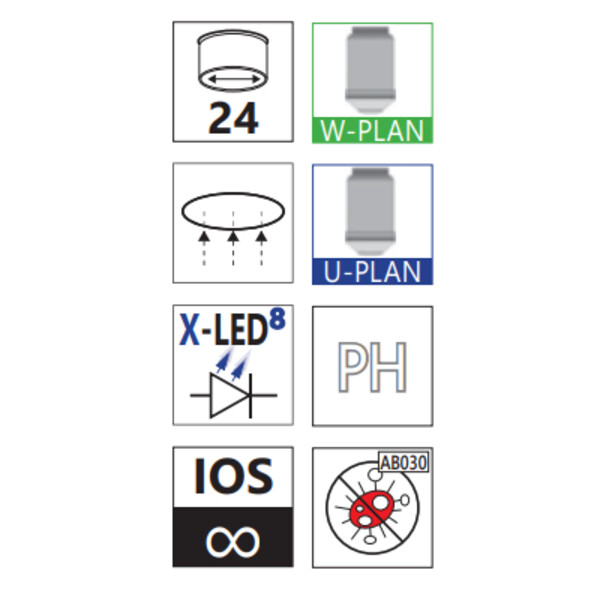

In brief:

  • State-of-the-art, durable, energy-saving and yet powerful X-LED8 lighting
  • An exceptionally large field of view with a field number of 24 mm
  • The condenser is not only removable but also rotatable.
  • ECO mode and intensity indicator are located directly on the tripod.

IM-5 - The best option for routine & research:

The OPTIKA IM-5 is a new inverted research microscope that provides brilliant images for the examination of living cells, organisms and various other samples in large vessels. It combines bright field, dark field and phase contrast techniques for the most demanding users.

This inverted research microscope opens up new horizons by offering a Köhler condenser, ergonomic, handy controls and significant, unique features such as the highest F.O.V. (F.N. 24 mm) available for an inverted microscope.

IM-5 Brightfield & Phase Contrast Microscope (IM-5)

The IM-5 in its basic configuration is an inverted microscope for phase contrast, bright field and dark field (dry) and is ideal for laboratory conditions (especially for cell culture and live cell imaging). It offers a high viewing angle, freely configurable lenses to suit different preferences, a high field number (FN24), an infinity-corrected optical system, coaxial focusing, a mechanical microscope stage, an Abbe condenser and powerful, uniform white 8W X-LED8 lighting. The IM-5 also stands out thanks to its stability, robustness and reliability. All main adjustment options are located in ergonomic positions. Together with the long-life LED, this results in a system that can be used for over 20 years.

Highlights

Head: Trinocular (fixed 50/50), 45° inclined
Dioptric adjustment: both eyepieces
Eyepieces: WF10x/24 mm, high eye point, with retractable eyepiece cups
Objective turret: Five-position ball bearing rotatable objective turret, inverted
Objectives: Selectable according to customer preferences. All with anti-fungus coating.
Microscope stage: Fixed stage, 215×250 mm and attachable mechanical extension, 290×250 mm, 120×80 mm X-Y movement range.
Focusing: Coaxial coarse and fine focus with end stop to prevent contact between objective and sample. Adjustable tension of the coaxial coarse focus knob.
Condenser: Abbe N.A. 0.50, removable, with iris diaphragm and phase contrast slider.
Transmitted light (Full Koehler):X-LED8 with white 8 W LED and brightness control. Colour temperature: 6,300 K. Multi-plug: 100-240Vac/12Vdc external power supply.

Specifications

Optics


Eyepiece
10x/24
Lens type
Plan, achromatic
Lamp type
LED (8 Watt)
Condensor
LWD, N.A.0.50, w.d. 28mm
Lighting
Transmitted light
Optical system
infinity
infinity corrected
yes

Capacity


Temperature of color (K)
6300
brightfield
yes
Contrast methods
without

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement
Viewing posture (°)
45° oblique viewing

Special features


Centering stage
yes
Wide-angle eyepiece
yes

General


Width (mm)
290
Height (mm)
545
Length (mm)
560
Colour
grey/black
Weight (g)
10
Series
IM-5

Field of application


Medicine
yes

Miscellaneous


supplier product number
IM-5

Product safety

Manufacturer: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
