Microscopy > Microscopes > Inverted microscopes > Optika > IM-5 > Optika Inverted microscope IM-5FLD, FL, trino, inverse, 10x24mm, AL/DL, LED 5W, 8W without objectives
Product no.: 75706

Inverted microscope IM-5FLD, FL, trino, inverse, 10x24mm, AL/DL, LED 5W, 8W without objectives

RRP: $ 14,800.00 Our price:
$ 13,300.00 incl. VAT plus shipping costs
too expensive?
long-term
ready for shipping in 6-10 weeks + lead time

Product description

More about the series IM-5...

In brief:

  • State-of-the-art, durable, energy-saving and yet powerful X-LED8 lighting
  • An exceptionally large field of view with a field number of 24 mm
  • The condenser is not only removable but also rotatable.
  • ECO mode and intensity indicator are located directly on the tripod.

IM-5 - The best option for routine & research:

The OPTIKA IM-5 is a new inverted research microscope that provides brilliant images for the examination of living cells, organisms and various other samples in large vessels. It combines bright field, dark field and phase contrast techniques for the most demanding users.

This inverted research microscope opens up new horizons by offering a Köhler condenser, ergonomic, handy controls and significant, unique features such as the highest F.O.V. (F.N. 24 mm) available for an inverted microscope.

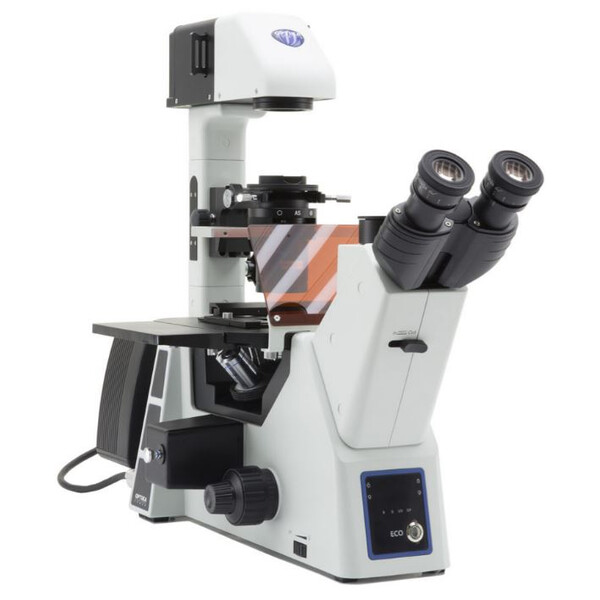

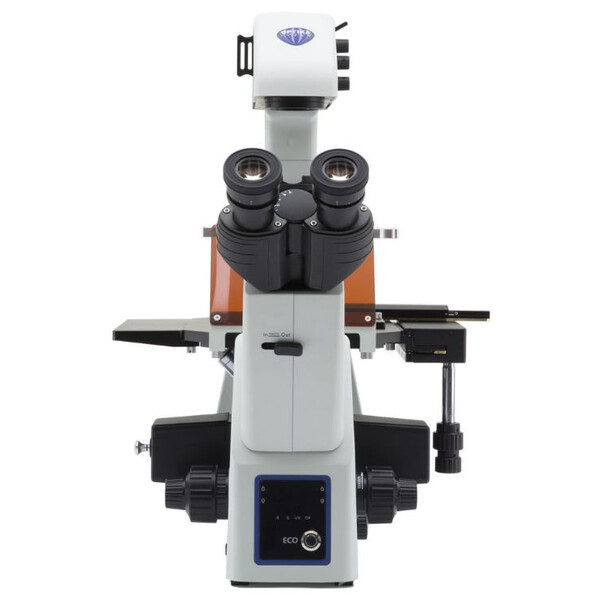

IM-5FLD - LED Fluorescence Microscope

The IM-5FLD is an inverted microscope for phase contrast, bright field, dark field (dry) and LED fluorescence and is ideal for laboratory conditions (especially for cell culture and live cell imaging). It offers a high viewing angle, freely configurable lenses to suit different preferences, a high field number (FN24), an infinity-corrected optical system, coaxial focusing, a mechanical microscope stage, an Abbe condenser and powerful, uniform white 8W X-LED8 lighting.

The 4-position Epi-Fluorescence Module is powered by extremely powerful fluorescence illumination with 5 W LEDs and is equipped with blue, green and UV excitation filters for visualising the following fluorophores: Acridine Yellow, Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP (blue filter) plus Rhodamine, Texas Red and TRITC (green filter) plus Alexa Fluor® 350, 7- Amino-4-methylcoumarin, 6-Aminoquinoline, Calcofluor® White, Dansyl cadaverine, DAPI, Dapoxyl, DIDS, Europium (III) Chloride, Fluoro-Gold™, Fura-2, Hoechst 33342 & 33258, 1.5 IAEDANS, Indo-1, Marina Blue®, 4-Methylumbelliferone, PBF1, Pyrene, SBFI, Y66F, Y66H (UV filter) and many more. LED fluorescence provides unparalleled comfort by eliminating warm-up and cool-down phases, as well as all the inconveniences associated with lamp replacement and adjustment.

The IM-5FLD is also characterised by stability, robustness and reliability. All main settings are located in ergonomic positions. Together with the long-life LED, this results in a system that can be used for over 20 years.

IM-5 Series

OPTIKA IM-5 is a new inverted research microscope producing brilliant images for the examination of living cells, organisms and several other specimens in large flasks, combining brightfield, darkfield and phase contrast techniques for the most demanding users.

This inverted research microscope drives to new horizons providing Köhler condenser, ergonomic handy controls and significant unique features, such as the highest F.O.V. available on an inverted microscope (F.N. 24 mm).

IM-5 is freely configurable in terms of objectives, by choosing among:

– IOS LWD W-PLAN (Plan-Achromatic LWD for brightfield, F.N. 22)

– IOS LWD W-PLAN PH (Plan-Achromatic LWD for phase contrast, F.N. 22)

– IOS LWD U-PLAN F (Semi-Apochromatic LWD for brightfield, F.N. 25)

– IOS LWD U-PLAN F PH (Semi-Apochromatic LWD for phase contrast, F.N. 25)

IM-5FLD

Head: Trinocular (split ratio: 100/0, 0/100), 45° inclined.

Dioptric adjustment: Both eyepieces.

Eyepieces: WF10x/24 mm, high eyepoint and with retractable rubber cups.

Epi-fluorescence illumination & filters: High-power 5 W LEDs with brightness control, motorized LED selection with centrable field diaphragm, 4-position filter holder; blue (EX 450-490, DM 495, EM 500-550), green (EX 540-580, DM 585, EM 608-682) and UV (EX 340-390, DM 400, EM 420LP) excitation filters included.

Nosepiece: Quintuple ball bearings revolving nosepiece, reversed.

Objectives: Selectable according to customer’s preferences. All with anti-fungus treatment.

Specimen stage: Fixed stage, 215×250 mm and attachable mechanical stage, 290×250 mm, 120×80 mm X-Y movement range.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Condenser: Abbe N.A. 0.50, removable, with iris diaphragm and slider for phase contrast.

Transmitted illumination (Full Koehler): X-LED8 with white 8 W LED and brightness control. Color temperature: 6,300 K. Multi-plug 100-240Vac/12Vdc external power supply.

Standard filtersets

Name: B (Blue)

Excitation filter (nm): 450–490

Dichroic mirror cut-off (nm): 495

Emission filter (nm): 500-550

Name: G (Green)

Excitation filter (nm): 540–580

Dichroic mirror cut-off (nm): 585

Emission filter (nm): 607-682

Name: UV (Ultraviolet)

Excitation filter (nm): 340-390

Dichroic mirror cut-off (nm): 400

Emission filter (nm): 420LP

Objectives

To be chosen among:

Plan-Achromatic LWD for brightfield:

– IOS LWD W-PLAN 4x/0.13, W.D. 10.4 mm (M-782)

– IOS LWD W-PLAN 40x/0.60, W.D. 3.1 mm (M-773)

– IOS LWD W-PLAN 60x/0.70, W.D. 1.7 mm (M-786)

Plan-Achromatic LWD for phase contrast:

– IOS LWD W-PLAN PH 4x/0.13, W.D. 10.4 mm (M-782.1)

– IOS LWD W-PLAN PH 10x/0.25, W.D. 7.3 mm (M-783N)

– IOS LWD W-PLAN PH 20x/0.40, W.D. 6.8 mm (M-784N)

– IOS LWD W-PLAN PH 40x/0.65, W.D. 3 mm (M-785)

Semi-Apochromatic LWD for brightfield:

– IOS LWD U-PLAN F 4x/0.13, W.D. 18.52 mm (M-800)

– IOS LWD U-PLAN F 10x/0.30, W.D. 7.11 mm (M-801)

– IOS LWD U-PLAN F 20x/0.45, W.D. 5.91 mm (M-802)

– IOS LWD U-PLAN F 40x/0.65, W.D. 1.61 mm (M-803)

– IOS LWD U-PLAN F 60x/0.75, W.D. 1.04 mm (M-804)

Semi-Apochromatic LWD for phase contrast:

– IOS LWD U-PLAN F PH 20x/0.45, W.D. 5.91 mm (M-1177)

– IOS LWD U-PLAN F PH 40x/0.65, W.D. 1.61 mm (M-1178)

Specifications

Optics


Eyepiece
10x/24
Lens type
Plan, achromatic
Lamp type
LED
Condensor
LWD, N.A. 0.3, W.D. 72mm
Lighting
Transmitted light
Optical system
infinity

Capacity


Temperature of color (K)
6300 K
brightfield
yes
Fluorescence
yes
Contrast methods
Fluorescence

Mechanics


Type of build
Trinocular
Focusing
Coarse and fine movement (0.002mm graduation, with locking function as object protection)
Viewing posture (°)
45° angled eyepiece
Specimen stage
Specimen stage (250 x 290 mm)
Revolver
5

Special features


Centering stage
yes
Wide-angle eyepiece
yes (10x/24mm, plan)

General


Colour
grey/black
Height (mm)
545
Length (mm)
720
Width (mm)
290
Weight (g)
13000
Series
IM-5

Contrast methods


Fluorescence
yes
brightfield
yes
Phase contrast
yes (Transmitted light)
Dark field
yes

Field of application


Medicine
yes
Biology
yes

Area of application


University
yes
Biochemistry
yes
Central laboratories
yes
Marine Biology
yes

Product safety

Manufacturer: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
