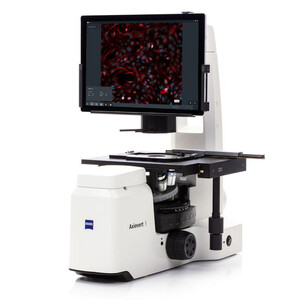

ZEISS Axiovert 5 digital
Your All-in-One Cell Imaging System.
Artificial Intelligence (AI) is already helping us with our daily lives, from automated driving and home assistants to securing smartphones with facial recognition.
Now, Axiovert 5 digital brings AI into your cell lab to ease your daily work. It will make your processes more efficient and your results more reproducible. Stay relaxed, even when there is a lot going on around you.
- Work outside the box.
- Save time and let AI do the work.
- Symply made for you.
Switch on and get started.
Experience the unlimited advantages of an all-in-one microscope system. From routine scientific work to basic research, even inexperienced users can easily produce brilliant images. All you need to do is switch on your system and start working. Don't waste time thinking about settings or adjustments – that's already been taken care of. You don't even need to worry about your cells in the closed container. You can see them at all times.
Work outside the box.
Experience the full advantages of an all-in-one microscope system. From scientific routine to basic research, even novice users are guaranteed to produce brilliant images. All you have to do is turn on your system and start working. Don’t worry about settings or adjustments – they’re already done. And don’t be afraid of how your cells are getting along in a closed box. You will always have an eye on them.
Save time.
And let AI do the work.
With Axiovert 5 digital it’s this easy to save time, that could be crucial to the vitality of your cells. Save time setting up the system, time setting up acquisition parameters, time training new colleagues, time acquiring images – and time going from images to results. Axiovert 5 digital uses artificial intelligence. Cell counting and cell confluency are automatically determined by readily available AI modules. AI is now accessible to everyone in your lab: no training or pre-knowledge required. Results are available instantly with just one click and they are absolutely reproducible. Relax and enjoy watching AI do the work for you.
Simply made for you.

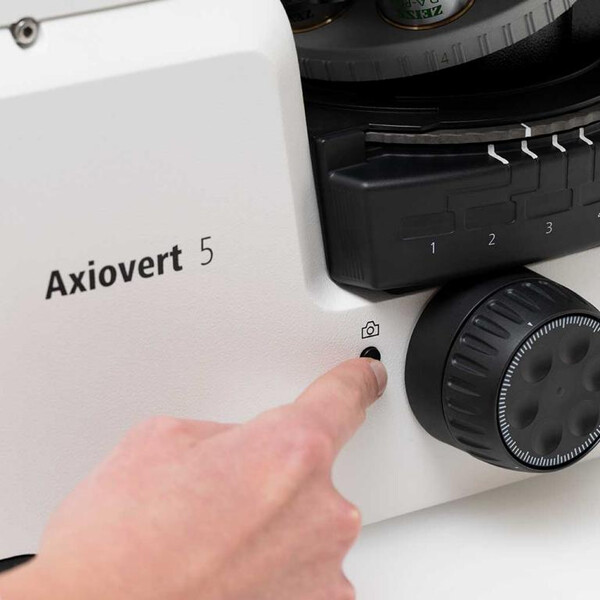

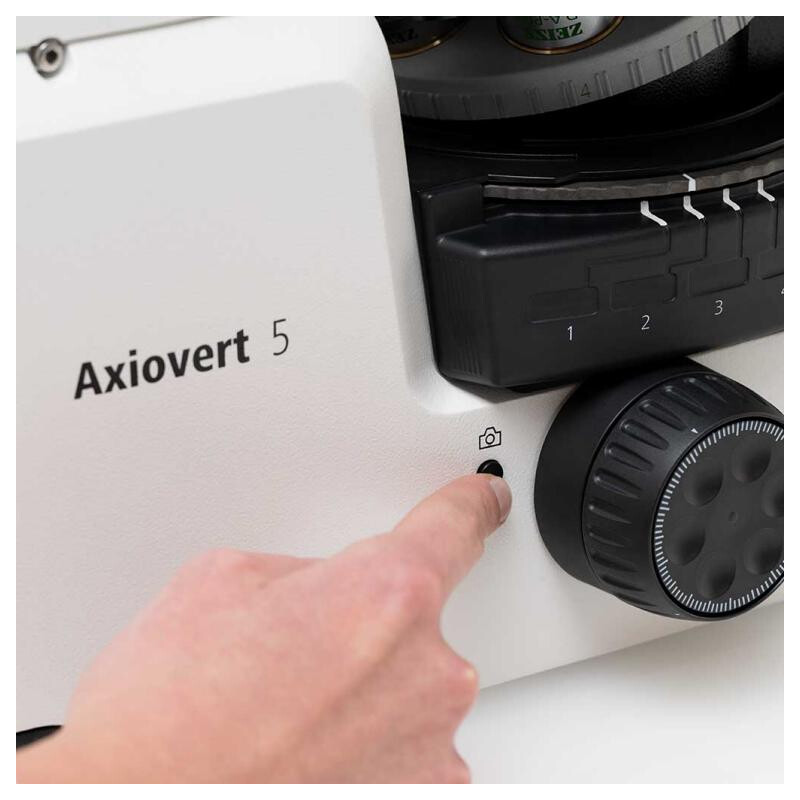

Axiovert 5 digital is your perfect fit for multi-user environments as proper system operation is supported by design. This all-in-one imaging system comes with an intuitive operating concept. One click on the snap button is sufficient to trigger:
- single image acquisition as well as multi-channel fluorescence image acquisition of up to 5 channels
- the AI cell counting and confluency workflow: acquire images and get them analyzed instantly
- video recording
Axiovert 5 digital combines proven optical quality with ease of use.
Make Your Cell Experiments More Reproducible

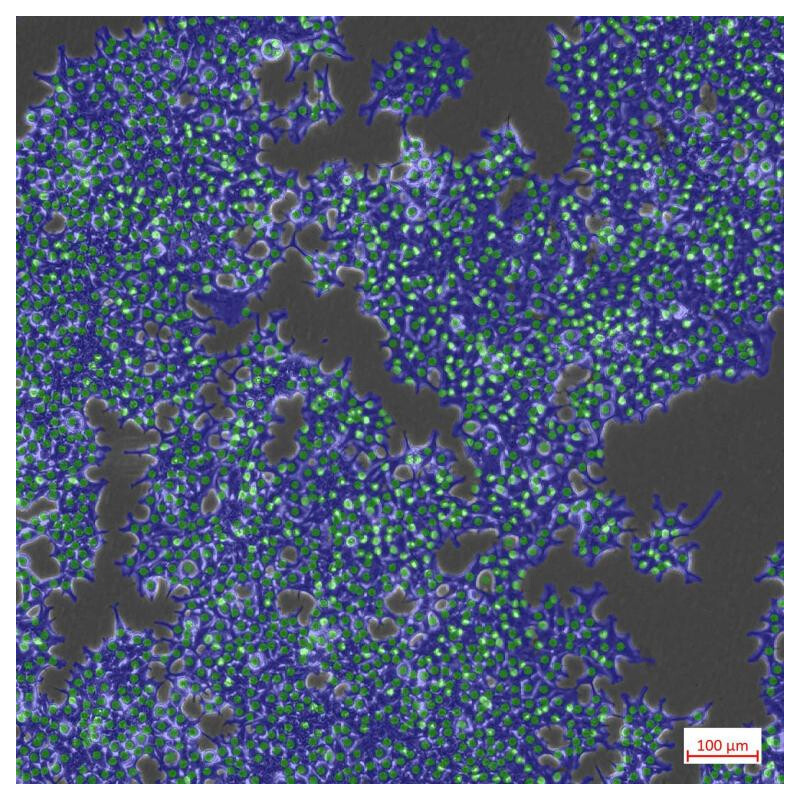

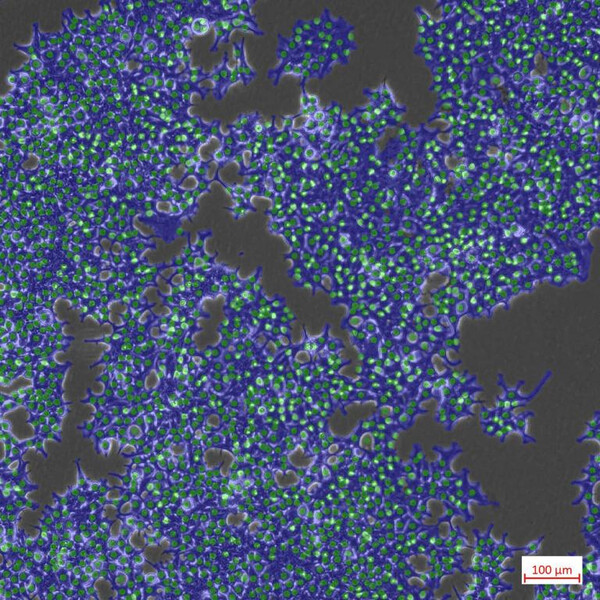

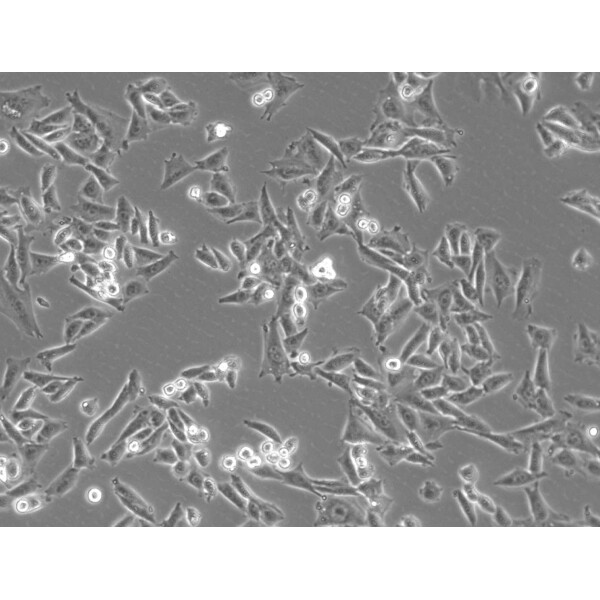

It’s time to start making your experiments more reproducible, using pre-trained artificial intelligence to analyze the number of cells and the covered cell area automatically.
The ZEISS Labscope modules AI Cell Confluency and AI Cell Counting fit perfectly into your workflow. Examine your cells as usual, then simply take a picture as you move from one position to another in your cell culture vessel. The images are analyzed automatically, and you will receive an instant result, visually and quantitatively.
Components:
- Axiovert 5 digital microscope; integrated colour camera

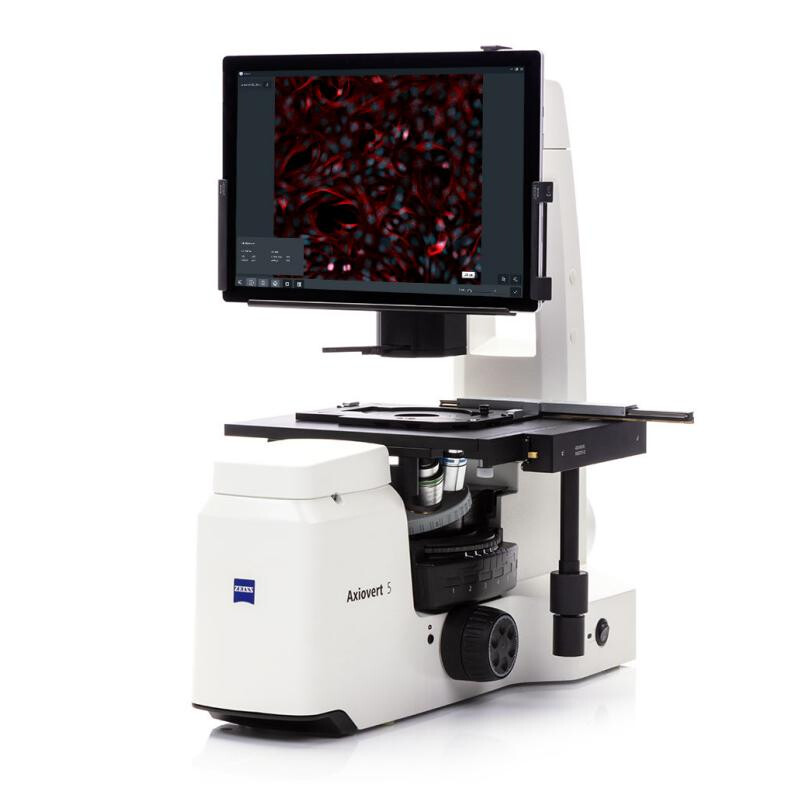

Axiovert 5 digital microscope; integrated colour camera Complete Axiovert 5 digital stand equipment with integrated colour camera; suitable for transmitted light bright field, phase contrast Ph1 and fluorescence RGB-UV. Eyepiece-free technology, prepared for tablet and Wi-Fi use. Tablet holder for Apple® iPad Pro® 4th/5th generation 12.9" or Microsoft Surface Pro 7 (CPU: i5 or higher, RAM: 8 GB or higher) 12.3", Microsoft Surface Pro 8 (CPU: i5 or higher, RAM: 8 GB or higher) 13.0", height and angle adjustable - 6x H M27 coded objective turret - 6x coded reflector turret for P&C modules - manual coarse/fine focus drive - focus travel 13 mm with adjustable focus stop - trigger for integrated camera - carrier transmitted light illumination with white light LED 10W (average LED life > 60,000 h) and phosphorescence block filter - Light shield for shielding ambient light - Microscope stage 232x230 with hard anodised coating - Object guide M 130x85 R/L - Flex M holder frame and inserts for: Microtiter plates, bottles and Petri dishes d=95 mm; petri dishes d=88 mm, 65 mm, 54 mm, 36 mm; Slide holders 76x26 mm and chambers (ibidi® #-Slide®, Nunc® Lab-Tek® / Lab-Tek II) - Integrated RGB-UV lighting system equipped with 4 solid-state LEDs (average LED lifetime depending on wavelength): - Red (630 nm) for excitation of Cy5, Alexa631, TOTO-3 and similar dyes (> 60000 h) - Green (565 nm) for excitation of Cy3, TRITC, DsRed and similar dyes (> 60000 h) - Blue (470 nm) for excitation of eGFP, Fluo4, FITC and similar dyes (> 60,000 h) - UV (385 nm) for excitation of DAPI, Alexa 405, Hoechst 33258 and similar dyes (> 40,000 h) - Filter set 90 HE LED with reflector module FL EC P&C - LD condenser 0.4 with contrast slider for bright field and phase contrast Ph1 - LD A-Plan 5x/0.15 Ph1 M27 objective - LD A-Plan 10x/0.25 Ph1 M27 objective - LD A-Plan 20x/0.35 Ph1 M27 objective lens - LD A-Plan 40x/0.55 Ph1 M27 objective lens - Integrated colour microscopy camera: - Number of pixels: 2464 (H) x 2056 (V) = 5.07 megapixel colour - Sensor type: SONY IMX264 Exmor Pregius Global Shutter CMOS - Pixel size: 3.45 #m x 3.45 #m - Chip size: 8.5 mm x 7.1 mm, equivalent to 2/3'' (diagonal 11.1 mm) - Spectral sensitivity: With IR cut filter approx. 400 nm to 720 nm - Max. charge quantity per pixel: Approx. 10,500 e - Live frame rate 25 frames/s @ 1920x1080 pixels - Readout of sensor sub-areas ("ROI") - Freely definable digitisation: 8 and 12 bits/pixel - Cooling: Temperature stable at 25°C for ambient temperatures from 18°C to 30°C - External power supply Input: 100-240V AC, 50/60Hz Output: 24V DC, 5A - country-specific power cord - USB 3.0 Type C data and 60W fast charging cable for Apple® iPad Pro® or Microsoft Surface Pro - for use with Labscope for Windows / iOS - USB 3.0 memory stick, Type C and Type A - Dust covers Apple® and iPad Pro® are registered trademarks of Apple Inc. Microsoft and Microsoft Surface are trademarks of the Microsoft Group. ibidi® and #-Slide® are registered trademarks of ibidi GmbH. Nunc® and Lab-Tek® are registered trademarks of Nunc. Inc.
- Labscope for iOS / Android
- Labscope 4.4 for Windows
- Labscope Multi Channel DLic module
