Astronomy > Filters > L-RGB Filters > Astronomik > L-3 UV-IR Block > Astronomik Filters Luminanz L-3 EOS-Clip XL UV-IR blocking filter
Product no.: 49275

Filters Luminanz L-3 EOS-Clip XL UV-IR blocking filter

$ 171.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-7 days + lead time
This product is available in the following variants:
Frame Price
1,25" $ 91.00
2" $ 159.00
Clip-Filters $ 171.00
Clip-Filters $ 113.00
SC thread $ 182.00
T2 (M42 x 0,75) $ 148.00
ring $ 113.00
ring $ 159.00
ring $ 102.00
unmounted $ 205.00
unmounted $ 75.00

Product description

The luminance channel is very important for successful astrophotography! The sharpness, contrast and low noise of the luminance data are crucial for achieving the best possible quality in the final result!

The task of the L filter is to have maximum transmission across the entire visible spectrum, because the combination of the widest possible passband and high transmission allows the greatest possible number of photons to be captured.

Not all telescopes or additional elements such as correctors, field flatteners and Shapley lenses have perfect colour correction. An L filter with too wide a bandwidth allows wavelengths to pass through for which your optics are not properly corrected. The result is unattractive bloated, blurred stars that do not match the RGB colour channels.

Astronomik presents three different UV+IR block filters for the luminance channel, designated L-1, L-2 and L-3. Please pay attention to the corresponding designation in the product name.

How to find the right luminance filter: Depending on the colour correction of the instruments used, the L filter with the largest transmission should be used. The L-1 filter has by far the largest spectral transmission, whereas the L-3 filter has the narrowest spectral window. If your optics can be classified as colour-accurate, the L-1 filter is the right choice. For general use, e.g. on telescopes with different colour purity or when using additional light-refracting elements in the beam path, we recommend the Astronomik L-2 version. For "colourful" optics, e.g. an achromatic lens, we recommend the Astronomik L-3 filter to increase the sharpness of the image.

The transmission properties and coating technology of the new Astronomik L series have been developed so that no halos or reflections are visible. Even with bright stars in the field of view, nebulae and galaxies are reproduced with the finest structures and the highest contrast.

Like all filters from Astronomik, the L-1, L-2 and L-3 filters have an extremely resistant and durable coating applied to a special fine-optical substrate, as used in space flight. The basic requirements for such material are freedom from streaks, tension and bubbles. Furthermore, the Astronomik filter carriers are processed to the same thickness in a separate work step: Perfect homofocality and minimal keystone distortion are the resulting advantages!

Tip: Use the Astronomik CLS filter instead of a luminance filter! You will receive an L signal without the lines from sodium and mercury lamps and with much less background noise.

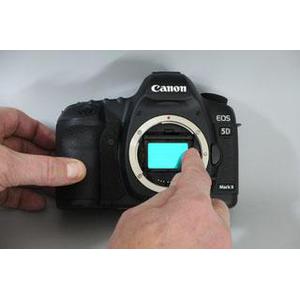

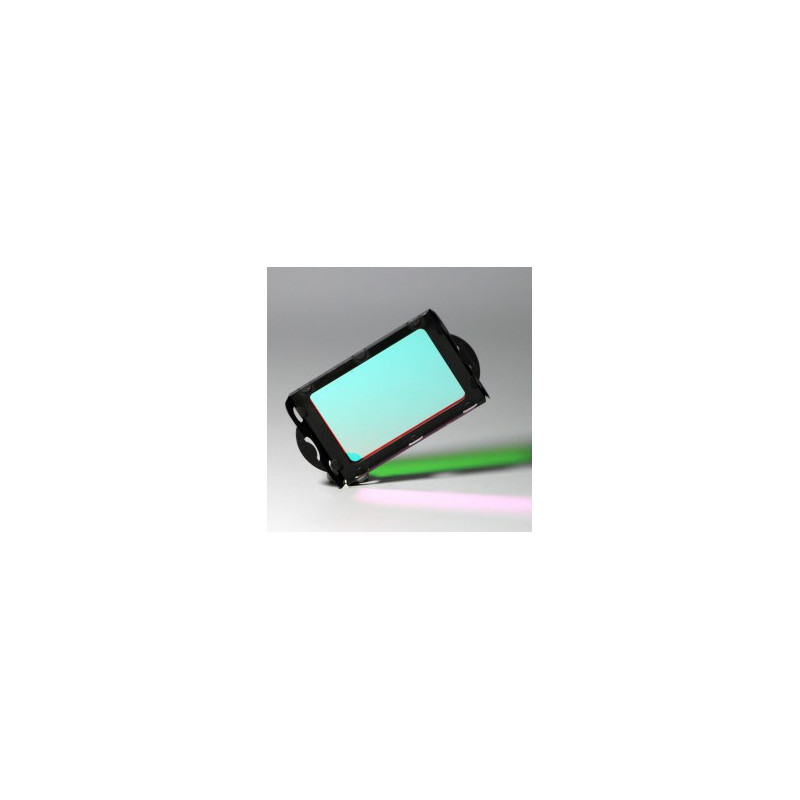

Clip filter for Canon EOS full-frame cameras 5D MKII, 5D MKIII and 6D

The clip filter can be mounted without tools: as the name suggests, it simply clicks into place on the camera body. It can also be removed without tools. No modification to the body is required to use the clip filters.

Please note that the XL Clip Filters do not work with the Canon 5DS, 5DSR, 5D Mk IV and 6D MKII! The 5D MkI only works without LiveView.

Please note: In principle, all camera lenses can be used with the Clip-Filter - i.e. Canon EF lenses or camera lenses from other third party manufacturers such as Sigma, Tamron, Tokina, Walimex etc. However, the use of clip-filters with Canon EF-S lenses is NOT possible!

Actual product may differ from image!

Our expert comment:

The filters fit Canon full-frame cameras. Operation is only possible with the mirrors fully raised. 5D MK II, 5D MKIII and 6D can be focused easily using Live View. The 5D MKI only works without Live View. The 6D MkII, 5DS, 5DSR and 5D Mk IV models do not work.

The mounted XL clip filter fixes the swing mirror in the upper position. The optical finder cannot be used while an XL clip filter is mounted. Focusing, searching for and centring objects can only be done via the Live View monitor on the back of the body or via the camera's remote control using a USB cable. All functions such as autofocus and image stabilisation remain available.

(Bernd Gährken)

Specifications

Capacity


Frame
Clip-Filters
Mount material
Aluminium
Appropriate for...
Canon EOS

General


Series
L-3 UV-IR Block
Type of build
Luminance

Area of application


Useful for photographs
yes
Visually useful
no
Anti light-pollution
no

Product safety

Manufacturer: astro-shop, Eiffestr. 426, 20537 Hamburg, DE, www.astro-shop.com
Astronomik Filters Luminanz L-3 EOS-Clip XL UV-IR blocking filter

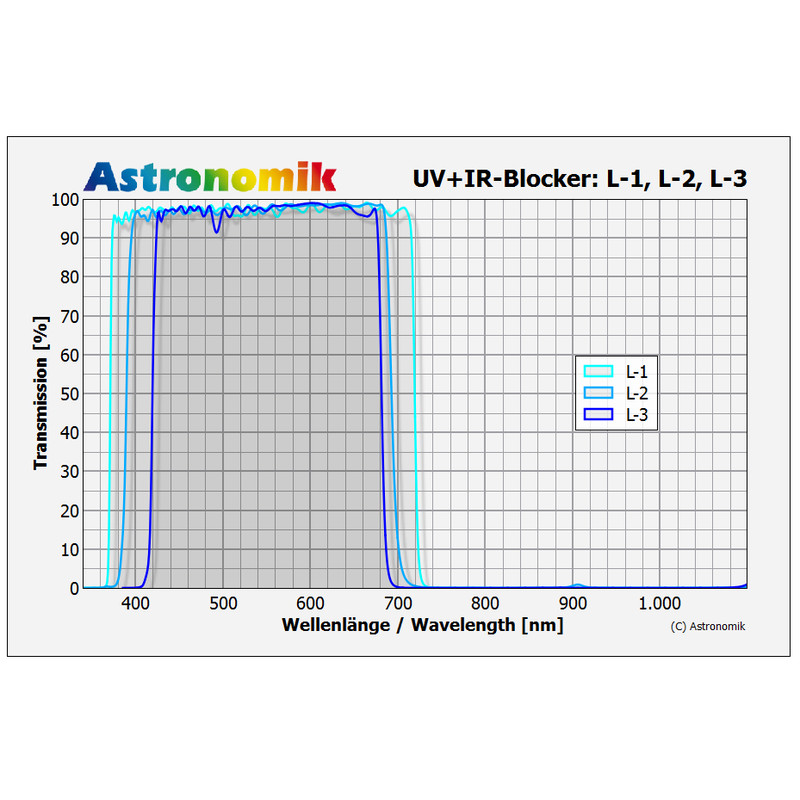

Light transmission curve
Astronomik Filters Luminanz L-3 EOS-Clip XL UV-IR blocking filter

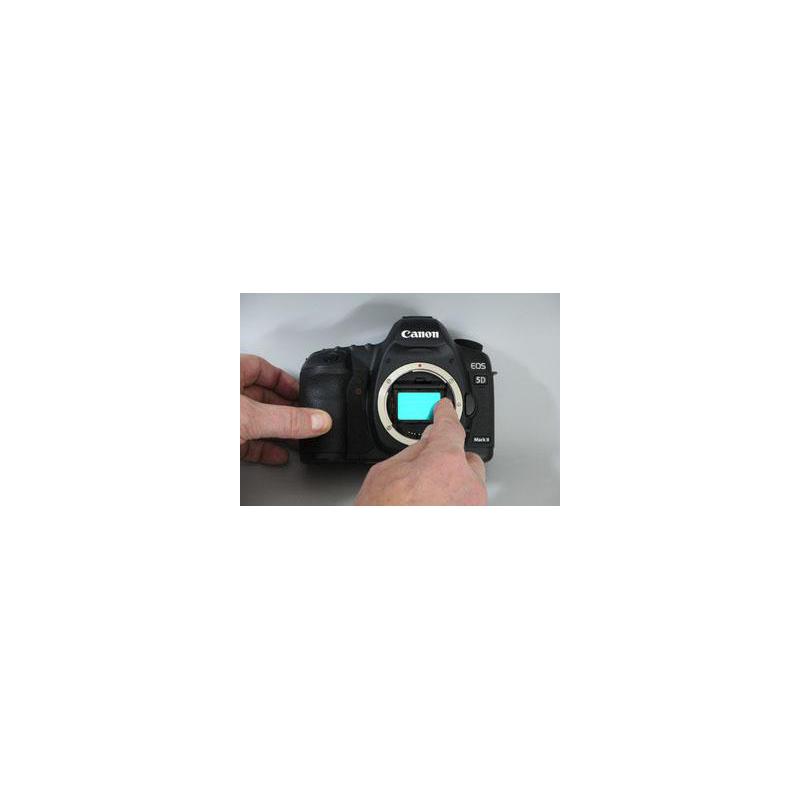

Example of use
