Fibre optic light conductor

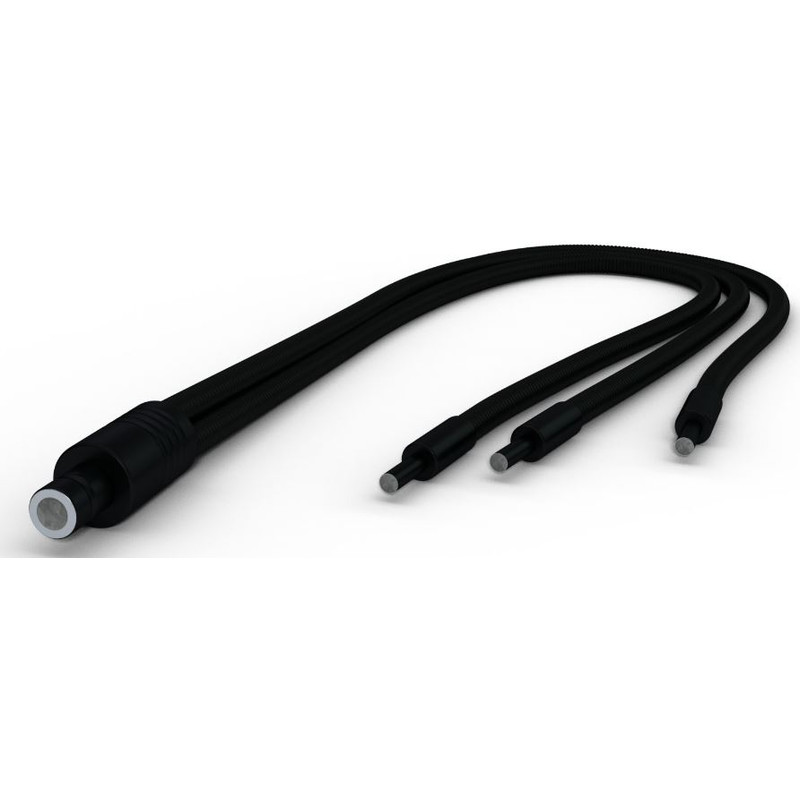

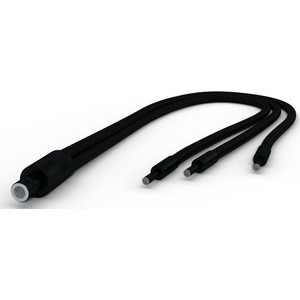

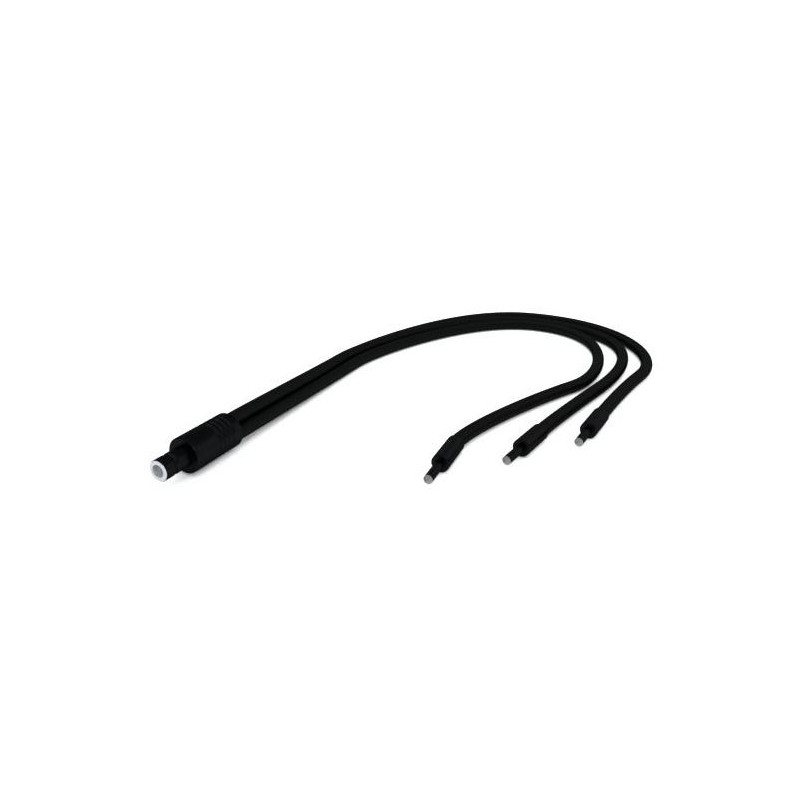

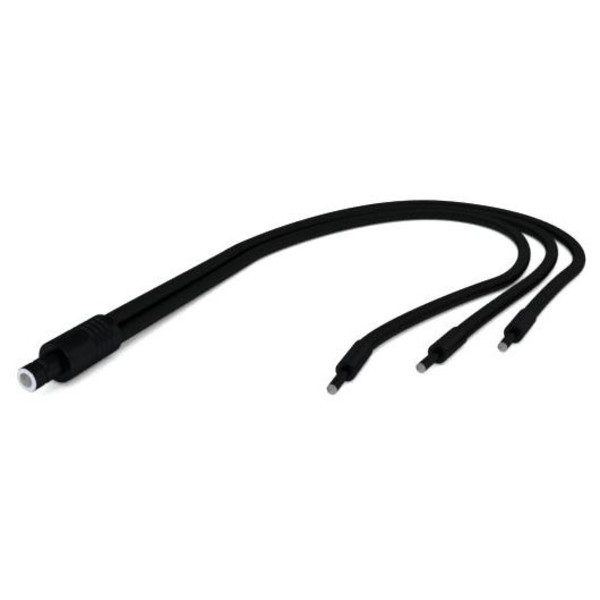

The 3-arm flexible light conductor can be used wherever light needs to be directed to hard-to-reach places.
Since only high-quality glass fibres are used in the manufacture of the light conductor and the entire production process is subject to strict quality control, it transports light to where it is needed with virtually no loss. The light conductor is available in two different lengths for different applications. The light conductor (for optical sockets with a diameter of 15 mm) fits all StarLight cold light sources as well as corresponding instruments from other manufacturers. In other cases, adjustments and customised designs are possible at any time. The light conductor can be optimally positioned with accessories.
- For halogen and LED light sources
- Low heat generation on the object
- Versions with several freely movable arms
- Very good transmission
- High flexibility and light output
- Point-like lighting
- Adaptable to light sources from all manufacturers
- Customisable to customer requirements
- For halogen and LED cold light sources
- Low head generation on object
- Versions with several flexible arms
- Best transmission
- High flexibility and luminous efficiency
- Spot illumination
- Adaptable to cold light sources from all manufacturers
- Adaptable to customer needs

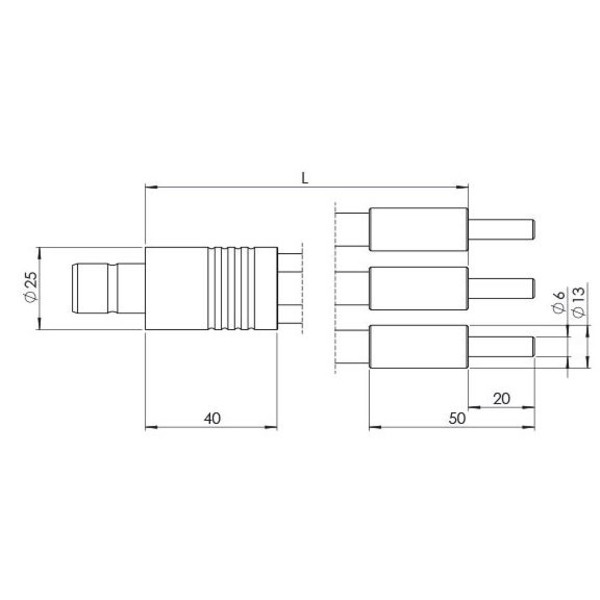

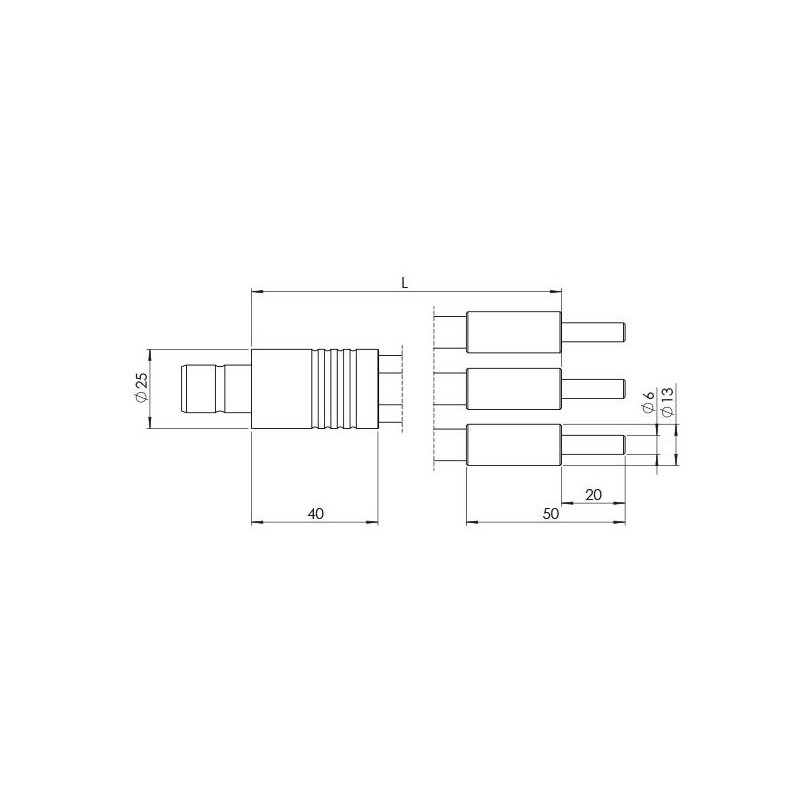

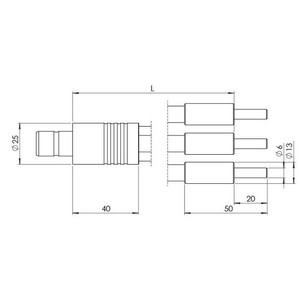

Technical Data
Number of arms 3
Diameter active light guide 4,5 mm
Length 1000 mm

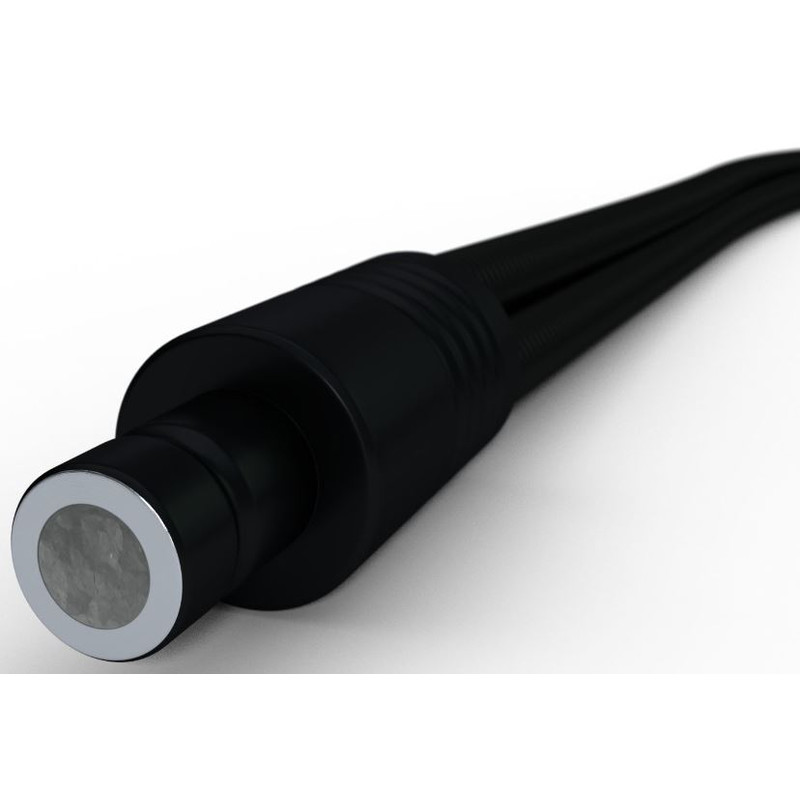

Light guide access Standard 15 mm

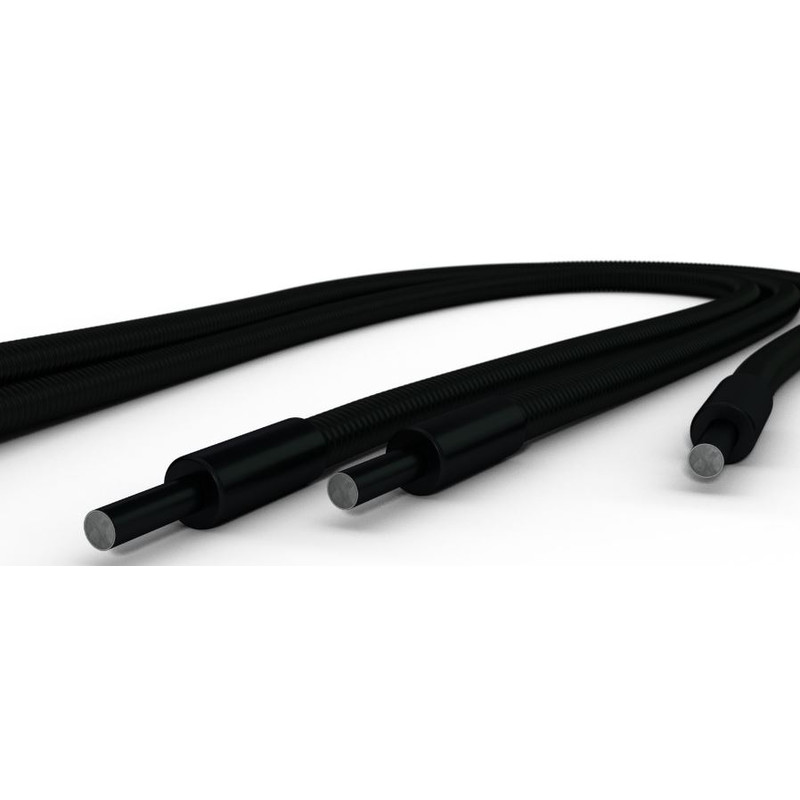

Diameter light output 13 mm
Diameter light input 15 mm
Outer tube diameter 10 mm
Illumination point-like
Beam angle 70°
Temperature input (light source) max. 240°C
Ambient temperature max. 80°C
Material tube Steel spiral, PVC
Active diameter of light conductor 4.5 mm
Length 1600 mm
Light guide connection standard 15 mm
Light output diameter 13 mm
Light input diameter 25 mm
Outer diameter of hose 10 mm
Lighting point
Beam angle 70°
Hose material PVC
Customs tariff number 85447000
