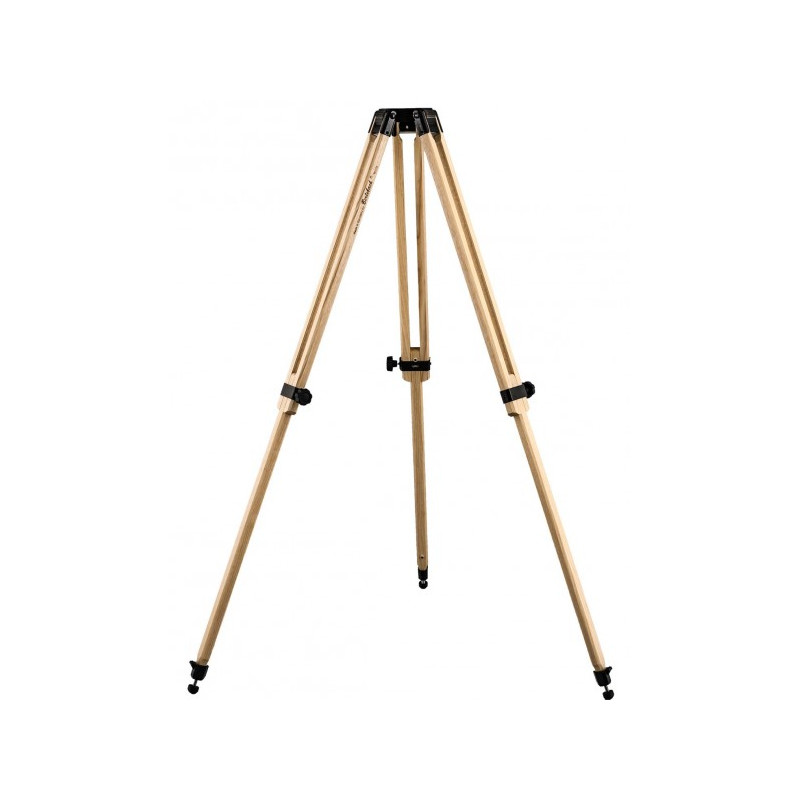

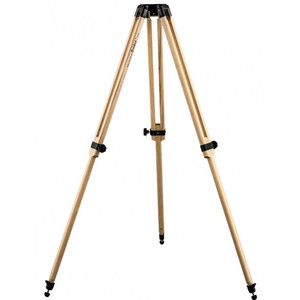

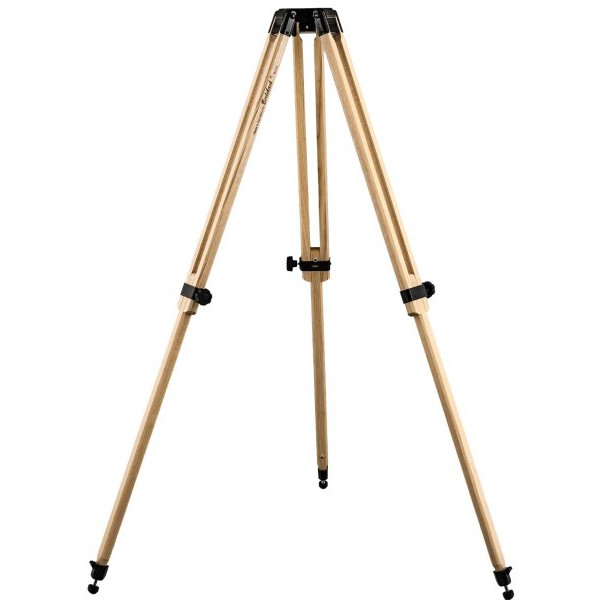

The Modular Report Tripod System: The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components.

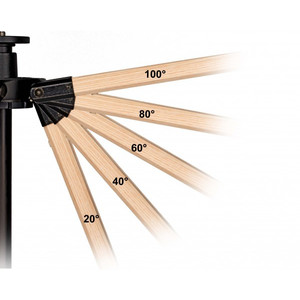

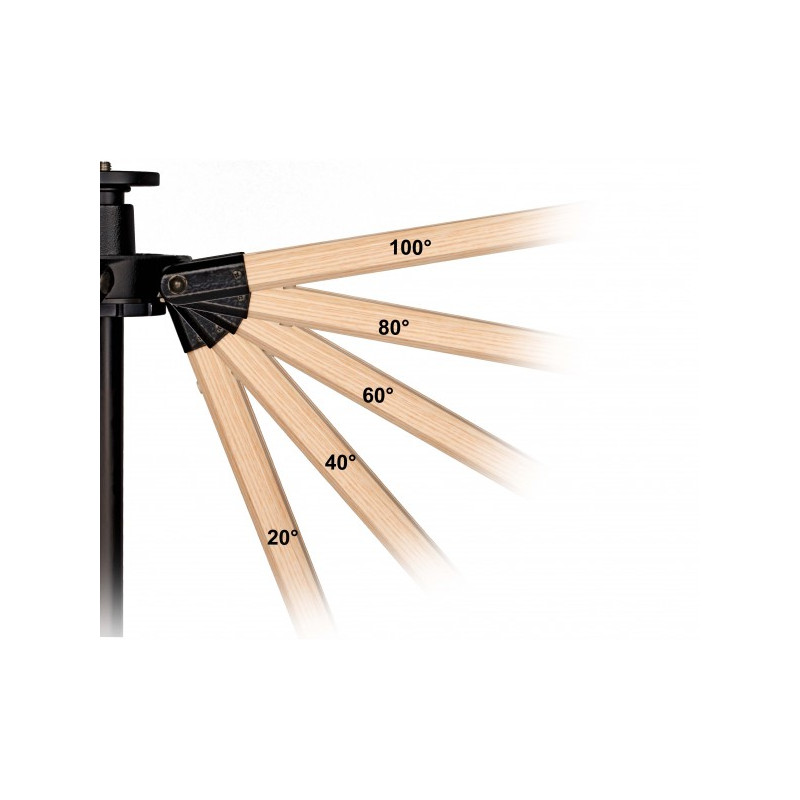

Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

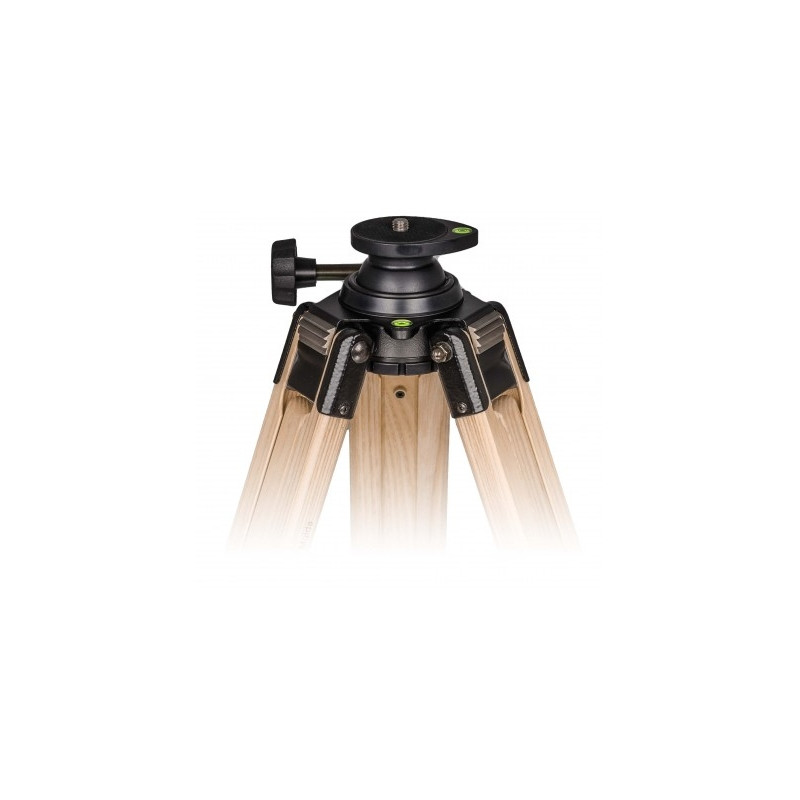

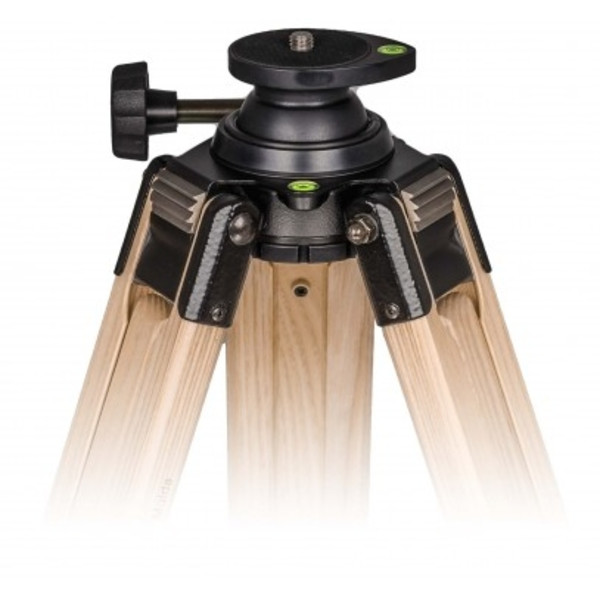

The Module Insert 3 has a permanently installed levelling ball (diameter 55 mm) with a swivel range of 30°. The built-in spirit level allows quick and accurate alignment of the tripod.
This module is particularly recommended when using heavy equipment, as the built-in ball allows you to work without an additional tilt head in some cases. The camera or lens is attached directly to the tripod (spring-loaded mounting screw).
