In brief:

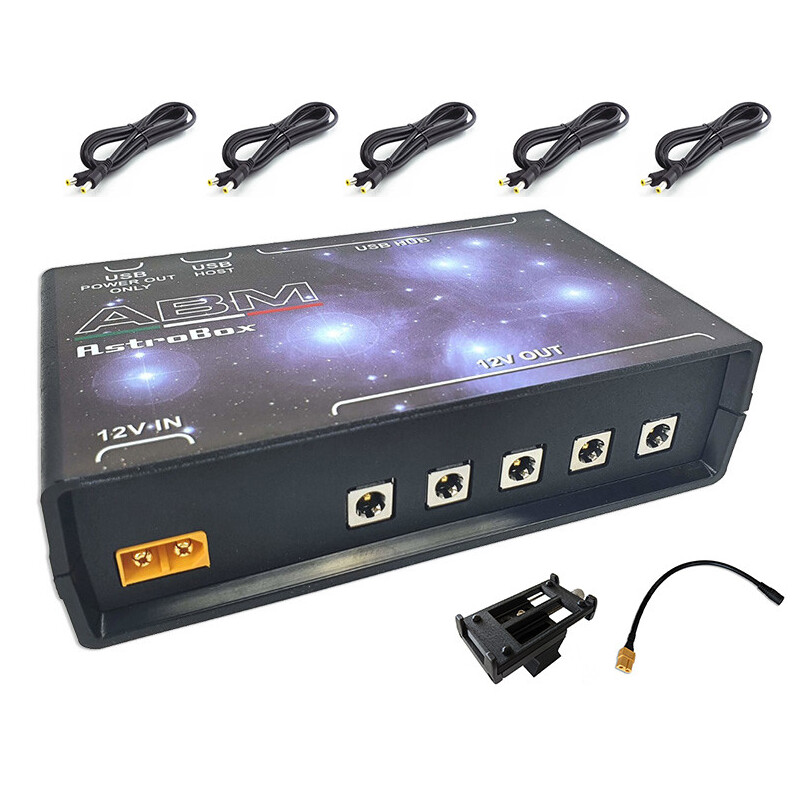

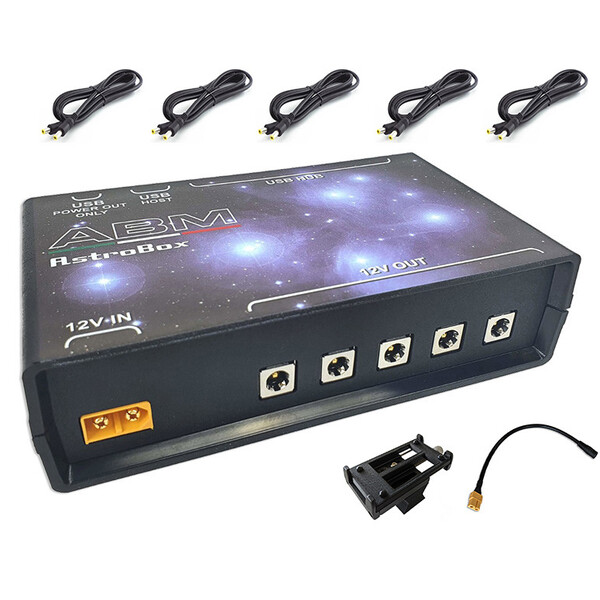

- AstroBox Bundle
- 1x AstroBox Core

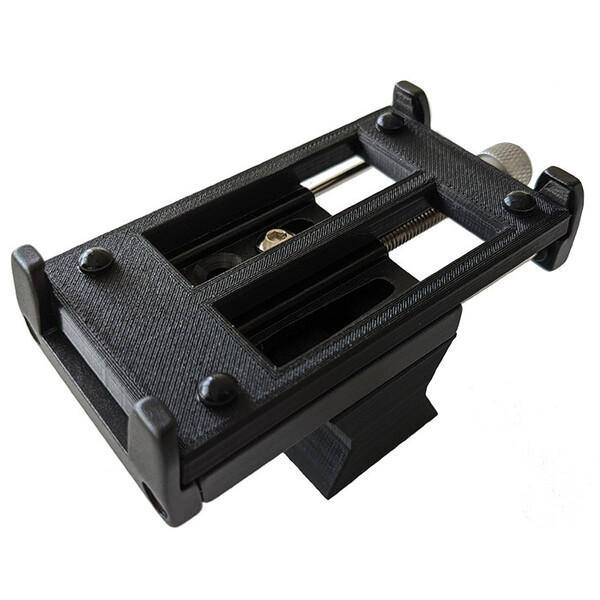

- 1x AstroBox holder

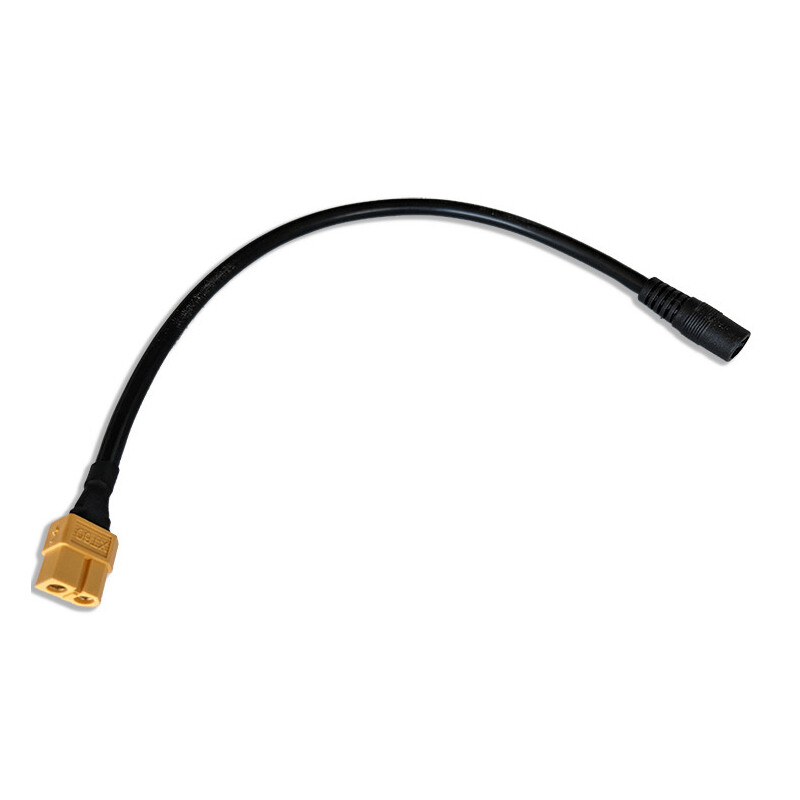

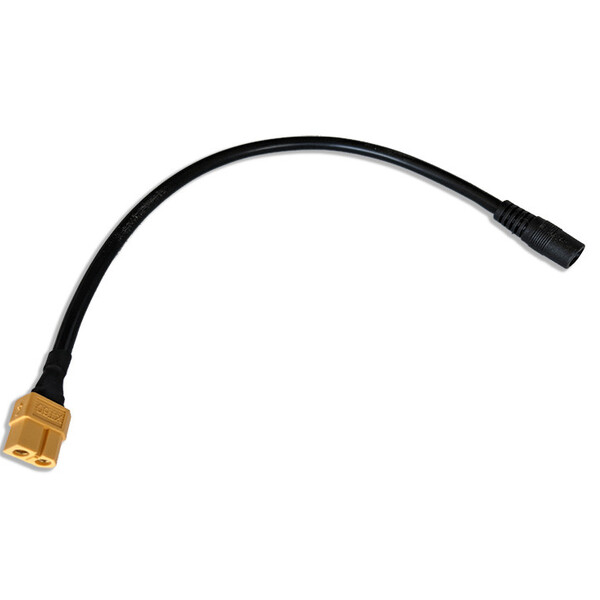

- 1x adaptor XT60 socket to DC socket 5.5x2.5

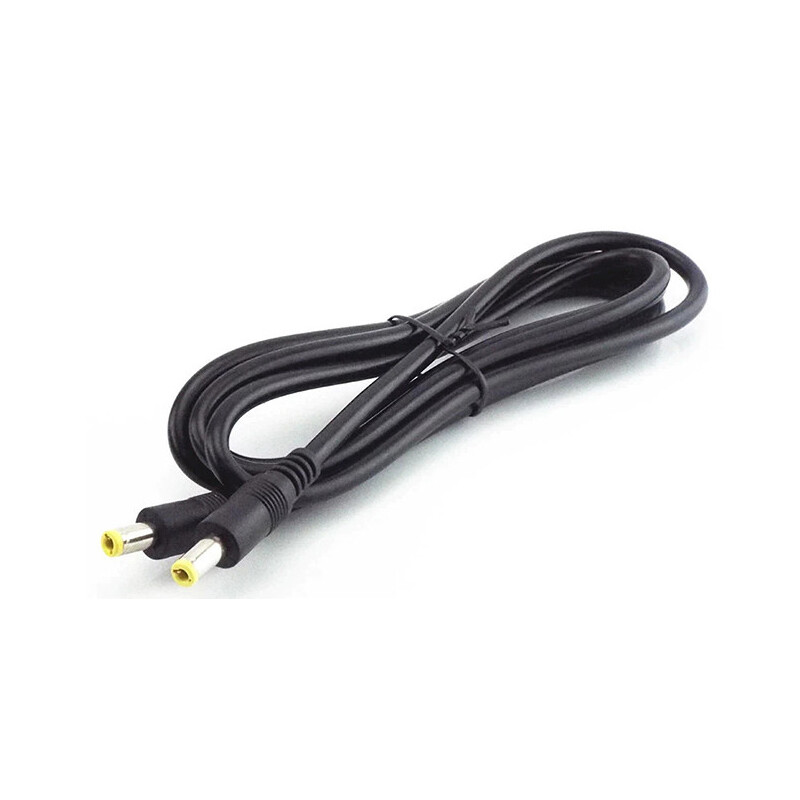

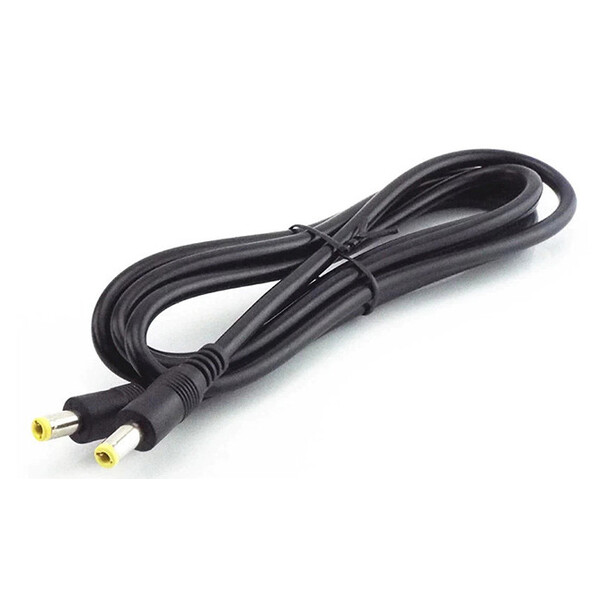

- 3x 18AWG cable 50cm
- 2x 18AWG cable 100cm
Technical data:
- Power supply 12V 30A max. (with reverse polarity protection)
- 5x 12V outputs for 5.5x2.1 high-performance barrel connectors
(Each output can supply up to 5A and is protected by an electronic fuse against overvoltage and short circuit)
- 7x high-speed USB2 hub (480 Mbit) with its own power supply
(The maximum current that can be supplied is 6A, distributed across all ports. Each port is protected against electrostatic discharge, short circuits and overvoltage of more than 2A.)
- One USB power connection (useful for powering exchange protection strips / LED panels / ASIAIR, etc.)
The Astrobox supplies power to any external instrument (without data exchange). It is protected by an electronic fuse against overvoltage and short circuit.
