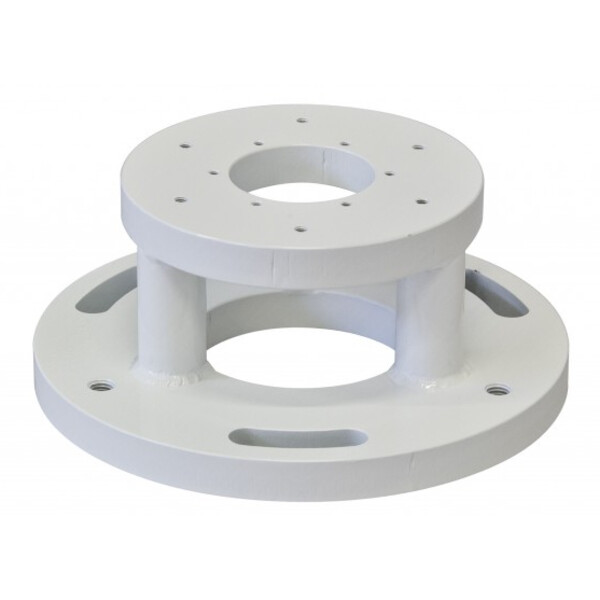

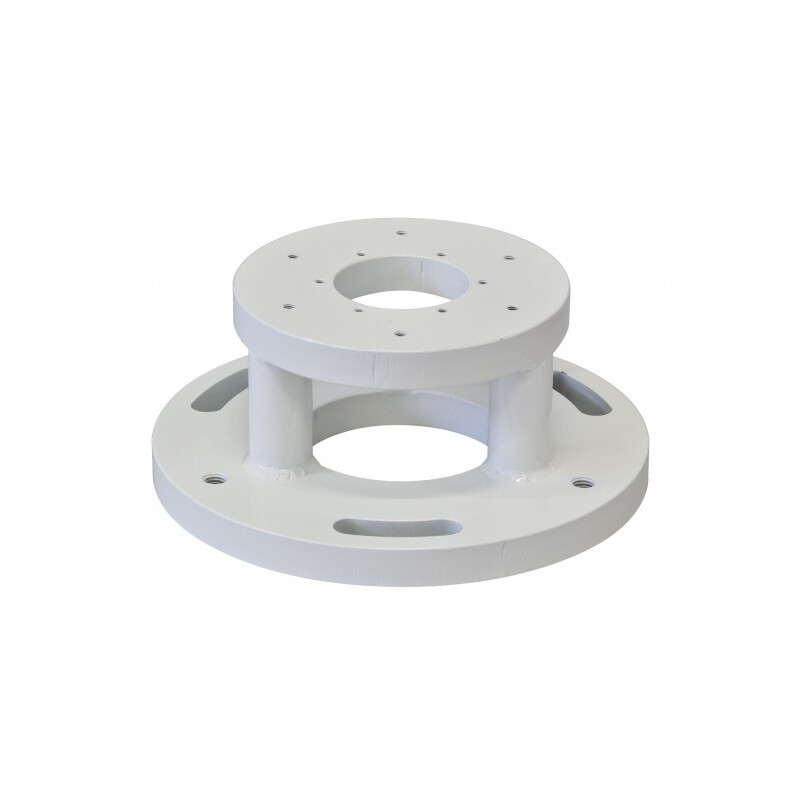

The Baader levelling flange for GM 1000 mount is used to adjust unevenness of the base plate or concrete column or deviations of the substructure from the perfect north-south alignment as close as possible to the mount very precisely and stably without reducing the stability of the column.
Further features:
- is suitable as a connecting flange for 10 Micron Column Steel pier for GM 2000 mount
- consisting of two strong steel plates, connected by 6 steel columns
- Upper plate milled flat and pre-drilled for screwing to the base plate of the mount
- Standard height 106 mm
Please note: the Baader levelling flanges are ONLY available in conjunction with the delivery of a corresponding 10micron mount, as they are custom-made. You cannot order the flange separately.
